DS3 T3 Fiber modem / extender / converter
AN-DS3 is a high-speed fiber optics modem that converts DS3/T3 signal into optical data stream.
- High reliability, comply to all relevant standards
- Single Fiber Bi-Directional is selectable
- State-of-the-art design, ensure normal working under different environment.
- Supports local and remote loop – back on electrical or optical interface for system diagnostic.
- Suitable for DS3/T3 interface interconnection.
- Simple operation and maintenance
- Compact design and low power consumption.
Optical interface
Connector: SC – using receive and transmit integral whole mold piece.
Wavelength: 1.31μｍ(typical), with a typical transmission distance of 40 km
over single mode optical fibers,
1550 nm for up to 100 km
Electrical interface
Comply with ITU-T G.703 T3 recommendation
Bit rate: 44.736Mbit/s
Impedance: 75 ohm (unbalanced)
Power
DC type: –48V（–36V to –60V）
AC type: ~220V（176V~265V）
Power consumption:<3W
Working environment
Temperature: 0 ~50°C
Humidity: ≤90% non condensing 1.5.
Dimension
Width: 205mm
Height: 46mm
Depth: 135mm
Application scenario:
| AN-DS3/SM-40 | DS3 T3 optical electrical fiber modem / converter / extender, 40 km single mode dual fiber, AC or DC power supply options |
|
| AN-DS3/SM-60 | DS3 T3 optical electrical fiber modem / converter / extender, 60 km single mode dual fiber, AC or DC power supply options |
|
| AN-DS3/SM-80 | DS3 T3 optical electrical fiber modem / converter / extender, 80 km single mode dual fiber, AC or DC power supply options |
|
| AN-DS3/SM-100 | DS3 T3 optical electrical fiber modem / converter / extender, 100 km single mode dual fiber, AC or DC power supply options |
|
| AN-DS3/SM-120 | DS3 T3 optical electrical fiber modem / converter / extender, 120 km single mode dual fiber, AC or DC power supply options |
|
| AN-DS3/SM-WDM20 | DS3 T3 optical electrical fiber modem / converter / extender, 20 km single mode single fiber, AC or DC power supply options |
|
| AN-DS3/SM-WDM40 | DS3 T3 optical electrical fiber modem / converter / extender, 40 km single mode single fiber, AC or DC power supply options |
|
| AN-DS3/SM-WDM60 | DS3 T3 optical electrical fiber modem / converter / extender, 60 km single mode single fiber, AC or DC power supply options |
Description
AN-DS3 modem / converter / extender can be used to provide 44.736M (T3) signal conversion between electrical interface and optical interface of DS3 / TS3 based network interface. It conforms to the ITU- T G.703 T3 recommendation. The converter features compactness, light weight, low power consumption and high reliability.
The 45M optical / electrical converter operates on 1310 nm lasers, with a typical transmission distance of 40 km over single mode optical fibers. For longer hops, 1550 nm lasers can be selected for 100 km and more distances. WDM single fiber single strand also is available on request.
Exterior power supply, all the functional blocks are integrated on a single PC board, which makes the converter compact and reliable. 220 V AC or – 48 V DC power options are available by selecting an appropriate plug-in power unit.

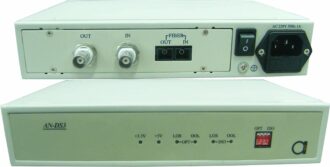

AN-DS3 electrical interfaces are BNC sockets, “IN” is incoming T3 electrical signal and “OUT” is outgoing T3 electrical signal. The optical interfaces are SC type sockets using receive and transmit integral whole mold piece.
