DVI 1080p, RS-232 and external audio over fiber extender / converter

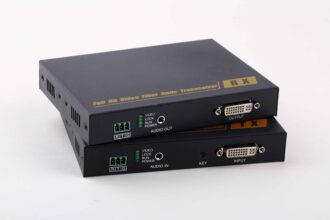

The AN-DVI-EXT04 Fiber optic extender provides extension of DVI signals long distances over one fiber optic cable, it supports high resolution up to 1080P, RS232 signal and external audio transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits DVI video signals up to 10km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz;
Support external stereo audio unidirectional transmission;
Support RS232 signal unidirectional transmission, baud rate self-adaptive;
Compliance with DVI 1.0 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;
Support copy EDID, can match many kind display device;

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	2.97Gbps
	Resolution	19201080@60Hz 19201080@50Hz 19201080@30Hz 19201080@25Hz 19201080@24Hz 1080I@60Hz 1080I@50Hz 1280720@60Hz 1280*720@50Hz
	Connector	DVI-D
	Impedance	100Ω
Audio	Interface	3.5mm earphone seat
Audio	Signal type	Stereo
RS232	Interface	Industrial terminal
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
Optical fiber	Interface	LC connector
	Fiber type	Single-mode single fiber
	Wavelength	Single-mode 1310nm
	Interface bandwidth	3Gbps
	Transmission distance	standard 10km
Other	Power supply	The power adapter: DC 5V/2A~12V/1.25A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	15411525mm
	The warranty	1 year free warranty

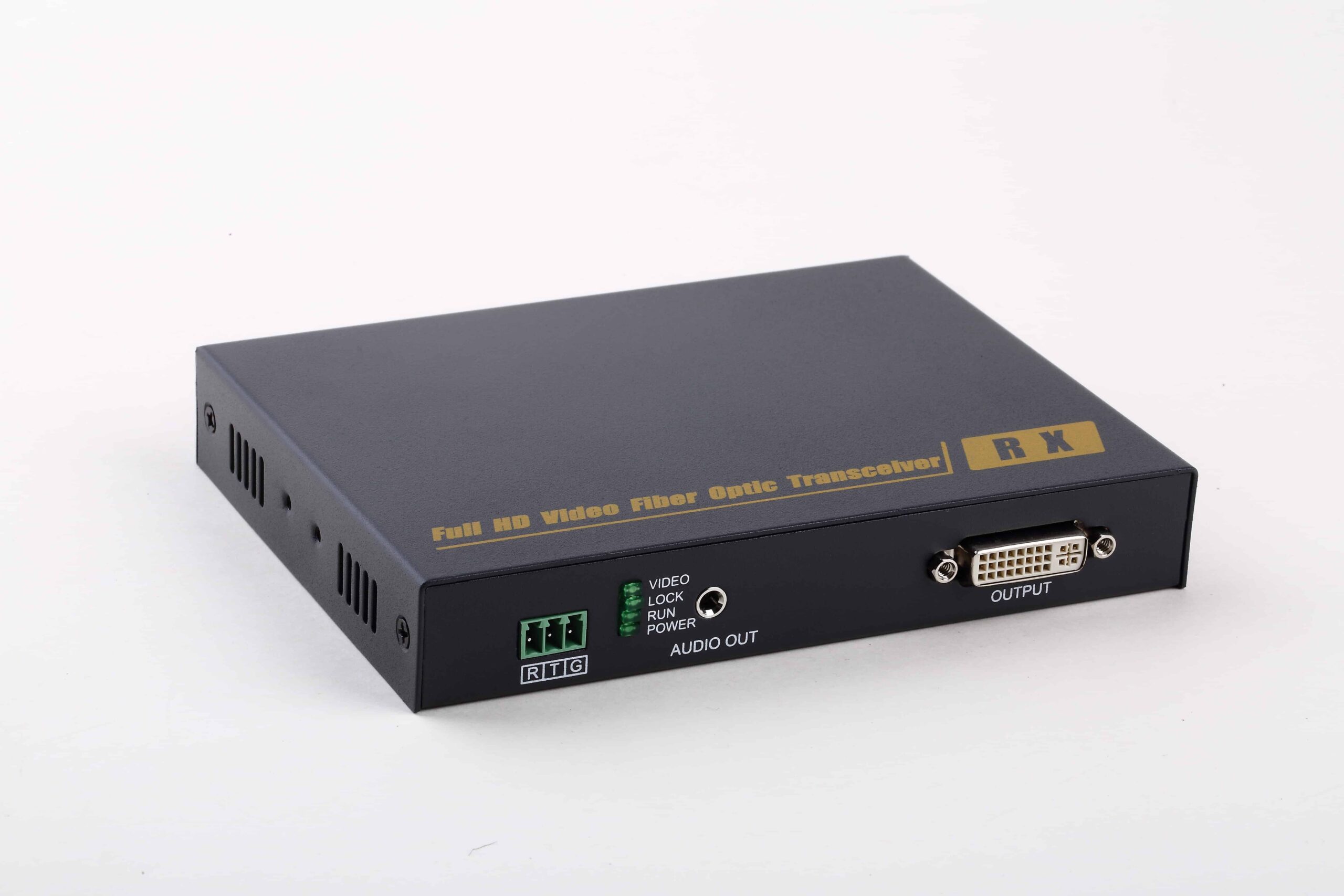

Receiver:

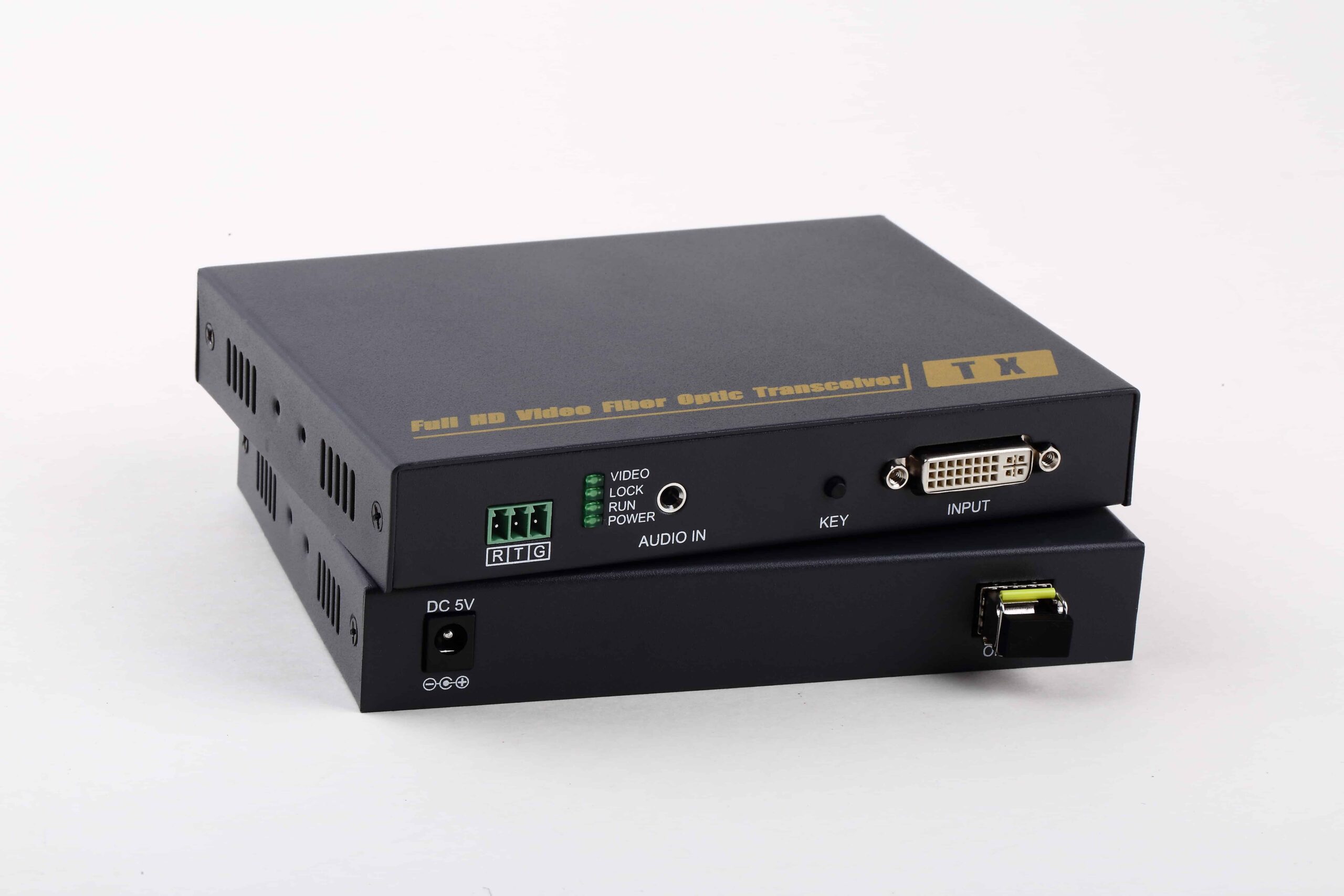

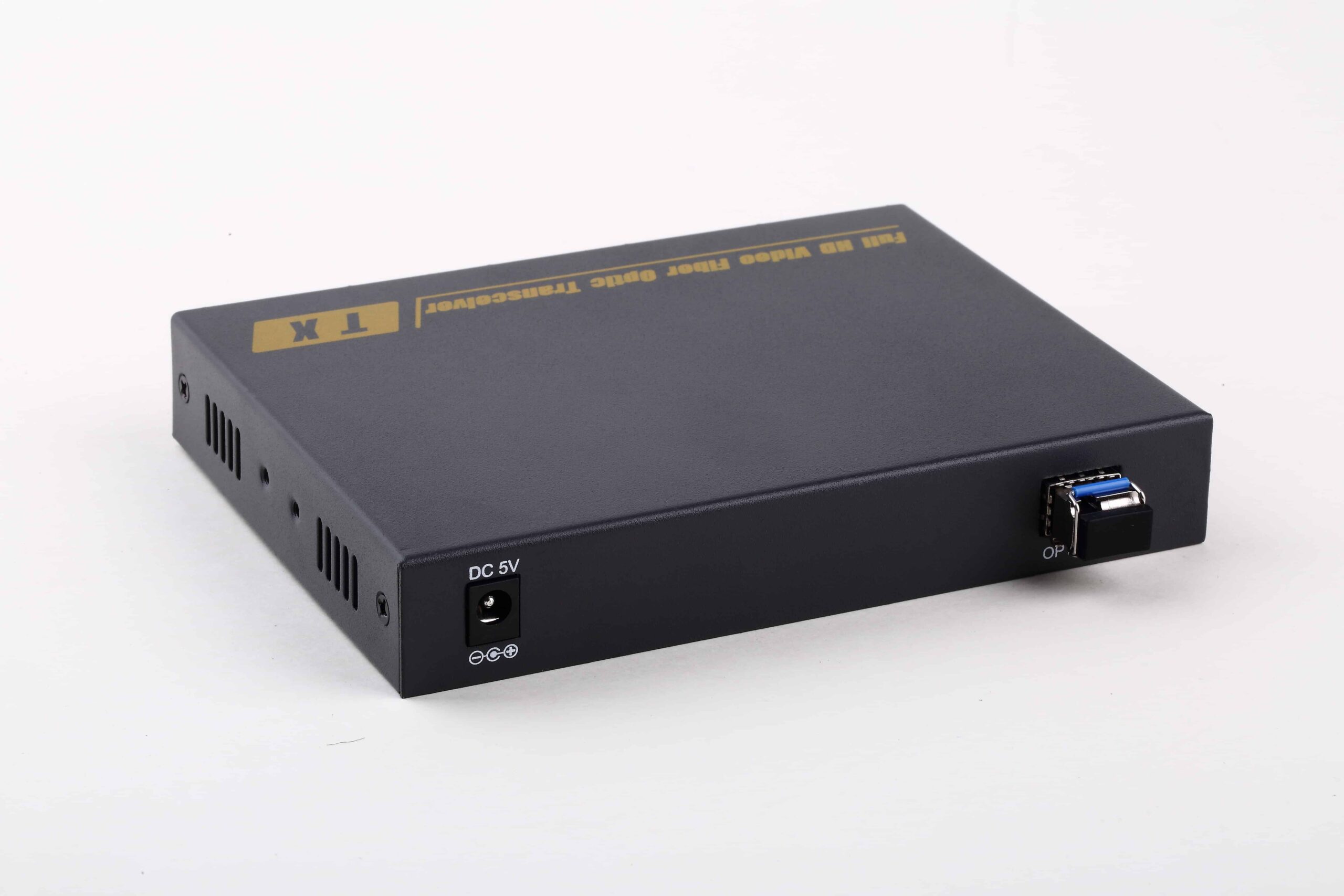

Transmitter:

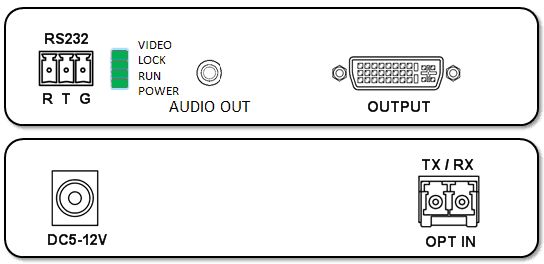

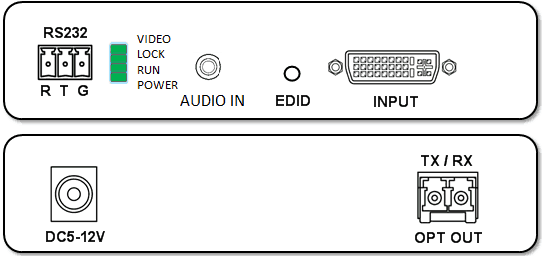

Port name	Description
DVI IN/OUT	DVI signal input/output
Audio IN/OUT	Stereo audio signal input/output
RS232	Serial port( G: Ground, T: transmit, R: receive )
EDID	EDID button, press 3 second to copy EDID of display device
DC/5V	Power adapter socket
FIBER	SFP module—LC connector
LED indicator	Description
VIDEO	Video signal connection indicator
LOCK	Video signal lock indicator
RUN	System status indicator
POWER	System power indicator

Installation

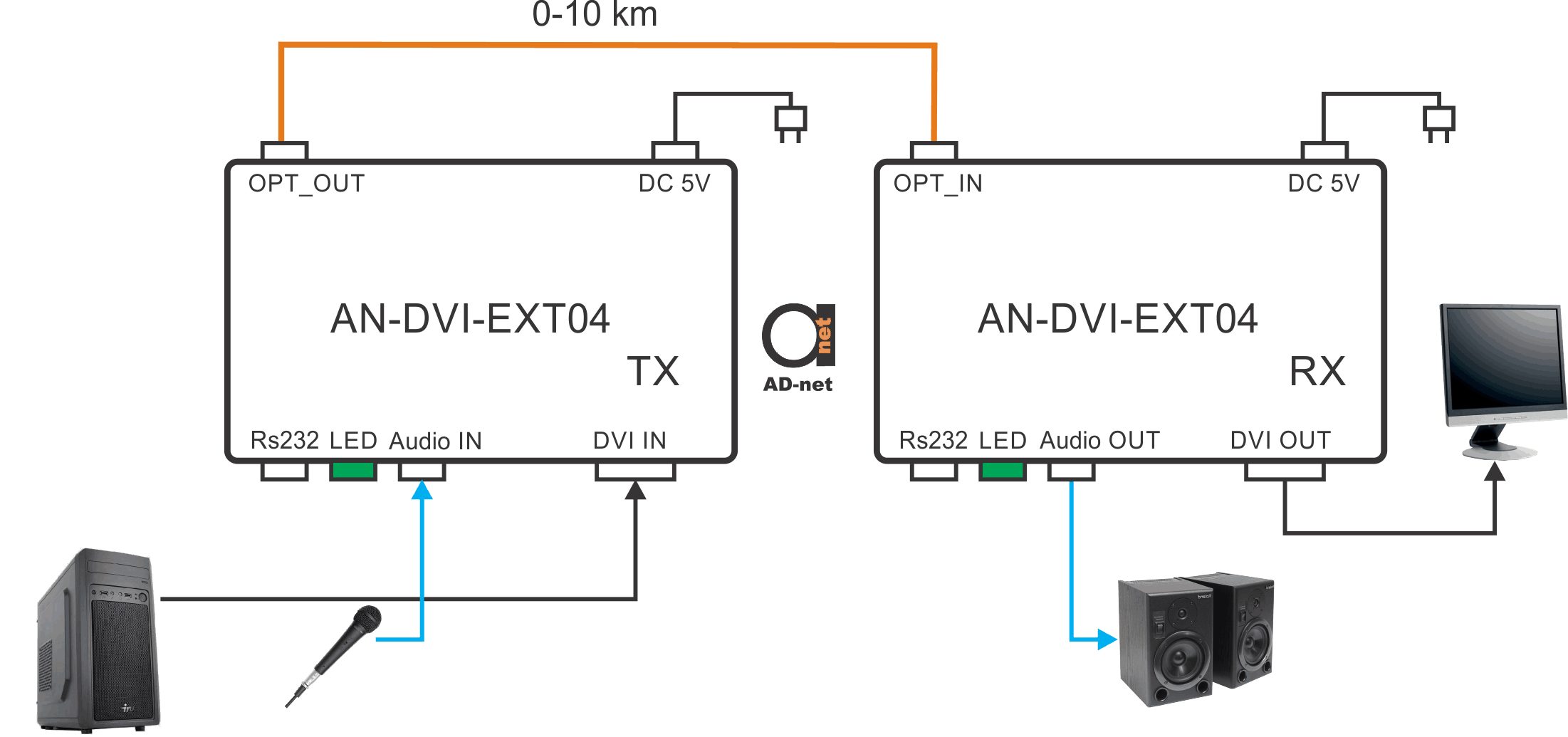

Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
Connect an DVI cable between the DVI input port of transmitter and the DVI output port of the video source,
Connect the DVI output port of receiver to the display device with DVI cable,
Connect the transmitter optical port to the receiver optical port using one fiber optic cable.
