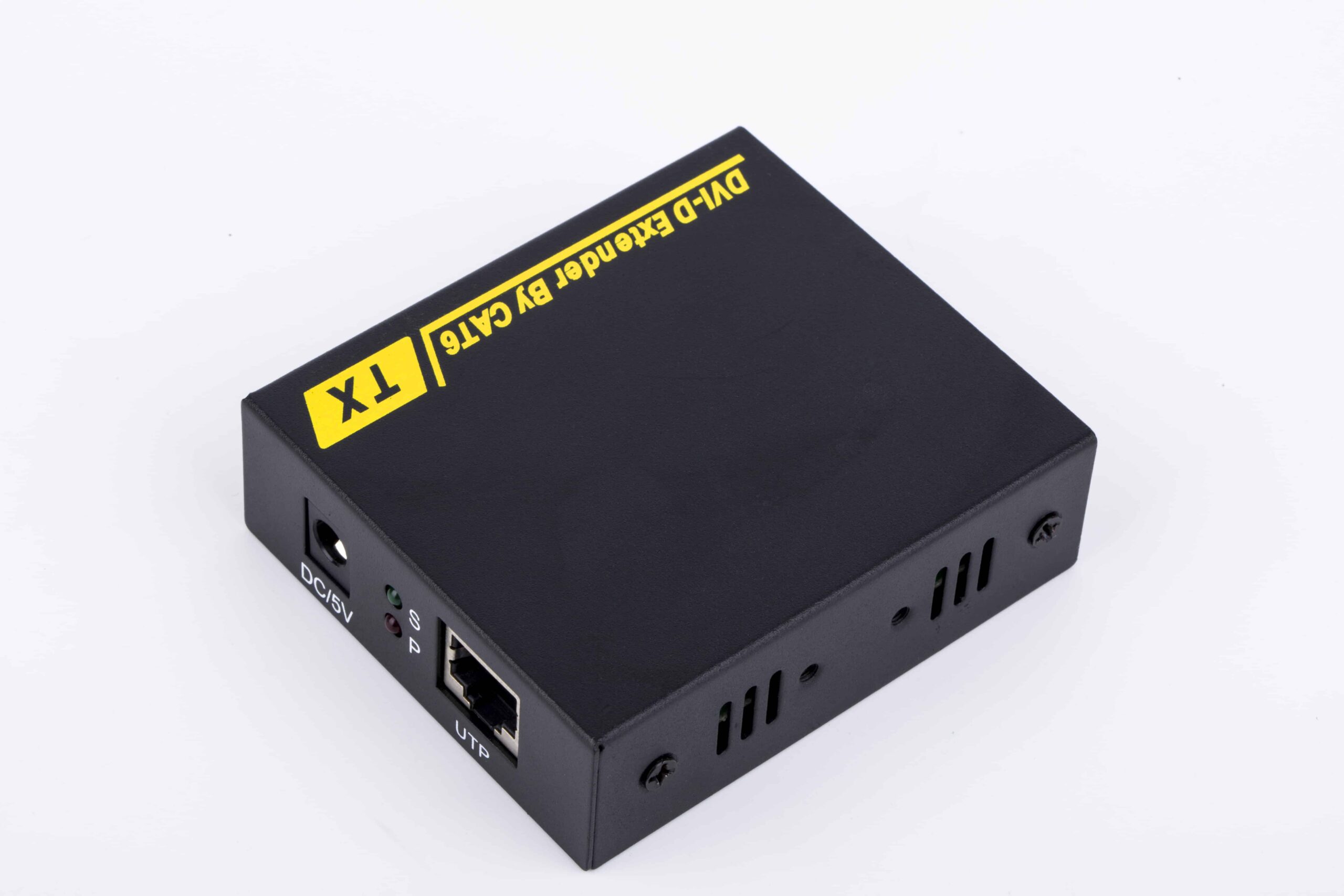

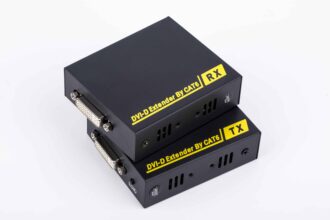

DVI Extender over single CAT6
Used for a pair extension of this DVI CAT 6 cable to extend HD signal up to 50 meters, and can achieve 1080P, which not only broke the DVI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings. The production equipment company providing solutions for the following applications: such as noise, limited transmission distance and safety of the place, data center control, information distribution, conference room presentations and teaching environment and corporate training sites.
- HDCP 1.2 protocol compliant
- Study EDID function
- Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Signal transmission: Single cat-6e or cat-6(recommended) cable up to 50 meters
- Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
- Support the wide range of power 5V~16V input.
- Support up to 5metres AWG26 cable length between extender and source & sink device
- No loss of quality
|
Length of CAT6 cable between Rx and TX |
Up to 50 metres |
|
DVI Input |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support audio format input |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
DVI Output |
24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i |
|
Support audio format output |
DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD |
|
Max transmission bandwidth |
5.1Gbps |
|
Input Video signal |
0.5~1.5Volts p-p |
|
Output DDC signal |
5Volts p-p (TTL) |
|
Input/Output DVI1.3 cable distance |
.≤20m AWG26 DVI 1.3 standard cable |
|
Max working current |
500mA |
|
Power adapter format |
Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A |
|
Operating Temperature range |
(-15 to +55℃) |
|
Operating Humidity range |
5 to 90%RH (No Condensation) |
|
Dimension (L x W x H) |
72X69X25 (mm) |
|
Weight |
0.37Kg |
|
Gross weight |
0.64kg |
|
BoxDimension(LXWXH) |
250X220X60(mm) |

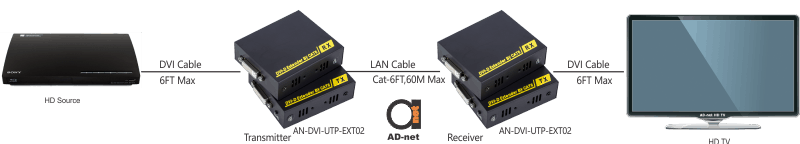

- Connect one DVI cable up to 20 metres between source device and TX Extender.
- Connect one DVI cable up to 20 metres between sink device and RX Extender
- Connect single cat6 or cat-6(recommended) cables up to 60 metres instead of DVI calbe between TX and RX Extender
- Connect 5V power supply to the DVI CAT60RX&TX Extender

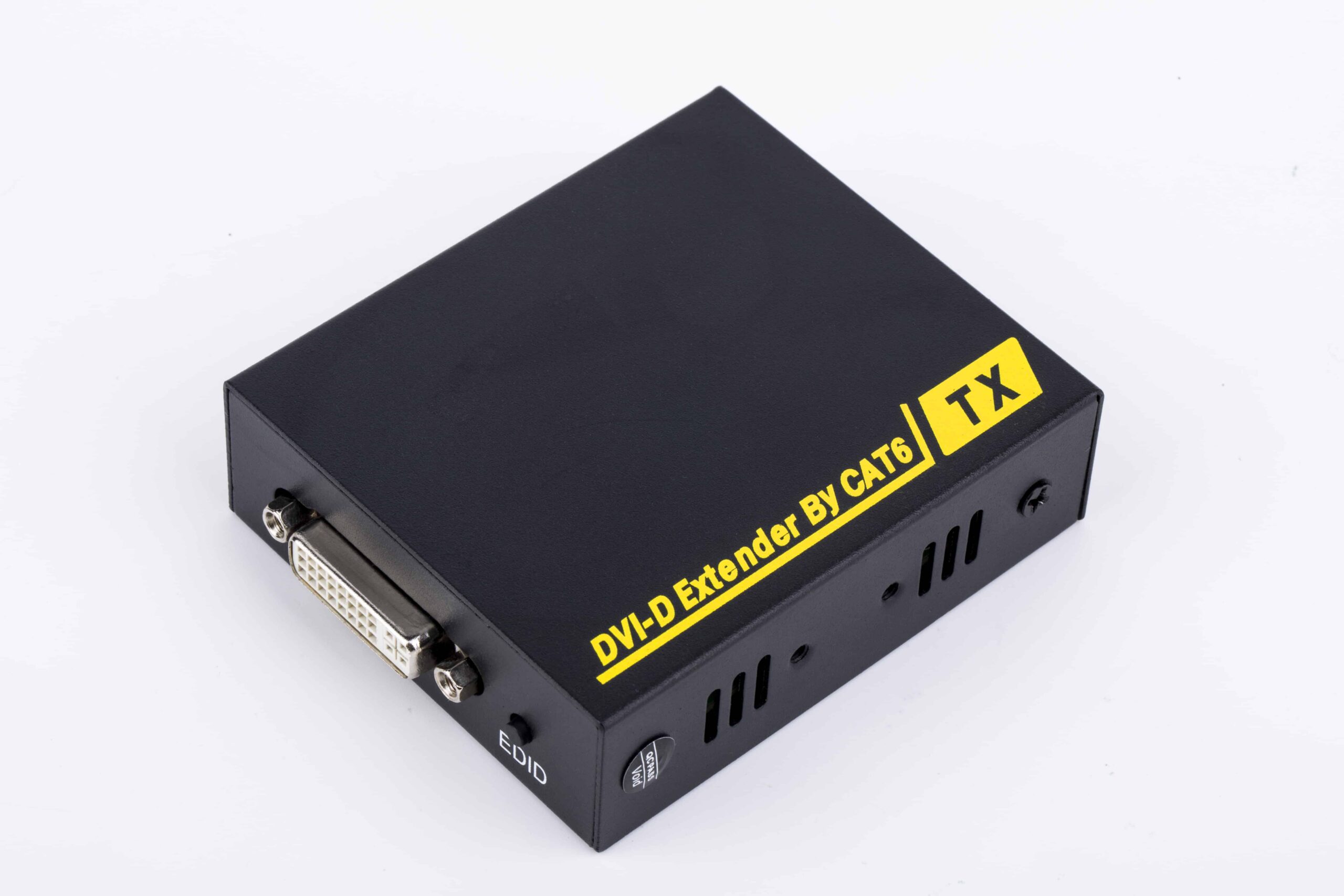

- Learning EDID, the display device connected to the TX, long press for 3 seconds EDID, status indicator light flashing, copy is complete, (note: if there is no access to display devices, will restore the system default EDID)
It’s really a matter of seconds, not even minutes to set it up and running for your extended DVI type monitor, as we show here in this demo video.
| AN-DVI-UTP-EXT02 | DVI Extender over single CAT6 |
Description
Used for a pair extension of this DVI CAT 6 cable to extend HD signal up to 50 meters, and can achieve 1080P, which not only broke the DVI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings. The production equipment company providing solutions for the following applications: such as noise, limited transmission distance and safety of the place, data center control, information distribution, conference room presentations and teaching environment and corporate training sites.
Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
