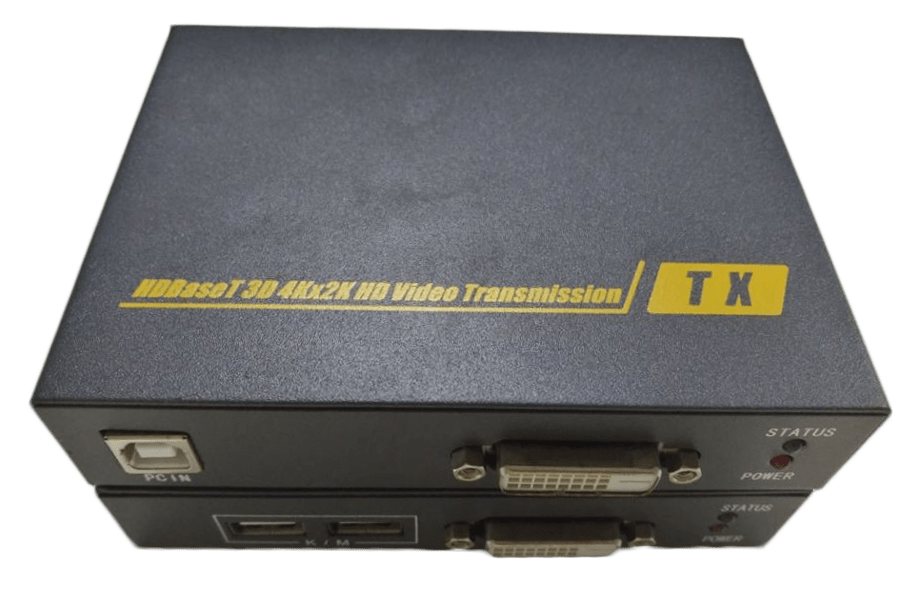

DVI KVM Extender over CAT6 cable with HDBaseT support

The AN-KVM-DVI-UTP-EXT01 extender provides extension of DVI signals long distances over a single CAT6 cable, it supports high resolution up to 4K*2K, RS232 and KVM signal transmission function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits DVI video signals up to 100m over a single CAT6 cable;
Support video resolution up to 1920*1080P@60Hz and 4K*2K;
Support HDBaseT technology;
Support KVM, keyboard and mouse signal transmission;
Support POC power supply, only power supply to Receiver
Support RS232 signal bidirectional transmission, baud rate self-adaptive;
Compliance with DVI 1.0 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	DVI 1.0; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	10.2Gbps
	Resolution	1920X1080P@60Hz、4K*2K
	Connector	DVI-D
	Impedance	100Ω
RS232	Interface	Industrial terminal
	Signal direction	Bidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
KVM	Interface	PC: Type B USB Keyboard and mouse: USB-A
HDbaseT	Interface	RJ45
HDbaseT	Transmission distance	1080P: CAT6—100m 4K*2K: CAT6—70m
Other	Power supply	The power adapter: DC 12V/2A
	Power dissipation	MAX 15W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	9412125mm
	The warranty	1 year free warranty

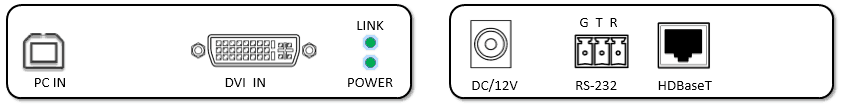

Transmitter:

DVI KVM Extender over CAT6 cable with HDBaseT support

Receiver:

DVI KVM Extender over CAT6 cable with HDBaseT support

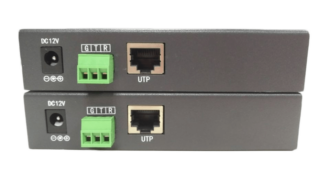

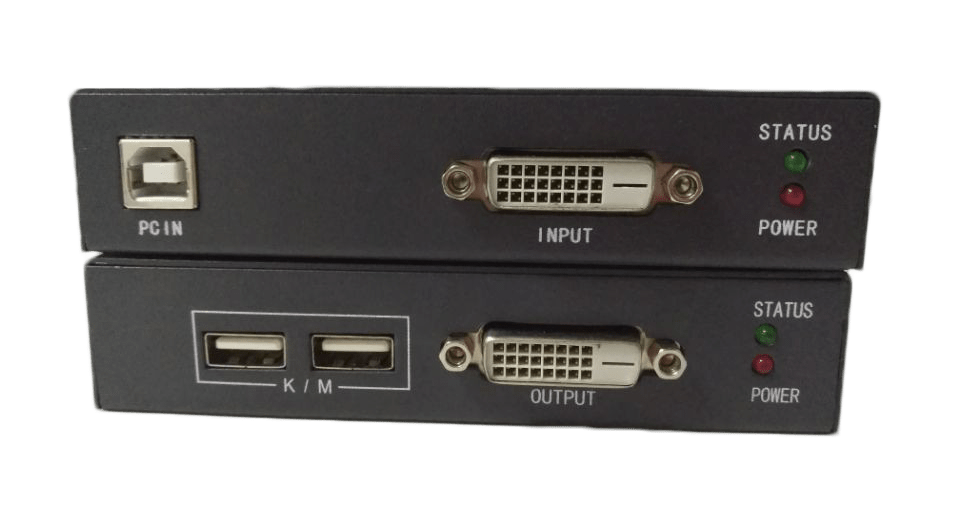

Port name	Description
DVI IN/OUT	DVI signal input/output
HDbaseT	RJ45 interface
RS232	Serial port( G: Ground, T: transmit, R: receive )
K/M TO PC	Connect to PC
K/M	Connect to keyboard and mouse
LED indicator	Description
LINK	Video signal connection indicator
POWER	System power indicator

In this video we show some quick cable plug-ins and out’s to show how to install and use it. Just few minutes are required to install it.

AN-KVM-DVI-UTP-EXT01

DVI KVM Extender over CAT6 cable with HDBaseT support
