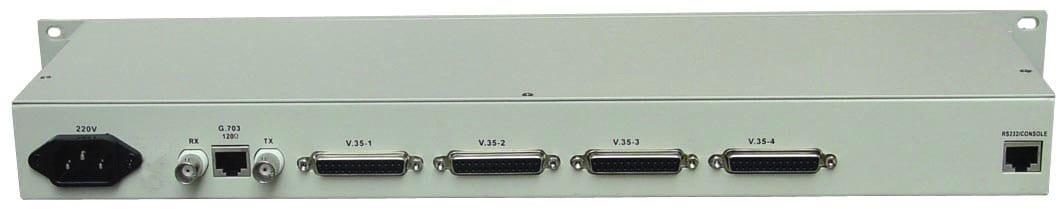

E1 – 4xV.35 converter

AN-E1-4V35 Rack mount E1 to 4 x V.35 converter for asynchronous data link over E1 access line

  • Have console port,support HyperTerminal to control device.
  • Option slot choice within 31 slots based on hardware.
  • Provide clock types: E1 master clock, E1 line clock,V.35 master clock, V.35 external clock.
  • Provide 3 loop functions: E1 local loop, V.35 local loop, let remote V.35 loop.
  • Have pseudo random code test function, easy the installation and maintenance.
  • E1 can support rate N*64k(N=1-32);
  • Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance.
  • V.35 support hot plug technology,connect with DTE or DCE.
  • Two types:Standalone, desktop, 19inch;Card,usually be inserted in our rack 19 inch.

E1 interface parameter
Channel capacity: 1 Channels
Interface Rate: n x 64Kbps to n x 32
Bit Rate: 2.048 Mb/s ±50 ppm
Line Code: HDB3
Line Impedance: 120 Ohm / 75 Ohm
Connector: RJ-45 or BNC
Pulse Shape: ITU-T G.703.
Jitter Performance: ITU-T G.823
Clock: internal-clock, line-clock


V.35 interface
Channel capacity: 4 Channels
Interface Rate: 2.048Mbps+-50ppm.
Interface character: match V.35
Connector: DB25 male/female (optional).
Interface type: DCE.
Clock: G.703 resume clock, internal /external clock.


Power
DC: -48V (-36 to -72V); +24 V (Optional)
AC:  90 to 260 VAC ; 47 ~ 63Hz
Power Interface: DC power terminal/AC socket
ïPower Consumption: 8 W maximum


Working environment
Operating temperature: 0 to 50°C
Storage temperature: -20  to +70°C
Relative humidity: 5% to 95% (25°C no condense)

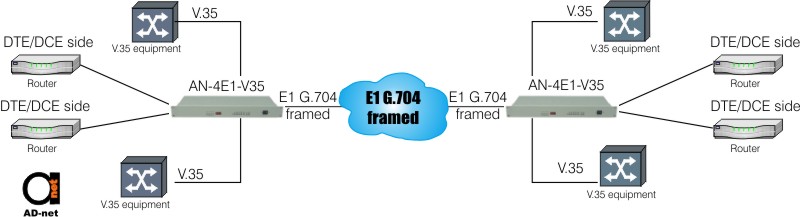

Application scenario:

AN-E1-4xV35/AC

E1 to 4 x V35 interface converter, 75/120, 220V
AN-E1-4xV35/DC/48

E1 to 4 x V35 interface converter, 75/120, DC-48V
AN-E1-4xV35/DC/24

E1 to 4 x V35 interface converter, 75/120, DC+24V

Description

This converter provide conversion from ITU-T G.703 framing E1 interface to 4 x V35 interface provide safe and seamless connection between different device with different interface,option slot choice to compose N*64k(N=1-32) V35 channel.
Suitable for the case of available part slot of E1 channel and the device to transfer having only V.35 output. interface is DCE, can connect with DTE or DCE.

Additional information

E1 ports

1
V.35 ports

4
