E1 IP router – bridge

AN-R-E1 router/bridge offers easy to configure and reliable way to route or bridge between E1 and Ethernet protocols.

  • Based on self-copyright IC design;
  • Support BNC(75ohm) and RJ45(120ohm);
  • Support PPP of HDLC, PAPor CHAP;
  • Support framing/unframing ;
  • Inner clock, line recovery clock (optional);
  • Support Ethernet 10/100 adapt;
  • Support static and RIP,RIPV2
  • Support DHCP sever,DHCP terminal and DNS agency;
  • Support IP fliter firewall;
  • Support SNMP（RFC1157）、MIB2、RIPv2 MIB;
  • Support console, telnet also HTTP WEB、TFTP、FTP update

Ethernet port
Standard: according to IEEE802.3 802.3U,802.1Q
Rate:10/100 M adapt
Connector: RJ45;
Mode: full duplex/half duplex adapt
10,000 MAC address, could update by itself

E1 port
Standard: ITU-T G.703
Rate: N*64K(N=1~32)
Impendance:  75Ω,BNC;120Ω,RJ45;|
Code:HDB3

Power:
DC: -48V (-36 to -72V); +24 V (Optional)
AC: 90 to 260 VAC ; 47 ~ 63Hz
Power Interface: DC power terminal/AC socket
Power Consumption: 8 W maximum

Working environment:
Operating temperature: 0 to 50 °C
Storage temperature: -20; to +70 °C
Relative humidity: 5% to 90% (25 °C no condense)

Application schemes:

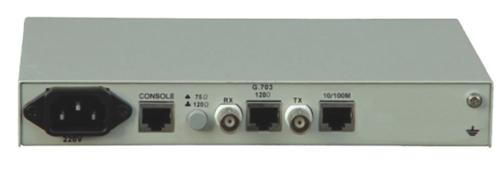

AN-R-E1

E1 - 10/100BaseT router 2048Kbps,10/100 Base T, 48 VDC AC/110 OR 220 V

Description

AN-R-E1 router/bridge offers easy to configure and reliable way to route or bridge between E1 and Ethernet protocols.

AN-R-E1 router/bridge operates with remote device and the port is based on PPP of HDLC requirement. 10/100BaseT can be connected to HUB, Switch, router, Bridge and other device. It offers effective, low cost network combination solution for users and satisfy their requirement for simplity, integration and currency. It is widely accepted by small or middle-size company.
