E3 electrical – optical converter (E3 fiber modem)
AN-E3 is an E3 fiber converter for E3 electrical and optical interface conversion. It is designed for the PDH equipment coaxial interface and optical interface interconnect.
- High reliability, comply to ITU-T G.703
- Single Fiber Bi-Directional is selectable
- State-of-the-art design, ensure normal working under different environment.
- Supports local and remote loop – back on electrical or optical interface for system diagnostic.
- Suitable for PDH E3 interface interconnection.
- Simple operation and maintenance
- Compact design and low power consumption.
- Simply to use & plug & play E3 fiber converter (E3 fiber modem)
|
Items |
Description |
|
| Electrical Interface | S tandard | ITU-T G.703 Compliant |
| Data Rate | 34.368 Mb ps | |
| Line Code | HDB3 | |
| Physical Connector | BNC Coaxial | |
| Optical Interface | Bit rate | 34.368 Mbps |
| Coding | NRZ | |
| Connector | SC | |
| Light source | Laser Diode | |
| Wave length | 1310 nm (Typical), or 1550 nm (Optional) or Single Fiber Bi-Directional (Optional) | |
| Transmit power | -12 dBm (1310 nm ) / -5 dBm (1550 nm ) | |
| Receive sensitive | -36 dBm (1310 nm ) / -38 dBm (1550 nm ) | |
| Power supply | AC 220V | Range 165 V to 265 V |
| DC -48V | Range -36V to -72V | |
| Power Consumption | <3 W | |
| Environment | Working Temperature | 0 50 C |
| Relative Humidity | <90 % (Non condensing ) | |
| Dimension | WxHxD(mm): 205 x 13 5 x 4 6 | |
Application diagram:
| AN-E3/SM-40 | E3/T3 fiber converter 110/220 V AC or 48 V DC, Single mode, 40 km |
|
| AN-E3/SM-60 | E3/T3 fiber converter 110/220 V AC or 48 V DC, Single mode, 60 km |
|
| AN-E3/SM-120 | E3/T3 fiber converter 110/220 V AC or 48 V DC, Single mode, 120 km |
|
| AN-E3/MM | E3/T3 fiber converter 110/220 V AC or 48 V DC, Multi mode, 2 km |
|
| AN-E3/WDM | E3/T3 fiber converter 110/220 VAC or 48 VDC, WDM(BiDi), 20km |
Description
AN-E3 E3 fiber converter (E3 fiber modem) can be used to provide 34.36 (E3) signal conversion between electrical interface and optical interface of E3 based network interface. It conforms to the ITU- T G.703 T3 recommendation. The converter features compactness, light weight, low power consumption and high reliability.
The 34M E3 fiber converter optical / electrical operates on 1310 nm lasers, with a typical transmission distance of 40 km over single mode optical fibers. For longer hops, 1550 nm lasers can be selected for 100 km and more distances. WDM single fiber single strand also is available on request.
Exterior power supply, all the functional blocks are integrated on a single PC board, which makes the converter compact and reliable. 220 V AC or – 48 V DC power options are available by selecting an appropriate plug-in power unit.

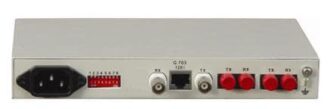

AN-E3 electrical interfaces are BNC sockets, “IN” is incoming E3 electrical signal and “OUT” is outgoing E3 electrical signal. The optical interfaces are SC type sockets using receive and transmit integral whole mold piece.
