Economy type TCP/IP to RS-232/422/485 converter

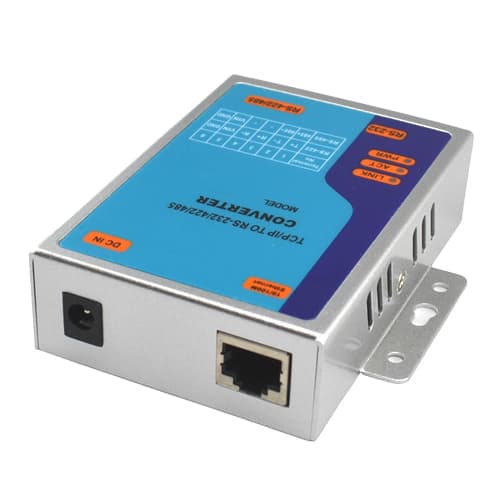

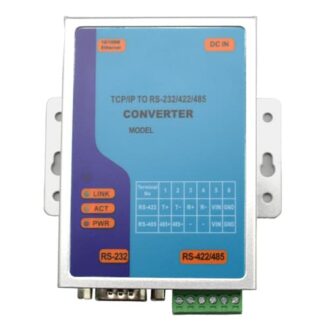

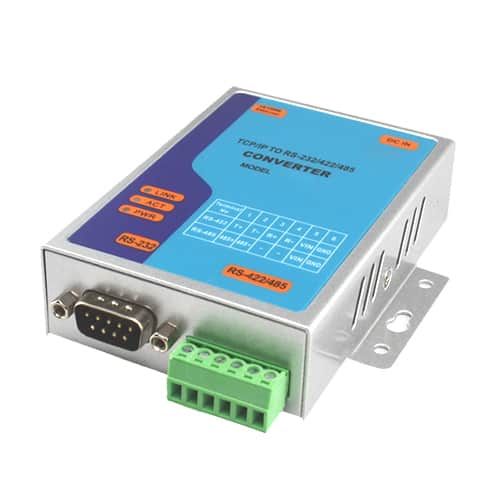

The AN-IP-RS232-485/E is a cost effective and highly integrated serial-to-Ethernet Converter. Support 10/100Mbps Ethernet and the serial port support RTS/CTS handshake control signal.Use the software kit user can easily configure and find the device,even forget the IP address.This serial server can work very well in virtual serial mode,this is very convenience for the user’s software only support com port.AN-IP-RS232-485/E is an industrial-strength network-based converter can help serial device with RS232/422/485 port like CNC, PLC, weighting scale, scanner and other device access to the 10/100Mbps Ethernet network.
- RS-232/422/485 3 in 1 interface
- Support 10/100Mbps Ethernet port
- Supports 4-wire and 2-wire RS-485 work mode
- Automatic data direction control on RS-485
- Supports 24VDC industrial power supply
- Terminal block easily for RS-422/485 installation
- Configure via webpage and windows utility
- Supports virtual serial port,TCP Server/Client and UDP work mode
- Built-in watchdog
- CE, RoHS and FCC Certifications
| Serial Interface | |||
| Interface Type | RS-232/485/422 3 in 1 (optional) | ||
| Data Rate | 300bps ~ 230.4Kbps | ||
| Data Length | 5,6,7,8 bits | ||
| Parity | Odd, Even, None, Space, Mark | ||
| Stop Bits | 1,1.5,2 bits | ||
| Flow Control | None, Software: Xon/Xoff, Hardware: RTS/CTS | ||
| Connector | RS-232 | DB-9 male | |
| RS-485/422 | 6-pin Terminal block | ||
| Serial Line Protection | 600W for RS-232,1000W for RS-485/422 | ||
| Network Interface | |||
| Interface Type | Ethernet 10/100Mbps (Auto-Sensing) | ||
| Connector | 8-pin RJ-45 | ||
| Magnetic Isolation Protection | Built-in 1.5KV | ||
| Software | |||
| Network Protocols | ICMP,IP,TCP,UDP,DHCP,BOOTP,Telnet,DNS,HTTP,ARP | ||
| Configure Options | Web Page,Windows Utility | ||
| OS support |
Windows95/98/ME/NT/2000/XP/2003/WIN7/WIN8/XP x64/2003 x64/WIN7 x64/WIN8 x64、 Linux real、TTY、UNIX |
||
| LED Indicators | LINK | 10/100Base-TX Link & Activity Indicator | |
| ACT | Date Transmitting between Serial and Ethernet | ||
| PWR | Power indicator | ||
| Power Supply | 9~32VDC@1A | ||
| Physical Characteristics | |||
| Installation | DIN-Rail Mounting | ||
| Housing | Iron (1mm) | ||
| Weight | 0.5Kg | ||
| Dimensions | Without ears | 100 × 67 × 26 mm(3.94 × 2.64 × 1.02 in) | |
| With ears | 100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in) | ||
| Environmental Limits | |||
| Operating Temperature | -25 ~ 70°C (-13 ~ 158°F) | ||
| Storage Temperature | -40 ~ 85°C (-40 ~ 176°F) | ||
| Ambient Relative Humidity | 5% to 95%(non-condensing) | ||
| Standards and Certifications | |||
| RoHS, CE, FCC | |||
Pin Assignment
RS-232 DB-9(Male)
| PIN | RS-232 |
| 1/4/6/9 | – |
| 2 | RXD(in) |
| 3 | TXD(out) |
| 5 | GND |
| 7 | CTS(out) |
| 8 | RTS(in) |
RS-485/422 6-pin Terminal block
| 1 | 2 | 3 | 4 | 5 | 6 |
| 485+(T+) | 485-(T-) | R+ | R- | VCC(9~32VDC) | GND |
| AN-IP-RS232-485-E | AN-IP-RS232-485-A | AN-IP-RS232-485-H | ||
| Serial Interface | ||||
| Data Rates | 300 bps to 230,400 bps | 1200 bps to 230,400 bps | 300 bps to 115，200 bps | |
| Characters | 5,6,7 or 8 data bits | 5 ,6,7 or 8 data bits | 7 or 8 data bits | |
| Parity | None, even, odd, Mark, Space | None, even, odd, Mark, Space | None, even, odd, Mark, Space | |
| Stop Bits | 1 , 1.5 or 2 | 1 or 2 | 1 ,or 2 | |
| Control | CTS, RTS | DTR, RTS, CTS, DCD, DSR, RI | None, Software: XOF/XOFF | |
| Signals | ||||
| Flow Control | None, XON / XOFF, RTS / CTS | None, XON / XOFF, RTS / CTS | None, XON / XOFF | |
| Connector | DB9-DTE for RS-232 (Male). 6 -bit terminal connector for RS-485 | DB9-DTE for RS-232 (Male). 6 -bit terminal connector for | DB9-DTE for RS-232 (Male). 6 -bit terminal connector for | |
| RS-485 | RS-485 | |||
| Network Interface | ||||
| Interface | Ethernet 10Base-T or 100Base-TX | Ethernet 10Base-T or 100Base-TX (Auto-Sensing) | Ethernet 10Base-T or 100Base-TX (Auto-Sensing) | |
| (Auto-Sensing) | ||||
| Connector | RJ45 | RJ45 | RJ45 | |
| Protocol | TCP/IP, UDP/IP, ARP, DHCP, ICMP | TCP, IP, UDP, Telnet, ARP, DHCP, ICMP,SMTP,HTTP,DDNS | ARP, UDP/IP, TCP/IP, PING/ICMP, DHCP, BOOTP, Auto | |
| IP,TFTP, SNTP ,TELNET ,HTTP，DNS,SMTP, PPP, LCP, PAP, | ||||
| CHAP, IPCP, PPPoE. SSL/TLS,HTTPS | ||||
| Indicators (LED) | ||||
| 10/100Base-TX Link & activity indicator | 10/100Base-TX Link & activity indicator | 10/100Base-TX Link | ||
| Date Sending / Receiving between Serial and the Ethernet | Date Sending / Receiving between Serial and the Ethernet | Date Sending / Receiving between Serial and the Ethernet | ||
| Power indicator | Power indicator | Power indicator | ||
| Normal connected to the network | ||||
| Management | ||||
| Internal web server, serial, and Microsoft Windows® | Support TCP/UDP Server/Client mode User name & password protected for web management | Internal web server, serial, telnet, and | ||
| -based utility for configuration | Support backup & restore system configuration data | Windows®-based utility for configuration | ||
| Support alarm system via SMS (Short Message Service) to mobile phone or e-mail to PC | Microsoft | |||
| Security | ||||
| Password protection | ||||
| Internal Web Server | ||||
| Storage Capacity | 384KB for web pages | 512KB for web pages | 384KB for web pages | |
| Architecture | ||||
| CPU | Based on the 8051CPU,Frequency | 16 bit CPU, 100MHz | Embedded high-performance 32-bit network processor,32-bit RISC (NP7/9 series) | |
| 25MHz | ||||
| Memory | 64KB OTP ROM, 32K bytes SRAM | 256KB ROM&SDRAM | 32MB RAM, 16MB/32MB Code + 32KB Boot | |
| Firmware | Upgradeable by manufacturer | Upgradeable by Customer | Upgradeable by manufacturer | |
| Power | ||||
| Input Voltage | 8-24 VDC@500mA | 8-24 VDC@500mA | 8-24 VDC@500mA | |
| Included Software | ||||
| MS Window®-based Device Installer software device installer and MS Windows-based Comm Port Redirector | MS Window®-based Device Installer software device installer and MS Windows-based Comm Port Redirector | MS Window®-based Device Installer software device installer and MS Windows-based Comm Port Redirector | ||
| AN-IP-RS232-485/E | One port RS-232/485/422 Serial Server RS-232/422/485 |
Description
The AN-IP-RS232-485/E is a cost effective and highly integrated serial-to-Ethernet Converter. Support 10/100Mbps Ethernet and the serial port support RTS/CTS handshake control signal.Use the software kit user can easily configure and find the device,even forget the IP address.This serial server can work very well in virtual serial mode,this is very convenience for the user’s software only support com port.AN-IP-RS232-485/E is an industrial-strength network-based converter can help serial device with RS232/422/485 port like CNC, PLC, weighting scale, scanner and other device access to the 10/100Mbps Ethernet network.
