EPON Repeater Amplifier

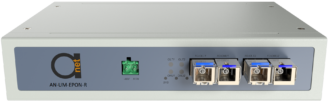

AD-net AN-UM-EPON-R EPON OEO equipment is an optical transmission equipment which magnify and reshape signals during optical transmission process. It can effectively save OLT quantity and lengthen network transmission distance. The OEO fiber repeater equipement have been widely applied for long-distance transmission in various optical communication applications. Its advantages include in small size of optical signals, being economical and safe, and simple installation etc. Therefore, it can be applied in various optical transmission fields.

In accord with IEEE802.3ah and Chinese communication industrial standard (YD/T 1475-2006);
Extend PON system transmission distance from 20km to 60km;
Uplink: supports combination of different types of PON OLT interfaces and different physical connectors;
Downlink: supports different types of PON ONU;
Be compatible with EPON system;
Be compatible with EPON OLT and ONU equipment manufactured by different vendors;
1U desktop equipment, small space occupation and low power consumption;
Supporting EPON OEO relay function
3R signal regeneration

EPON OEO transmission performance

Uplink: supporting receipt and transmission of 2.488G/s or 1.25G/s continuous signals.

Downlink: supporting receipt and transmission of 1.25G/s burst-mode signals.

Supporting 60km/1:64 ODN network expansion

Where, OLT—>OEO BOX trunk supports 40km transmission;

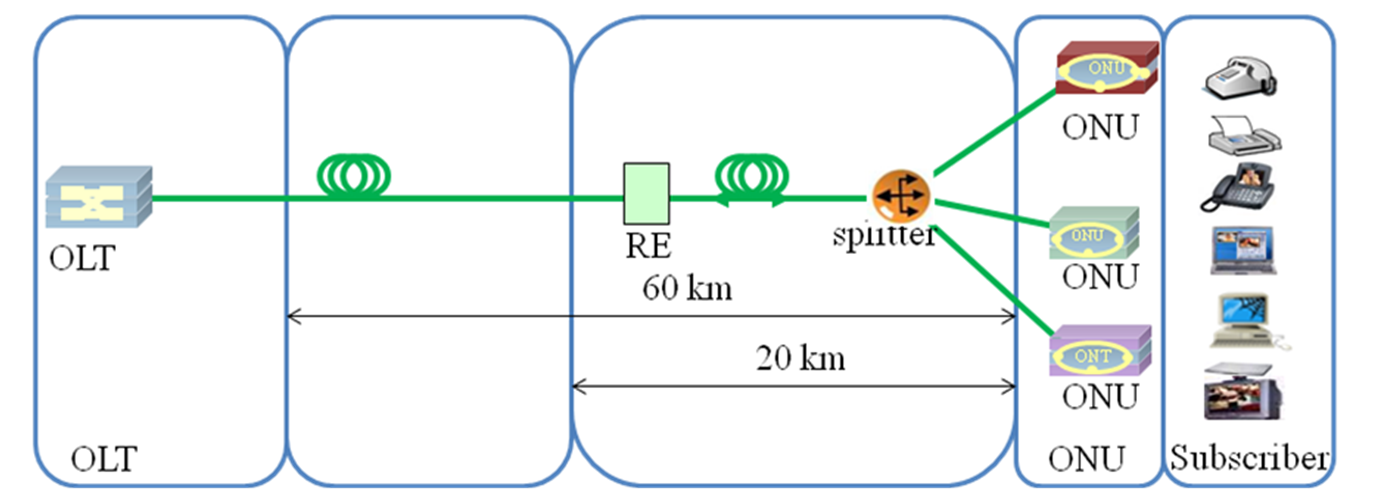

OEO BOX—>ONU supports 20km/1:64 ODN power budget. Refer to the below figure for details:

Applying SFP optical interface module, connected as shown in the above figure.

In EPON system, it will not generate any error code to the system and have no adverse effects on transmission or performance.

Technical Index Parameters

No.	Item	Value
1	Dimension	210mm x 133mm x 43mm (length x width x height)
2	Rated current	0.35A
3	Rated voltage	-48 VDC
4	Working temperature	-5℃~45℃
5	Working humidity	5%~95%
6	Output optical power of OLT	≥3Bm
7	Optical power of ONU	≧0.5dBm
8	Receiving sensitivity of OLT	≤-28dBm
9	Receiving sensitivity of ONU	≤-28dBm
10	Burst-mode signal time	≦50ns
11	–Fast AGC attenuation	≧10dB
