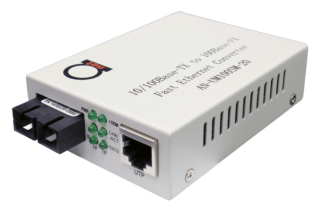

Fast Ethernet fiber optical media converter

Model name: AN-UM100 10/100 BaseT dual fiber fiber optical media converter to 100BaseFX with available distances at 20/40/60/80/100/120 km

10/100Mbps and full/half duplex automatically configure in TP port.
Compliant with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX Standards
MDI/MDI-X Auto Negotiation

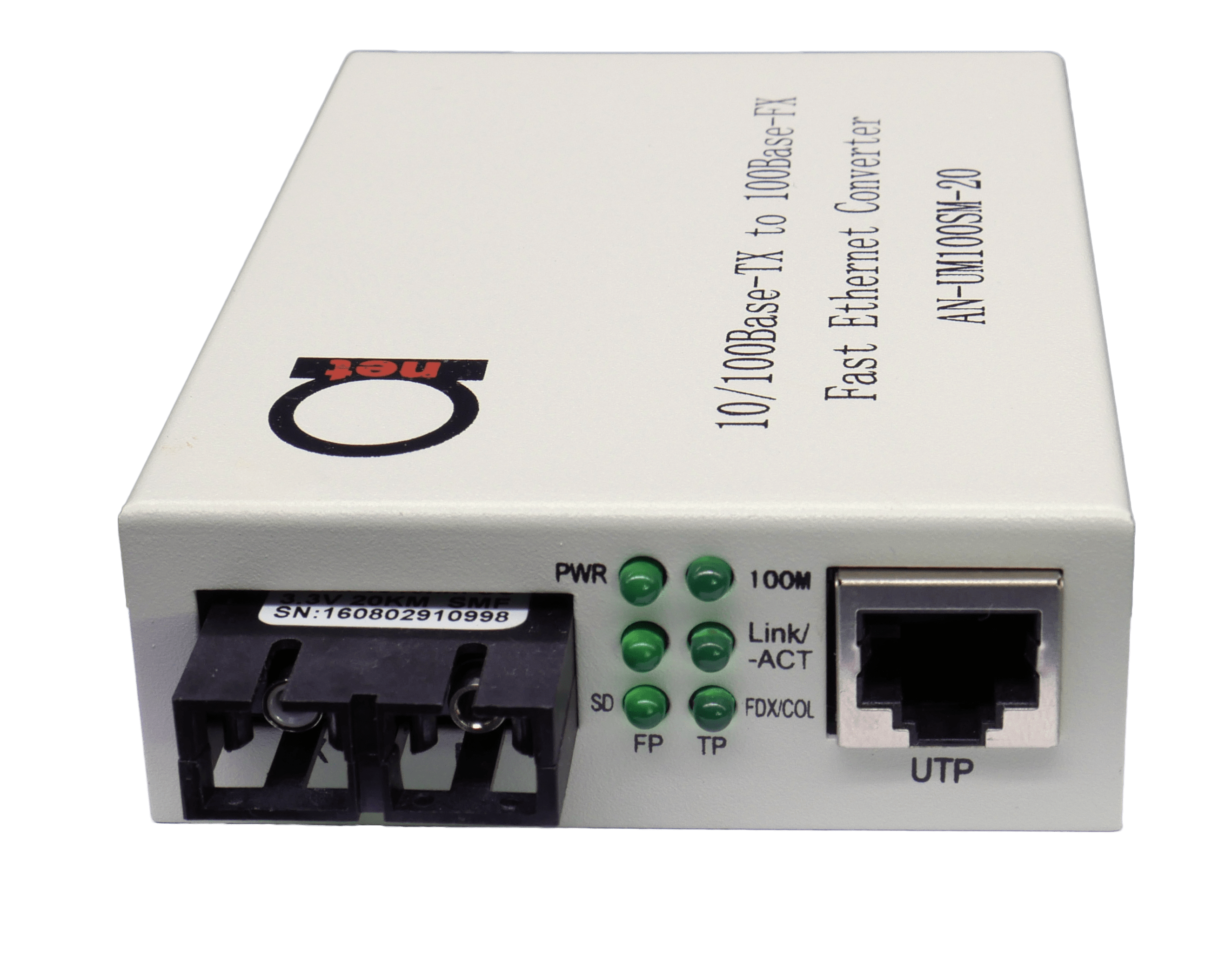

LED Indicators: POWER, FX LINK/ACT, 100, TP LINK/ACT, FDX/COL.
LLR, LFP – Link Loss Return (LLR), Link Failure Pass (LFP) features supported (please mention this when place order or require price, by default this feature is not included)
Optional 19” System Chassis (AN-CH05) holds up to 14 Media Converters
Hot Pluggable & Wall-Mountable
FCC Class A & CE approved
RoHs compliance

Wavelength
Multi-mode: 1310nm; Single-mode: 1310nm

Fiber cable(m):
8.3/125, 8.7/125, 9/125 or 10/125 single-mode

Maximum distance: Multimode;2km(Default), Single-mode;20km/(Default)40km/60km/80km/100km/120km

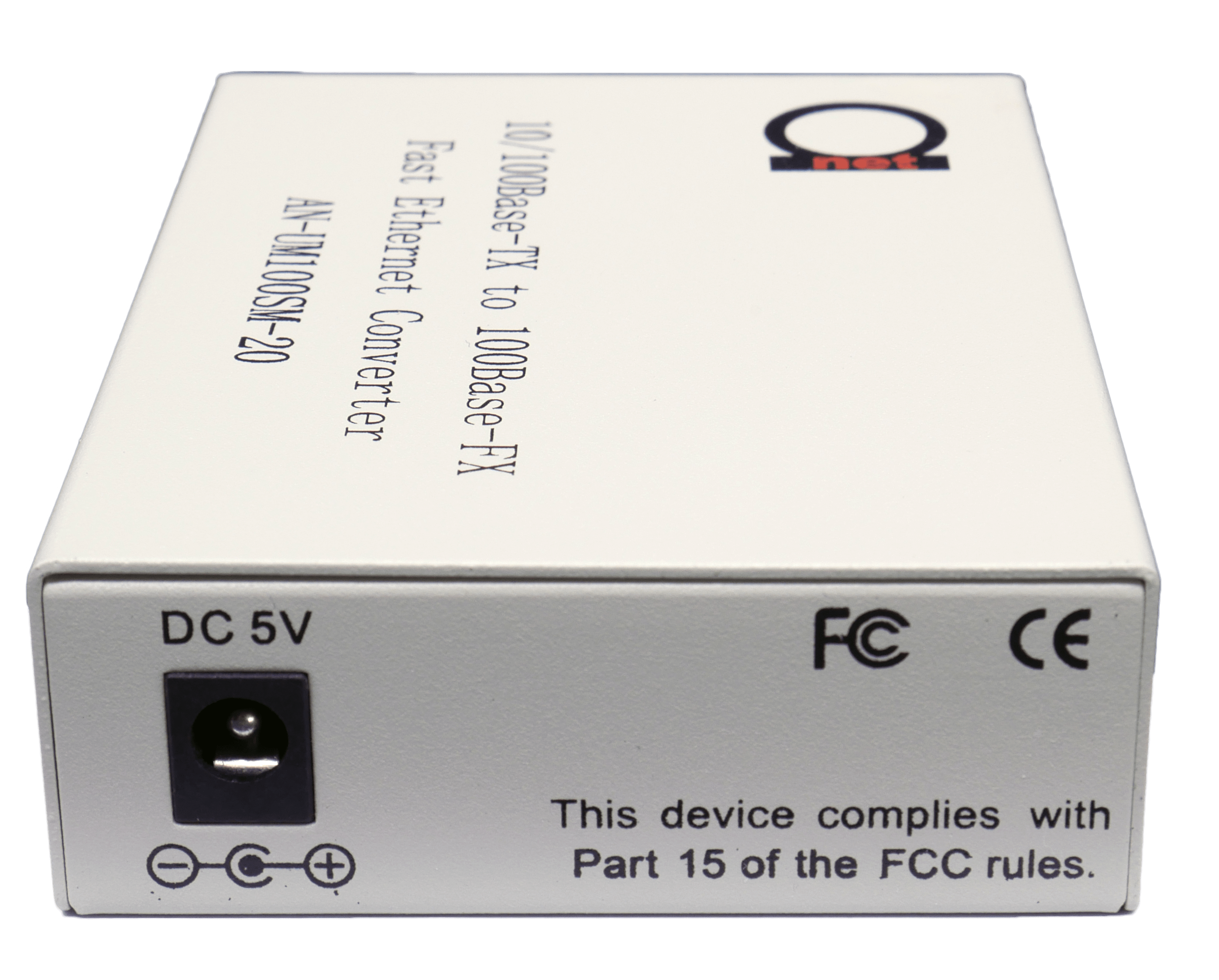

Power supply: 100 to 240VAC 50 to 60Hz
Input power: 2A +5V
Dimensions: 70.5mm(L)X94mm(W)X26.5mm(H)

Environment
Relative humidity: 5% to 90%
Operating temperature: 0 to 60
Storage temperature: -20 to 70

Application:

Quick setup video of multimode type version of these fast ethernet fiber optical media converters. In case of Single mode type, steps are going to be same, just use single mode type cables and patchcords.

AN-UM100-1	10/100 Base-TX/FX Bridge Fiber Optical Media Converter 2Km SC Connector (Multimode)
AN-UM100-2	10/100 Base-TX/FX Bridge Fiber Optical Media Converter 2Km ST Connector (Multimode)

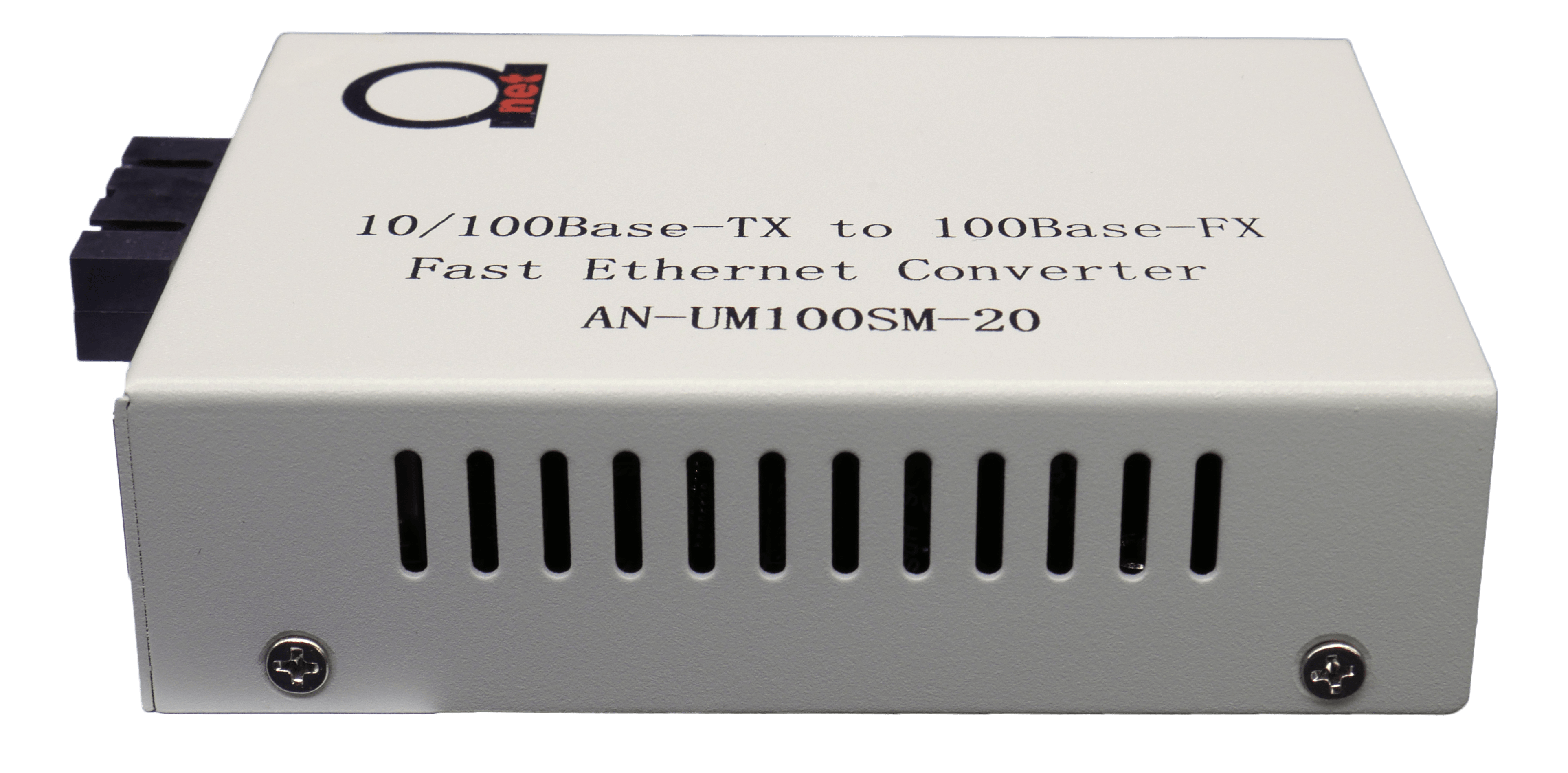

AN-UM100SM-20	10/100 Base-TX/FX Bridge Fiber Optical Media Converter 20 Km SC or ST Connector (Single mode)
AN-UM100SM-40	10/100 Base-TX/FX Bridge Fiber Optical Media Converter 40 Km SC or ST Connector (Single mode)
AN-UM100SM-60	10/100 Base-TX/FX Bridge Fiber Optical Media Converter 60 Km SC or ST Connector (Single mode)
AN-UM100SM-80	10/100 Base-TX/FX Bridge Fiber Optical Media Converter 80 Km SC or ST Connector (Single mode)
AN-UM100SM-100	10/100 Base-TX/FX Bridge Fiber Optical Media Converter 100 Km SC or ST Connector (Single mode)
AN-UM100SM-120	10/100 Base-TX/FX Bridge Fiber Optical Media Converter 120 Km SC or ST Connector (Single mode)

Description

AN-UM100 series fiber optical media converter complies with IEEE802.3 standards, It is designed to convert data signal between 10/100 Base-TX and 100 Base-FX fast Ethernet. The media converter is connected between Fiber cable and twisted cable segments with network.

The media converter is connected between Fiber cable and twisted cable segments with network operating smoothly.

This converter model can be used as slide-in module to the 19 converter rack.

Converter is transparent to all protocols, can be used all all areas as Fiber to The Home, Fiber to the Business or Fiber to The Curb.

Mix up at same AN-CH05 chassis any type of fiber optical media converters to create a access pool at the center. AN-UM100 series converters are purely dual fiber converters. 1310 nm or 1550 nm technology can be used, or at specific cases we can offer also more exotic wavelenghts as 1610 nm, 1490 nm or any other.
