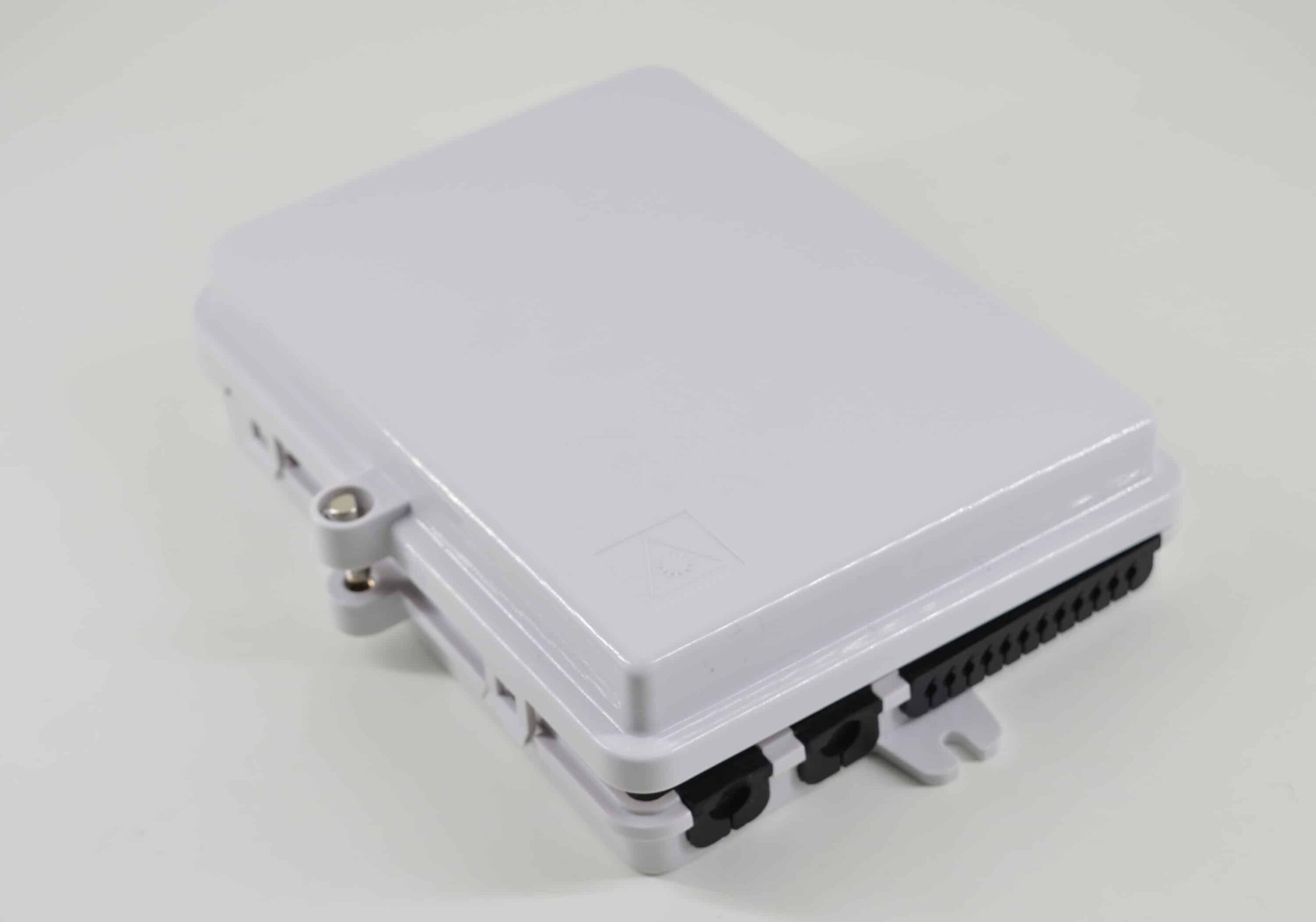

AN-FDB-08D – 8 port all-in-one FTTH splitter distribution box

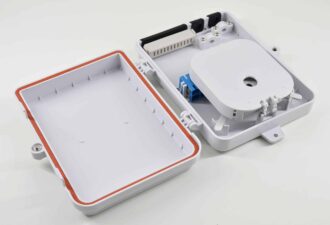

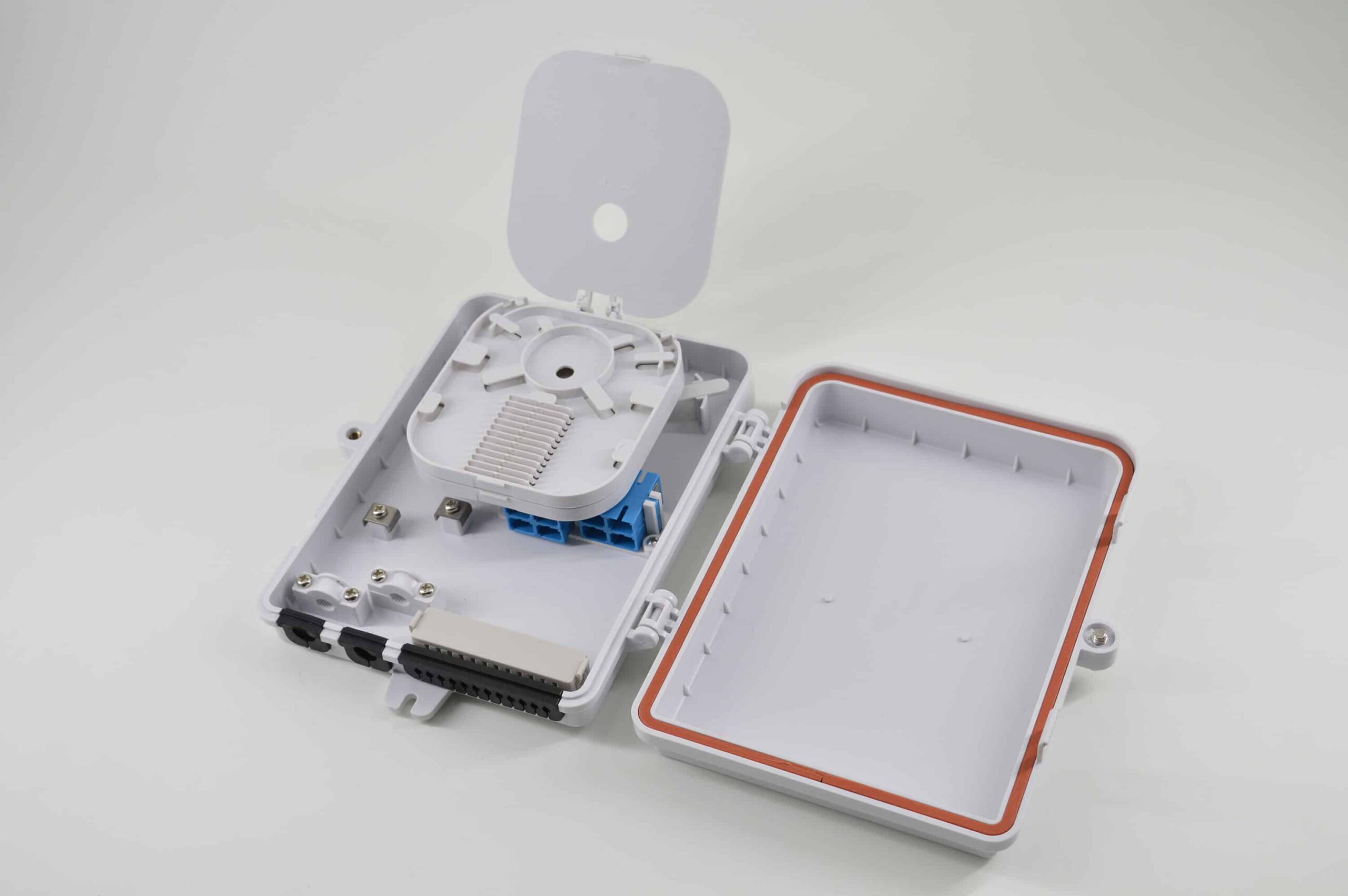

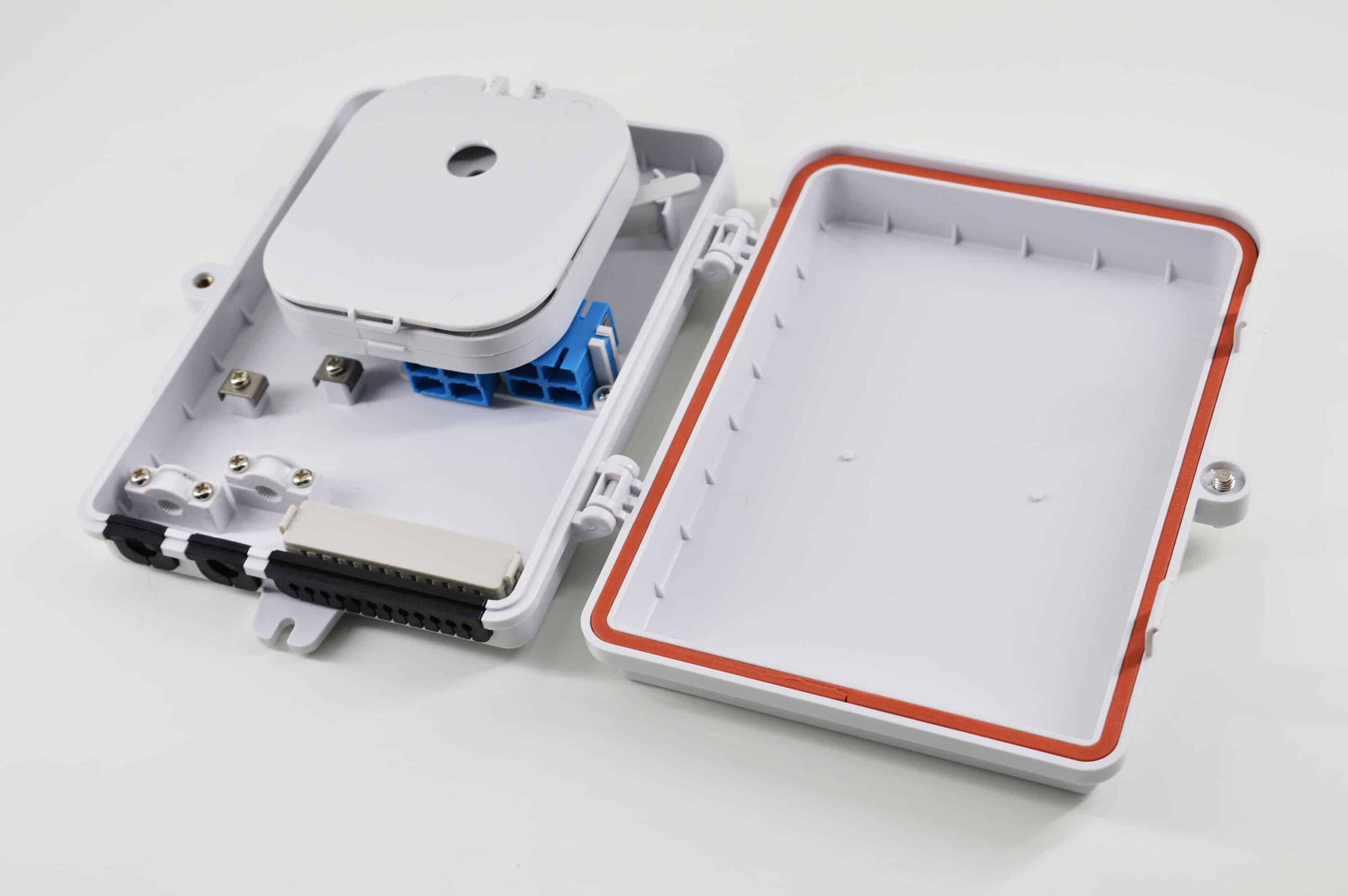

AN-FDB-08D is specially designed, and optimized for GEPON or other PON networks design fiber optical distribution, termination and splice box. You get all in one solution for PON from AD-net. As you can see, box has 2 sides – 1 side is optical splice tray + passive optical termination, and another side is distribution box to flats, houses – user side! One side is used for splicing the cable coming from OLT, another side – cables coming from flats, houses etc. You can choose the set with any spliiter, like 1:2, 1:4, 1:8 etc, depending on a model. 1:N or 2:N splitting versions are also available upon request.
- PLC splitter is compatible with 3 wavelength (1310/1490/1550)
- Low insertion loss and high directivity, high quality, reliability, and performance
- Available for : 1×8, 2×8
- FTTH network and CATV system application
- Suitable for SC Duplex 4 ports. Or Quad LC adapters
- Design to protect splitter
- Bracket preparation that can be fixed when installing it on wall
- Application for outdoor, IP65 grade
Parameter |
Common Specification |
Wavelength Range(nm) |
1260-1650 |
Port Wavelength Range( nm) |
1310±20/1490±10/1550±25 |
Fiber Cable |
G657A or customer specified |
Return Loss(dB) |
≧50 |
Directivity(dB) |
≧55 |
Max.Optical power input level(mW) |
500 |
Operation Temperature(℃) |
-45℃-85℃ |
Storage Temperature(℃) |
-45℃-85℃ |
Port Display |
Mark label |
Individual PLC Splitter Specification
Item |
Optical Parameters |
Wave Length Range:1260-1650nm |
|
1×8 |
2×8 |
||
1 |
Insertion Loss |
<10.5 |
<11.0 |
2 |
Uniformity |
<0.8 |
<1.2 |
3 |
Return Loss |
≧50 |
≧50 |
4 |
Directivity |
≧55 |
≧55 |
5 |
PDL |
≤0.2 |
≤0.3 |
Description
AN-FDB-08D is specially designed, and optimized for GEPON or other PON networks design fiber optical distribution, termination and splice box. You get all in one solution for PON from AD-net. As you can see, box has 2 sides – 1 side is optical splice tray + passive optical termination, and another side is distribution box to flats, houses – user side! One side is used for splicing the cable coming from OLT, another side – cables coming from flats, houses etc.
You can choose the set with any splitter, like 1:2, 1:4, 1:8 etc, depending on a model. 1:N or 2:N splitting versions are also available upon request.
