G.703 Co-Directional (Co-Dir 64K) to RS232/422/485 Converter

64k-V.35 / V.24 interface converter provides ITU-T co-64K G.703 standard
E1 interface and standard V.35 conversion interface between the physical layer
/ V.24.

  • Based on self -copyright  IC
  • Provide 2 clock types: Co-Directional G.703 master clock and G.703 line clock;
  • Provide two loopback functions, namely 703 of the local loop, RS232 / 422/485 from the local loop.
  • Pseudo-random code test function, bring great convenience to installation and commissioning of the equipment
  • The co-directional 64K G.703 support 120Ω balanced impedance;
  • AC 220V, DC -48V, DC + 24V power Optional ,DC power supply no positive and negative points;
  • Co-Directional G.703 Interface

Interface Standard:                                comply with protocol ITU-T G.703;

Interface Rate:                                        64Kbps±50ppm;

E1 Impedance:                                        120Ω (balance);

Jitter tolerance:                                      In accord with protocol G.742 and G.823

Maximum Transmission Distance:    up to 500m



  • Ethernet interface (10/100M)

Interface rate:                             10/100 Mbps, half/full duplex auto-negotiation

Interface Standard:                   Compatible with IEEE 802.3, IEEE 802.1Q (VLAN)

MAC Address Capability:          4096

Connector:                                   RJ45, support Auto-MDIX



  • Working environment

Working temperature:                    -10°C ~ 50°C

Working Humidity:                          5%~95 % (no condensation)

Storage temperature:                      -40°C ~ 80°C

Storage Humidity:                            5%~95 % (no condensation)



Model

AN-COD-RS232/422/485

Functional Description

Co-Directional 64K-RS232/422/485 Converter, Serial port rate 0-14.4K

Port Description

1 Co-Directional 64K interfaces, one data interface (RS232 / RS485 / RS422)

Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

Dimension

Product Size:  216X140X31mm (WXDXH)

Weight

1.2KG

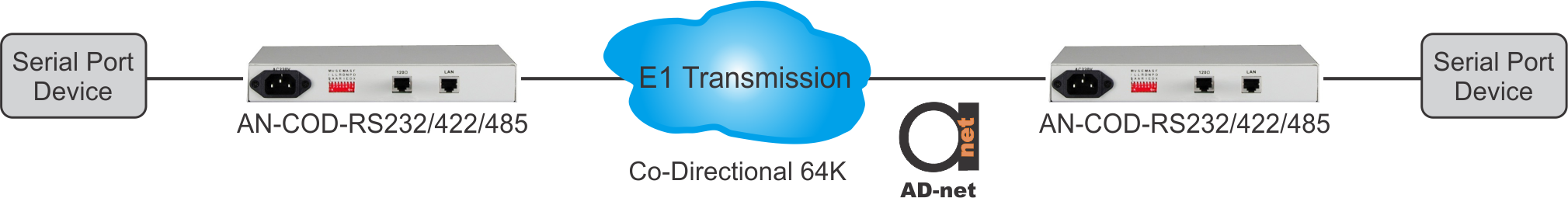

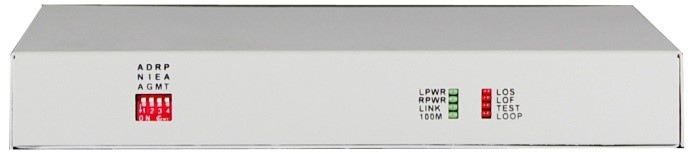

AN-COD-RS232/422/485

G.703 Co-Directional (Co-Dir 64K) to RS232/422/485 Converter, AC or DC power supply

Description

64k-V.35 / V.24 interface converter provides ITU-T co-64K G.703 standard
E1 interface and standard V.35 conversion interface between the physical layer
/ V.24.

The G.703 (Co-Directional G.703) interface divides 64Kbps cycle into 4 unit intervals, it uses“0101” represent  “0”, “1100” represent “1″. By alternating transformation polarity of the adjacent block, binary signals convert three-level signals. In every 8th group destroyed block of alternating polarity, thus to transmit 8KHz timing signal. By the above coding, G.703 co-directional 64Kbps signal could achieve transmitting the timing signal of 64KHz and 8KHz and 64KHz and the data signal of 64Kbit/s in the same direction with a pair balanced line.
