G.703 Co-Directional (Co-Dir 64K) to V.35 Converter

64k-V.35 / V.24 interface converter provides ITU-T co-64K G.703 standard
E1 interface and standard V.35 conversion interface between the physical layer
/ V.24.

  • Based on self -copyright  IC;
  • Provide 2 clock types: Co-Directional G.703 master clock and G.703 line clock;
  • Have two Loop Back Mode: G.703 interface Loop Back , V.35 interface Loop Back;
  • Have pseudo random code test function, easy for installation;
  • Support 120 Ohm balance;
  • 35 interface supports hot-plug;
  • Provide 3 clock types: Internal clock, External clock,E1 line clock;
  • AC 220V, DC-48V, DC+24V, DC Power and Polarity-Free.
  • Co-Directional G.703 Interface

Interface Standard:                               comply with protocol ITU-T G.703;

Interface Rate:                                        64Kbps±50ppm;

E1 Impedance:                                       120Ω (balance);

Jitter tolerance:                                     In accord with protocol G.742 and G.823

Maximum Transmission Distance:  up to 500m



  • 35/V.24 interface

Interface rate:                        64Kbps
Interface Standard:              Compatible with V.35/V.24 standard

Connector:                              DB25

Connect Mode:                       DCE

Clock Type:                             G.703 internal clock, external clock



  • Working environment

Working temperature:                  -10°C ~ 50°C

Working Humidity:                        5%~95 % (no condensation)

Storage temperature:                    -40°C ~ 80°C

Storage Humidity:                          5%~95 % (no condensation)



Model

AN-COD-V35

Functional Description

Co-Directional 64K-V.35 Converter, V.35 rate 64K

Port Description

One Co-Directional 64K interfaces, one V.35 interface

Power

Power supply: AC180V ~ 260V；DC –48V；DC +24V

Power consumption: ≤10W

Dimension

Product Size:  216X140X31mm (WXDXH)

Weight

1.2KG

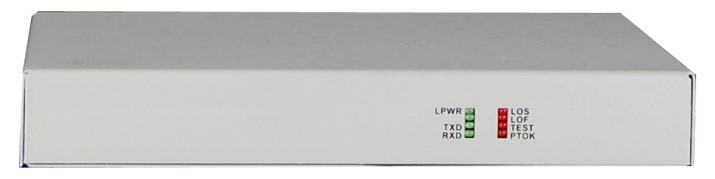

AN-COD-V35

G.703 Co-Directional (Co-Dir 64K) to V.35 Converter, AC or DC version

Description

64k-V.35 / V.24 interface converter provides ITU-T co-64K G.703 standard
E1 interface and standard V.35 conversion interface between the physical layer
/ V.24.

The G.703 (Co-Directional G.703) interface divides 64Kbps cycle into 4 unit intervals, it uses“0101” represent  “0”, “1100” represent “1″. By alternating transformation polarity of the adjacent block, binary signals convert three-level signals. In every 8th group destroyed block of alternating polarity, thus to transmit 8KHz timing signal. By the above coding, G.703 co-directional 64Kbps signal could achieve transmitting the timing signal of 64KHz and 8KHz and 64KHz and the data signal of 64Kbit/s in the same direction with a pair balanced line.

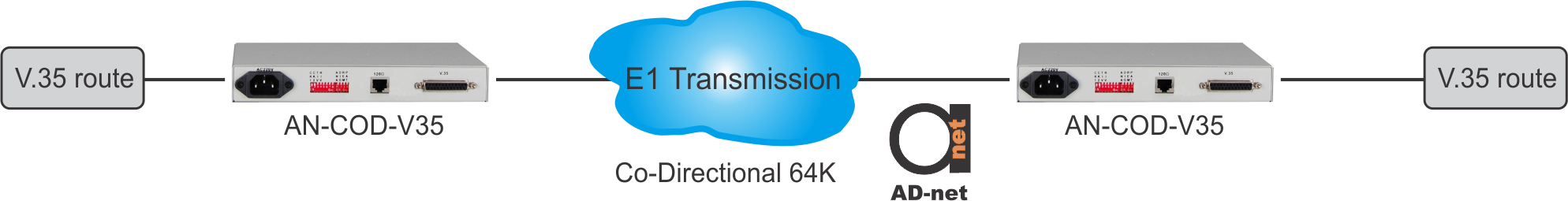

64k-V.35 / V.24 interface converter provides ITU-T co-64K G.703 standard E1 interface and standard V.35 conversion interface between the physical layer / V.24. Network to provide secure communications between devices of different interfaces, the seamless connection. Equipment E1 channel section applies to transmission equipment slots available, and the need to transfer data to and only V35 / V24 export of the occasion, the data interface mode is DCE, with DTE or DCE device docking.
