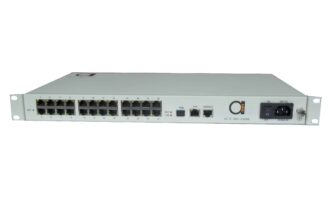

GEPON ONU – 24 ports high capacity ONU for FTTB applications
AN-E-ONU-24000 is gigabit capacity optical FTTB customer premise equipment platform, compliance with IEEE 802.3ah and MII GEPON standard. AN-E-ONU-24000 is gigabit capacity optical customer premise equipment platform, compliance with IEEE 802.3ah and MII GEPON standard.
- Point-to-multipoint topology with splitter without field power requirement
- Offer a real future-proof access network with flexiblilty and upgrade capability
- Passive splitters to eliminate outside plant and field power requirements, to lower CAPEX and OPEX (no energy needed for splitter)
- Supports features like legacy DDN and voice, QoS and SLA give carriers the ability to create profit-generating applications and customized service offerings
- Easy management, easy accounting and easy upgrade with flexibility and scalability
- Multicast support for IPTV video streaming
- Split ratio up to 1:32 and 1:64 reaching up to 20 km
- L2 switch features
- Managed by logical and easy GUI manager and SNMP
System Capacity
- wire-speed switching
- 8K MAC list
- 4094 VLANs
- Provide 2 fast Ethernet ports
- Link budget: >29dB
User Interface
- FE port
- Connector:RJ45
PON Interface
- 1Gbps transmission rate
- Network reach: 20 km
- Receiver sensitivity: <=-26dBm
- Security: ONU authentication
Standards
- IEEE 802.3ah
- MII GEPON standards
- IEEE 802.1p 802.1Q 802.1d 802.1w
- IEEE 802.3ad
Ethernet Service
- MAC learning and banding
- DBA
- Qualities of Service
- Rate control
- ACL
- RSTP
- Broadcast limit
- Encryption
- Layer 2 isolation
- IGMP multicast
Power
- 120 ~240V AC，broaden compliant
- Power consumption: Max 35W
Dimensions
- 432mm(W) x 200mm(D) x 44mm(H)
- Mounting:
- 19”, 23” ANSI compliant
- 300mm. 600mm ETSI compliant
| AN-E-ONU-24000 | 24 x 10/100 Fast Ethernet port ONU for FTTB/FTTx applications, AC power supply |
Description
AN-E-ONU-24000 lays aside in the commercial building or the apartment to access the IP service, traditional access service and the digital special line service in the sole platform. Complete the management and disposition through the synthesis management system which are provided by MSC.
