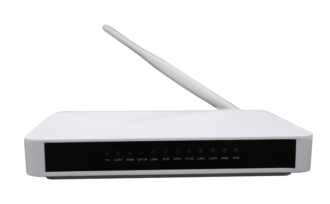

GEPON ONU 4 x 10/100 Fast Ethernet + CATV + WiFi

The ONU is mainly designed for FTTH,FTTO application. It support 1000Base-PX20 standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink GE PON port.   It work together with OLT could realize flexible network structure and maintenance and provide total FTTx solutions.

  • In compliant with IEEE802.3ah Standard and CTC2.1/3.0
  • Up to 20KM transmission Distance
  • Support VLAN and IGMP
  • Support port isolation between different ports
  • Integrated OAM remote configuration and maintenance function
  • Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology
  • EMS network management based on SNMP ,convenient for maintenance
  • Full speed non-blocking switching.
  • Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
  • Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
  • Support auto polarity detection of Ethernet ports (AUTO MDIX).
  • Integrated IEEE802.1p QoS with four level priority queues.
  • Support IPv4 IGMP snooping and IPv6 MLD snooping.



CATV Service Functions

  • Turn on/off RF output remotely
  • Wavelength：1550 +/- 10nm
  • Optical return loss：>45dB
  • Input optical power：-8dBm～+2dBm
  • RF frequency：47MHz~875MHz
  • RF output lever：75～80dBuV
  • CNR：>46dB，CSO: >58dBc，CTB: >58dBc
  • RF output return loss： >14dB
  • RF impedance： 75Ohm

Item

Parameter

Interface

PON Interface

1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC single-mode fiber
split ratio: 1:64
Transmission distance 20KM

User Interface

4*10/100Mauto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

1 RF output

Female F-Type Connector

Power Interface

12V DC Power supply

Performance Parameters

PON

Optical

Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: -1～4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm
Connector Type: SC
Optical Fiber: 9/125ɥm single-mode fiber

Data Transmission
Parameter

PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet: 100Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms

Business
Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG，VLAN conversion

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Support link detection

Network Management

Management

Mode

Support IEEE802.3 QAM, ONU can be remotely managed by OLT

Support Remote management through SNMP and Telnet

Local management

Management
Function

Status monitor, Configuration management, Alarm management,
Log management

Indicator

LED Indicator

 PWR, SYS,PON, LAN1~LAN4, CATV,WIFI

Physical Features

Shell

Plastic casing

Power

External 12V 1A AC/DC power supply adapter

Power consumption: <5.5W

Dimension and Weight

Item Dimension：200mm(L) x 140mm(W) x 33mm (H)

Item weight：0.4kg

Environmental
Specifications

Operating temperature:  0 to 50 ºC
Storage temperature: -40 to 85 ºC
Operating humidity: 10% to 90% (Non-condensing)
Storage humidity: 10% to 90% (Non-condensing)

WiFi specifications:

Performance  parameters

Operating Mode

Router or bridge

Throughput

IEEE 802.11b: 11Mbps

IEEE 802.11g: 54 Mbps

IEEE 802.11n: 135Mbps

Frequency

2.412 ~ 2.472 GHz

Channel

13*Channel, configurable to meet the standard of USA, Canada, Japan and China

Modulation

DSSS , CCK and OFDM

Coding

BPSK, QPSK, 16QAM and 64QAM

RF receive sensitivity

802.11b: -82dBm @ 1 Mbps; -80dBm @ 2 Mbps;

-78dBm @ 5.5 Mbps; -76dBm @ 11 Mbps

802.11g: -82dBm @ 6 Mbps; -81dBm @ 9 Mbps;

-79dBm @ 12 Mbps; -77dBm @ 18 Mbps;

-74dBm @ 24 Mbps; -70dBm @ 36 Mbps;

-66dBm @ 48 Mbps; -65dBm @ 54 Mbps

RF output lever

802.11b:  16.5 ±1dBm

802.11g:  13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps

802.11n:  13 ± 1dBm @ 54 Mbps; 14 ± 1dBm @ 48 Mbps; 15 ± 1dBm @ 6 ~ 36 Mbps

Encryption Mode

802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK)
  • Typical Solution: FTTH, FTTO, PON+EOC
  • Typical Business: INTERNET, CATV, IPTV, VOD, IP Camera, WIFI

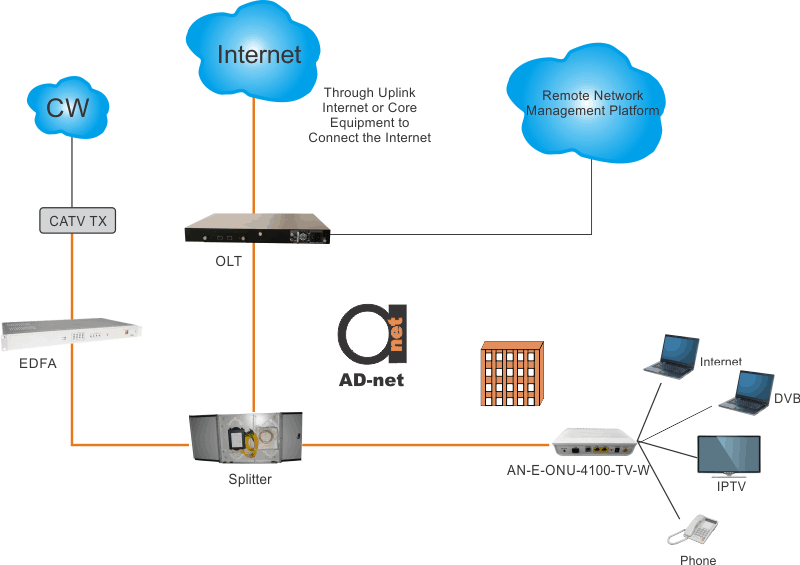

AN-E-ONU-4100-TV-W_scheme

AN-E-ONU-4100-TV-W

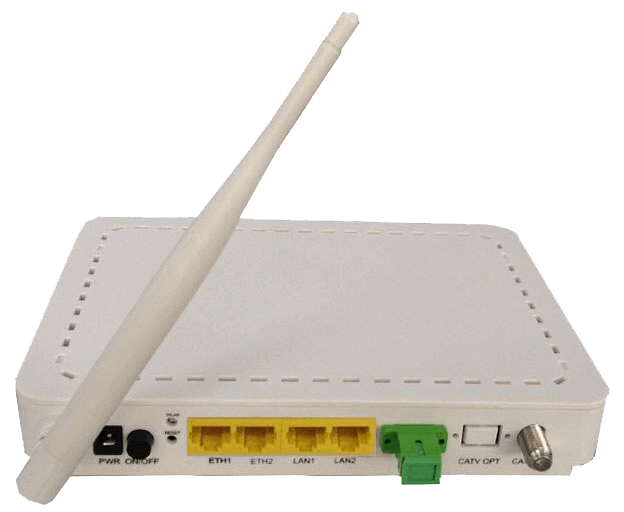

4*10/100M Ethernet interface, 1 EPON interface, 1 CATV interface, support Wi-Fi function, Plastic casing, external power supply adapter

Description

The ONU is mainly designed for FTTH,FTTO application. It support 1000Base-PX20 standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink GE PON port.



It work together with OLT could realize flexible network structure and maintenance and provide total FTTx solutions.



It built in CATV Receiver to realize the analog or DVB TV signals transmission.



It adopts single fiber WDM technology with downlink wavelength 1550nm and 1490nm,  uplink wavelength 1310nm . It only needs one-core fiber to transmit data and CATV service.



ONU AN-E-ONU-4100-TV-W has 1 PON port, four10/100BASE-T ports ,one CATV output and support WiFi.
