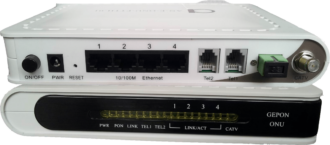

GEPON ONU – customer unit 1 CATV + 4 FE + 2 FXS/FXO

AD-net GEPON ONU with the unique capability to support both Ethernet and native TDM/POTS and TV services on the same EPON based platform. AN-ONU-FTTH-01 has 1 CATV port, 2 POTS (FXS/FXO) and 4 10/100BaseT Ethernet ports

Fully integrated triple play solution to deliver TV, Internet and phone services at same platform
Multiple services on one platform, no expensive over-build in last mile network
Point-to-multipoint topology with splitter without field power requirement
Offer a real future-proof access network with flexiblilty and upgrade capability
Passive splitters to eliminate outside plant and field power requirements, to lower CAPEX and OPEX (no energy needed for splitter)
Supports features like legacy DDN and voice, QoS and SLA give carriers the ability to create profit-generating applications and customized service offerings
Easy management, easy accounting and easy upgrade with flexibility and scalability
Multicast support for IPTV video streaming
V.5x support for E1 uplink to carriers PSTN network
Split ratio up to 1:32 and 1:64 reaching up to 20 km
L2/L3 routing features
Managed by logical and easy GUI manager and SNMP

1 PON PX-20 or PX-10 port for uplink
4 10/100 Ethernet ports
2 POTS (FXS/FXO) ports
1 CATV port
Built upon EPON MAC core with integrated, patent protected TDM/POTS functionalities
Fully compliant with IEEE802.3ah EPON standard when running in pure EPON mode
Equipped with GbE/FE as network interface to IP networks and E1 interfaces to TDM networks
Support of up 1:64 split ratio, and both IEEE 802.3ah 1000BASE PX10 and PX20 PON physical interfaces
Up to 8K MAC addresses and 256 multicast groups per PON
1U chassis, DC/AC L2 VLAN tag switching
IGMP multicast snooping
QoS services
IEEE 802.3ah EPON protocol
TCP/IP, ICMP, IGMP Proxy/snooping, ARP, DHCP
SNMP V1/V2c, SNTP, TRAP, Syslog

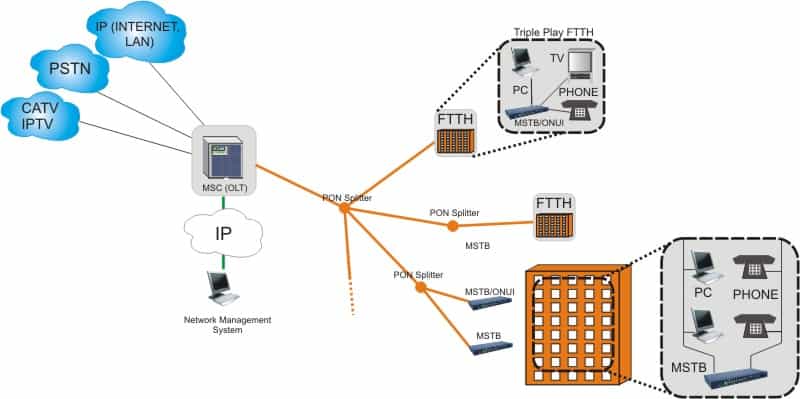

Application example:

shema2

AN-ONU-FTTH-01

FTTH triple play ONU unit with 1 PON PX-20, 1 CATV, 4 Ethernet and 2 POTS ports

Description

AN-ONU-FTTH-01 lays aside in the commercial building or the apartment to access the IP service, traditional access service and the digital special line service in the sole platform. Complete the management and disposition through the synthesis management system which are provided by MSC.
