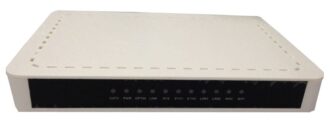

GEPON ONU with 4 x 100Mbit/s Fast Ethernet + 1 CATV (RF) port
GEPON ONU model AN-E-ONU-4100-TV - 4 x 100Mbit/s + CATV port - FTTH access compact unit 1 x Fast Ethernet port and 1 CATV port for TV connection.
- Comply with IEEE802.3ah(EPON),China Telecom EPON technology standard V2.1
- Support IEEE802.3AH OAM function
- Maximum distance:20km;
- Maximum splitting Ratio:1:64(10km) or 1:32 (20 km)
- Support various service ,such as Data ,Voip and IPTV
- Support Dynamic Bandwidth Allocation technology
- Support optical power real-time detection(optional)
- Support PPPoE,DHCP, static IP
- Support networking management mode ,such as CLI, Web and EMS based on SNMP protocol
- Support group upgrading online and software automatic upgrade
- Support battery supplying power(through USD adapter port)
|
Parameter |
Feature |
Description |
|
EPON Uplink Optical Port |
Wavelength |
TX: 1310 nm |
|
RX: 1490 nm |
||
|
TX Optical Power |
+4～-1dBm |
|
|
RX Sensitivity |
-26.5dBm |
|
|
Patcord Cord |
SM,0.5Meter |
|
|
Connector |
SC/PC |
|
|
Standard |
1000BASE-PX10/20 |
|
|
User Port |
4*10/100Base-T ports |
10/100BASE-T Standard |
|
10/100M full or half duplex auto-negotialbe |
||
|
support flow control and negotiation |
||
|
Support LINK/ACT LED |
||
|
Ligtening Protection for Ethernet Ports |
||
|
Management Mode |
Console |
Console via RS232 port |
|
Telnet |
OLT side management with WEB,CLI and SNMP PMS mode |
|
|
Software Upgrading |
Local Upgrading |
Local downlownding files via RS232 port |
|
Remote Upgrading |
Remote downloading and Upgrading via OLT’s SNMP,Web management |
|
|
ONU Management |
Port Configuration and Remote Reset |
Be able to configure and display the listed ONU port’s index and status. |
|
Port on/off,port speed and full/half duplex auto-negotiation,loopback on/off,flow control on/off,port isolation on/off,port VLAN,port IGMP,port speed limitation,port QoS |
||
|
Port Speed |
Support port speed auto-negotiation |
|
|
Port Speed Limitation |
Support port’s birectional speed limitation with minimum unit 1K |
|
|
Remote Resetting |
Support OLT telnet resetting each onu |
|
|
SLA(Service Level Agreement) |
Assign each ONU’s maximum bandwidth and guaranteed bandwidth |
|
|
Statistics Query |
Support ONU port’s TX/RX data analysis |
|
|
Online Time |
Support recorded ONU ‘s registration onlime time with minimum unit 1s. |
|
|
Security Certification |
Data Enscrytion |
Support bidirectional 128bits AES enscryption data transmission ,triple churning. |
|
ONU visit Authorization |
Support ONU authorization ceritificate and key management |
|
|
PPPoE |
Support PPPoE transparent transmission |
|
|
L2 Ethernet Protocol |
IGMP |
Support IGMPv1,v2 protocol Snooping,each ONU support 16 IGMP addresses |
|
Port Isolation |
Support physical ports isolation |
|
|
Port Flow Control |
Support 802.3x flow control protocol |
|
|
Vlan Function |
Support port PVID and 4 kinds of port’s VLAN mode setting |
|
|
STP Protocol |
Support standard 802.1d STP protocol |
|
|
Priority Queue of QoS |
Support 802.1p protocol,4 QoS queues severly compliant with priority dispatch |
|
|
VOIP Function |
Voip Code |
Support G.711,G723.1,G729A-8 kbps,G726,G722,iLBC |
|
FAX |
Support T.38 Fax relay,G711 passing through |
|
|
VOIP Added Service |
support CLIP,CLIR,call forwarding,call maintaining |
|
|
Physical Feature |
Maximum Power Consumption |
6W |
|
Dimension |
240×160×40mm |
|
|
Weight |
0.3Kg |
|
|
Working Temperature |
—10～55°C |
|
|
Humidity |
10%～90% |
|
|
LED |
POW：POWER |
Normal working（Green） |
|
LINK |
Link sucessfully (GREEN) |
|
|
OPT |
Flashing means link alarm(Green) |
|
|
ONU Registeration |
LES flash every one second ,meaing succesful registration(GREEN) |
|
|
SER |
The onu’s registration fails (off) |
|
|
Ethernet Port |
X1-X4 normally on means normally working (green) |
|
|
X1,X2,X3,X4 |
If there is flow ,the LED flashes. |
|
|
CATV Function |
Optical Feature |
1550±20nm |
|
Optical Reflection Loss: ≥45Db |
||
|
Input Optical Power: -6dBm～+2dBm |
||
|
RF Feature |
Frequency Range: 54～870MHz or 87～870MHz |
|
|
RF Output Level:100dBuV(2M),104dBuV(2H),100dBuV(4M) |
||
|
RF Inband Flatness: ±0.75dB |
||
|
R Output Reflection LossF: ≥16dB |
||
|
Power supply |
12V DC |
12V DC，1A，accuracy ±4% |
|
Ground Signal |
GND |
|
|
Ligtening Protection |
Power Supply Ligtening Protection |
completed in switch module |
|
Ethernet Port Lightening Protection |
each port can afford 3KA’s lightening current and 800V’s instant lightening high pressure. |
|
|
Power Supply Protection |
AC Protection |
|
|
DC Protection |
|
|
|
Alarm Management |
Fiber Break Alarm |
|
|
Power off alarm |
|
|
|
Special Function |
Constant Transmitting Optical Detest |
|
|
|
||
|
ONU Receiving Optical Power and temperature Detest |
|
| AN-E-ONU-4100-TV | 4 x 100Mbit/s + CATV port, FTTH GEPON ONU |
Description
AN-E-ONU-4100-TV (4FE+RF) is a FTTH bandwidth access equipment, (integrated with Ethernet, and CATV). Based on mature and stable GEPON technology, it has powerful functions with high stability ,sound QoS guarantee , comprehensive management and flexible networking construction, etc. AN-E-ONU-4100-TV technology standard fully complies with ITU-T, IEEE, YDT and telecommunication technology standard.

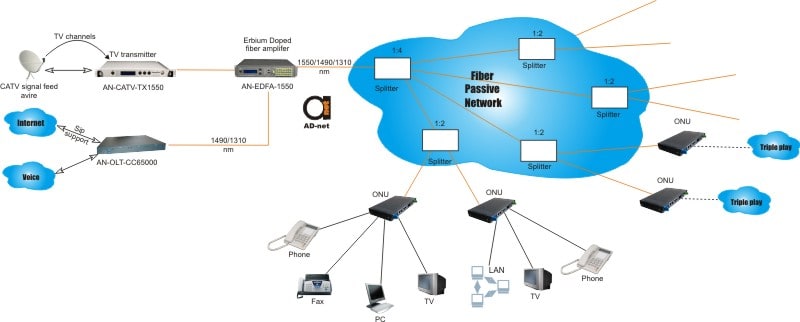

AN-E-ONU-4100-TV is terminal device for single EPON user with core chipset Teknovus and Infineon’s SOC. It could be used with AD-net central equipment OLT AN-E-OLT8000 or AN-E-OLT2000 to construct EPON system. It could provide three service access, meeting the end users’ demands for surfing, telephone and video entertainment.

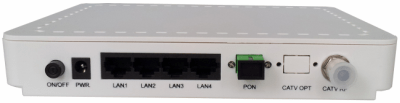

AN-E-ONU-4100-TV offers 1 PON port, 4 10/100M data ports, and 1RF port.
ONU adopts single fibre WDM technology with downlink wavelength 1490nm/1550nm and uplink wavelength 1310nm .It only needs one-core fibre to transmit data, VOIP and RF service at the same time. The transmission distance is up to 20km.
– 1 SC/PC optic port
– 4 10/100Base-TX port, compliant with IEEE802.3/802.3u. Four ports has two layer link speed switch function between each two ports, which could be used as bandwidth router at home.
– 1 RF port ,used for traditional analogue or digital TV transmission 1 Console port for management configuration and debugging
