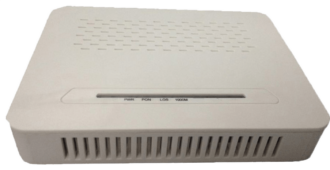

GPON ONT with 1 10/100/1000 Autosensing Gigabit Ethernet Port
AN-ONT-1000 GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data and video service based on the GPON network.
- Full compatible with ITU-T G.984
- Support one GE auto-adapting Ethernet ports
- Support OMCI for remote management
- Support Web for local management
- Support Auto-negotiation and MDI/MDIX
- Support the Ethernet interface rate, working mode and flows control
- Support loopback at UNI
- Support packet filtering and anti-illegal message attack protection
- Support performance statistics of Ethernet lines
- Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
- Support DHCP Option60 reporting the location information of the Ethernet interface
- Support PPPoE+ for accurate subscribers identification
- Support IGMP Snooping
- Support AES-128
|
Item |
Parameters |
Specification |
|

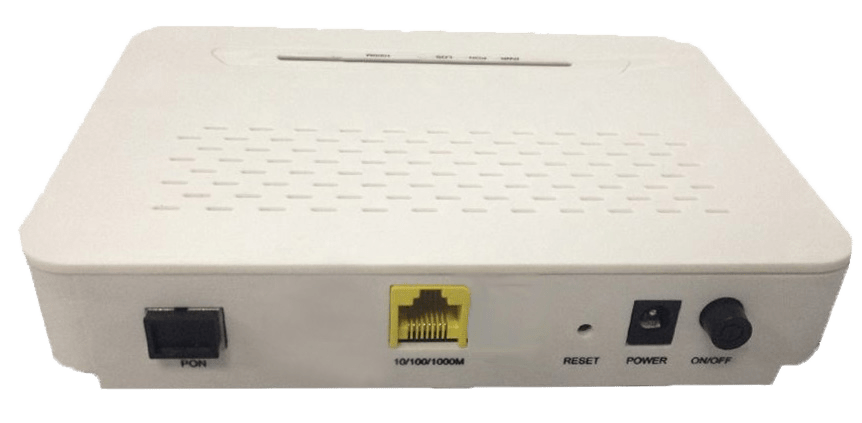

Interface |
PON Port |
1*GPON port, FSAN G.984.2 standard, Class B+ Downstream Data Rate:2.488Gbps Upstream Data Rate:1.244Gbps SC/PC single mode fiber 28dB Link loss and 30KM distance with 1:128 |
|
Ethernet Port(LAN) |
|
|
|
Power Supply Port |
12V DC input |
|
|
Management |
Network Management |
Standard compliant OMCI interface as defined by ITU-T G.984.4 Support WEB management |
|
Management Function |
Status monitor, Configuration management, Alarm management, Log management |
|
|
LED Indicator |
LEDS |
PWR: Power LOS: Optical link PON: ONT Register FE: Link Status of Ethernet Interface FE/GE: Link Status of Ethernet Interface |
|
Environmental |
Shell |
Plastic casing |
|
Power |
External 12V 0.5A AC/DC power supply adapter Power consumption: <5W |
|
|
Dimensions |
160mm(L) x 120mm(W) x33mm (H) 0.2kg |
|
|
Environment |
Operating Temperature: 0~50℃ Storage Temperature:-40~85℃ Operating Humidity:10%~90%(Non-condensing) Storage Humidity:5%~95%(Non-condensing) |
- Solution: FTTH, FTTO, PON+EOC
- Business: Broadband Internet, IPTV, VOD, IP Camera
| AN-ONT-1000 | 1*FE/GE Ethernet interface, 1 GPON interface, plastic casing, external power supply adapter |
Description
AN-ONT-1000 GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data and video service based on the GPON network.
GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.
AN-ONT-1000 provide one GE auto-adapting Ethernet ports. The AN-ONT-1000 features high-performance forwarding capabilities to ensure excellent experience with Internet and HD video services. Therefore, the AN-ONT-1000 provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment. It has good third-party compatibility to work with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucen.
