GPON ONT with 4 x Fast Ethernet + CATV+ Wi-Fi

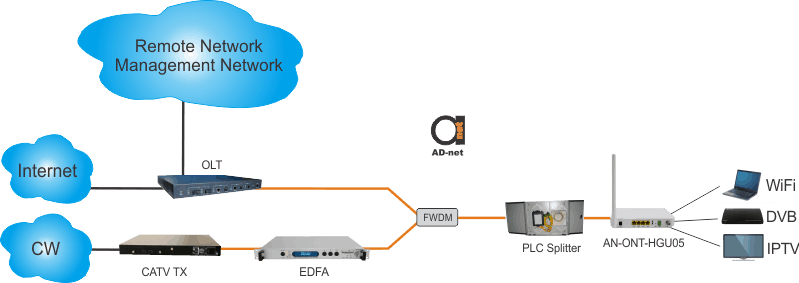

AN-ONT-HGU05 is a FTTH bandwidth access equipment .Based on mature and stable GPON technology, it has powerful functions with high stability, QoS guarantee, comprehensive management and flexible networking construction, etc. AN-ONT-HGU05’s fully compatible with ITU-T G.984 technology standard. It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm. It only needs one-core fiber to transmit data service. AN-ONT-HGU05 has 1 PON port, four 10/100BASE-T ports and one CATV output, support Wi-Fi function.
- Full compatible with ITU-T G.984
- Support four FE auto-adapting Ethernet ports
- Support one CATV output
- Support one 802.11 n/b/g WiFi port
- Support OMCI and TR069 for remote management
- Support Web for local management
- Support Auto-negotiation and MDI/MDIX
- Support the Ethernet interface rate, working mode and flows control
- Support loopback at UNI
- Support packet filtering and anti-illegal message attack protection
- Support performance statistics of Ethernet lines
- Support VLAN tagged label processing, traffic classification and packet filtering, STP/RSTP etc.
- Support DHCP Option60 reporting the location information of the Ethernet interface
- Support PPPoE+ for accurate subscribers identification
- Support IGMP Snooping
- Support AES-128
- CATV support turn on/off RF output remotely

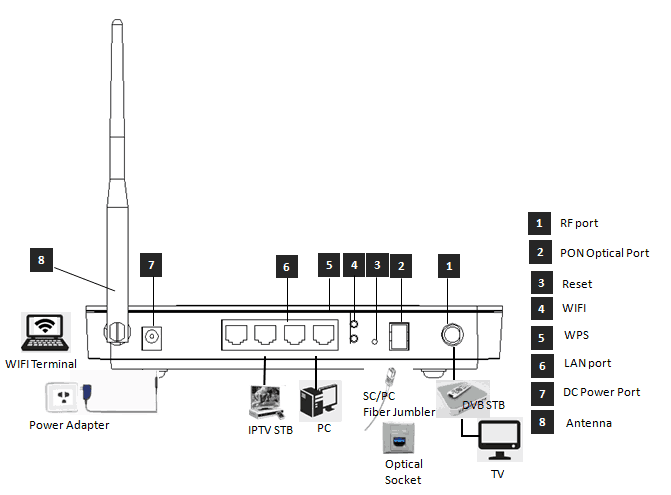

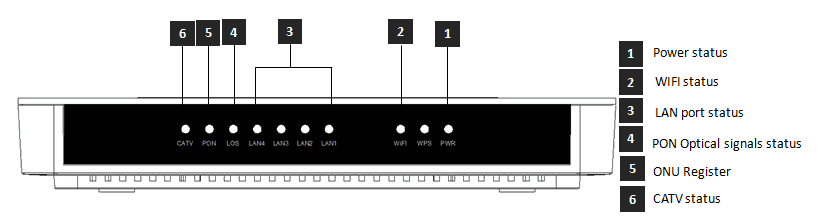

| Interface | Uplink Interface | 1*GPON port, FSAN G.984.2 standard, Class B+ |
| Downstream Data Rate：2.488Gbps | ||
| Upstream Data Rate：1.244Gbps | ||
| SC/PC single mode fiber | ||
| 28dB Link loss and 30KM distance with 1:128 | ||
| CATV Interface | 1 RF output | |
| Female F-Type Connector | ||
| Ethernet Interface | 4*10/100Mauto-negotiation | |
| Full/half duplex mode | ||
| RJ45 connector | ||
| Auto MDI/MDI-X | ||
| 100m distance | ||
| Power Interface | 12V DC Power supply | |
| Performance Parameters | PON Optical Parameter | Wavelength: Tx 1310nm, Rx1490nm |
| Tx Optical Power: -1～4dBm | ||
| Rx Sensitivity: -27dBm | ||
| Saturation Optical Power: -3dBm | ||
| Connector Type: SC | ||
| Optical Fiber: 9/125ɥm single-mode fiber | ||
| Data Transmission | PON Throughput: Downstream 950Mbps; Upstream 930Mbps | |
| Parameter | Ethernet: 100Mbps | |
| Packet Loss Ratio: <1*10E-12 | ||
| latency: <1.5ms | ||
| CATV parameters | Wavelength：1100~1600 nm | |
| Optical return loss：>45dB | ||
| Input optical power：-8dBm～+2dBm | ||
| RF frequency：47MHz~875MHz | ||
| RF output lever：75～80dBuV | ||
| CNR：>46dB，CSO: >58dBc，CTB: >58dBc | ||
| RF output return loss：>14dB | ||
| RF impedance： 75Ohm | ||
| Business Capability | Layer 2 wire speed switching | |
| Support VLAN TAG/UNTAG，VLAN conversion | ||
| Support Port-based speed limitation | ||
| Support Priority classification | ||
| Support storm control of broadcast | ||
| Support link detection | ||
| Network Management | Management Mode | Standard compliant OMCI interface as defined by ITU-T G.984.4 |
| Support TR069 and WEB management | ||
| Management Function | Status monitor, Configuration management, Alarm management, Log management | |
| Physical Features | Shell | Plastic casing |
| Power | External 12VDC/1A power supply adapter | |
| Power consumption: <8W | ||
| Dimension and Weight | Item Dimension：200mm(L) x 140mm(W) x 33mm (H) | |
| Item weight：0.5kg | ||
| Environmental | Operating temperature: 0 to 50ºC | |
| Specifications | Storage temperature: -40 to 85ºC | |
| Operating humidity: 10% to 90%(Non-condensing) | ||
| Storage humidity: 5% to 95%(Non-
condensing) |
WIFI Features
- Wi-Fi Specification IEEE 802.11n compliant, 2.4 GHz
- Full IEEE 802.11b/g legacy compatibility with enhanced performance
- Two-stream spatial multiplexing up to 300 Mbps PHY data rates
- Support multi-SSID（Maximum 4 SSID）
- Support automatic channel selection
- Support hide SSID
- Support wireless security of 64/128 bit WEP、1x、WPA and WP
| Performance parameters | Standard | IEEE802.11b/g/n |
| Frequency | 2.400 ~ 2.500 GHz | |
| Wireless data rate | IEEE 802.11b: 1,2,5.5,11Mbps | |
| IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps | ||
| IEEE 802.11n: up to 200 Mbps | ||
| Modulation schemes | 802.11g: 64QAM, 16QAM, QPSK, BPSK, DSSS 802.11b: CCK, DQPSK, DBPSK = | |
| HT20: 64 QAM, 16QAM, QPSK, BPSK | ||
| Channel | 13*Channel, configurable to meet the standard of USA, Canada, Japan and China | |
| RF receive sensitivity | 802.11b: -96dBm @ 1 Mbps; -93dBm @ 2 Mbps; | |
| -91dBm @ 5.5 Mbps; -88dBm @ 11 Mbps | ||
| 802.11g: -90dBm @ 6 Mbps; -89dBm @ 9 Mbps; | ||
| -89dBm @ 12 Mbps; -867dBm @ 18 Mbps; | ||
| -83dBm @ 24 Mbps; -79dBm @ 36 Mbps; | ||
| -75dBm @ 48 Mbps; -75dBm @ 54 Mbps | ||
| 802.11n: -96dBm @ 1 Mbps;-88dBm @ 11 Mbps; | ||
| -90dBm@6Mbps; -75dBm@54Mbps; | ||
| -86dBm@m0/20MHz;-69dBm@m15/20MHz; | ||
| RF Tx Power | •TX power out B mode @ 11 Mbps: 18dBm +/- 2 | |
| • TX power out G mode @ 54 Mbps: 16dBm +/- 2 | ||
| • TX power 11n mode @ HT20: 16 dBm +/-2 | ||
| Encryption Mode | 64-bit, 128-bit WEP, AES, TKIP, WPA, WPA2, 802.1x | |
| Transmission distance | 100m indoors coverage area | |
| 300m outdoors coverage area | ||
| (varying depending on the actual environment) |

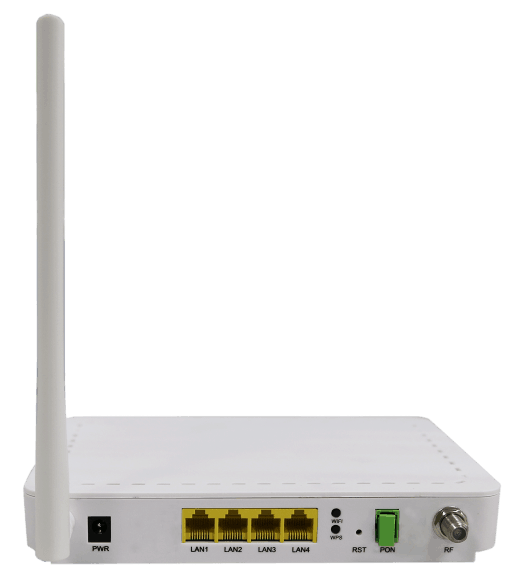

| AN-ONT-HGU05 | 4*10/100M Ethernet interface, 1 GPON interface, 1 CATV, support Wi-Fi function, Plastic casing, external power supply adapter |
Description
AN-ONT-HGU05 is a FTTH bandwidth access equipment .Based on mature and stable GPON technology, it has powerful functions with high stability, QoS guarantee, comprehensive management and flexible networking construction, etc. AN-ONT-HGU05’s fully compatible with ITU-T G.984 technology standard.
It adopts single fiber WDM technology with downlink wavelength 1490nm, uplink wavelength 1310nm. It only needs one-core fiber to transmit data service.
AN-ONT-HGU05 has 1 PON port, four 10/100BASE-T ports and one CATV output, support Wi-Fi function.
