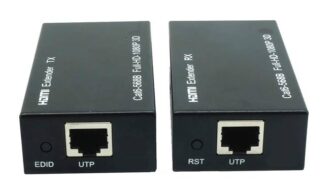

HD 1080p HDMI Over Cat6 UTP Cable Extender Set

The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits HDMI video and audio signals up to 60m over a single CAT6 cable;
Support video resolution up to 1920*1080@60Hz, 3D signal;
Support copy EDID, can match many kinds of display device;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	1920X1080@60Hz, 3D
	Connector	HDMI-A
	Impedance	100Ω
Ethernet	Interface	RJ45
Ethernet	Transmission distance	CAT6-60m
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	814323mm
	The warranty	1 year free warranty

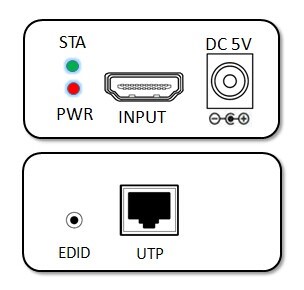

Transmitter:

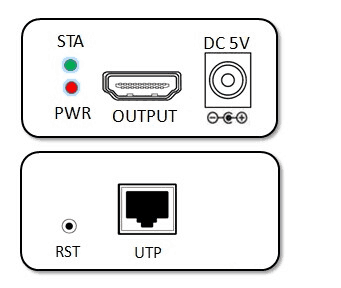

Receiver:

Port name	Description
HDMI IN/OUT	HDMI signal input/output
UTP	RJ45 port;
RST	According to the connect cable length adjustment of RST((When you change your display and adjust cable length, please press it)
EDID	EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID.
DC/5V	Power adapter socket
LED indicator	Description
PWR	System power indicator
STA	HDMI signal indicator

Installation

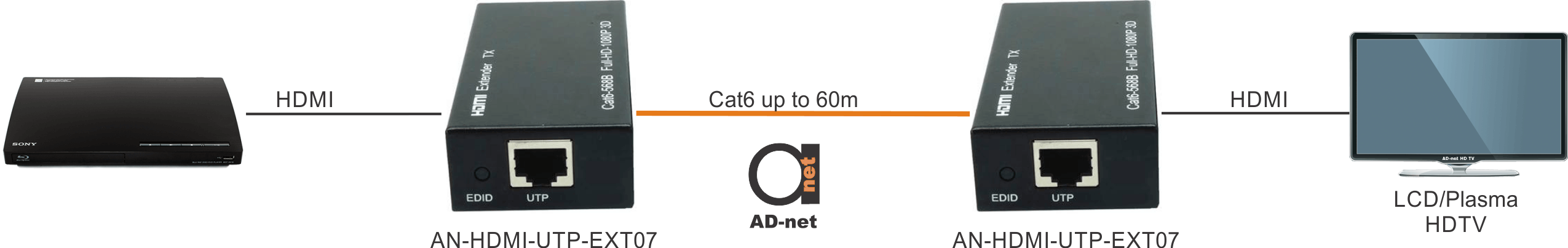

Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
Connect the HDMI output port of receiver to the display device with HDMI cable,
Connect the transmitter UTP port to the receiver UTP port using a single CAT6 cable.
Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver.

AN-HDMI-UTP-EXT07

1080p HDMI Over Cat6 UTP Cable Extender Set
