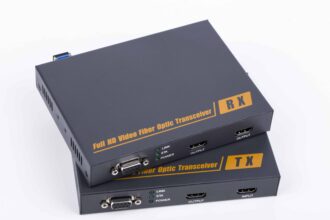

HDMI and RS-232 over Fiber converter

The AN-HDMI-EXT01 Fiber optic converter provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports high resolution up to 1080P, EDID copy, RS232 signal transmission and transmitter local output function. The converter can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits HDMI video signals up to 2km-10km over one fiber optic cable;
Support video resolution up to 1920*1080P@60Hz, 3D signal;
Support RS232 signal unidirectional transmission, baud rate self-adaptive;
Support copy EDID, can match many kind display device;
Transmitter support one channel HDMI local output;
Receiver support two channel HDMI output;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 1920X1080P@60Hz
	Connector	Female HDMI type A
	Impedance	100Ω
RS232	Interface	DB9 socket
	Signal direction	Unidirectional
	Baud rate	Self-adaptive, Max：115200bps
	Data bits	8
Optical fiber	Interface	SFP model – LC connector
	Fiber type	Single-mode
	Wavelength	Single-mode 1310nm
	Interface bandwidth	10Gbps
	Transmission distance	Single-mode fiber: standard 2km；maximum 10km
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 5W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1658030mm
	The warranty	1 year free warranty

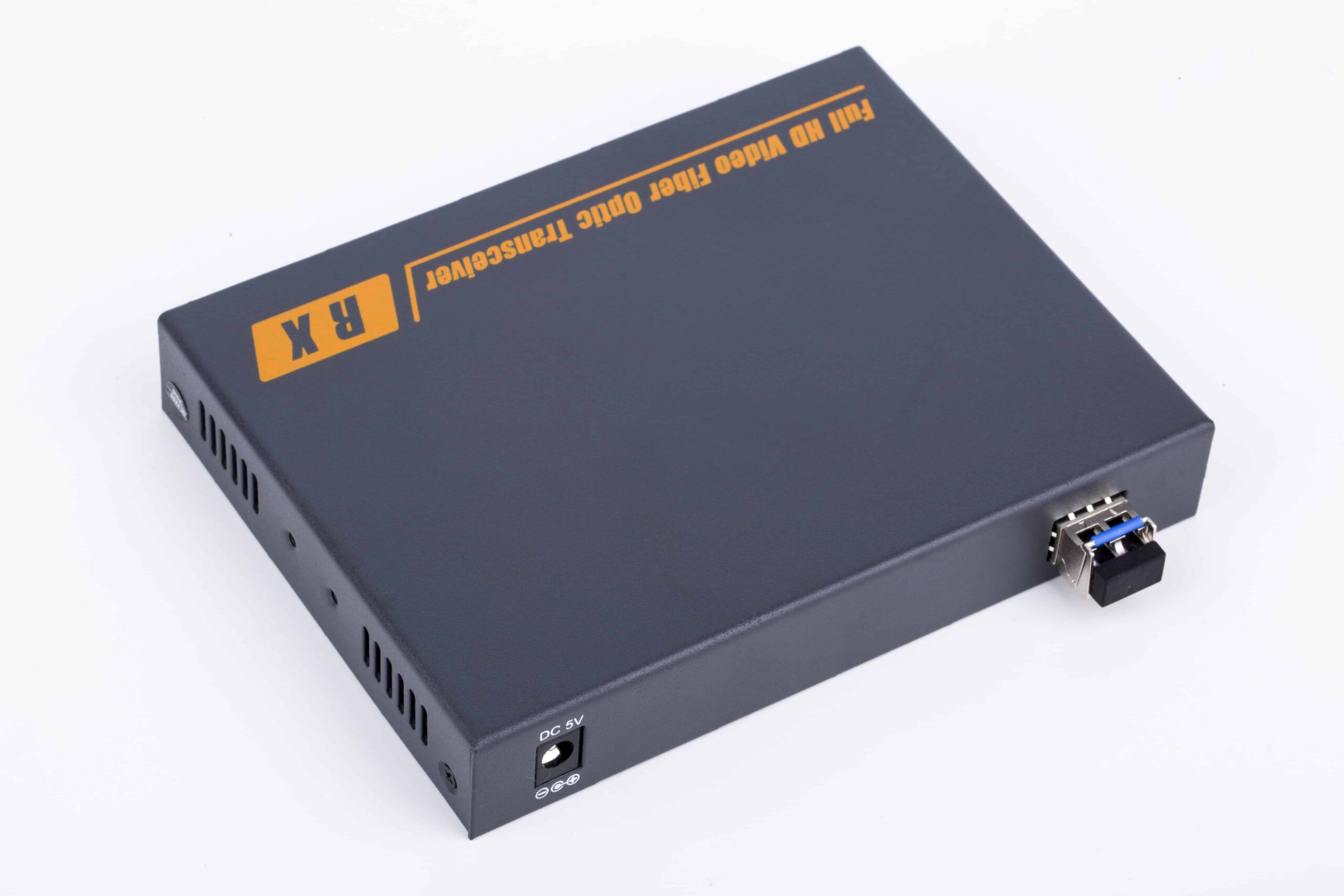

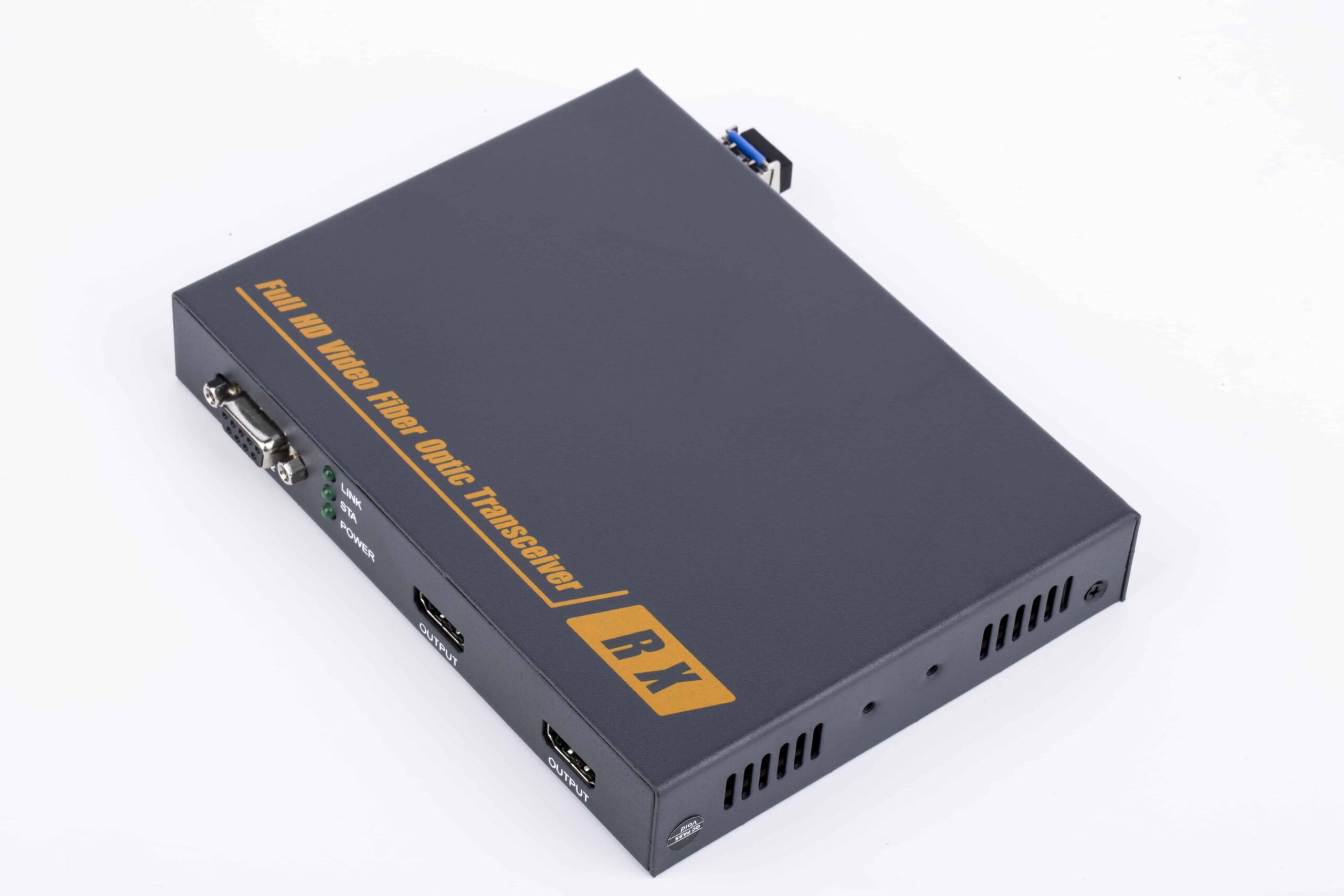

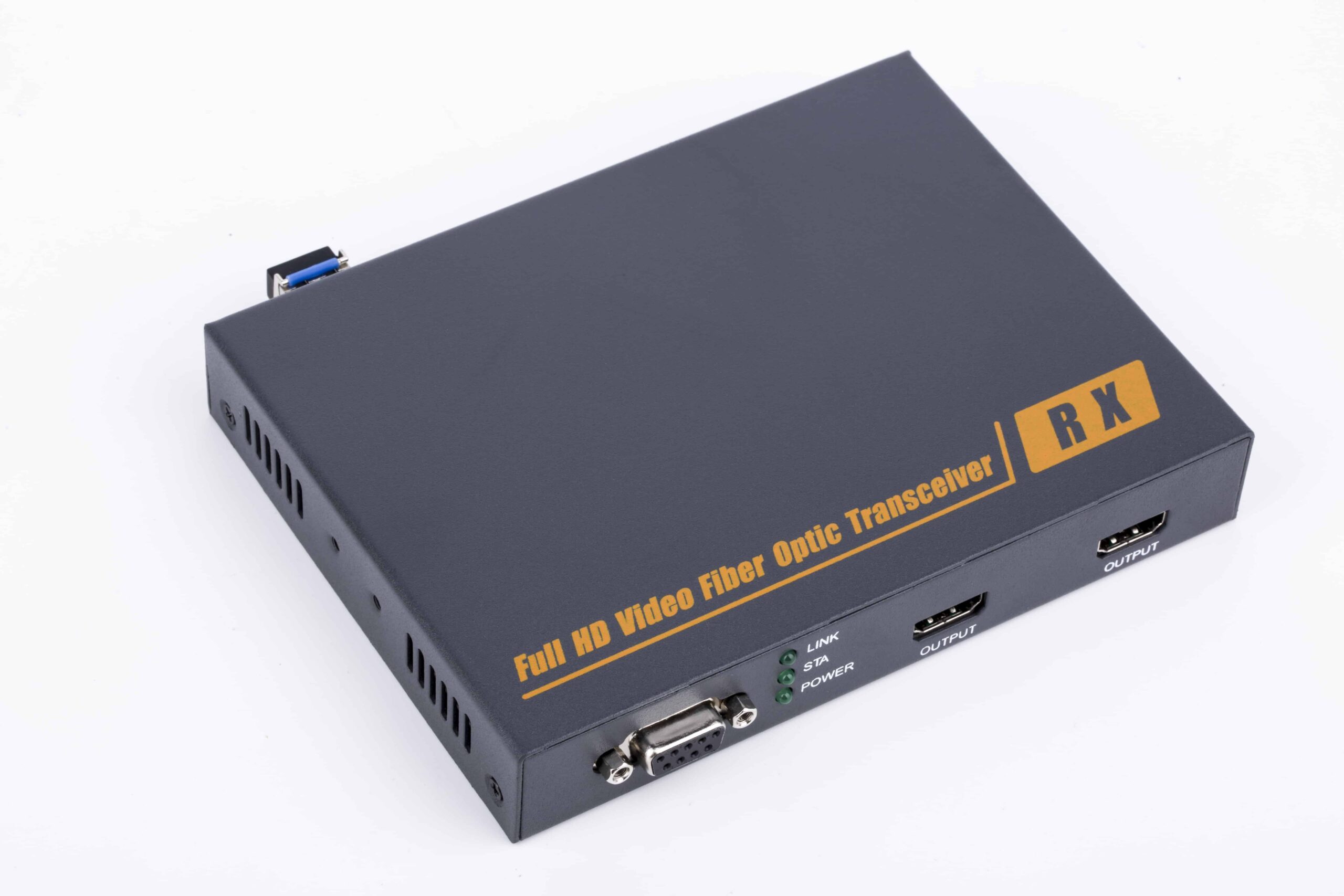

HDMI and RS-232 Serial Over Fiber

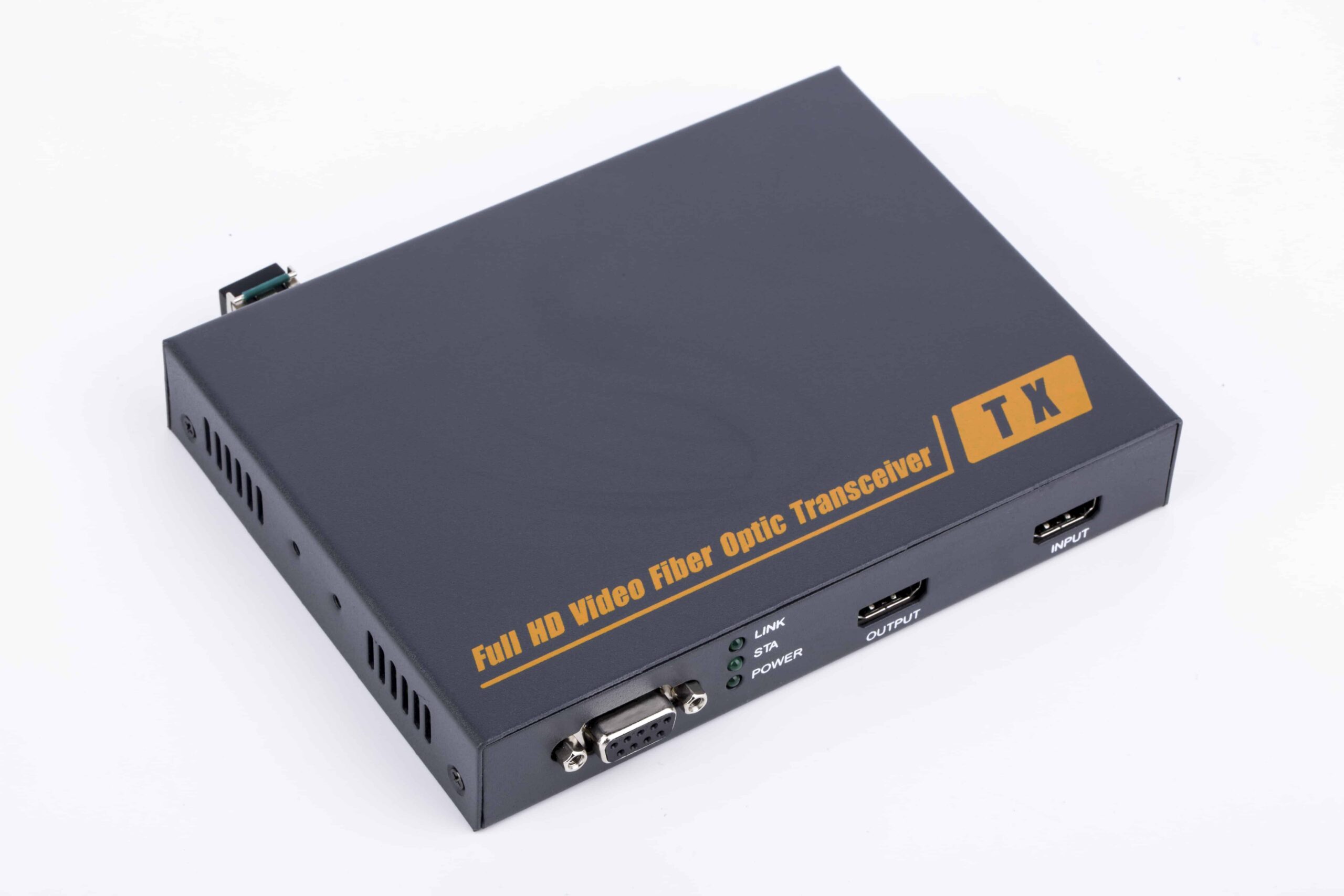

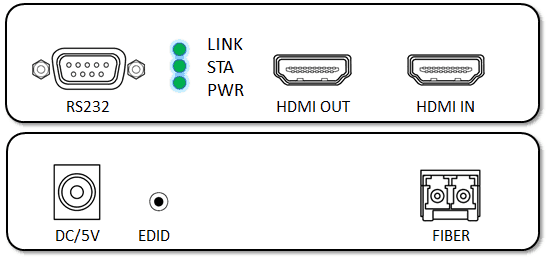

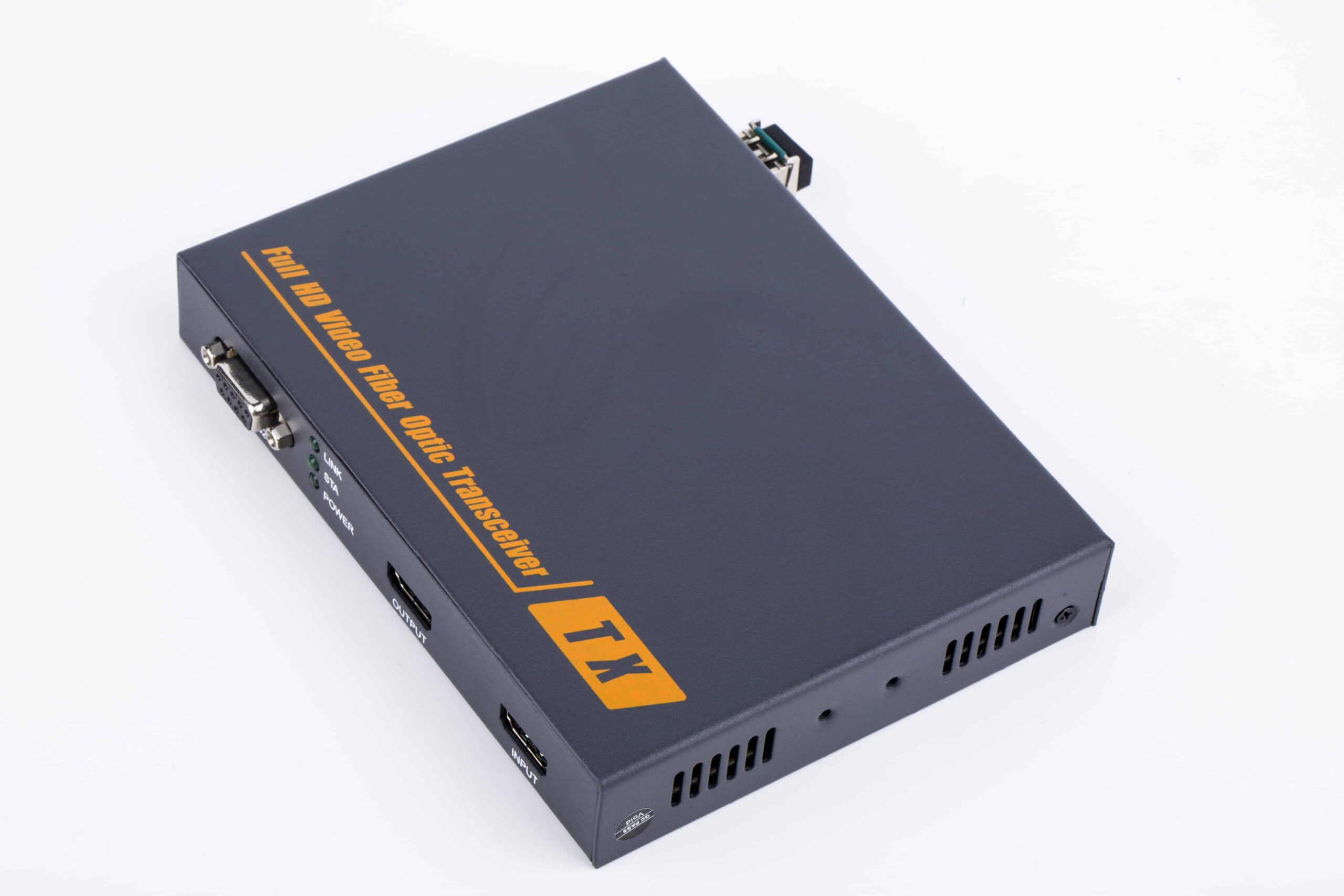

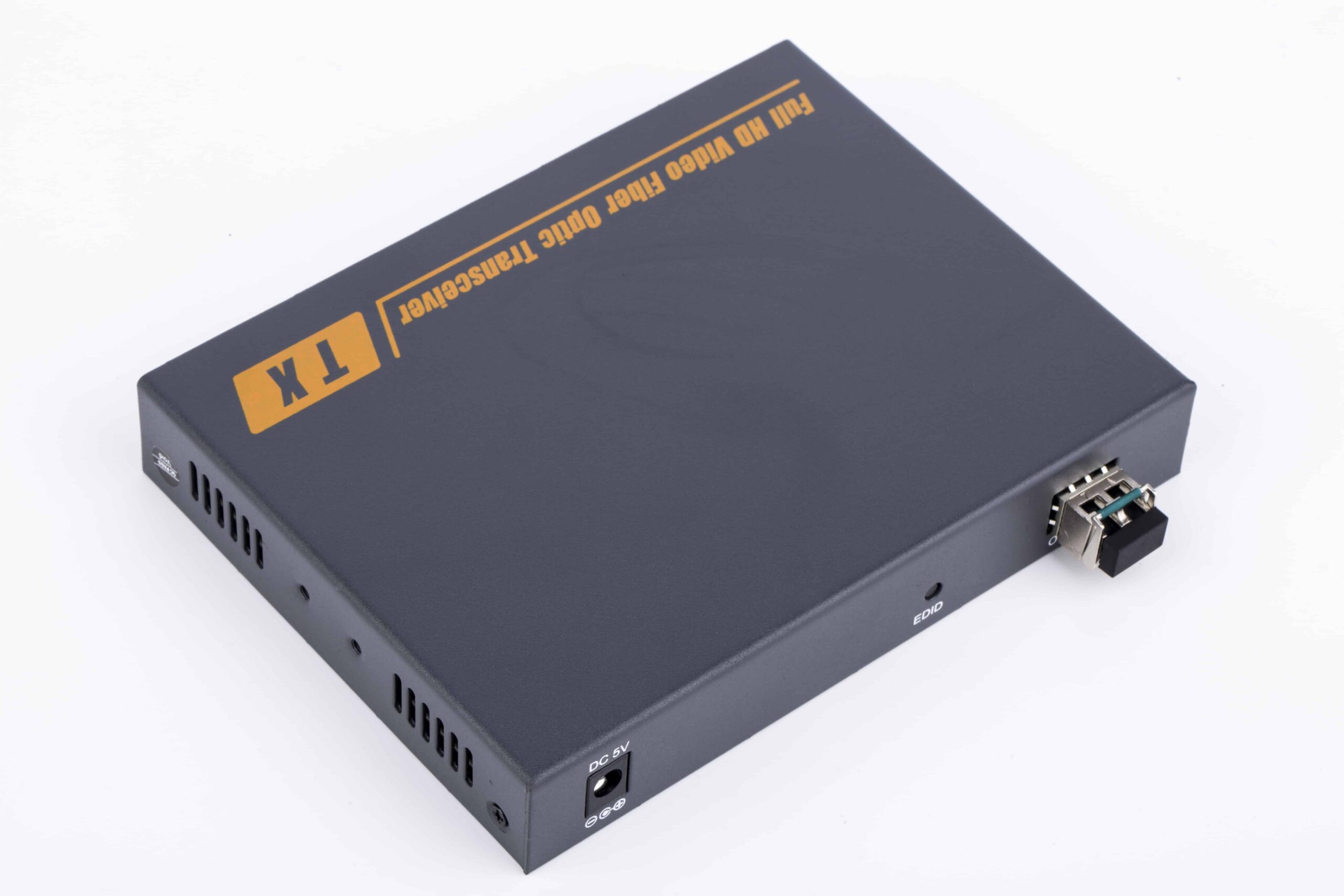

HDMI and RS-232 Serial Over Fiber Transmitter

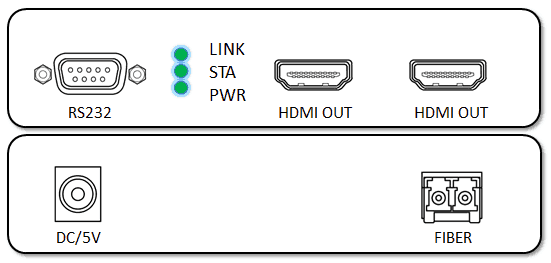

Port name	Description
HDMI IN/OUT	HDMI signal input/output
EDID	EDID button, press 3 second to copy EDID of display device
RS232	DB9 socket
DC/5V	Power adapter socket
Fiber	SFP model — LC connector
LED indicator	Description
LINK	Optical fiber signal connection indicator
STA	Video signal connection indicator
PWR	System power indicator

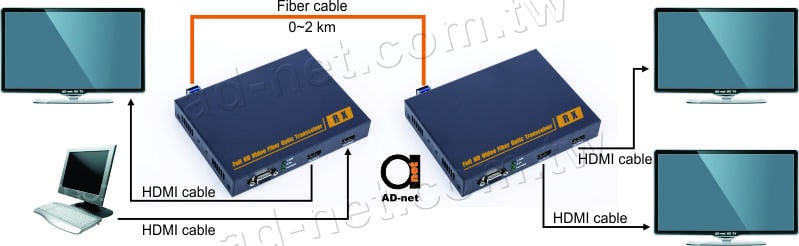

Connect the provided DC/5V power supplies to the power socket of the transmitter and the receiver,
Connect an HDMI cable between the HDMI input port of transmitter and the HDMI output port of the video source,
Connect the HDMI output port of receiver to the display device with HDMI cable,
Connect the transmitter optical port to the receiver optical port using one fiber optic cable.

AN-HDMI-EXT01

HDMI and RS-232 over Fiber converter, HDMI signal input/output, distance depends on SFP module, DB9 socket for RS-232 port
