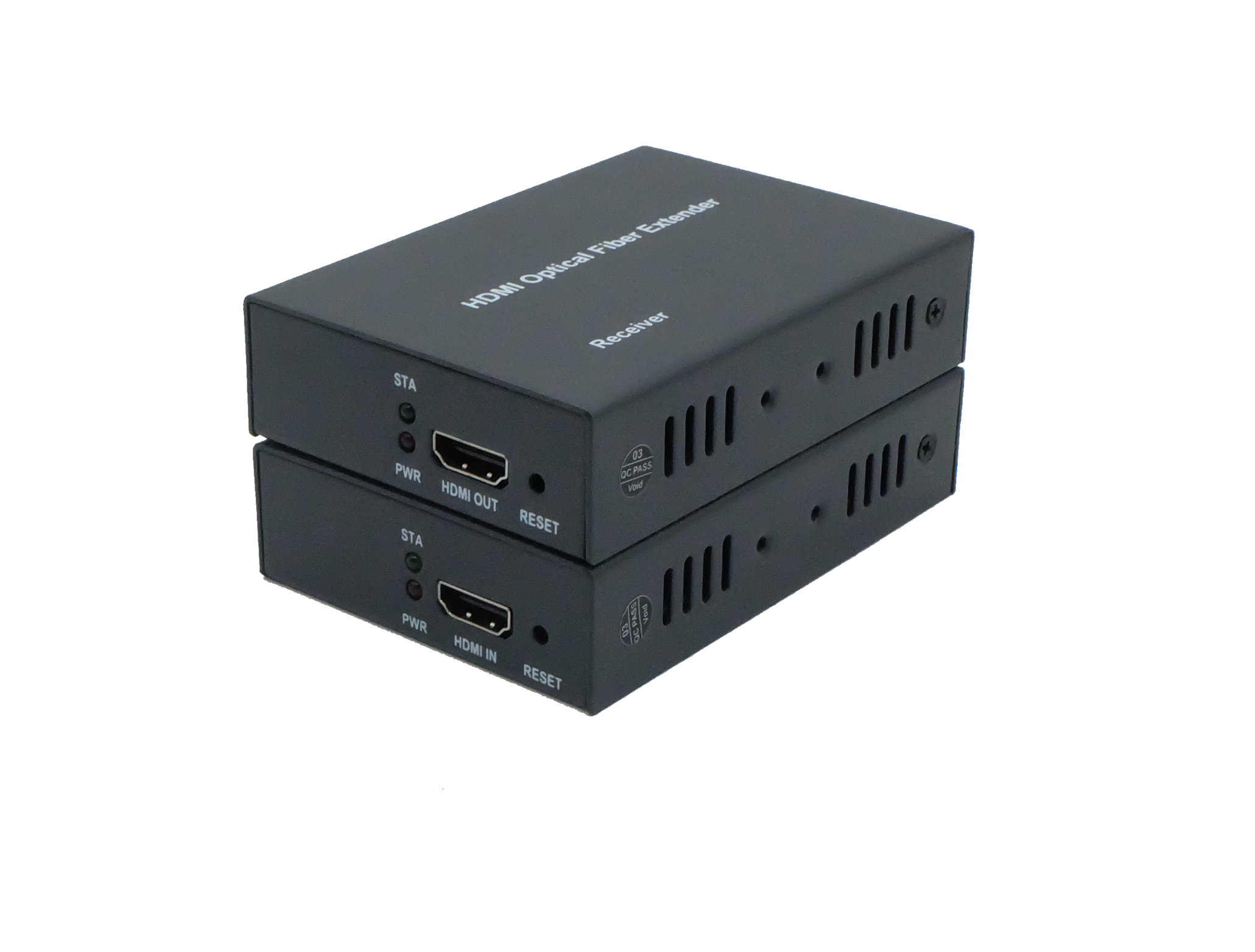

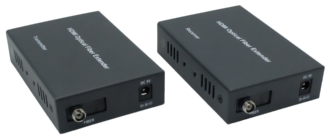

HDMI distance extender via fiber optical cables: HDMI 1.3 & HDCP, 1920*1080@60Hz

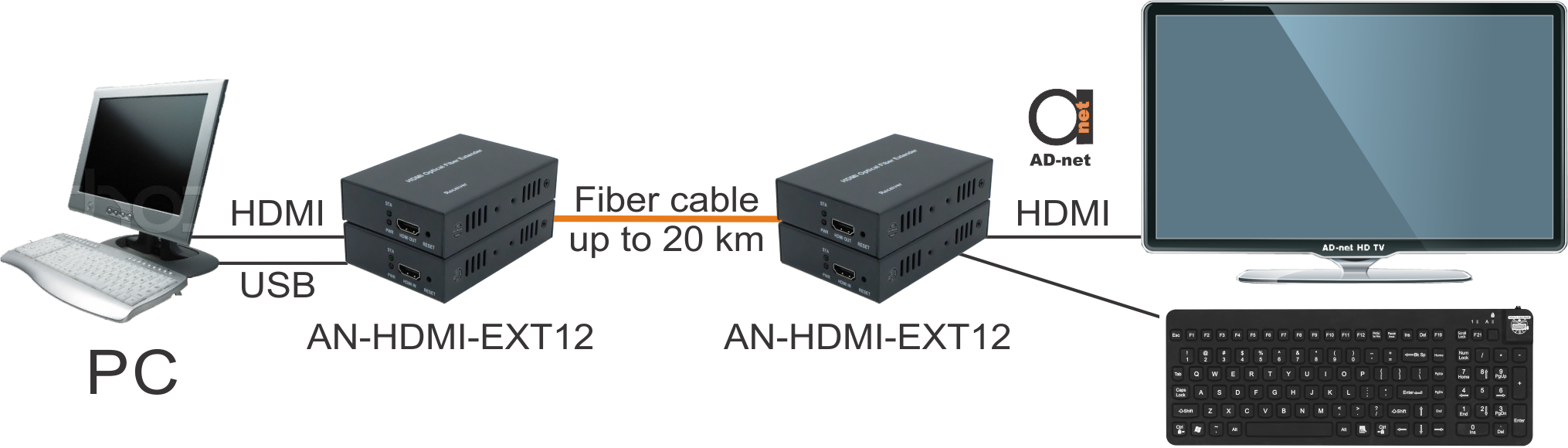

The Fiber optic extender provides extension of HDMI signals long distances over one fiber optic cable, it supports high resolution up to 1080Pand keyboard/mouse signal transmission . The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits HDMI video and audio signals up to 20km over one fiber optic cable;
Support video resolution up to 1920*1080@60Hz;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution range	Up to 1920X1080P@60Hz
	Connector	HDMI-A
	Impedance	100Ω
Optical fiber	Interface	FC connector
	Fiber type	Single Mode
	Wavelength	TX:1310nm/RX:1510nm
	Interface bandwidth	155Mbps
	Transmission distance	Standard: 20km;
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1027225mm
	The warranty	1 year free warranty

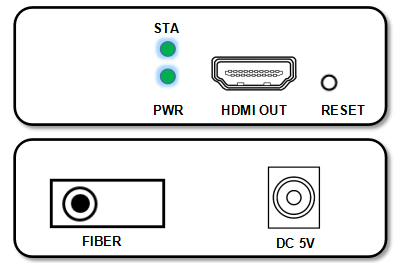

Receiver:

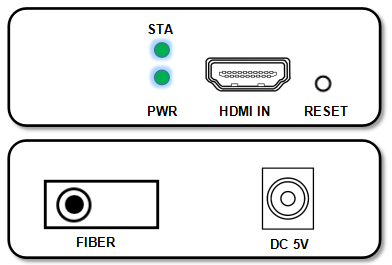

Transmitter:

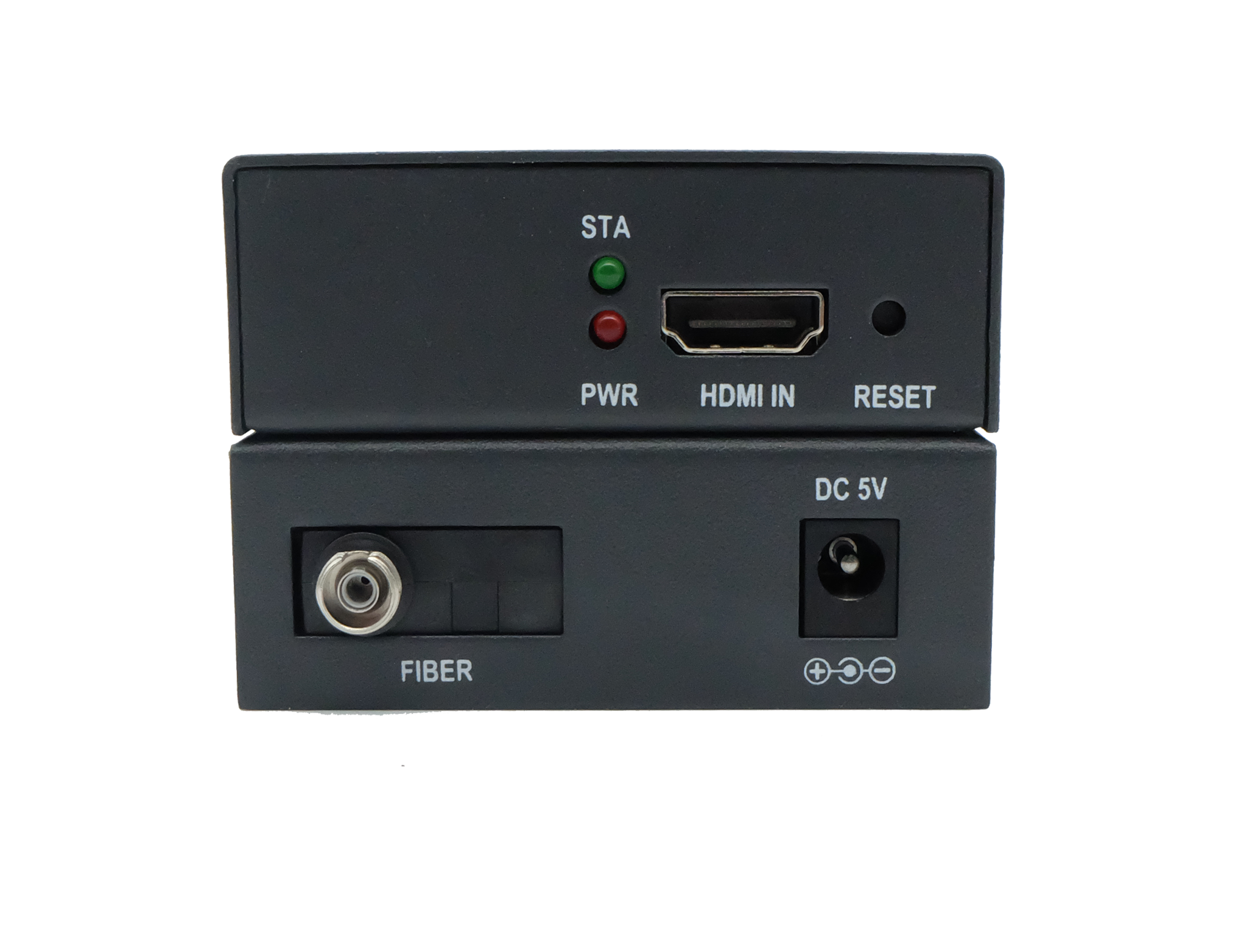

Port name	Description
HDMI IN/OUT	HDMI signal input/output
FIBER	Optical fiber interface
DC 5V	Power adapter socket
RESET	Restore button, press for 5 second to restore system setting to factory default
LED indicator	Description
STA	Video signal connection indicator
PWR	System power indicator

AN-HDMI-EXT12
