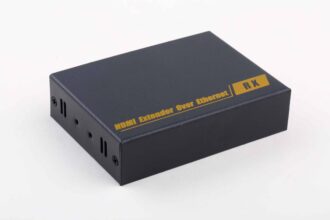

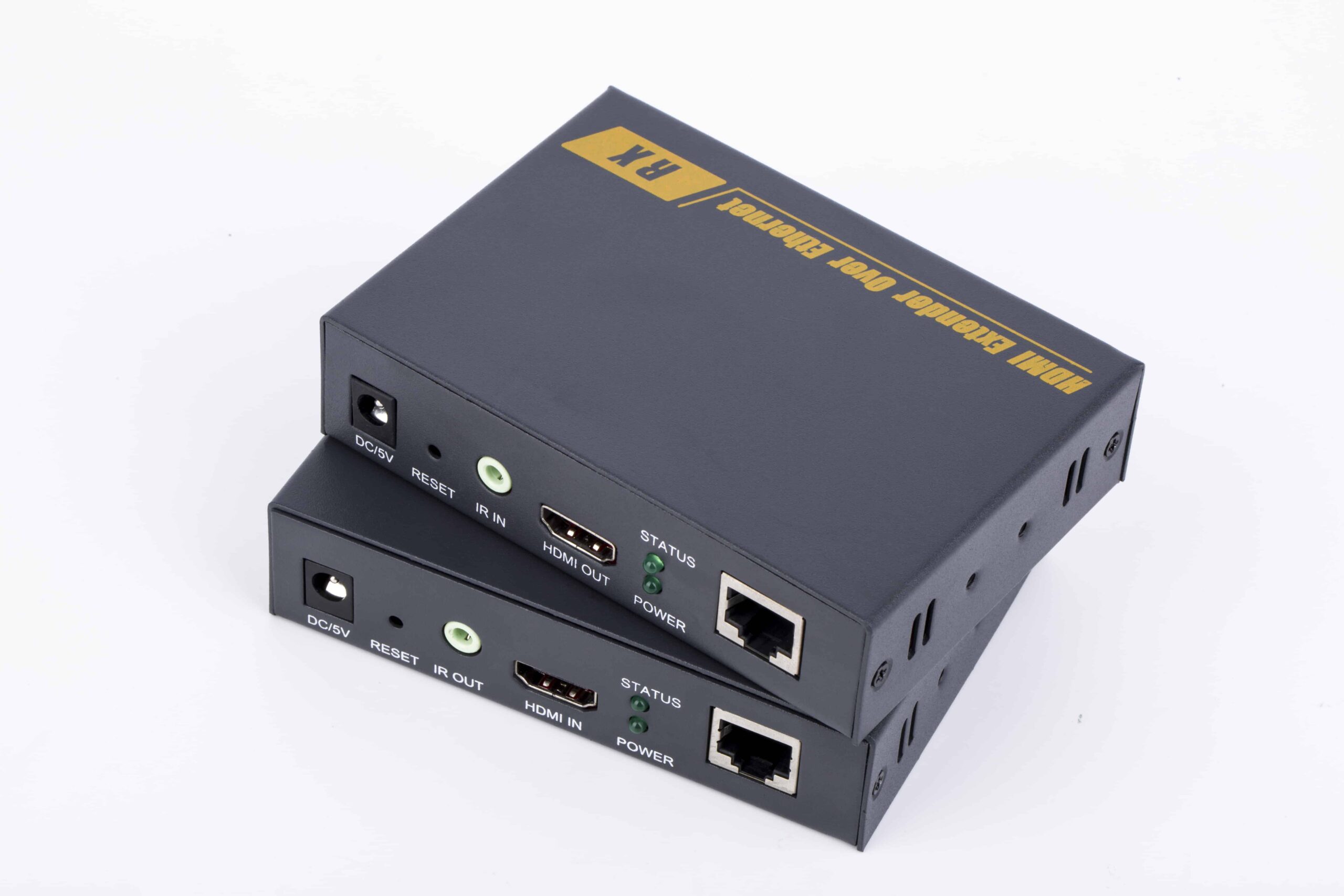

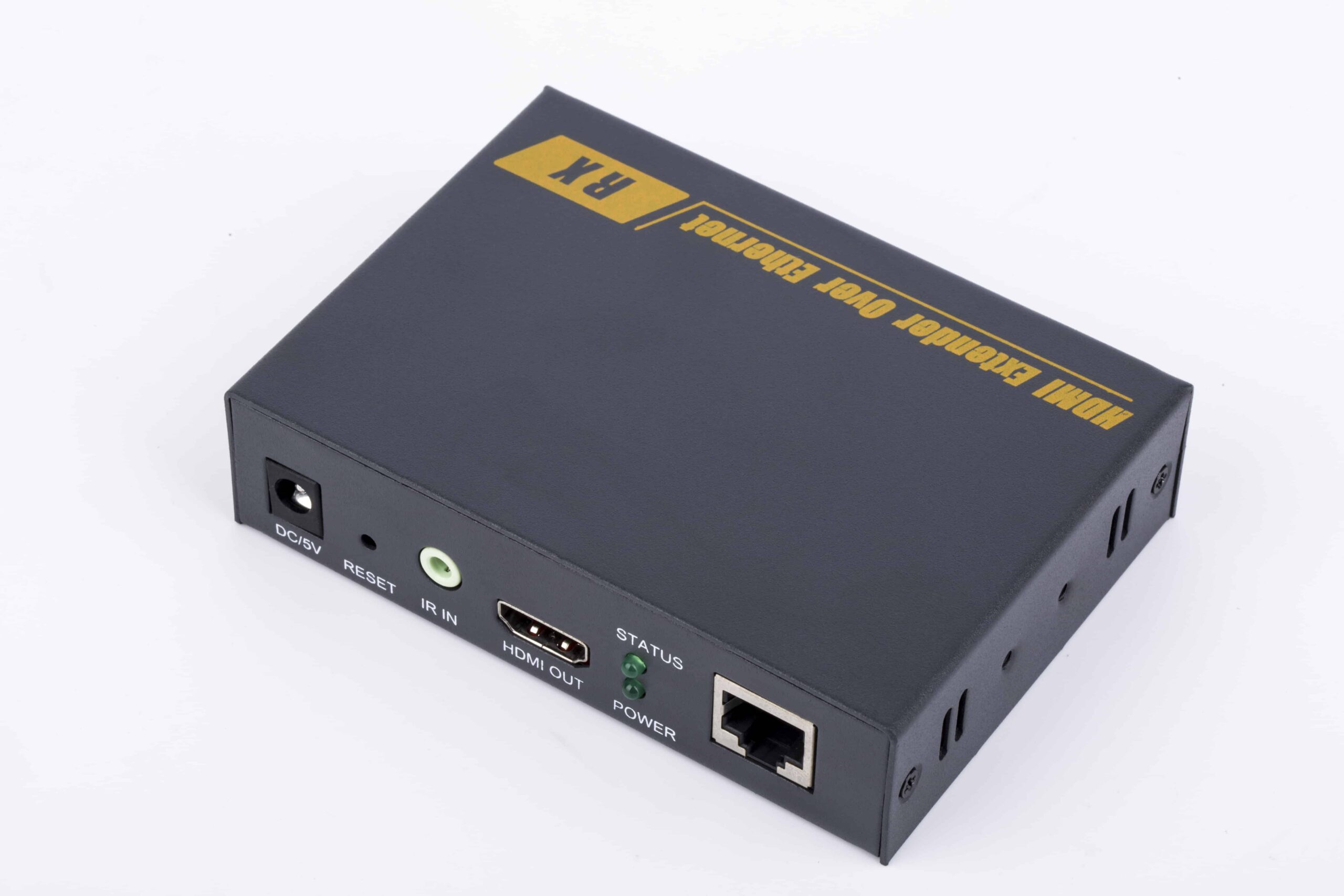

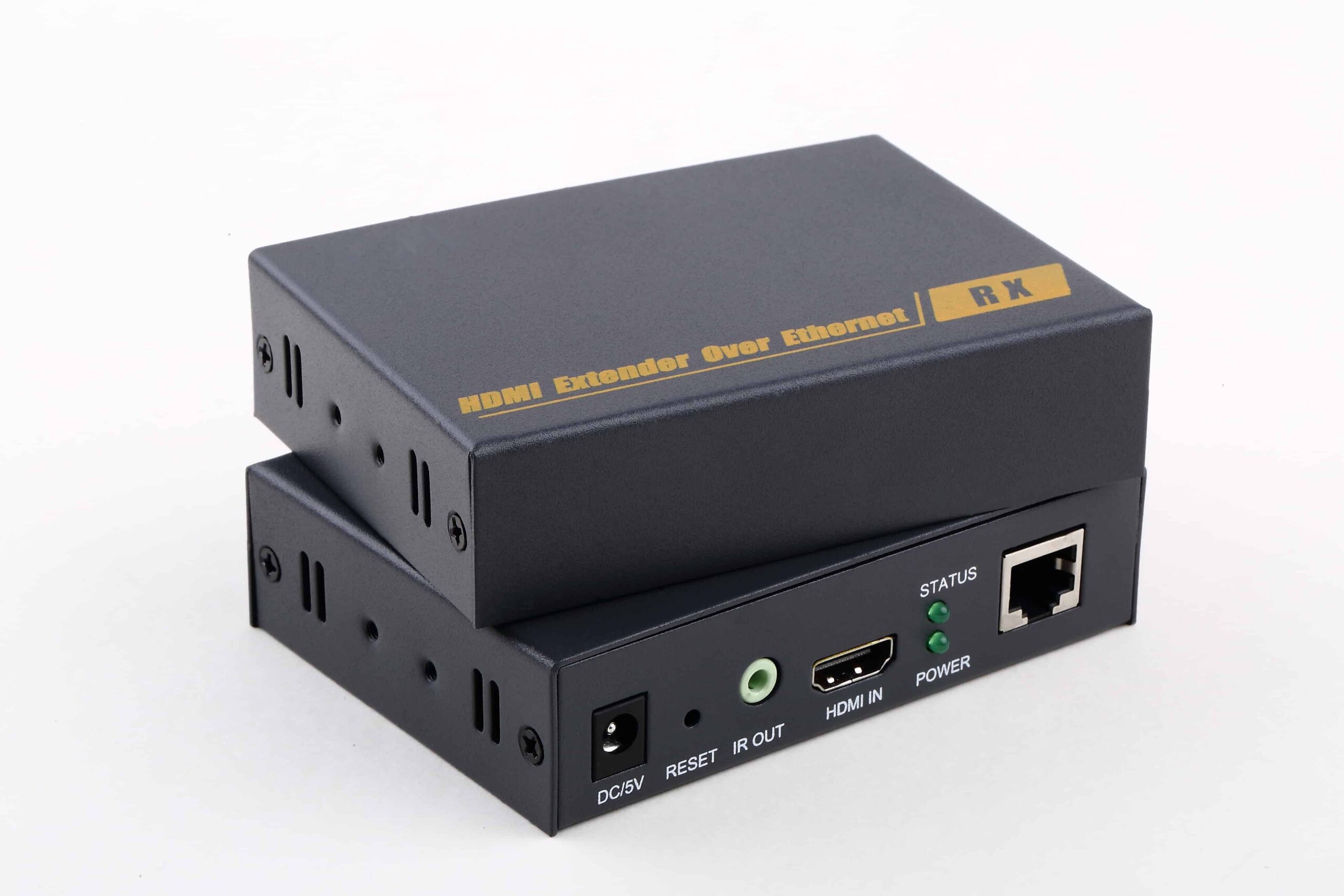

HDMI over Ethernet LAN extender, Point-to-Point & Multipoint Support

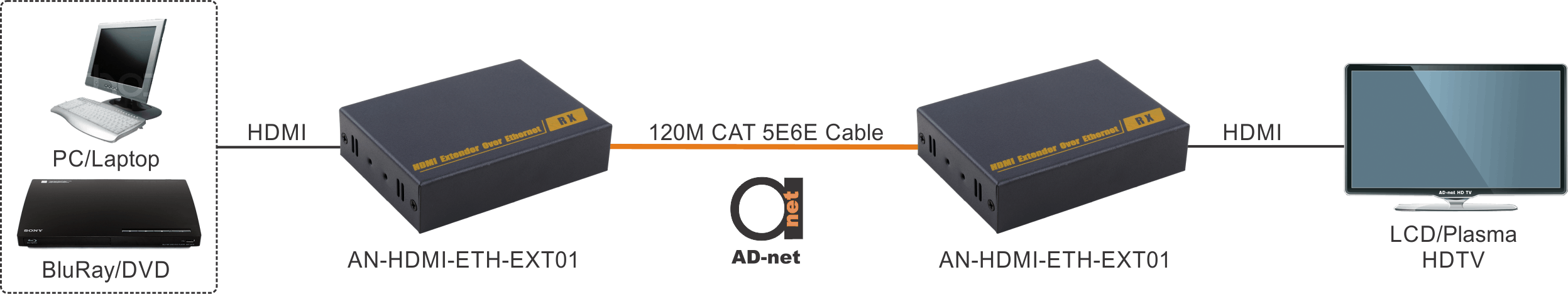

Used for a pair extension of this HDMI CAT5e/6 cable to extend HD signal up to 150 meters, and can achieve 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings. The production equipment company providing solutions for the following applications: such as noise, limited transmission distance and safety of the place, data center control, information distribution, conference room presentations and teaching environment and corporate training sites.

Support HDMI 1.3 protocol
HDCP 1.2 protocol compliant
Following TCP/IP standard.
Support point-to-point mode, one point-to-many mode
Support IR Reverse remote control function.
Support video input : 24/50/60fs/1080p/720p/576p/576i/480p/480i
Signal transmission: Single cat-5e or cat6(recommended) cable up to 150 meters
Support video output : 24/50/60fs/1080p/720p/576p/576i/480p/480i

Length of CAT6 cable between Rx and TX	Up to 150 meters
HDMI Input	24/50/60fs/1080p/720p/576p/576i/480p/480i
HDMI Output	24/50/60fs/1080p/720p/576p/576i/480p/480i
Support audio format	Stereo, Sample rate：32kHz, 44.1kHz and 48kHz
transport protocol	Standard TCP/IP, Broadcast
IR support	38KHz, NEC code
Input Video signal	0.5~1.5Volts p-p
Output DDC signal	5Volts p-p (TTL)
Input/Output HDMI1.3 cable distance	.≤20m AWG26 HDMI 1.3 standard cable
Max working current	700mA
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A
Operating Temperature range	(-15 to +55℃)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	1107525mm
Weight	0.37kg
Gross weight	0.55kg
Box Dimension(LXWXH)	22517075mm

It’s a matter of seconds to plug in all HDMI cables and get the HDMI signal up and running

AN-HDMI-ETH-EXT01

HDMI over Ethernet LAN extender, Point-to-Point & Multipoint Support, HDMI 1.3, IR reverse control function, PMP support, 1 pair

Description

Our devices offers solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
