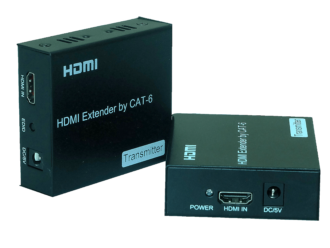

HDMI Extender over single CAT6 with Local HDMI out port

Used for a pair extension of this HDMI CAT6 cable to extend HD signal up to 60 meters, and can achieve 1080P, which not only broke the HDMI cable transmission length limitations, but also more convenient and flexible, the majority of customers are more cost savings. The production equipment company providing solutions for the following applications: such as noise, limited transmission distance and safety of the place, data center control, information distribution, conference room presentations and teaching environment and corporate training sites.

Support HDMI 1.3 protocol
HDCP 1.2 protocol compliant
Support 3D
Support video input : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Signal transmission: Single cat-6e or cat-6(recommended) cable up to 60 meters instead of HDMI cables are connected between TX and RX Extender.
Support video output : 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Audio format support : DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
LED indication: when power is supplied or device is working, the LED indicator is bright.
Support up to 5metres AWG26 cable length between extender and source & sink device
No loss of quality
Installs in minutes
Need DC5V/1A power supply

Length of CAT-5E or CAT-6 cable between Rx and TX	1080p Up to 60 meters
HDMI Input	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format input	DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
HDMI Output	24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio format output	DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD
Max transmission bandwidth	5.1Gbps
Input Video signal	0.5~1.5Volts p-p
Output DDC signal	5Volts p-p (TTL)
Input/Output HDMI1.3 cable distance	.≤20m AWG26 HDMI 1.3 standard cable
Max working current	400mA
Power adapter format	Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1 A
Operating Temperature range	(-15 to +55℃)
Operating Humidity range	5 to 90%RH (No Condensation)
Dimension (L x W x H)	65mm100mm25mm
Weight	310g

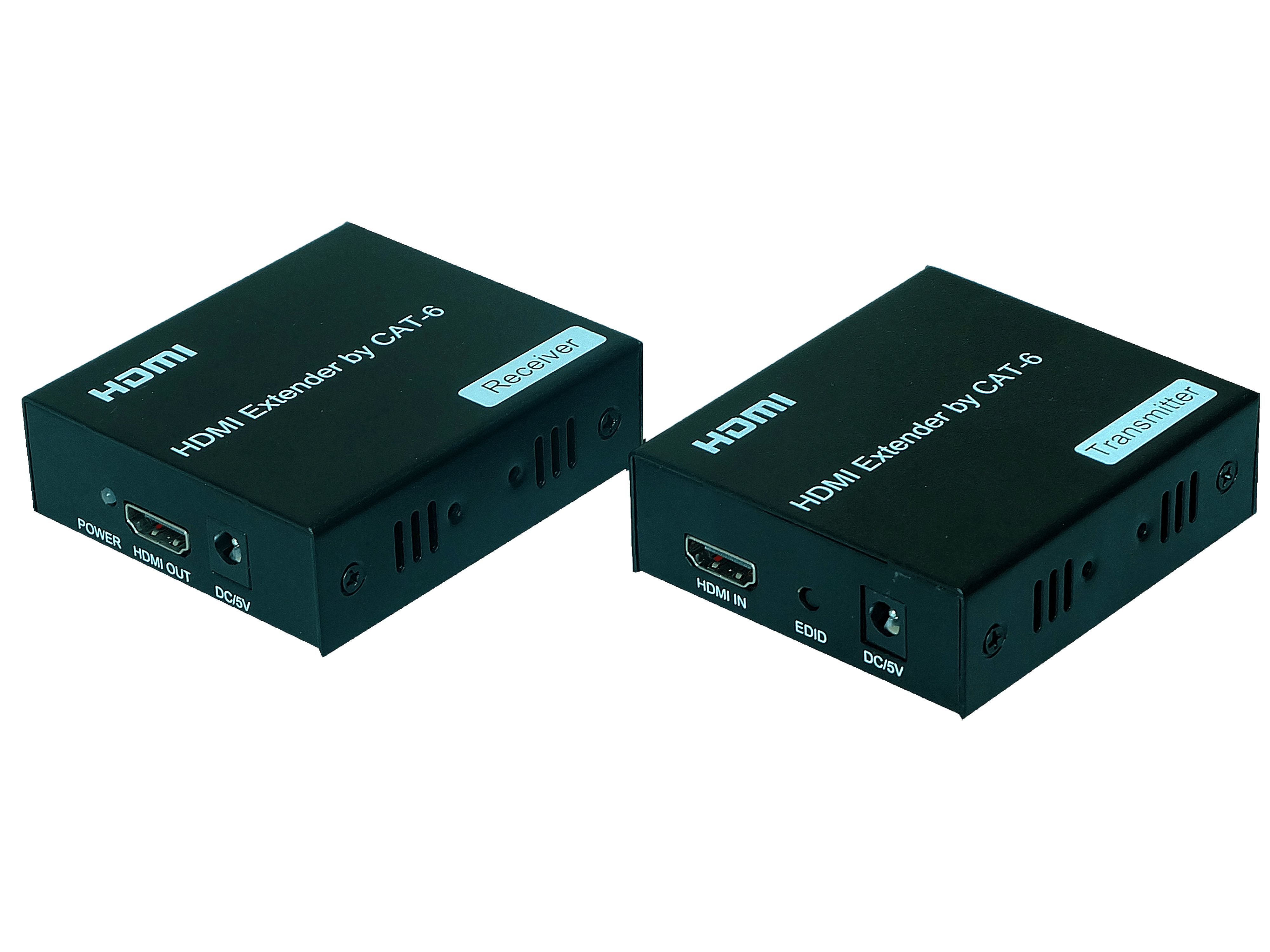

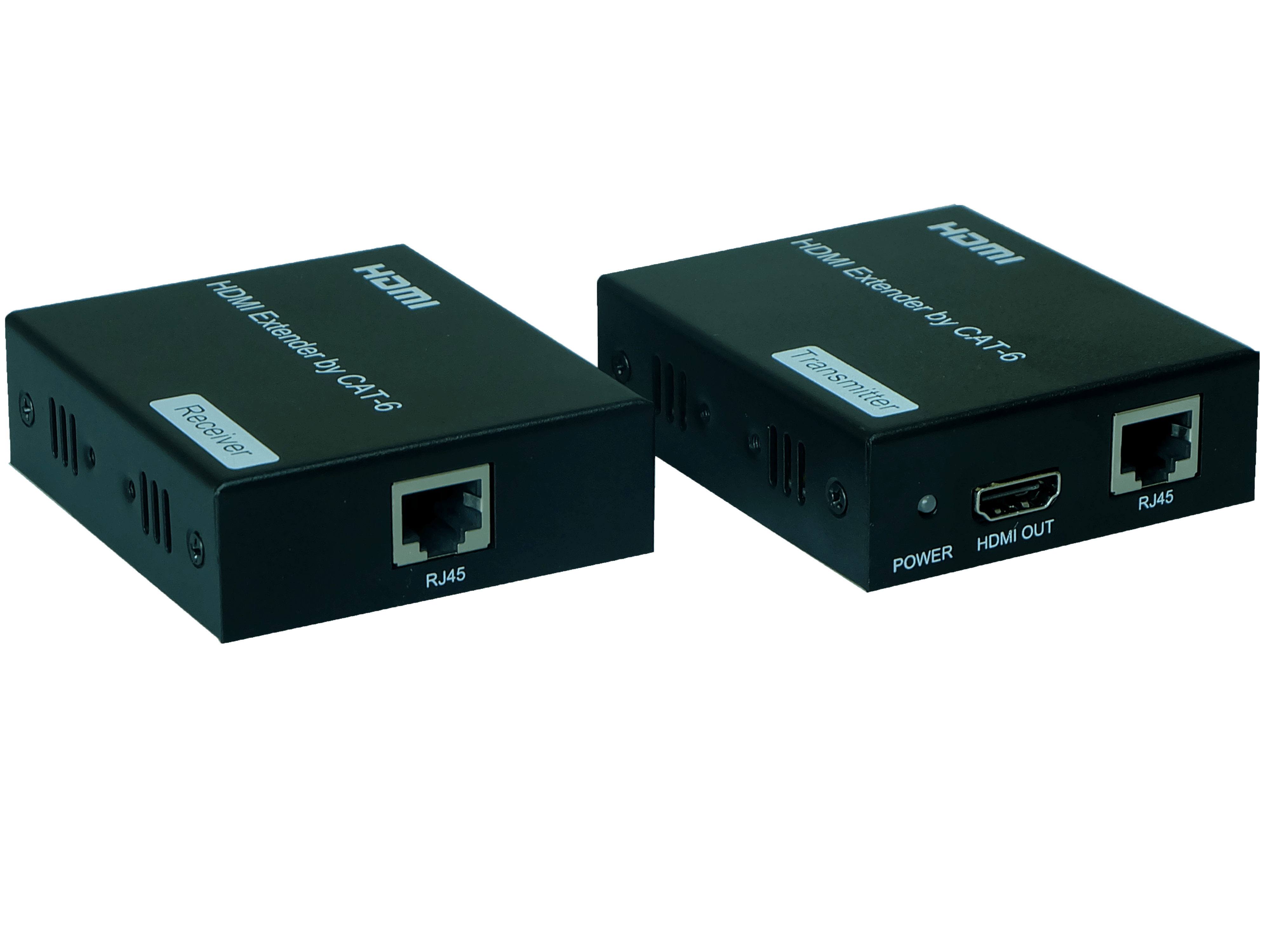

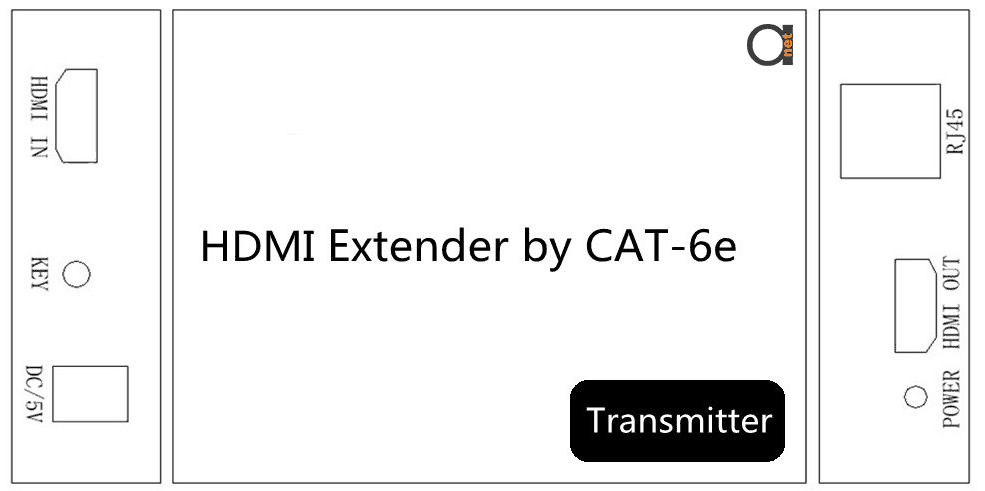

Transmitter:

HDMI Extender over single CAT6 with Local HDMI out port

Transmitter	Descriptions
DC/5V	Power input,5V/2A
HDMI OUT	Local HDMI output
HDMI IN	Connect the HDMI input source(such as HD-DVD,PS3,STB etc.)
RJ45	Connect cat6
KEY	Study EDID Key, press 2S, study EDID from the displayer of connect to HDMI OUT port.

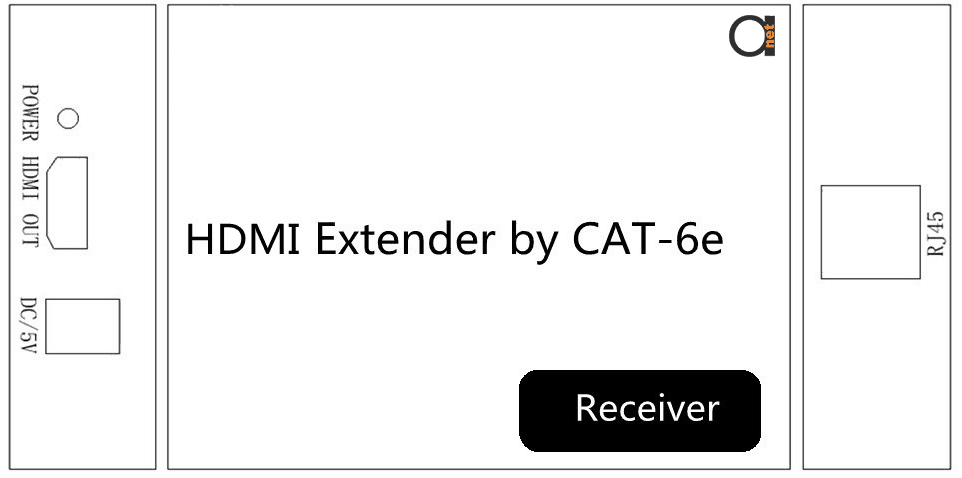

Receiver: HDMI Extender over single CAT6 with Local HDMI out port

Receiver	Descriptions
DC/5V	Power input, 5V/2A.
HDMI OUT	HDMI output port, Connect to HD displayer.
RJ45	Connect cat 6.

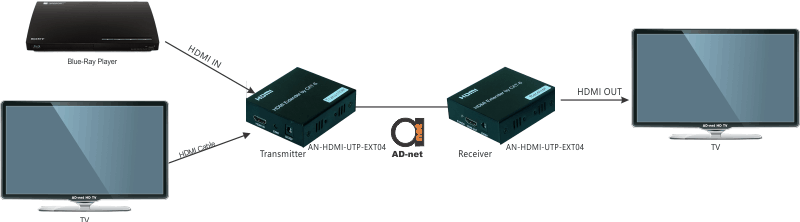

Connect the HDMI input source (such as HD-DVD、PS3、STB etc. ) to transmitter.
Connect a CAT6 cable from RJ45 port of transmitter to RJ45 port of receiver
Connect the HDMI sink(such as HD-LCD、HD-DLP）to receiver
Connect 5V power supply to the HDMI RX&TX Extender

AN-HDMI-UTP-EXT04
