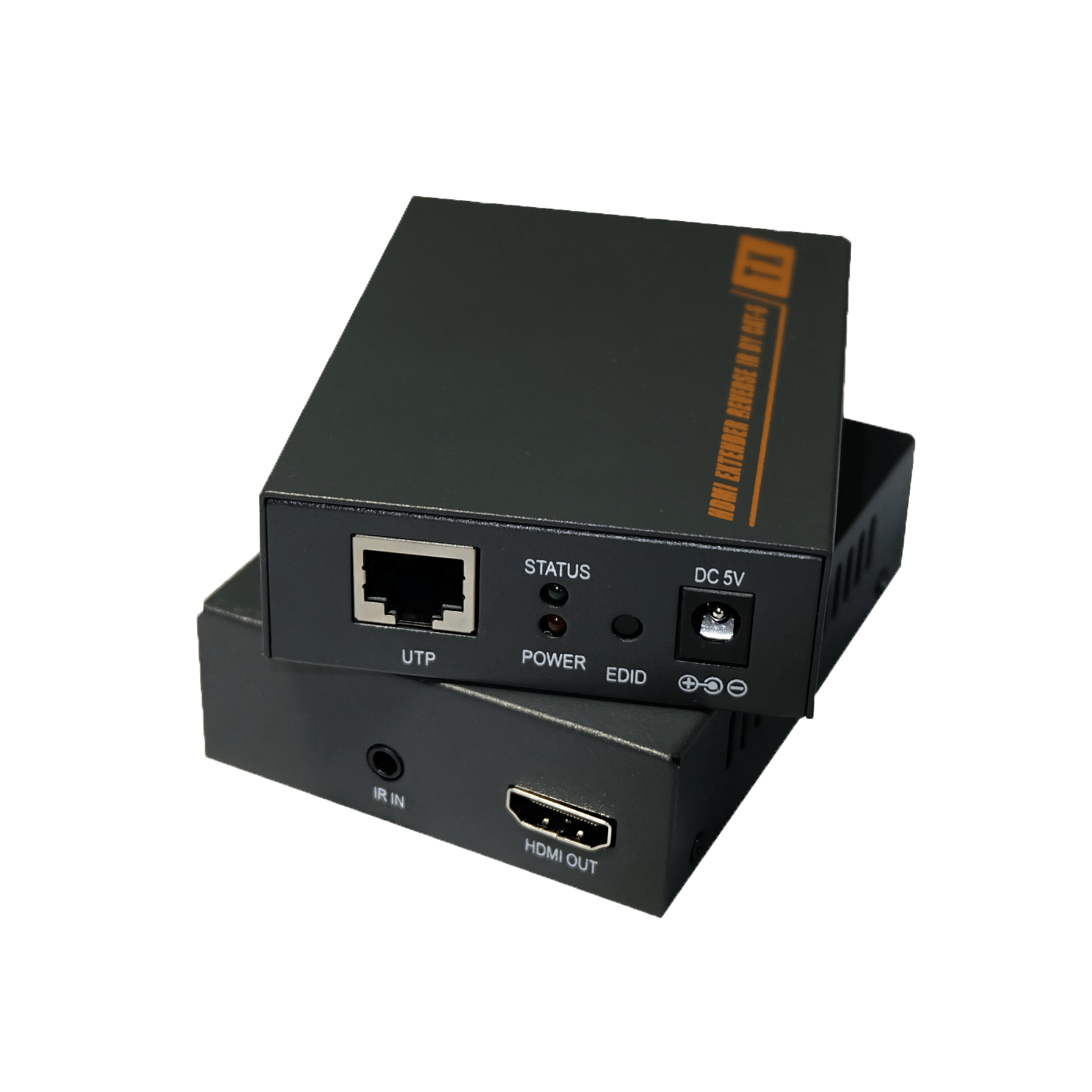

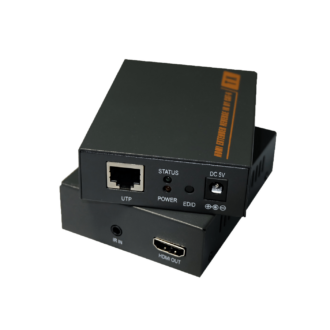

HDMI IR Extender

The HDMI IR Extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p and IR signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits HDMI video and audio signals up to 60m over a single CAT6 cable;
Support video resolution up to 1920*1080@60Hz, 3D signal;
Support reverse direction IR signal transmission;
Support copy EDID function, can auto-match many kind display device;
Compliance with HDMI 1.3 and HDCP 1.2 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	1920X1080@60Hz
	Connector	HDMI-A
	Impedance	100Ω
IR	Interface	3.5mm earphone seat
	Signal direction	Reverse direction
	Signal type	Digital
	IR frequency	20k-60kHz
UTP	Interface	RJ45
UTP	Transmission distance	CAT6-60m
Other	Power supply	The power adapter: DC 5V/1A
	Power dissipation	MAX 3W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	94.57126mm
	The warranty	1 year free warranty

HDMI IR Extender

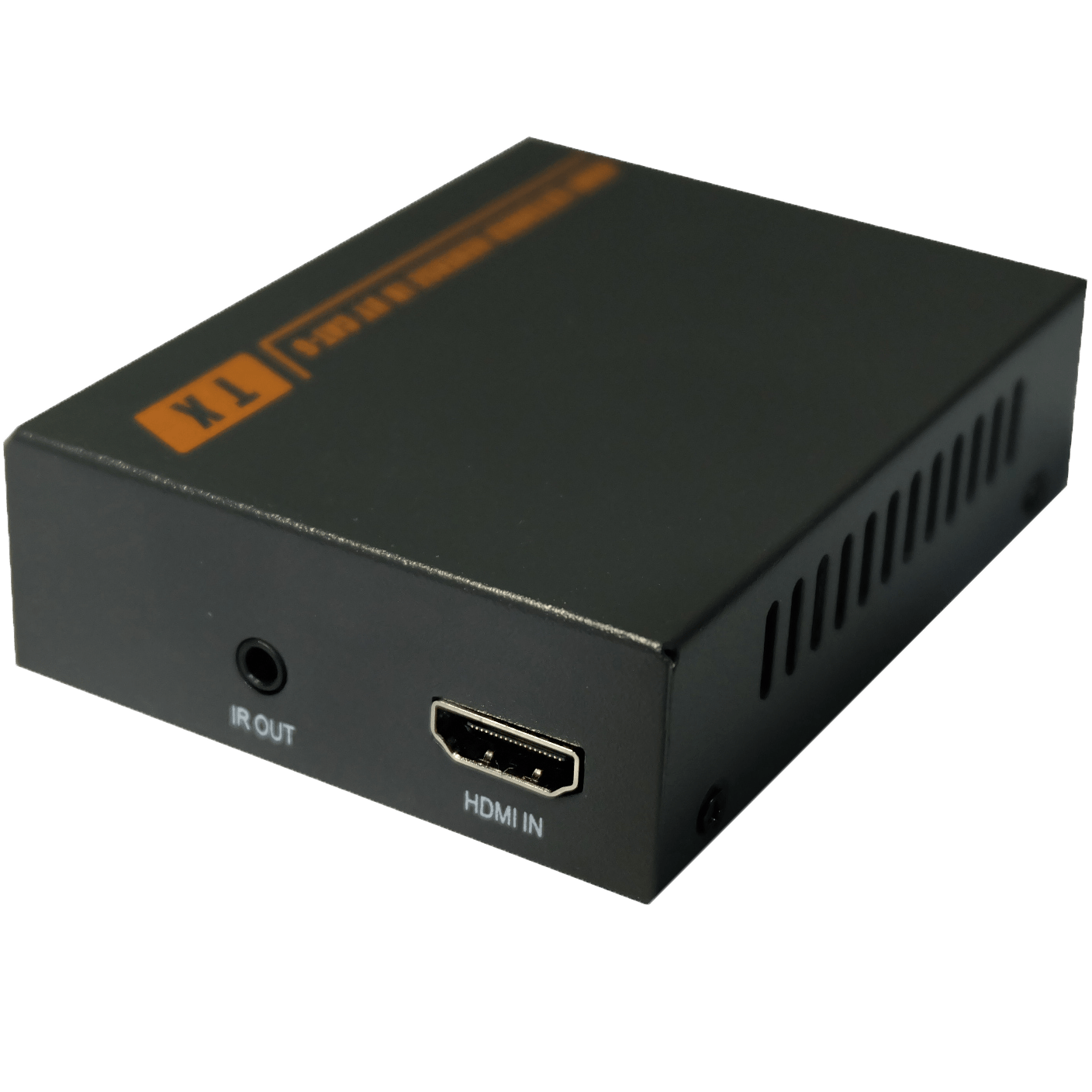

Transmitter:

HDMI IR Extender

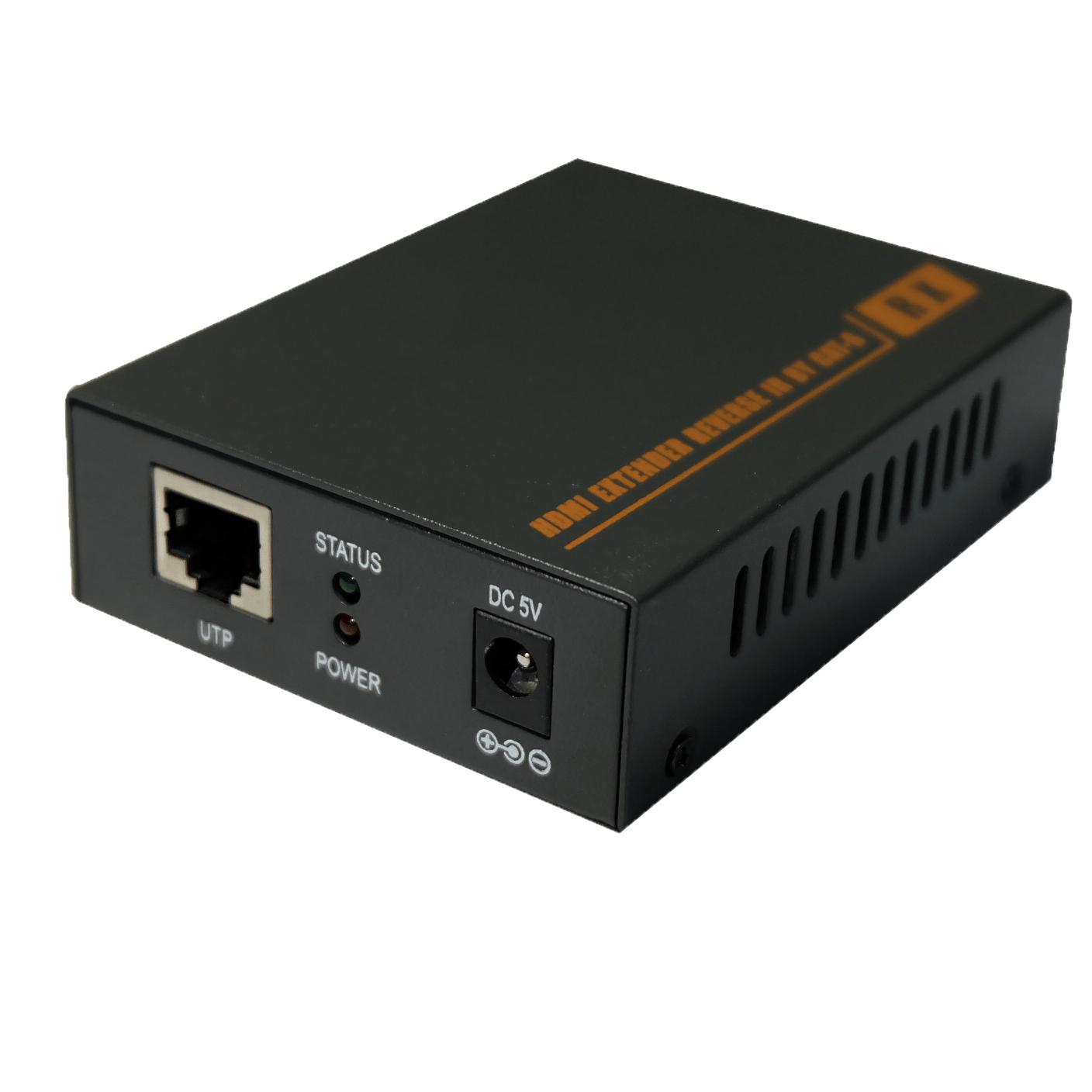

Receiver:

HDMI IR Extender

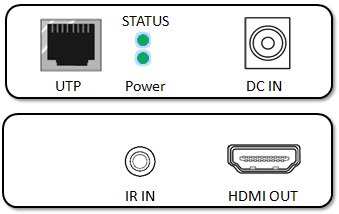

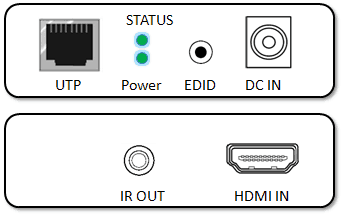

Port name	Description
HDMI IN/OUT	HDMI signal input/output
UTP	RJ45 port connect cat5e/6.
IR IN/OUT	IR signal input/output
DC IN	Power adapter socket
LED indicator	Description
PWR	System power indicator
STATUS	Video signal indicator. Copy EDID indicator

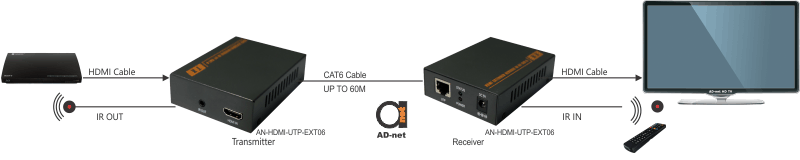

Connect the HDMI input source (such as HD-DVD, PS3, STB etc. ) to transmitter.
Connect a CAT6 cable from UTP port of transmitter to UTP port of receiver
Connect the HDMI sink(such as HD-LCD, HD-DLP)to receiver,
Connect the transmitter UTP port to the receiver UTP port using a single CAT6 cable.
Connect the IR TX UNIT into transmitter IR TX; Connect the IR RX UNIT into receiver IR RX.
Power on Transmitter and Receiver.

AN-HDMI-UTP-EXT06

HDMI IR Extender over UTP CAT6-60m
