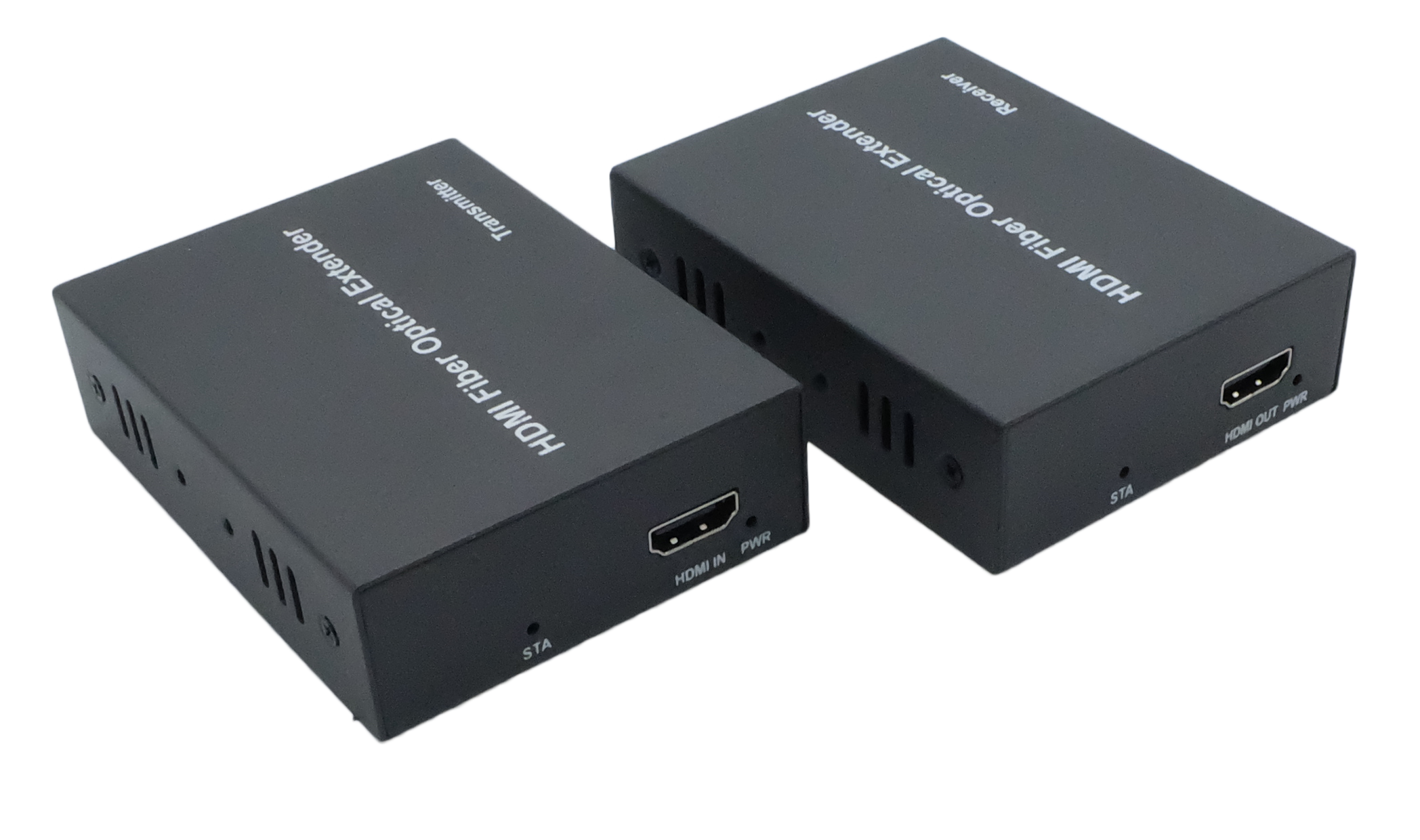

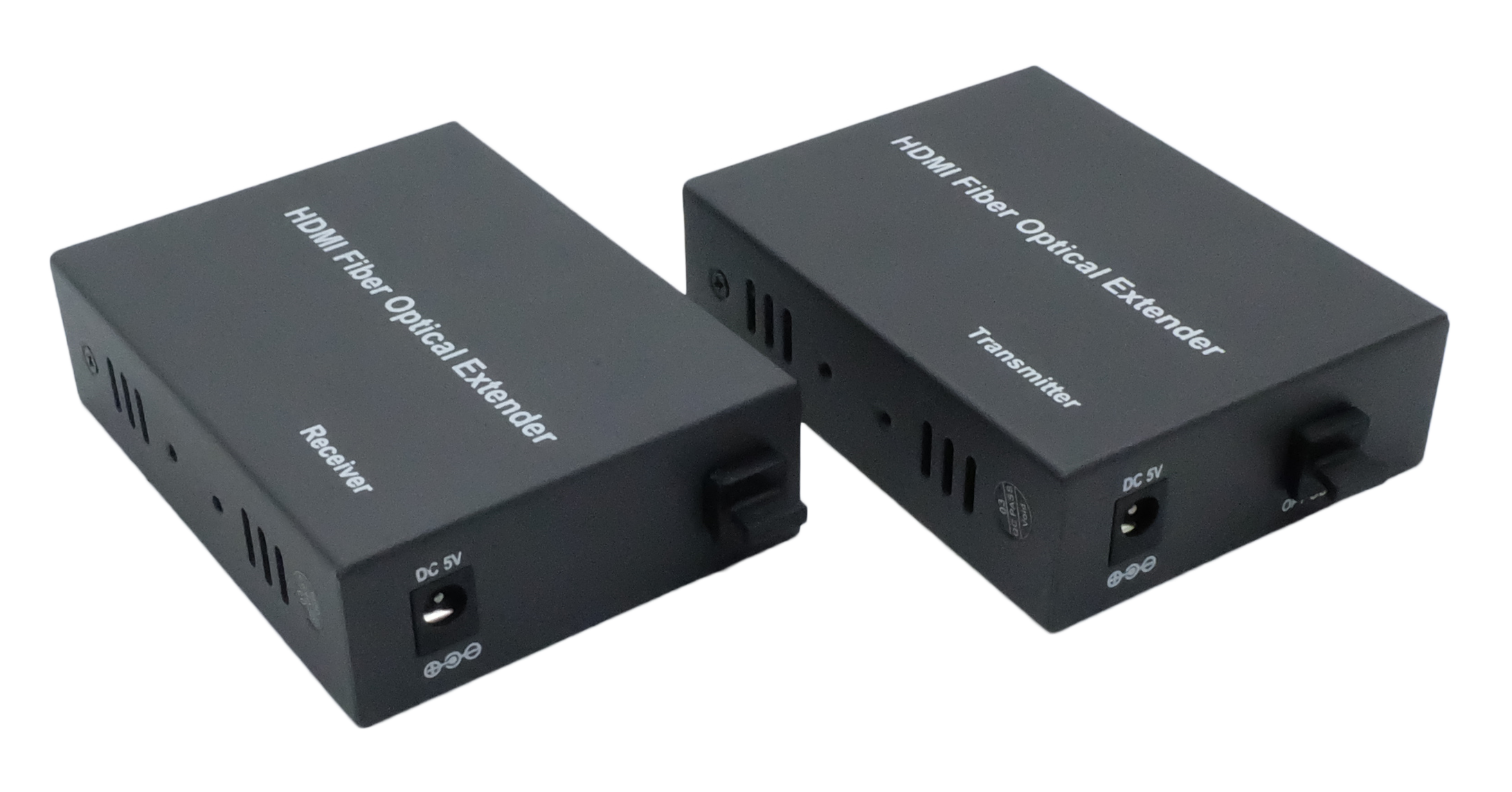

HDMI to Fiber Converter | Extender – up to 1920X1080P@25/30/50/60Hz | HDMI 1.3 standard

The HDMI Fiber optic extender provides extension of HDMI and long distances over one fiber optic cable, it supports high resolution up to 1920*1080@60Hz, The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

Transmits HDMI video signals up to 20km over a pair fiber optic cable;
Support video resolution max up to 1080p@60Hz;
Compliance with HDMI 1.3 standard;
High compatibility, can auto-match source and display device;
Built-in automatic adjustment system, make the image smooth, clear and stable;
Built-in ESD protection system;
Simple to install, plug and play;

Parameter		Description
Video	Standards	HDMI 1.3,HDCP 1.2
	Maximum pixel clock	225MHz
	Maximum data rate	6.75Gbps
	Resolution range	720×576@50Hz；720×480@60Hz；640×480@75/60Hz；800×600@75/60Hz；1024×768@75/60Hz；1280×800@60Hz；1280×1024@60Hz；1440×900@60Hz；1680×1050@60Hz；1280×720@25/30/5060Hz；1920X1080P@25/30/50/60Hz
	Connector	HDMI-A Interface
	HDMI Cable Range	<5M( Resolution: 1920*1080@60Hz)
	Impedance	100Ω
Optical fiber	Interface	SC
	Fiber type	Single-mode
	Wavelength	Single-mode 1310nm
	Interface bandwidth	1.25Gbps
	Transmission distance	Single-mode fiber: maximum 20km
Other	Power supply	The power adapter: DC 5V
	Power dissipation	MAX 4W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	94.57326mm
	The warranty	1 year free warranty

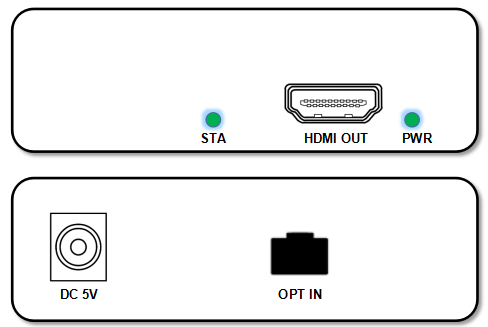

Receiver:

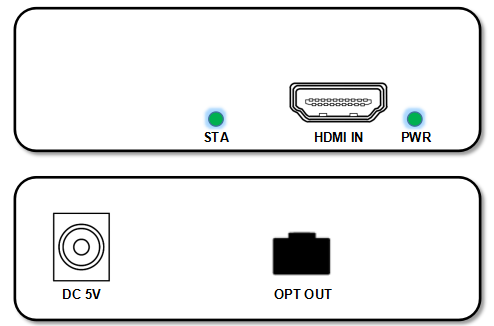

Transmitter:

Port name	Description
HDMI IN/HDMI OUT	HDMI signal input/output
DC 5V	Power adapter socket
OPT IN/OUT	Optical fiber input/output.
LED indicator	Description
STA	HDMI video signal detection lamp.
PWR	System power indicator

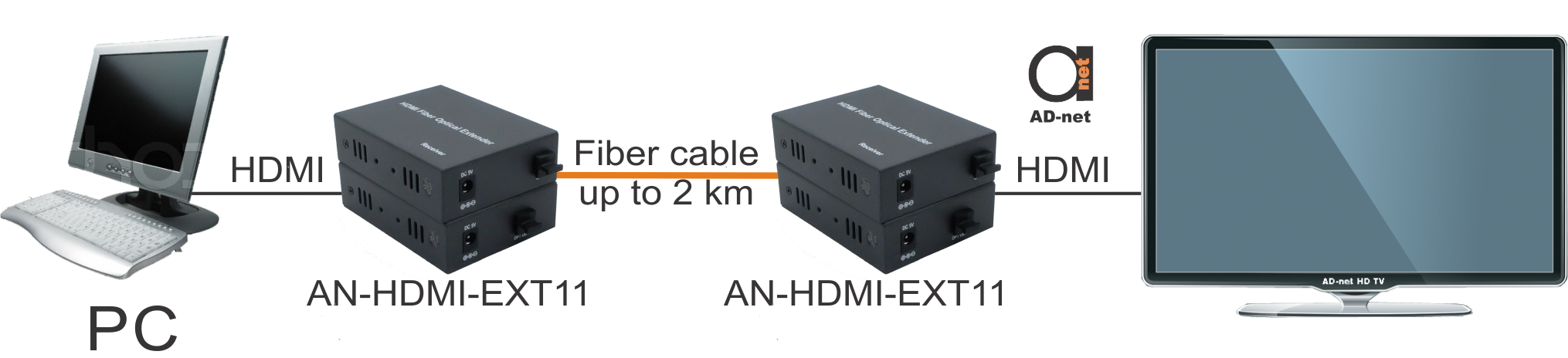

Installation

The HDMI signal source access HDMI Optical Fiber Transmitter
The HDMI Optical Fiber receiver connected to a display device (such as high-definition TV, splicing screen, etc.),
The SC interface optical fiber line connects the Transmitter and the receiver optical fiber interface ,
The Transmitter and the receiver connected to the power, when the lamp lights up normally,normal operation of system.

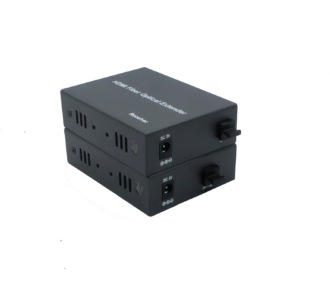

AN-HDMI-EXT11

1920X1080P HDMI to Fiber Converter, power supply units come in set, 1 pair
