HDMI over wireless extender

This Wireless HD Video Solution enables wireless transmission of video/audio from any HDMI video source , such as PC/HDTV to display devices that includes HDTV/HD Monitor over the 2.4GHz/5.8GHz band, with very low latency.

Support HD devices with HDMI input/output, include Blu-ray player, DVD player, PC, laptop, HDTV etc.
Support resolution: 480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz
Support IR remote control function to control source device content from long distance
Transmitter have one local loop out.
Low latency <200ms
Effective Range: 200m/656ft in 2.4G, 120meters in 5.8G, could through-wall between the two rooms.
No cable between sender (TX) and receiver (RX)
Easy and clean installation
Plug & Play – full hardware design, no software is required

Note:

Transmission distance will be different due to the environment
Wall, brick or glass will shorten the signal cover range or cause big signal loss

Parameter		Description
Video	Standard Protocol	HDMI 1.3; HDCP 1.2
	Maximum pixel clock	165MHz
	Maximum data rate	6.75Gbps
	Resolution	480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz,720P@50/60Hz, 1080i@50/60Hz, 1080P@50/60Hz
	Connector	HDMI-A
	Impedance	100Ω
	Compress Formats	H.264
IR	Interface	3.5mm earphone seat
	Signal direction	Unidirectional
	IR frequency	38kHz
WIFI	Frequency	2.4GHz/5.8GHz
	Transmission distance	Max :200m/656ft
	Wireless Standard	802.11AC
Other	Power supply	The power adapter: DC 5V/2A
	Power dissipation	MAX 6W
	Temperature	Operating: -5℃ ~ +70℃
	Humidity	Operating: 5% ~ 90%
	Dimension	1208225mm
	The warranty	1 year warranty

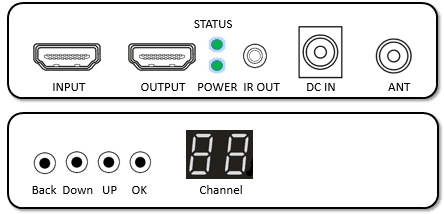

Transmitter:

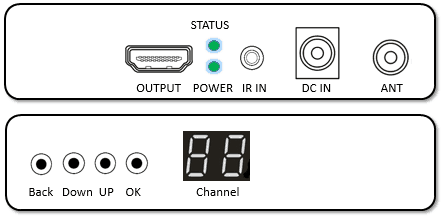

Receiver:

Port name	Description
HDMI IN/OUT	HDMI signal input/output
IR IN/OUT	IR signal input/output
DC IN	Power adapter socket
Channel	Display Channel
Back Down UP OK Key	Adjust 2.4G/5GHz channel.
LED indicator	Description
STATUS	Video signal connection indicator
POWER	System power indicator

In this demo we show quick setup procedure and channel selection, so that you get units up and working in minutes after unpacking

AN-HDMI-WF-EXT01

HDMI over wireless extender set with IR TX/RX support, 1 set

Description

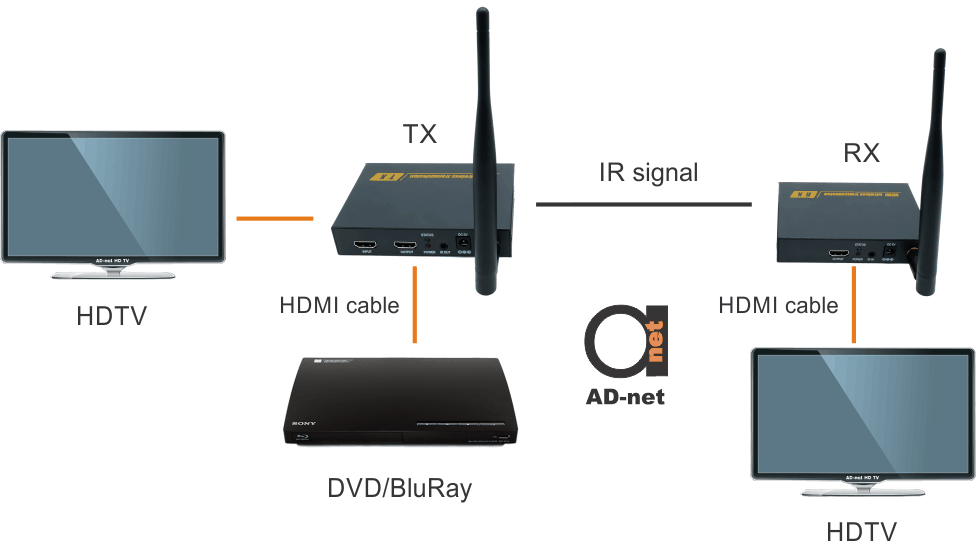

It does not require any special configuration of software driver installation-simply connect the transmitter to the HDMI output of the video source and the receiver to the HDMI input of the Panel/TV/Monitor. Its Plug & Play operation makes it the ultimate solution for the most demanding indoor/outdoor professional environments.

This Wireless HD Video Transmission Solution is widely applicable to family entertainments, office presentation, lecture, education, medical treatment, party, conference etc.
