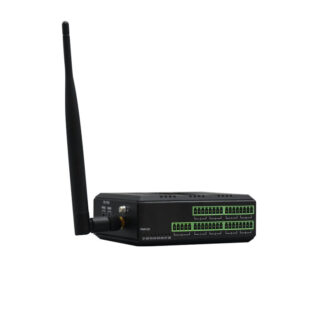

Industrial LoRa Wireless I/O Controller & Transmitter | 16-Channel DI/DO/AI/AO | DIN Rail-Mount Remote Transmission
This LoRa transparent transmission device is designed for reliable wireless signal relay, supporting up to 16 DI/DO AI/AO channels. Built with an industrial-grade 32-bit communication processor and running on an embedded real-time OS, it ensures stable, low-latency data transmission. With an IP40-rated enclosure, this wireless I/O controller is ideal for industrial automation, remote monitoring, and IoT applications. It supports both 35mm DIN rail and wall mounting, providing flexibility for various installation environments.
-
Utilizes advanced LoRa spread spectrum technology for wireless data transmission, ensuring fully transparent communication, -139dBm high reception sensitivity, strong anti-interference capability, and adjustable transmit power.
-
Operates on the ISM 430M-490M free frequency band, eliminating frequency usage fees. The default 490M setting helps avoid congestion in the 433M band.
-
Features 16 configurable I/O channels (DI/DO/AI/AO), arranged in 2-channel units. Users can customize configurations, such as 4 DI + 4 DO + 4 AI + 4 AO or 8 DI + 8 AI, with indicator lights for real-time status updates.
-
Supports high-precision 12-bit analog input resolution with 0.2% accuracy. Compatible with 2-wire, 3-wire, and 4-wire sensors, and supports 0-20mA, 4-20mA, 0-5V, 0-10V, and -5V to +5V analog signals.
-
Includes PC-based testing software for easy debugging, parameter configuration, and modification.
-
Enables seamless LoRa-based remote data transmission: Device A detects AI/DI signals and transmits them to Device B, ensuring synchronized AO/DO output status.
-

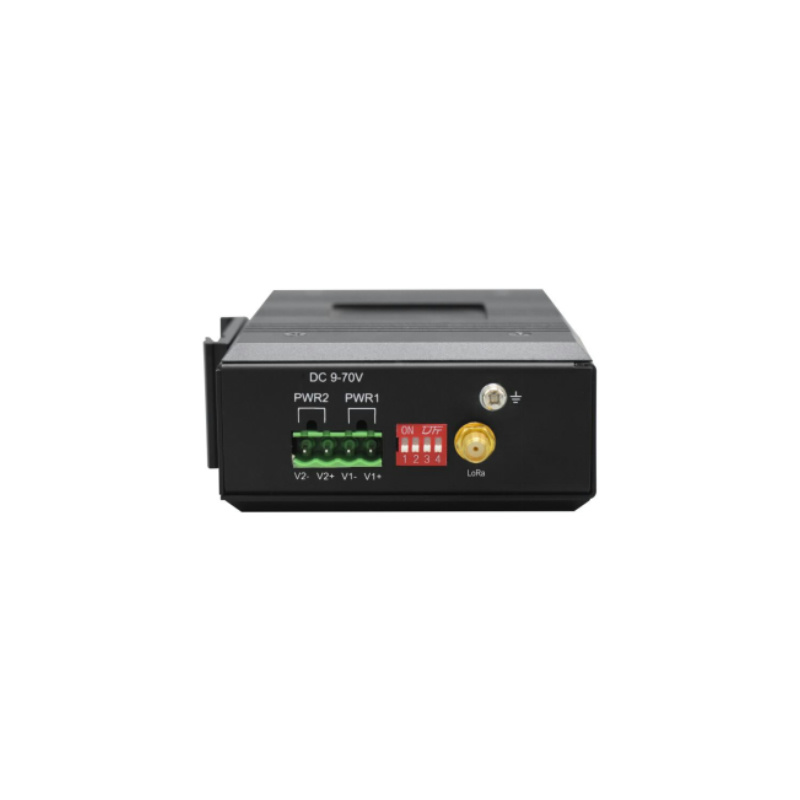

Equipped with a dual DC power supply (5.08 terminal block), supporting DC 9-70V or AC 7-55V. Features automatic polarity detection, internal isolation, redundant dual power input, and reverse polarity protection.
-
Built-in overload protection, compliant with industrial-grade electromagnetic compatibility standards. Enhanced lightning protection safeguards against surges, induced high voltage, and lightning strikes.
-
Fanless high-efficiency heat dissipation for long-term durability and reduced maintenance.
-
Durable aluminum alloy anodized casing with IP40 protection, designed to withstand harsh industrial environments.
-
Flexible DIN rail and wall mounting options for versatile installation.
-
Wide operating temperature range: -40℃ to +85℃, suitable for extreme conditions.
-
All units undergo 100% burn-in testing to ensure maximum reliability and performance.
● Dry contact interface
Output interface type:
Dry contact: signal relay dry contact output;
Pulse volume (wet contact) :
Optical MOS relay output, 0-VCC(VCC is the power supply voltage for the machine)
Response time:
Dry contact output :<1.2ms; Wet contact output <0.6ms
Switching signal output:
Dry contact: 30VDC/0.5A; Wet contact: 245VDC/0.12A
Maximum dry contact frequency 50HZ
Output surge protection:
Dry contact output: None.
Wet contact output: TVS+ solid discharge tube protection
● Current Analog
Input and output range: 0~20mA (including 4~20mA)
Resolution: 12 bits
Sampling rate: 20K times/second
Time delay: <0.1ms
Maximum load capacity: 600Ω
Input resistance: 125Ω
Accuracy: 0.2% (normal temperature)
● Voltage Analog
Input and output range: 0~10V (including 0~5V), -5V-+5V
Resolution: 12 bits
Sampling rate: 20K times/second
Time delay: <1ms
Maximum load capacity: 600Ω
Input resistance: 100ΚΩ
Accuracy: 0.2% (normal temperature)
● LoRa interface
RF frequency: default 490M, 400M~520MHz configurable
RF transmit power: default 20dbm/100mW
Air rate: 0.018-37.5kbps
Air distance: 4~8km
Receiving sensitivity: -139dbm Max
Antenna interface: SMA interface, external thread and internal pin
● Environmental indicators
Operating temperature: -40 ℃ – +85 ℃
Storage temperature: -40 ℃ – +85 ℃
Humidity: 0% -95% (non-condensing)
MTBF: > 100,000 hours
| AN-LORA-16-DI/DO | Industrial rail-type 16-channel DI/DO/AI/AO LoRa transparent transmission equipment, 1 channel Lora interface, 16 channels DI/DO/AI/AO |
Description
This LoRa transparent transmission device is designed for reliable wireless signal relay, supporting up to 16 DI/DO AI/AO channels. Built with an industrial-grade 32-bit communication processor and running on an embedded real-time OS, it ensures stable, low-latency data transmission. With an IP40-rated enclosure, this wireless I/O controller is ideal for industrial automation, remote monitoring, and IoT applications. It supports both 35mm DIN rail and wall mounting, providing flexibility for various installation environments.

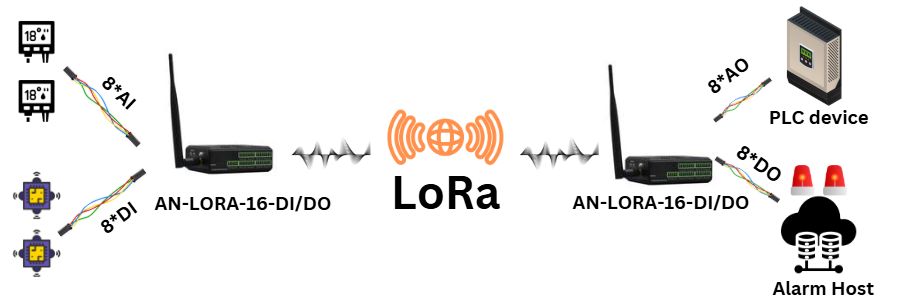

Solution 1: Two LoRa devices in a point-to-point configuration, enabling bidirectional DI/DO and AI/AO transmission with synchronized data exchange on the same frequency.
