LAN Extenders 16 port Central Hub | 16 channel Ethernet Extender Hub

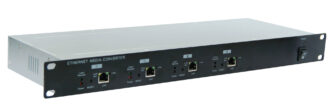

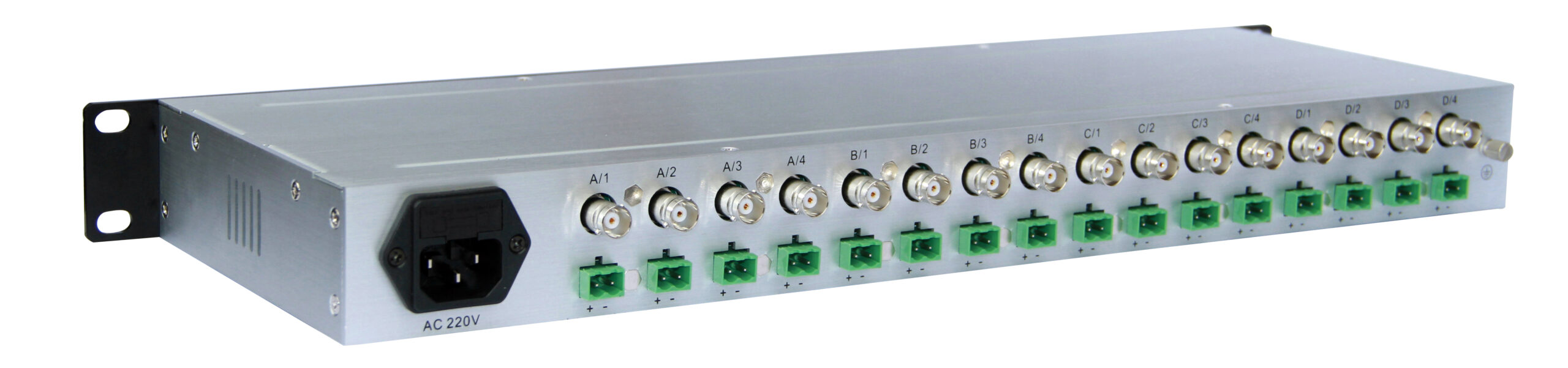

AN-LAN-EXT-HUB16 16-Channel Ethernet Extender Hub is a Multi-Channel Ethernet Extender Hub. It simultaneously receives multiple network signals, supports both a point-to-point and point to multi-point. It is used to transmit data network signal over any pair of 2-wire such as twisted pair, Cat5, coaxial cable and power line, etc. The max distance reach 1,000 meters. Max physical bandwidth can reach 500Mbps.
- Max transmission distance reach 1,000m (RG59/RVS 2×1mm2)
- Max physical bandwidth can reach 500Mbps
- Transmit high-speed network data over 2-wire
- Transparent transmission, no adjustment, no need to change the upper software
- 19 inch rack size installation, plug and play, anti-interference design
|
Category |
Description |
|
|
Power |
Power Input |
220VAC / 110VAC±10％ |
|
Ethernet network |
Standard Compliance |
IEEE 802.3, IEEE 802.3u |
|
Physical Rate |
500Mbps |
|
|
Physical Characteristic |
Dimensions (L × W × H) |
483mm×45mm×150mm |
|
Material |
Aluminum |
|
|
Net Weight |
1.6KGS/PC |
|
|
Operating Environment |
Working Temperature |
-20℃～60℃ |
|
Working Humidity |
＜95% (Non-condensation) |
|
Cable tips
Telephone Line: Category 3 or above
Power Line: RVV, RVS, RVVP
UTP Cable: Category 5 or above

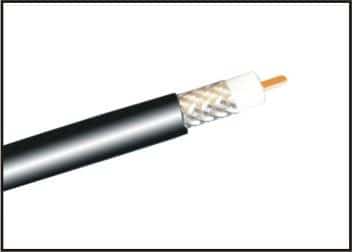

Coaxial Cable: RG59 or above
Accessories Spec
RJ45 port by EIA / TIA568B

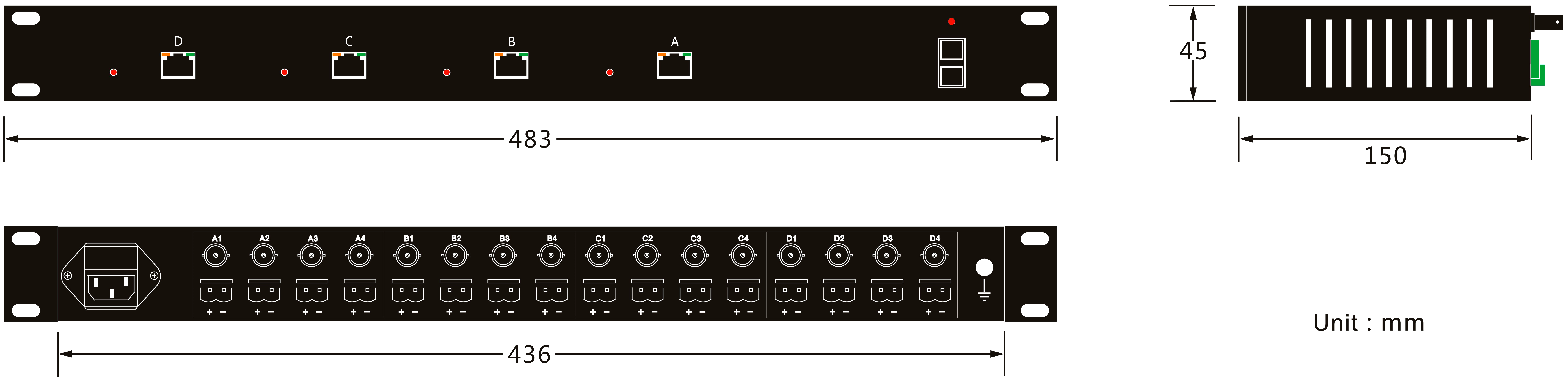

Dimension

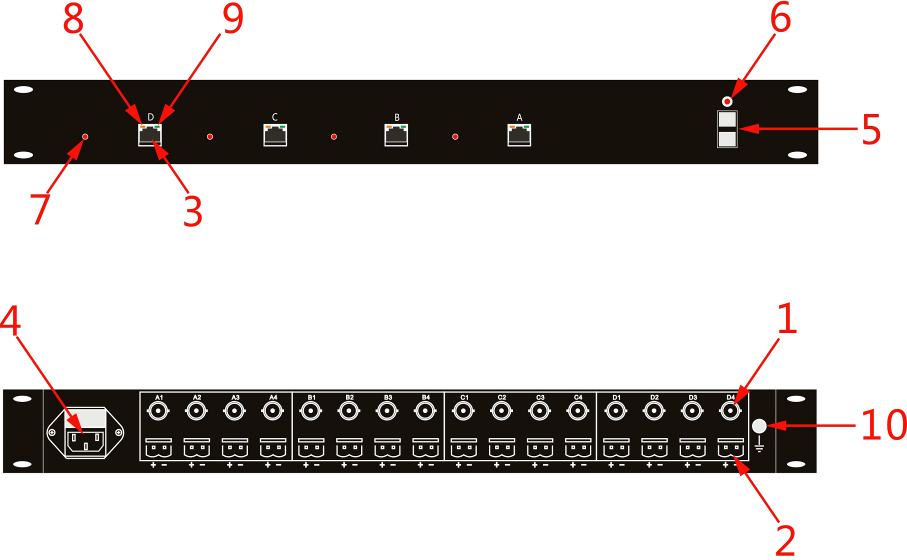

Installation Instructions:
|
Step |
Installation Instruction |
Step |
Installation Instruction |
|
1 |
Connect the coaxial cable to the BNC terminal of hub(1) |
6 |
General power indicator is always on when working(6) |
|
2 |
Connect the two-wire to the 2P terminal of hub(2) |
7 |
Unit power indicator is always on when working(7) |
|
3 |
The RJ45 terminal of the end-side network devices connect to(3) |
8 |
Network data indicator is always on when working(8) |
|
4 |
Connect power（220VAC）to the power terminal(4) |
9 |
Unit line indicator is always on or flashing when working(9) |
|
5 |
Power switch(5) |
10 |
Grounding terminal(10) |

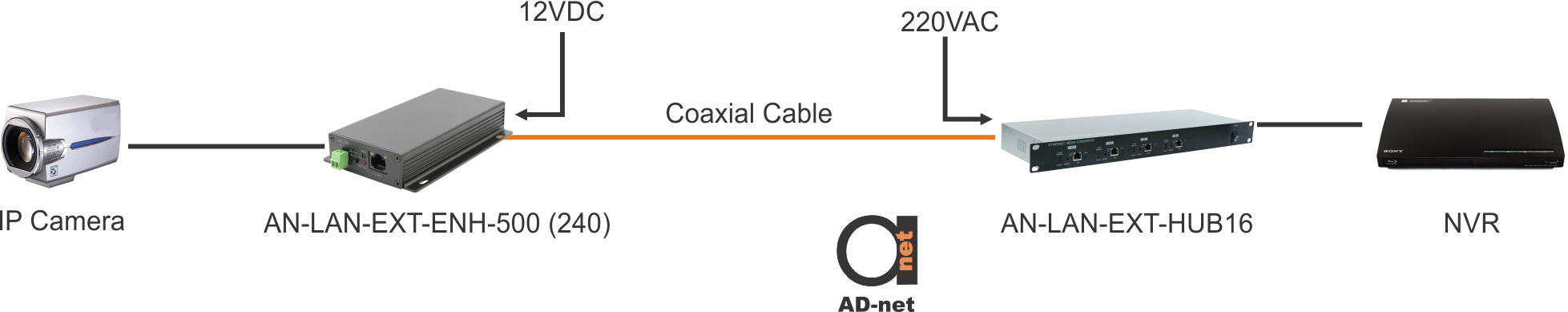

Connection:
Use Tips:
When you use AN-LAN-EXT-HUB16, please follow the below tips as a reference, in order to reduce the fault in the process of using and the inspection work.
- AN-LAN-EXT-HUB16 can be connected with single channel Ethernet Extender, The device supports auto-negotiation allocate master and slave. It also can be set master-slave side and grouped by software. Each group (one point to multi-point communications group) only allows one Master, others are Slaves. Otherwise, the network data won’t be able to transmit. Master suggests to be installed in Local side, AN-LAN-EXT-HUB16 suggests to be installed in Local.
- Signal transmission cable must be the copper cable. Other material cables will cause the decrease of signal transmission quality and distance.
- Long distance cable connection must be formal connection methods, such as welding or using connectors.
- Coaxial cable, twisted-pair cable, telephone line and power line all can be used to transmit network data signal in projects. A variety of cables arbitrary mixed connection also can reduce the quality of signal.
- Please choose matching power supply (220VAC).
- There is no waterproof design for this product, please make sure it is used in dry environment.
- If device fails, do not disassemble or repair it by yourself. Please contact us timely.
| AN-LAN-EXT-HUB16 | LAN Extenders 16 port Central Hub, working with AN-LAN-EXT-ENH-500 (240) as remotes, AC or DC power |
Description
AN-LAN-EXT-HUB16 16-Channel Ethernet Extender Hub is a Multi-Channel Ethernet Extender Hub. It simultaneously receives multiple network signals, supports both a point-to-point and point to multi-point. It is used to transmit data network signal over any pair of 2-wire such as twisted pair, Cat5, coaxial cable and power line, etc. The max distance reach 1,000 meters. Max physical bandwidth can reach 500Mbps.
This product can be widely used for network extension system, network security system, network information publishing system, network renovation and expansion systems, elevator, railway, urban traffic, mining and telecommunication, etc.
