Micro – extra small sized video to fiber converter

No space in enclosures at all? AN-M-DV Micro type video & data over fiber converter is there to solve your space constraints. Dimensions are just 82.8 mm x 72.8mm x 30.5 mm!

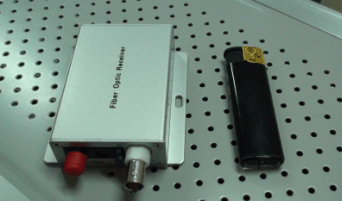

Extra small dimensions to fit in smallest enclosures
Completely digital fiber transmit platform video to fiber converter
Self-adapt in PAL, NTSC, SECAM standards
RS-485/RS-232 data port for PTZ and control applications
Power supply, link, video by dynamic indication
transmit distance: up to 100KM (depends on version)
fully assembled using SMT components for stability and reliability.

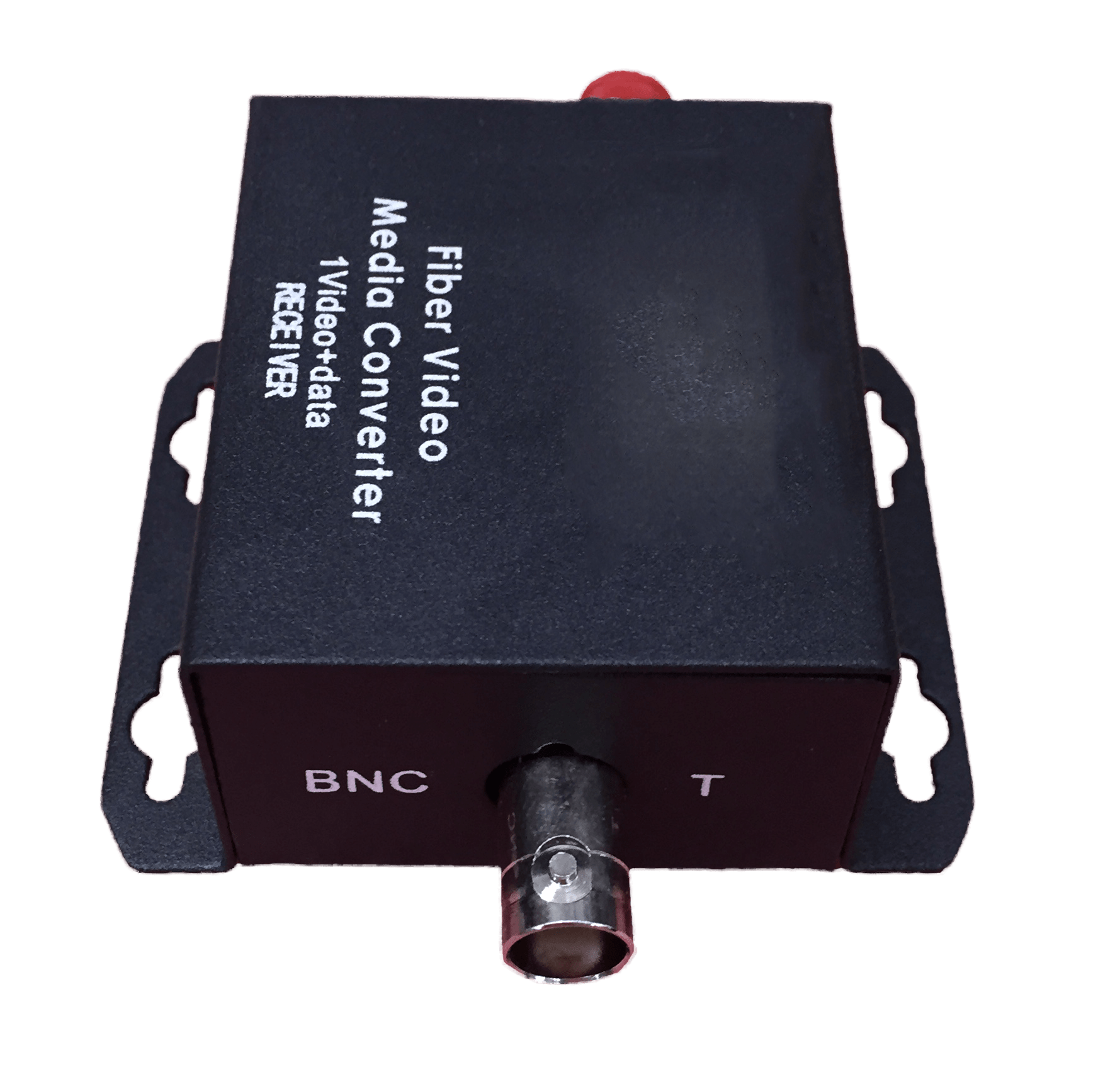

It is that small!

Technical Specification

VIDEO
Number of Channels	1
In/Output Level	1.0V_PP typical, 1.5V_PP max.,75Ω
Bandwidth	8MHz
Sampling Resolution	8 bits
Differential Gain	< 2%
Differential Phase	< 2º
Signal to Noise Ratio (SNR)	62dB
Connector Type	BNC 75Ω

DATA
Number of Channels	1, reverse
Interface	RS-485
RS-422 Data Rate	DC − 115.2kbps
RS-422 Distance	0 − 1200m
RS-422 Signaling	Transparent to all RS-485 signaling
Connector Type	Terminal

OPTICAL
Number of Fibers	1
Wavelength	1310/1550nm
Fiber Type	9/125μm(SM)
Distance	0 ~ 25km
Connector Type	FC/PC

General
Operating Temperature	-30 ~ + 70˚C
Relative Humidity	0 to 95% non-condensing
Adapter Supply Input Voltage	110~240 VAC
Adapter Supply Output Voltage	+5 VDC
Power Consumption	3W
Mean Time Between Failure (MTBF)	> 100,000Hours
Housing	Surface mount
Enclosure Color	Silver
Dimensions (L X W X H)	82.8 mm x 72.8mm x 30.5 mm

Application scenario:

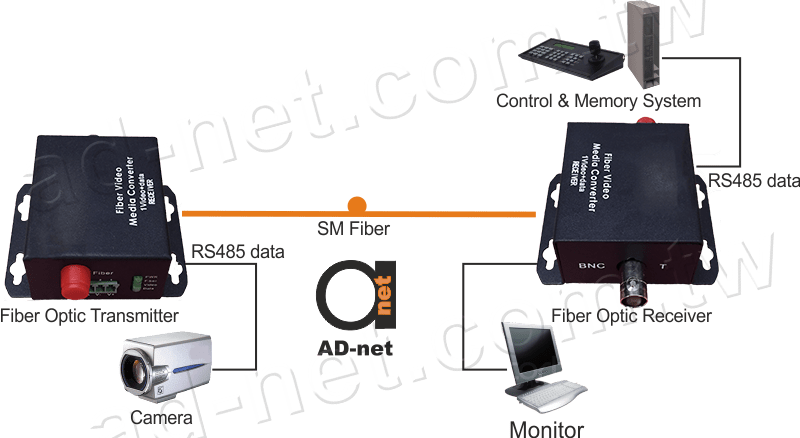

micro_type_video_data_over_to_fiber_converter_wm

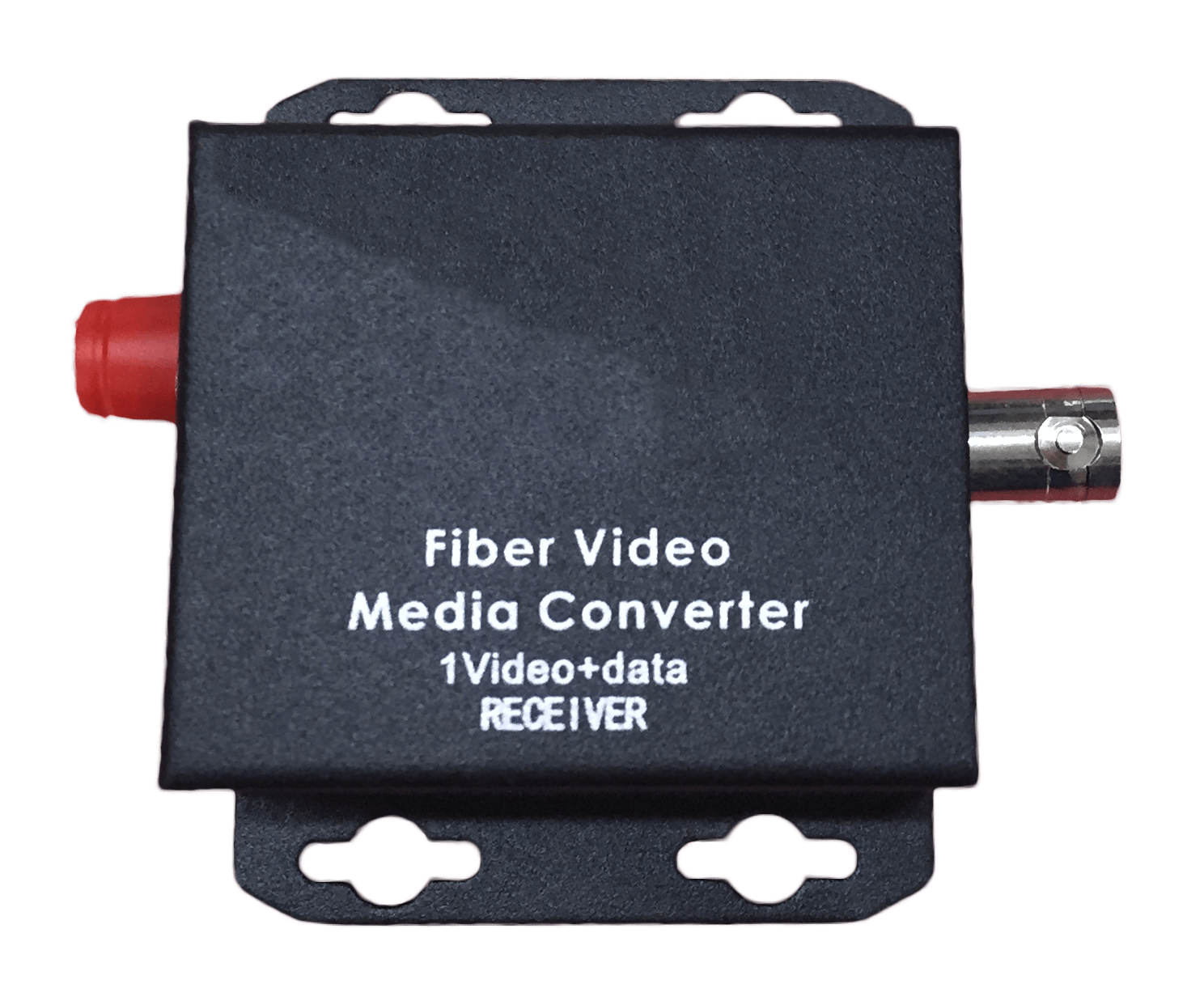

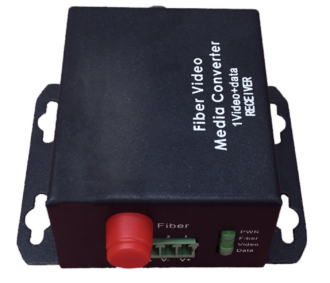

video to fiber converter front panel

AN-M-V1D1-S1T/R

Micro sized video signal & data serial port over fiber transmitter & receiver, distances from 20 km and more.

Description

The AN-M-V1D1-S1T/R series is designed using advanced ASIC and high-speed DSP technologies. The AN-M-V1D1-S1T/R series video to fiber converter employs multiplexing and de-multiplexing techniques to transmit and receive 1 channel video, 1 channel reverse RS485 data over an optical fiber in all digital signaling with no compression; making it ideal for applications where input signal integrity and quality must be maintained and no loss should be induced.

Because the AN-M-V1D1-S1T/R series utilizes all-digital, non-compression technology, it is able to transmit signals without distortion; whereas the analog technology inherently noisy, low quality, long term instability and susceptible to electromagnetically and environmental interference. The AN-M-V1D1-S1T/R series accepts a variety of video inputs, such as analog or digital video recorder, DVD/VCD, digital camera, CCTV and any 8MHz video signal.

PAL, NTSC and SECAM standards are supported. The AN-M-V1D1-S1T/R series supports standard RS485 pan-tilt-zoom control signaling. Plug-and-Play design ensures ease of installation and no electrical or optical adjustment is required. LED indicators are provided for showing operating status.The AN-M-V1D1-S1T/R series is fully assembled using SMT components for stability and reliability.

Video to fiber converter can be used in varios ways, for example:

Intelligent transportation system;
High speed way video monitoring and control system;
Toll monitoring and control system;
Close circuit TV industry monitoring and control;
TV program switching channel transmit;
High-fidelity video conference system;
Security monitoring and control system
