Micro-Type DVI over 4 fibers adapter/extender set

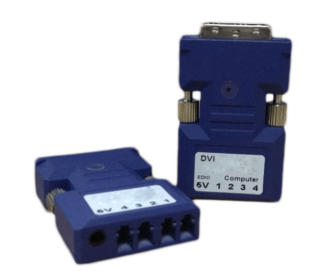

Industries one of the smallest and compact DVI over Fiber Extender set. It takes 4 fiber cores to send DVI signal over 500 m using Multimode Fiber and up to 1km using single mode. It's a real fiber transmitter and receiver in a size of regular DVI adapters.
- Full Digital, uncompressed HD optical transmission;
- Support 1-channel DVI HD video transmission;
- DVI 1.0 supported;
- Identify and configure different display mode automatically;
- Support single-line mode; max rate up to 1920×1200@60hz, bandwidth up to 5.4Gbps;
- Max color depth up to 12bit;
- Max pixel clock up to 225MHz;
- Built-in automatic equalization and retiming features, with a clear and steady picture;
- Support EDID display mode access and recall function, correct display mode loading anytime;
- Gbps optical transmission technology, large capacity, easy to upgrade;
- Support single-mode/multimode transmission;
- Without software configuration, support Hot Plug In, plug and play;
- Applicable to extremely high/low temperature industrial environment;
- Full SMT production;
|
DVI HD video parameters |
|
|
Interface Format |
DVI 1.0 |
|
Physical Interface |
DVI-I Hole socket |
|
Interface Quantity |
Transmitter: 1-input; Receiver:1-output |
|
Video Definition(single line) |
SVGA: 800×600@60Hz; WXGA: 1280×800@60Hz UXGA: 1600×1200@60Hz; HDTV: 1080P 1920×1080@60Hz |
|
Video Color Depth |
8/10/12 bit |
|
Video pixel Clock |
25-165MHZ |
|
Video Bandwidth |
5.4Gbps |
|
Video Difference Level |
800-1200mVp-p,typical |
|
Video Differential Impedance |
100Ω |
|
DDC Standard |
DDC2/EDID 1.0/2.0 |
|
DDC Processing Mode |
Read and display by the transmitter |
|
Optical parameters |
|
|
Transmitter |
Interface Type: LC*4 |
|
Signal Format: 1310nm,single mode/multimode fiber, optical transmitting power: -3 – -8dbm |
|
|
Receiver |
Interface Type: LC*4 |
|
Signal Format:1310nm,single mode/multimode fiber, optical receiving sensitivity: -30dbm |
|
|
Size |
L×W×H: 63mm×42mm×15mm |
|
Power Supply |
DC 5V, 2A |
|
Operation Temperature |
-10~60℃ |
|
Operation Humidity |
0~95% |
|
Storage Temperature |
-20~85℃ |
| AN-DVI-MICRO | Micro-Type DVI over 4 fibers adapter/extender set, up to 1 km over single mode fiber, 500 m over multimode fiber |
Description
Industries one of the smallest and compact DVI over Fiber Extender set. It takes 4 fiber cores to send DVI signal over 500 m using Multimode Fiber and up to 1km using single mode. It’s a real fiber transmitter and receiver in a size of regular DVI adapters.
