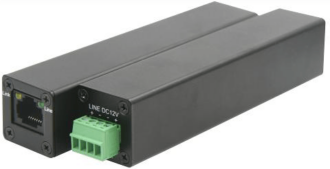

Mini PoE Ethernet Extender
Mini POE Ethernet Extender AN-LAN-EXT-MINI-POE is a high-speed Ethernet transmission device. It can transmit Power and Ethernet signals together over any pair of 2-wire such as Cat5, coaxial cable and power line, etc. It contains one Master unit and one Slave. The Master can directly supply power for the Slave unit and PoE device. It can be installed in a small space with its compact size. It can transmit IP & PoE over 2-wire such as Cat5, coaxial cable and power line which greatly simplify the project cabling, applied to transmit middle & short distances of PoE device signals.
- Max Transmission distance reach 600m (RVS 2×1mm2)
- Max physical bandwidth reach 500Mbps
- Support power over cable technology (12VDC or 48~56VDC)
- Support PoE output (48~56VDC power input)
- Built-in ESD protection circuit, in case of static damage
| Category | Description | |
| Power | Available Voltage Range | 12VDC or 48~56VDC |
| Power Consumption | ≤3W / PC | |
| PoE Power Output | Standard 48VDC; IEEE802.3af | |
| Transmission / Rate | Standard Compliance | IEEE1901, IEEE802.3 |
| Up down Agreement | CSMA/CA | |
| Rate | 500Mbps Physical Bandwidth | |
| 88Mbps Transmission Speed | ||
| Physical Characteristic | Dimensions (L × W × H) | 123mm×26mm×26mm |
| Material | Aluminum | |
| Net Weight | 105g / PC | |
| Operating Environment | Working Temperature | -20℃～60℃ |
| Working Humidity | ＜95% (Non-condensation) | |
Power line: RVV / RVS / RVVP / RVB 2×1mm2 above
UTP Cable: Cat5 (2 pair) or above
Coaxial cable: RG59 or above
RJ45 port by EIA / TIA568B
Power Adapter by 48 or 56 VDC 5mm female power port (Optional)
Power Loss:

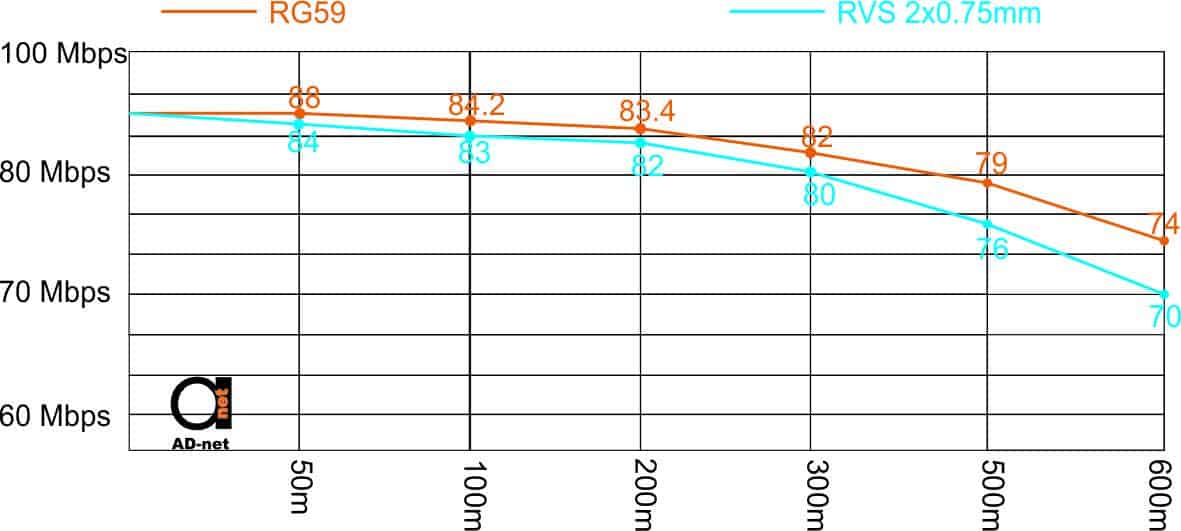

AN-LAN-EXT-MINI-POE supports enhanced high speed network data transmission. The data differs from the cables types. Moreover, the longer distance of cable, the lower the transmission rate accordingly. The following testing details are for your reference:
The above data is one-way network parameters. Testing is made under the condition of the cable not fully expanded. There may be differences compared with practical application of the data. Rate is only used as reference in project application.

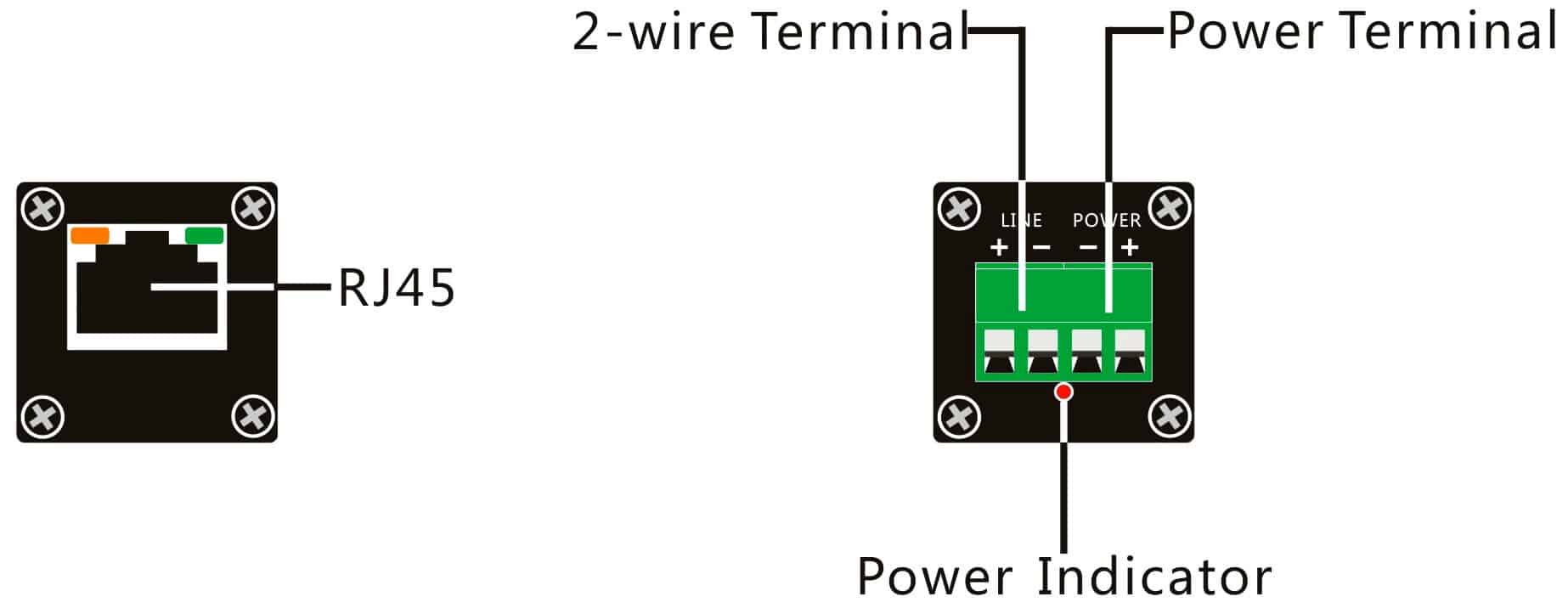

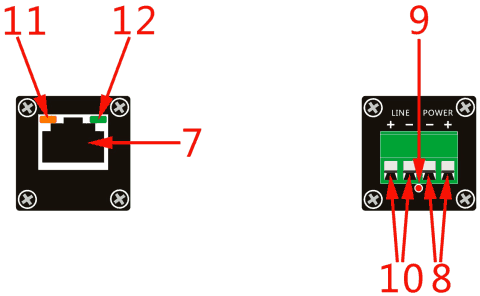

| Master | Slave | ||
| Step | Installation Instruction | Step | Installation Instruction |
| 1 | Network equipment is connected to RJ45 port of Master unit (1) | 7 | Network equipment is connected to RJ45 port of Slave unit (7) |
| 2 | Positive and negative terminals of the low voltage power (2) | 8 | Positive and negative terminals of the low voltage power (8) |
| 3 | Power indicator is always on (3) | 9 | Power indicator is always on (9) |
| 4 | Positive and negative connection terminal of 2-wire cable (4) | 10 | Positive and negative connection terminal of 2-wire cable (10) |
| 5 | Network data indicator quickly blinks when data is normal (5) | 11 | Network data indicator quickly blinks when data is normal (11) |
| 6 | Line indicator is on (In one line, the indicator is always on when powered firstly, indicator is always flash when powered later) (6) | 12 | Line indicator is on (In one line, the indicator is always on when powered firstly, indicator is always flash when powered later) (12) |

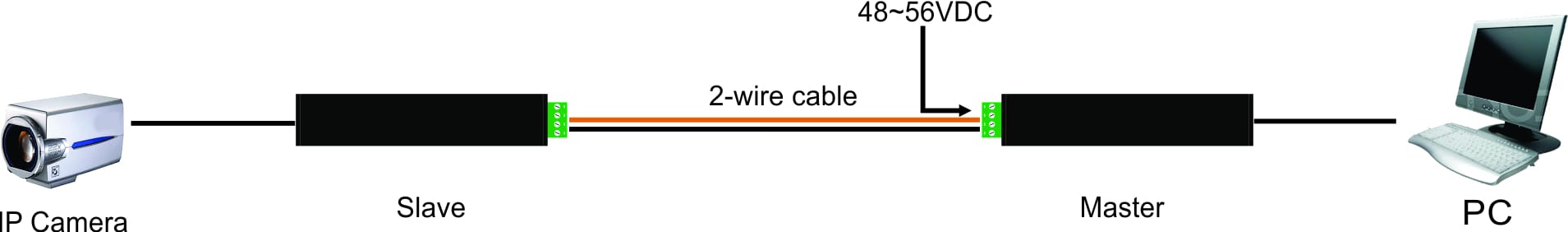

- Provide 48~56VDC for the Master unit, slave unit and PoE powered device no need extra power supply

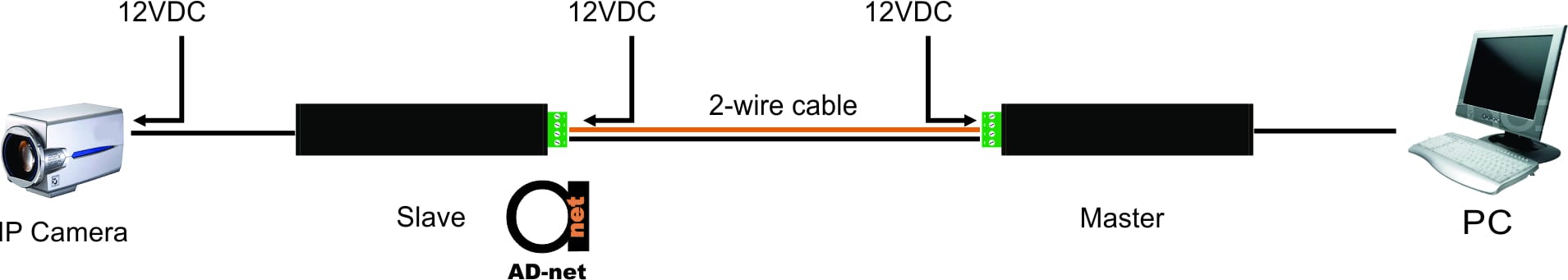

- Provide 12VDC for front-end IP device, Master and Slave units need extra power supply separately
This device can’t support PoE modules power supply, including PoE switch, PoE recorder, etc. It only supports 48-56VDC power input.
Use Tips
When you use AN-LAN-EXT-MINI-POE, please follow the below tips as a reference, in order to reduce the fault in the process of using and the inspection work.
- Every unit device consists of master and slave. Please notice the positive and negative terminal of signal cable when transmit PoE power.
- Please pay attention to the polarity of the power when the power signal cable is connected to the terminals. Metal wire should be hidden lest happen short circuit to burn out equipments.
- Signal transmission cable must be the copper cable. Other material cables will cause the decrease of signal transmission quality and distance.
- Long-distance cable connections must be by standard connection method, such as welding or using connectors.
- The coaxial cable, twisted pair cable, telephone line, power line can be sued to transmit the network data signal. Please notice that it may cause the decrease of signal transmission quality if connect kinds of cables at random.
- Please choose matching power adaptor (12VDC/1A or 48～56VDC/0.8~1.2A).
- There is no waterproof design for this product, please make sure that it is used in dry environment.
- If device fails, do not disassemble or repair it by yourself. Please contact us timely.
In this video we are connecting our mini type LAN POE extenders via long distance over twisted and sending POE power to power up the camera along with Ethernet signal over the same twisted pair.
| AN-LAN-EXT-MINI-POE | Single Port PoE type Ethernet Extender over 2-wire/coax, distance up to 500 m, max physical bandwidth 500 mbit/s |
Description
Mini POE Ethernet Extender AN-LAN-EXT-MINI-POE is a high-speed Ethernet transmission device.
It can transmit Power and Ethernet signals together over any pair of 2-wire such as Cat5, coaxial cable and power line, etc.
It contains one Master unit and one Slave. The Master can directly supply power for the Slave unit and PoE device. It can be installed in a small space with its compact size. It can transmit IP & PoE over 2-wire such as Cat5, coaxial cable and power line which greatly simplify the project cabling, applied to transmit middle & short distances of PoE device signals.
