Mini Type SD/HD/3G SDI I High density digital audio/video fiber transmission with loop-out port

An easy and affordable plug and play product which allows send SD-SDI / HD-SDI / 3G-SDI family digital video interfaces over single fiber. Additional serial RS-485/RS-232 data port can be added according request.

One Channel SD/HD/3G SDI I High density digital audio/video fiber transmission
Handle all Pathological patterns
SD, HD, 3G input auto indentification, support three data rate 270Mbit/s – 1.48Gbit/s – 3Gbit/s；support 1080P 3Gbps HD-SDI format
Support SMPTE-424M 3Gbps HD-SDI, SMPTE-292M HD-SDI, SMPTE-259M SDI and DVB-ASI
On Multimode fiber or Single mode fiber transmission，10Km ~80Km on single Mode Fiber, 1470~1610nm CWDM wavelengths optional.
SFP hot pluggable, flexibly select SFP transceiver according to different transmission distance.
Interface HD-SDI（BNC）and LC fiber connector

SDI input/output
Signal format	SMPTE 424M, SMPTE 292M, SMPTE 259M, DVB-ASI
Data rate	270Mbit/s – 1.48Gbit/s – 3Gbit/s
Cable Equalization	Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s
SDI interface	BNC 75 Ohm
Fiber interface	LC/PC
Number of tranmitter channel	1
Number of tranmitter Loopout	1
Transmitter wavelength	Standard 1310 nm（1550 nm optional、CWDM wavelength optional）
Transmitter output power	-9~-3dBm（0±3dBm optional）
Number of receiver output	2
Receiver sensitivity	-18dBm～0 dBm

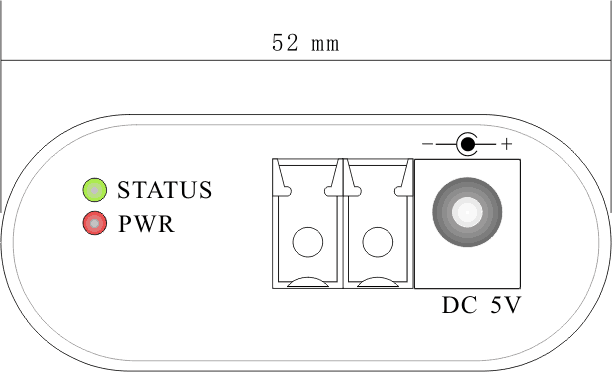

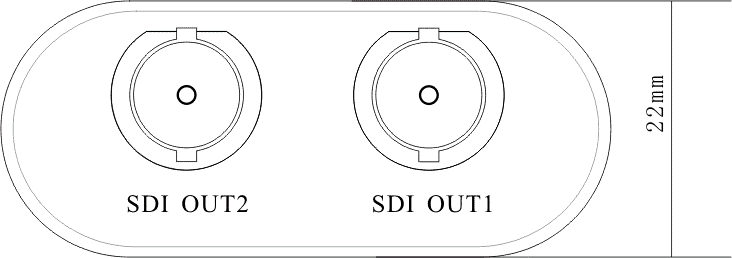

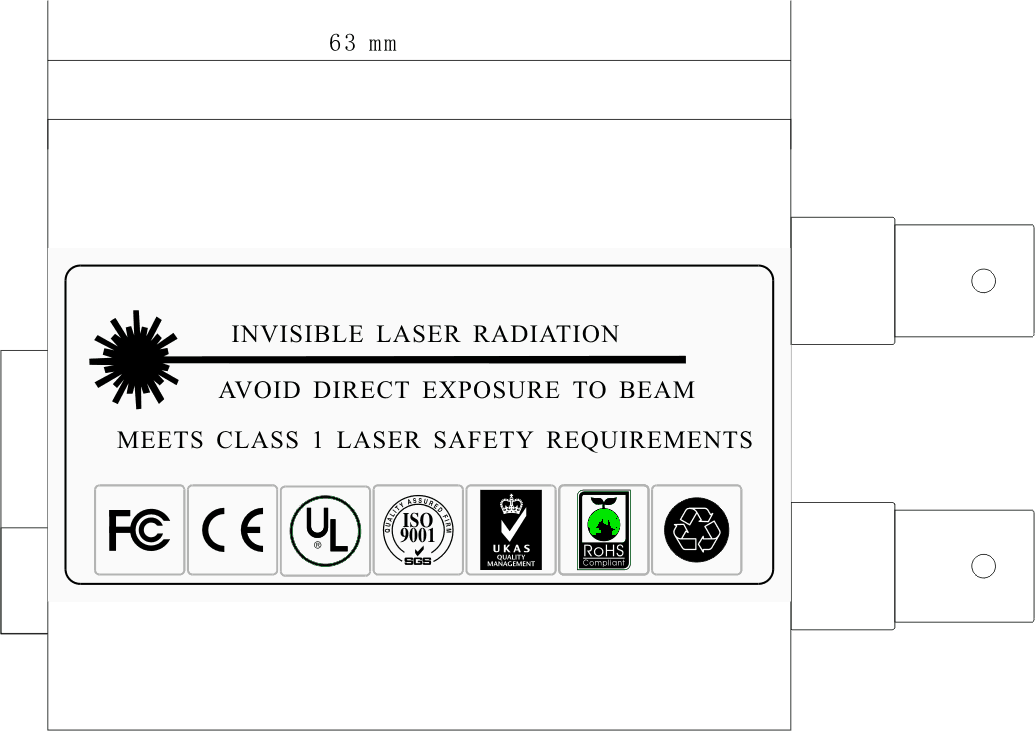

General index
Input power		DC 5 V
Power consumption		Transmitter: 1.8W Receiver: 1.5W
Work Temp		-20°C to 70°C
Storage Temp		-40°C to 85°C
humidity		0 ~ 95% (non-condensing)
Case material		Aluminum
Net weight		210g /pair （with Power supply 440g/pair）

These 3G/SDI/HD converters can be set up literally in seconds if you have all cables prepared and all is ready for installation.

AN-SDI-MINI

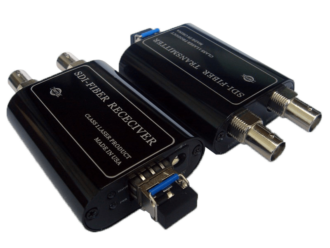

1-ch broadcast 3G/HD-SDI to fiber converter,singlemode,10KM,1xLC

Description

MINI TYPE AD-net’s SDI SD / HD / 3G video digital optical converter adopts international advanced all-digital gigabit optical fiber transmission technology. These standards are used for transmission of uncompressed, unencrypted digital video signals (optionally including embedded Audio and/or Time Code) within television facilities; they can also be used for packetized data. And now – with MINI TYPE AN-DVI fiber optic devices you can deliver those signals on large distances over the fiber optic cables.

HD SDI video signal can be transmitted through 1 single fiber with non-distortion, high-quality, long-distance transmission .This series of video to fiber converter has Stable performance, clear picture quality.,and high Stability with LED Status Indication on the body of device. the working status of devices can be visually observed.At the same time,the switch value,voltage,working status and other reverse useful signal information can be controlled by data RS485.This makes our devices more flexible when different customers’ request comes.

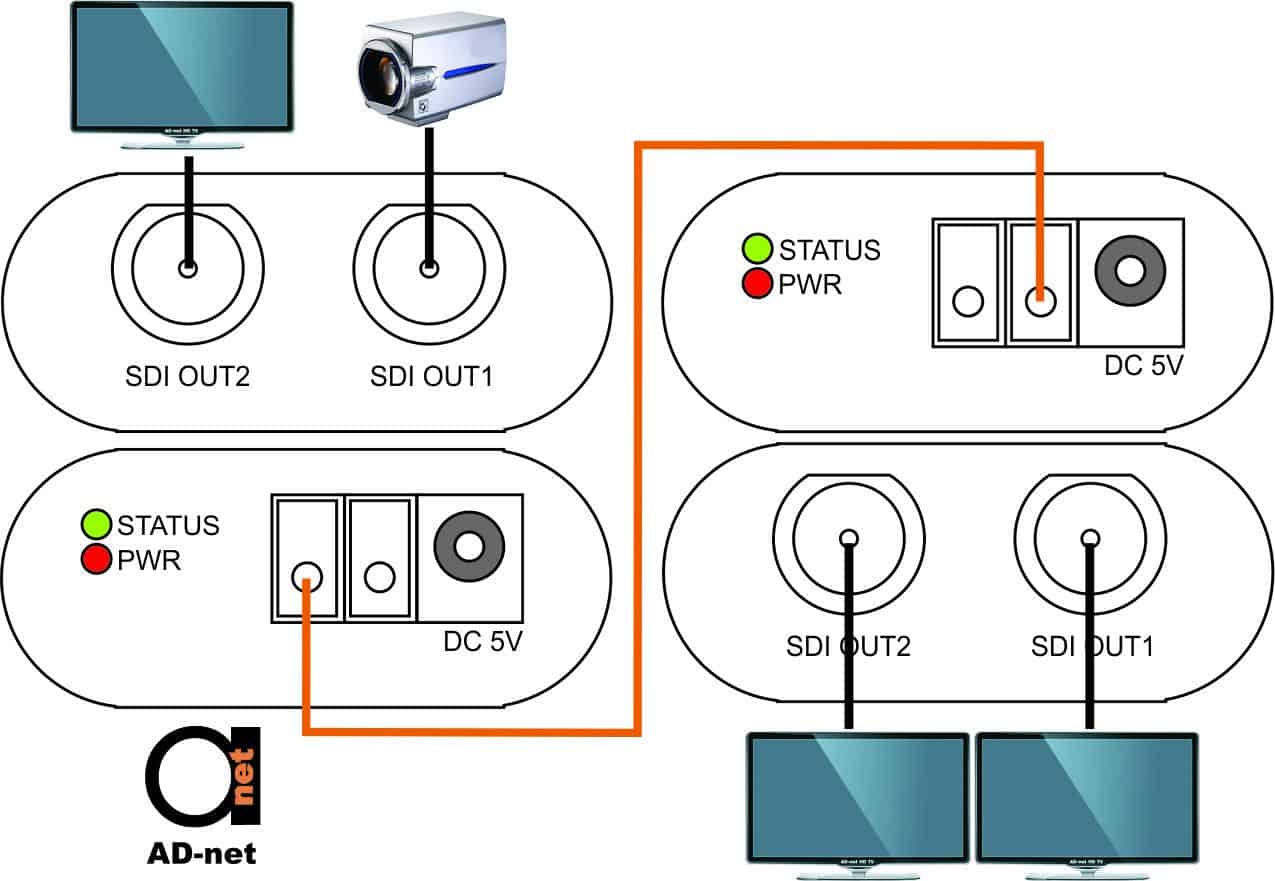

Possible applications for this product, to name few are:

Intelligent Traffic Monitoring System.
Security system
School networking
Industrial monitoring (Electricity,Chemistry,Steel,Oil,Railway & etc)
Military Monitoring (Warehouse,Border,Guards,etc)
TV programme transmission system.
Stadium (For LIVE HD video,audio transmission)
