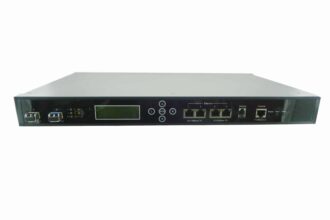

Modular Integrated Access Multiplexer – SNMP/LCD/Web managed

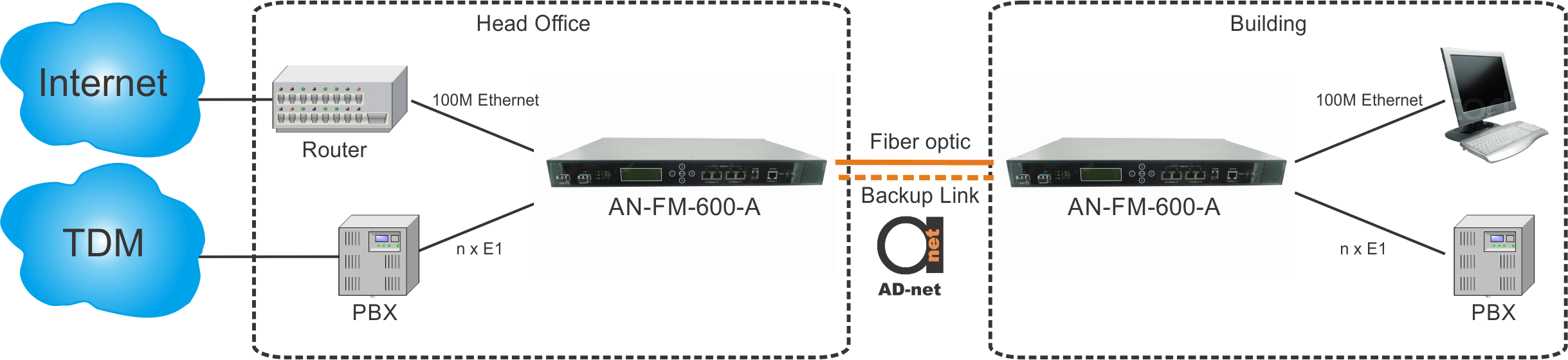

This device apply large-scale integrated circuit developed independently as its hardcore and can multiple 16-channel E1 signal, 4-channel 100M Ethernet on dual optical fiber to realize the hybrid transmission. Various Functional Modules: User interface modules (N×64K V.35, FV.35, FXO/FXS, E/M, RS232/RS485, and etc.), order wire module, network management module (RS232, and Ethernet Interface, etc.), and alarm output terminal module, etc. Available.

  • 4-slot for high density applications
  • Support E1/FXS/FXO/EM2-4/V.24/V.35/RS232/RS485
  • 4-port Full bandwidth 100 Mbps and VLAN Q-in-Q
  • Support E1 loop back and BERT function with LCD
  • Support dual fiber port 1+1 protection and Automatic Protect Switch (APS)
  • Support automatic laser shut down (ALS)
  • Configure via CLI/SNMP (v1/v2)
  • -48V DC or 220VAC flexible power inputs

Fiber Interface (Main and backup)

  • Number of Ports: 2(1+1)
  • Optical wavelength: 850/1310nm for multi-mode fiber, 1310/1550nm for single-mode fiber.
  • Transmission distance: 20-120Km
  • Fiber Optic Interface Type: SFP/FC/SC
  • Data Rate: 150 Mb/s
  • Typical output power:
    • single mode 1310/1550nm:  ≥-9dBm(dual fiber)
    • multi-mode 850nm:  ≥-18dBm
    • multi-mode 1310nm:  ≥-25dBm
    • Receiver Sensitivity:  ≤-35dBm(BER≤ 10-11) (dual fiber)

Dual optical interface module is supplied that supports hot swap. No error code occurs in the case of optical interface switching.



E1 Interface

  • Interface Standard: compatible with ITU-T G.703 G.823
  • Bit rate: transmission port 2048Mbps±50ppm
  • Line Code Pattern: HDB3
  • Interface Impedance: 75Ω/120Ω
  • Interface Connector: RJ45 for 120Ω, DB37 with Q9 BNC adapter for 75Ω
V.35 interface
  • 2 channels of V.35 interface available
  • Interface Electric Level: In compliance with CCITT V.35 standard
  • Physical Interface: DB25
  • Interface Bit Rate: 2.048Mbit/s

Fast Ethernet Interface

  • Number of Ports: 4

  • Type: 10/100Mbps, auto-negotiation, full/halfduplex, flowcontrol, MDI/MDXcrossover

  • Compliance: IEEE 802.3, 802.3u and 802.1p&q

  • Max Frame Size: 2047Byte

  • Number of VLANs: 1-4094 with 16 VLAN support

  • Port-Based VLAN: Untagged, tagged, transparent or double tagged

  • LAN Table: 2KMAC

  • Connector: RJ-45

  • Electrical Cable Type: 5

Order Wire Interface

  • Number of Ports: 1
  • Interface Standard: RJ-11
  • Bandwidth: 64Kb/s
  • Coding: PCM

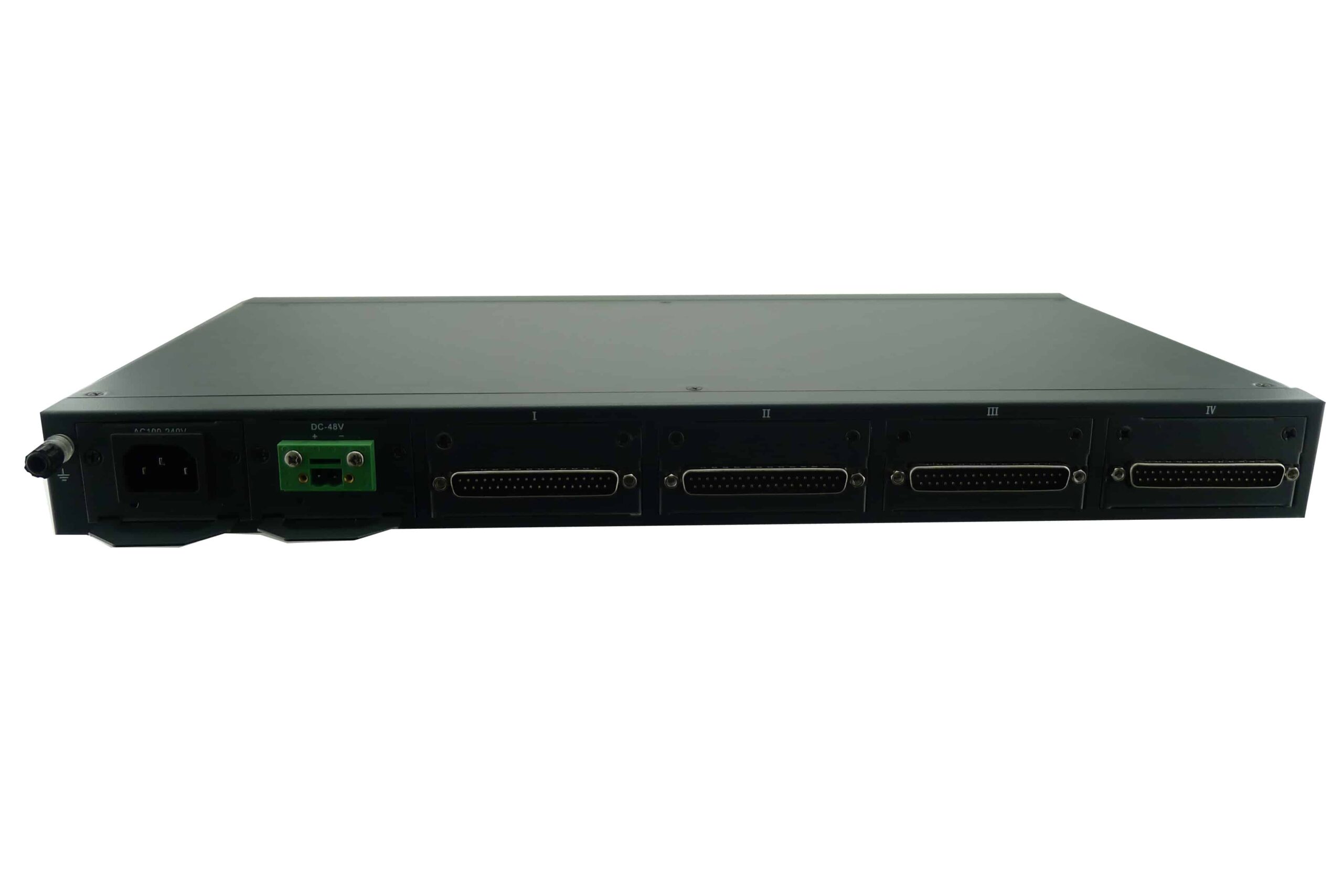

Slots Interface

  • Number of Slots: 4
  • Available Slide-in Modules:
  • AN-FM-600A-2V35-M: 2-port V.35 card
  • AN-FM-600A-2V24-M: 2-port V.24 card
  • AN-FM-600A-4RS232/RS485-M: 4-port RS232/485 card
  • AN-FM-600A-4E1-120-M: 4-port E1 120ohm card
  • AN-FM-600A-4E1-75-M: 4-port E1 75ohm card
  • AN-FM-600A-4FXS-M: 4-port FXS card
  • AN-FM-600A-4FXO-M: 4-port FXO card
  • AN-FM-600A-4EM2/4-M: 4-port EM2-4 card

Management Ports

  • Console Port
    • Interface standard: RS-232
    • Connector: RJ-45 to DB9
    • Data rate: 6kbps”
  • Out-of-Band Ethernet Management
    • Port Interface: 10/100BaseT
    • Connector: RJ-45 “
  • SNMP: SNMP(V1/V2)

Physical Characteristics

  • Housing: Metal
  • Weight: 0 kg (6.6 lb.)
  • Dimensions: 440×260×44.5mm (17.3×10.2×1.75in.)

Environmental Limits

  • Operating Temperature: 0~50℃ (32~122˚F)
  • Ambient Relative Humidity: ≤90% RH (non-condensing)

Power Requirements

  • AC: 100V~260V/50Hz
  • DC: -36V ~ -72V
  • Power Consumption: ≤10W

AN-FM-600-A

4-8-16*E1(optional)+4*10/100 Base-T Multiplexer,4 MST slots,1*Official phone ,1+1 Optical interface,SC/FC/LC 20~120Km,220VAC+ 48VDC power supply,SNMP network management
AN-FM-600A-2V35-M

2-port V.35 card
AN-FM-600A-2V24-M

2-port V.24 card
AN-FM-600A-4RS232/RS485-M

4-port RS232/485 card
AN-FM-600A-4E1-120-M

4-port E1 120ohm card
AN-FM-600A-4E1-75-M

4-port E1 75ohm card
AN-FM-600A-4FXS-M

4-port FXS card
AN-FM-600A-4FXO-M

4-port FXO card
AN-FM-600A-4EM2/4-M

4-port EM2-4 card

Description

This device apply large-scale integrated circuit developed independently as its hardcore and can multiple 16-channel E1 signal, 4-channel 100M Ethernet on dual optical fiber to realize the hybrid transmission. Various Functional Modules: User interface modules (N×64K V.35, FV.35, FXO/FXS, E/M, RS232/RS485, and etc.), order wire module, network management module (RS232, and Ethernet Interface, etc.), and alarm output terminal module, etc. Available.
