Multi-Functional Integrated Service Multiplexer
- Integrates audio, data and video in one system.
- All the interfaces comply with the international standard.
- Various service interface, including: E1, 10/100Base-Tx, V.35, Audio and Video, 64Kbps, V.35(N*64K), RS232/RS485, FXO/FXS, magnet telephone, hot line telephone, E&M etc.
- Flexible configuration and setup, plug and play.
- The bandwidth of data and video can be widened smoothly.
- Unified AM-NM-VIEW network management platform, managing and configuring easily. With perfect supervision and test function, remote end manageable.
- Flexible video configuration, MPEGII and MPEGIV mode can be configured by software.
- As MPEGII mode, transport bandwidth is 1~4 ports 2M channel. One of the channels can be divided into framed and it can be combined with the voice into one 2M channel. The transport rate is adjustable on the basis of N*64K(N=1~31).
- As MPEGIV mode, audio can be transported with voice and data in one 2M channel.
- For every service direction, AN-MFISM-CPE can provide 2 ports Ethernet interface with different priority. It uses the high priority to transport image and uses the low priority for data.
- Max capacity of AN-MFISM-A is 64*2M, max voice capacity 120 channels.
- Powerful cross connection capacity 2048×2048 (64k basis) of AN-MFISM-A. AN-MFISM-A can be configured as full 64×E1 DXC.
- The power supply card and cross connection card support 1+1 redundancy with high reliability. All the cards support hot-swapping.
- Integrates audio, data and video in one system.
- All the interfaces comply with the international standard.
- Various service interface, including: E1, 10/100Base-Tx, V.35, Audio and Video, 64Kbps, V.35(N*64K), RS232/RS485, FXO/FXS, magnet telephone, hot line telephone, E&M etc.
- Flexible configuration and setup, plug and play.
- The bandwidth of data and video can be widened smoothly.
- Unified AM-NM-VIEW network management platform, managing and configuring easily. With perfect supervision and test function, remote end manageable.
- Flexible video configuration, MPEGII and MPEGIV mode can be configured by software.
- As MPEGII mode, transport bandwidth is 1~4 ports 2M channel. One of the channels can be divided into framed and it can be combined with the voice into one 2M channel. The transport rate is adjustable on the basis of N*64K(N=1~31).
- As MPEGIV mode, audio can be transported with voice and data in one 2M channel.
- For every service direction, AN-MFISM-CPE can provide 2 ports Ethernet interface with different priority. It uses the high priority to transport image and uses the low priority for data.
- Max capacity of AN-MFISM-A is 64*2M, max voice capacity 120 channels.
- Powerful cross connection capacity 2048×2048 (64k basis) of AN-MFISM-A. AN-MFISM-A can be configured as full 64×E1 DXC.
- The power supply card and cross connection card support 1+1 redundancy with high reliability. All the cards support hot-swapping.
|
Items |
Description |
|
|
AN-MFISM-A High-end Integrated Service Multiplexer |
19 inch standard rack with 16 physical slots, 12 slots for general service cards |
|
|
Module type |
PWR card |
Support 1+1 dual protection,DC-48V input Ring voltage 75V, 25Hz, provide +5V and -5V for system |
|
MDX card |
Provide 64×E1 cross connection ability Main control and monitoring function With 8×E1 interface (75Ω or 120Ω) |
|
|
E1 card |
With 4×E1 or 8×E1 interface for more E1 applications |
|
|
CHU card |
Provide 10 ports voice channels, support FXO/FXS, magnet phone, hotline phone, E&M, 64Kb data, RS232 data, RS485 data, V35 data etc. |
|
|
Data card |
Support 10/100Base-T module and V35 data module |
|
|
VIDEO card |
With 4×E1 interface, support MPEG-2 or MPEG-4 coding and decoding |
|
|
AN-MFISM-CPE High-end Integrated Service Multiplexer |
1U Compact Design with module |
|
|
Module type |
CHU module |
Support up to 16 voice channels |
|
Data module |
V35 data module 10/100 Base-T module Wideband ETH×E1 module |
|
|
NMS interface |
Network management system interface |
RS232 or RS485 Ethernet (SNMP) |
|
Video |
Video rate |
128K-8M bps |
|
Video output mode |
Fixed rate or variable rate |
|
|
PAL/NTSC |
both supported |
|
|
PAL mode |
720×576, 704×576, 640×576, 480×576, 352×576, 352×288, 176×144 |
|
|
NISC mode |
720×480, 704×480, 640×480, 480×480, 352×240, 352×480, 176×144 |
|
|
Video output mode |
TS/PS |
|
|
Code |
ISO/IEC-14496-2 MPEG-4 SP@L1, L2 and L3 ISO/IEC-13818-2 MPEG-2 MP@ML |
|
|
Audio |
Audio sampling frequency |
8K, 32K, 44.1K, 48KHz |
|
Coding mode |
MPEG1 Audio Layer I/II, G.729, G.711, MP3 |
|
|
Rate |
8K,32K, 64K, 192K, 224K, 384K bps |
|
|
Audio mode |
Stereo, Joint, Dual, Mono |
|
|
Power supply consumption |
AN-MFISM-A |
DC-48V<100W (full loaded) |
|
AN-MFISM-CPE |
DC-48V or AC 220V<20W |
|
|
AN-MPEG-12C |
AC220V<8W |
|
|
Dimension |
AN-MFISM-A |
W×Ｈ×D (mm) 440×310×265 |
|
AN-MFISM-CPE |
W×Ｈ×D (mm) 440×44×209 |
|
|
AN-MPEG-12C |
W×Ｈ×D (mm) 440×44×209 |
|
Description
AD-net provides all types of PCM multiplexers, from high-end to low-end, from standard size to miniaturized, from rack mount to portable. All multiplexers offer variable service interfaces, flexible system configuration, high reliability and cost competitiveness. AN-MFISM-A and CPE multiplexer is a key member of PCM multiplexer family.

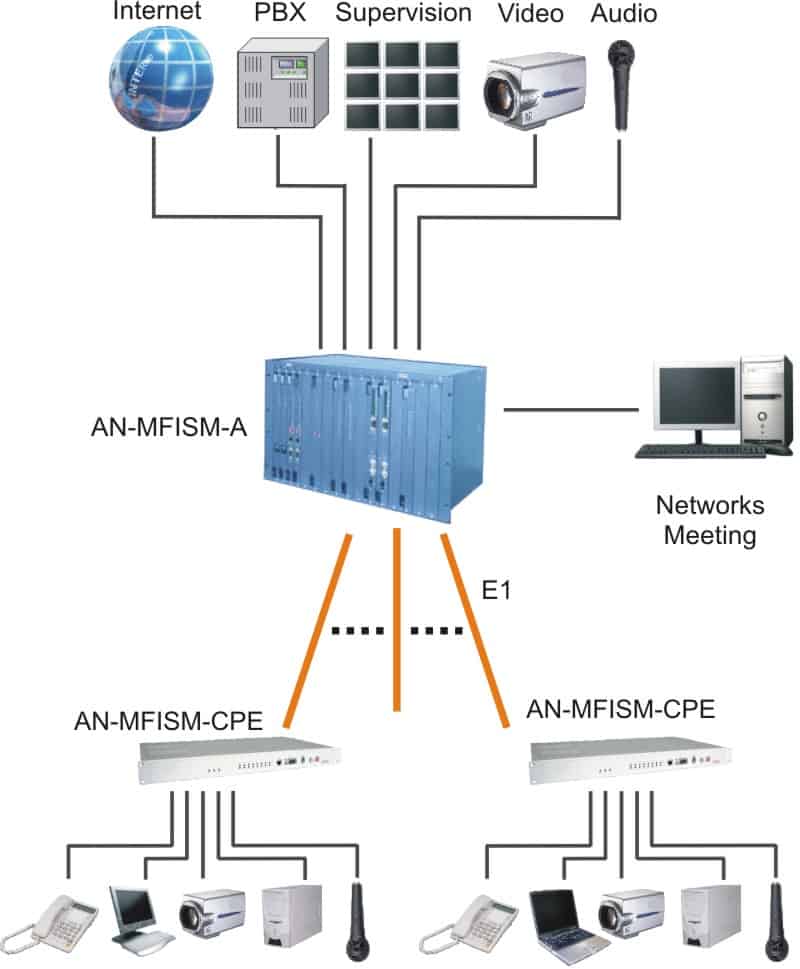

AN-MFISM-A and CPE is a powerful multi-service access platform that combines video, audio and data service together. AN-MFISM-A is an aggregation device that can be inserted up to 16 service cards, which can be E1, MDX, DATA, CHU, VIDEO, PWR card, etc, AN-MFISM-CPE is a CPE device that used by end customers. AN-MPEG-C12 MPEGII/IV Coder/Decoder can work together with AN-MFISM-CPE to provide video service at the end. AN-MPEG-C12 converts analog audio and video signals to DVD-quality like digital stream.
