Multi-services unified platform management system for 125M~4.25G, 10/100, 10/100/1000M & 10G and 40G OEO converters

AN-CH10 is 16-slot multifunctional management system is a Ethernet and SDH transmission equipment with high price/performance ratio, and it can support 10/100M Ethernet fiber media converter, 10/100/1000M Ethernet fiber media converter, 1 fiber + 2 RJ45 Ethernet fiber media converter, 125M~4.25G OEO, and 10G OEO at the same time

  • Network based on GUI, easy operation with graded management mode (common user, super user and administrator)
  • With centralized management and Top tree, several chassis can be managed in the same interface at the same time; with grouping management any converter can be conveniently manipulated among many converters
    Master/slave structure，providing management module (master, slave), maximum 4 chassis which can hold 128 fiber ports and RJ45 ports cascaded can be managed
  • Supporting protocols like CONSOLE, WEB, Telnet and SNMP
  • Console management: Users can set up IP and users’ authority, display/control local and remote media converters with WINDOWS
  • WEB management: Users can set up IP and users’ authority, display/control local and remote media converters with WEB on browser, such as IE
  • Standard SNMP protocol: It offers MIB files, convenient to be merged to the third party’s SNMP; users’ can set up 4 TRAP address, choose TRAP irritation factor according to users’ needs, such as Link to Down for TX, and Link to Down for FX.
  • Special management software: Control center operates backstage with special management software, adopts information and keeps in management PC hard disk as database. It can set up users’ authority and display/control local and remote media converter
  • Supporting network device auto-sensing and adding
  • Complete system information can be set up and displayed, including the name of the chassis, terrain information, related information of IP, constant operating time and the versions of the hardware and soft ware
  • Real time display of voltage and temperature on the cards of the media converters, temperature of chassis and report fault in time
  • Supporting SFP/XFP, CWDM SFP/XFP and DWDM SFP/XFP, and it can show the SFP/XFP information and digital diagnosis function
  • Remote power off alarming, precisely distinguish remote failure
  • Supporting LFP, quickly locates the failure
  • Equipment restart, system or module restart by management software, set-up information on each module will be stored spontaneously when power off
  • Reset to factory set up or dip switch status are optional
  • Each port at local or remote devices can be set up or tracked, including the connecting status, connecting speed, half/full duplex, port locked and LFP etc.
  • Supporting Loopback and PRBS, precisely locating the failure, convenient for link test
  • Supporting management within bandwidth, managing remote equipments conveniently
  • Powerful historical alarming and operating log information tracking and management function
  • Supporting FTP online upgrading

Really powerfull management:

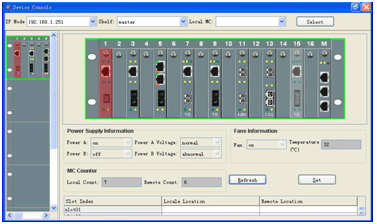

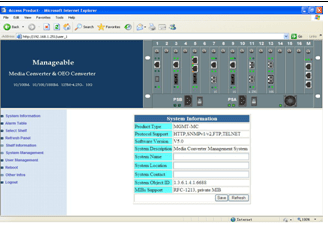

Web Management                                                          SNMP management

  • Power input: 100-265VAC 50~60Hz or DC 36 – 72 V
  • Power consumption (full mode): 100W
  • Power consumption (empty mode): 20W
  • Operation temperature: 0~60 C
  • Storage temperature: -10~70 C
  • Dimension: 315mm(L) X 425mm(W) X 92mm(H)

In this quick demo we show several models from this platform – you can see 40G QSFP based standalone converters on chassis, also XFP to XFP  3R converters / repeaters at the right side. It’s really kind of build it yourself universal platform in terms of datarates, wavelengths, etc.

In this video we are testing a pair of our 10G SFP+ converters with and without a chassis in center. You also can order them with or without chassis in standalone version.

AN-CH10

16slots rack with dual AC power supply 220V AC/48V DC 19”2U,module type 10/100/1000M,10G manage integrated
AN-CH10-CC

Management Cascading Card for AN-CH10 chassis
AN-CH10-MC

SNMP Management card for AN-CH10 chassis
AN-M10-100-1-C

10/100M card managed Double fiber Multi mode (850/1310nm) SC(2km) for AN-CH10 chassis
AN-M10-100SM-20-C

10/100M card managed Double fiber SM 1310nm SC (20KM) for AN-CH10 chassis
AN-M10-100SM-40-C

10/100M card managed Double fiber SM 1310nm SC (40KM) for AN-CH10 chassis
AN-M10-130SM-20-C

10/100M card managed single fiber SM 1310/1550nm WDM SC (20km) for AN-CH10 chassis
AN-M10-130SM-40-C

10/100M card managed single fiber SM 1310/1550nm WDM SC(40km) for AN-CH10 chassis
AN-M10-2TX100-1-C

10/100M 1FX(SC)+2RJ45 card managed Double fiber Multi mode (850/1310nm) SC(2km) for AN-CH10 chassis
AN-M10-2TX100SM-20-C

10/100M 1FX(SC)+2RJ45 card managed Double fiber SM 1310nm SC (20KM) for AN-CH10
AN-M10-2TX130-20-C

10/100M 1FX(SC)+2RJ45 card managed single fiber SM 1310/1550nm WDM SC (20km)
AN-M10-4.25-C-C

125M~4.25G Card managed OEO(Optical-Electrical-Optical Converter (3R Repeater)) SFP-SFP(without module) for AN-CH10
AN-M10-10G-XX-C

10G Card managed OEO(Optical-Electrical-Optical Converter (1R Repeater)) XFP-XFP port(without Module) for AN-CH10
AN-M10G-MM-AS-C

10/100/1000M card managed Double fiber Multi mode 850nm SC 550m for 10G chassis
AN-M10G-SM-AS-20-C

10/100/1000M card managed Double fiber Single mode 1310nm SC 20 Km for 10G chassis
AN-M10G130-AS-20-C

10/100/1000M card managed single fiber SM 1310/1550nm WDM SC (20km) for AN-CH10 chassis
AN-M10-SMC-AS-C

10/100/1000M standalone managed with SFP port (without SFP module)

Description

AN-CH10 16-slot multifunctional management system is a Ethernet and SDH transmission equipment with high price/performance ratio, and it can support 10/100M Ethernet fiber media converter, 10/100/1000M Ethernet fiber media converter, 1 fiber + 2 RJ45 Ethernet fiber media converter, 125M~4.25G oeo, and 10G oeo at the same time. It can support variety of data rate, SM/MM, single fiber/double fiber, SFP, SFP+, and XFP etc. With simple set-up and complete function management interface, it supports protocols like SNMP, WEB, CONSOLE and TELNET, and realizes the integrated management to all chassis
