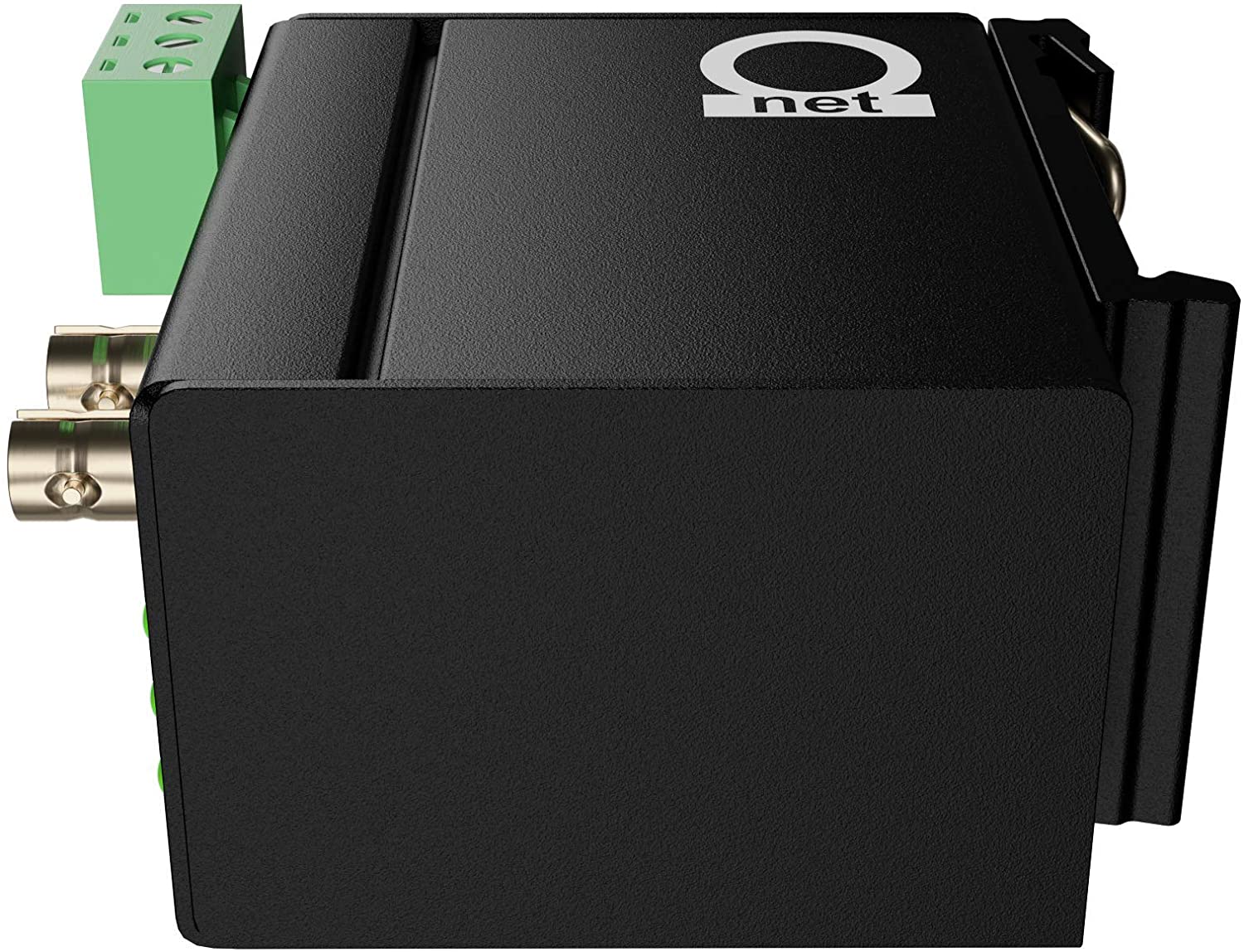

MultiMode ST 850nm Mini Size DIN rail Mount Industrial Type-Universal Gigabit 1000Base-FX & Fast Ethernet 100Base-FX – Fiber Optic Media Converter – UTP port Autosensing 10/100/1000 Mbps 550m (0.34mi)
This AD-net product is industrial-grade 1 port 10/100/1000M Ethernet to 1000Base-X fiber conversion, mainly used for long-distance 550 meter transmission of optical fiber networks. This product provides 1 Gigabit optical port; 1 Gigabit Ethernet electrical port. With complete alarm function, the whole machine is stable and reliable, with low power consumption, high integration and small size.
- Industrial Ethernet series, designed for harsh environments；
- The device provides 1 Gigabit Ethernet electrical port, 1 Gigabit optical port, shared Gigabit bandwidth, transmission bandwidth is 1000M line speed, Gigabit optical port supports Multi mode dual fiber 550 meter distance transmission；
- Electrical interface (RJ45 interface) supports 10/100/1000M adaptive, full/half duplex mode, MDI / MDI-X automatic detection；
- Support LFP function, can transmit the alarm of the optical port to the electrical port, and can be set to open with the DIP switch；
- Support the configuration of optical ports 1000BASE-FX and 100BASE-FX, which can be set by DIP switch；
- Support to display the LINK status of the remote end optical port at the local end and display it with LED light；
- With functions such as broadcast storm protection, balanced traffic, isolation conflict, error detection and crash reset, it is suitable for high-flow data applications such as video transmission；
- Support the transmission of VLAN extra long data packets, which can be matched with the switch products supporting IEEE802.1Q protocol, MTU≥10240 ；
- Support wide range AC and DC input; support internal isolation；
- The power supply supports overload protection, anti-reverse protection；
- Comply with industrial level 4 electromagnetic compatibility requirements；
- Super lightning protection function: lightning protection, anti-induction high voltage, anti-surge, etc.；
- Fan-less heat dissipation, reducing repair time；
- IP40 enclosure protection level, able to withstand the test of harsh environments；

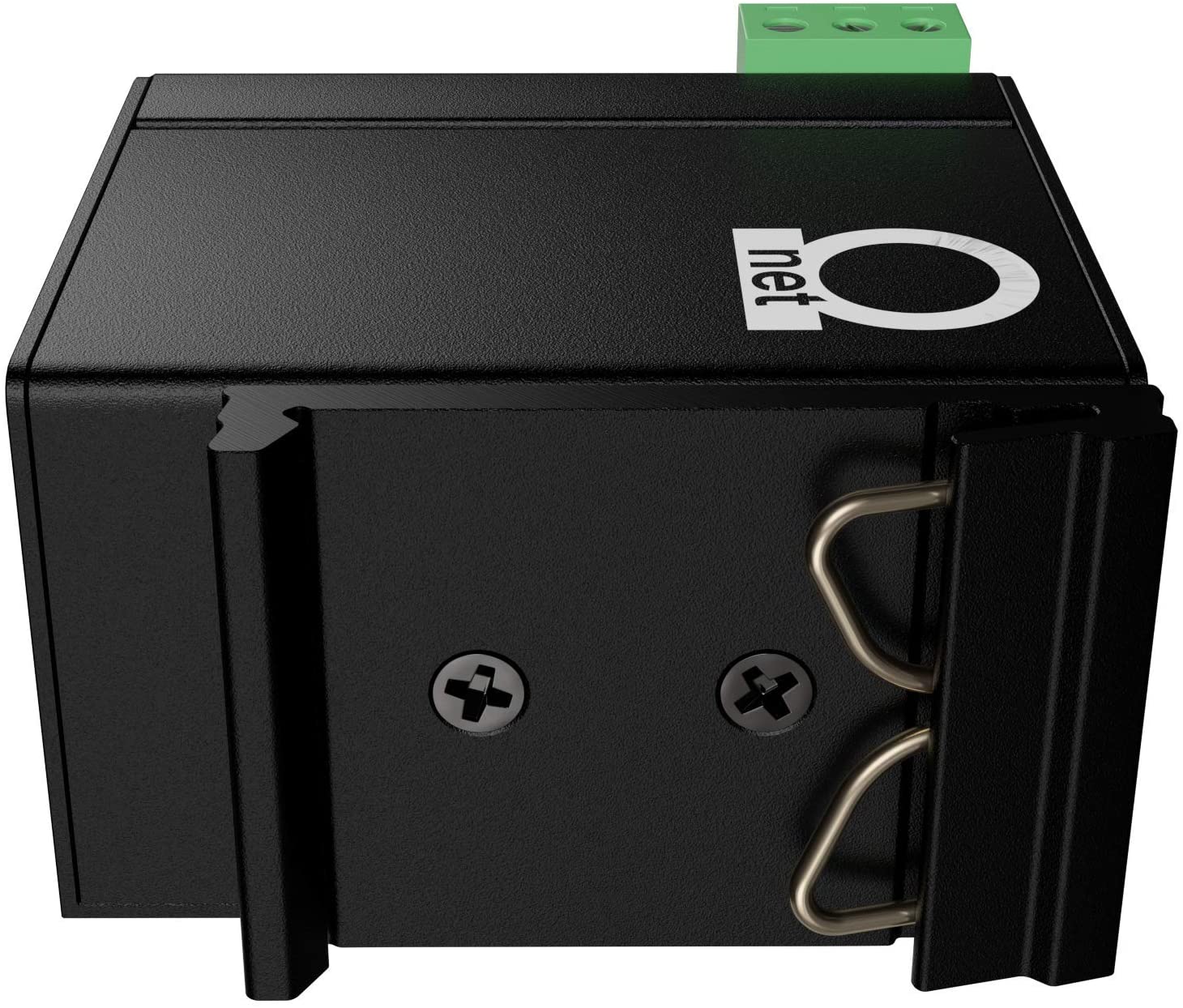

- Rail or wall mounting；
- Wide temperature type: working temperature -40 ºC ~ + 85 ºC；
Technical indexes
|
Parameter |
Specifications |
|
Access mode |
10/100/1000Mbps Gigabit Ethernet |
|
Standard |
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX Gigabit Ethernet, IEEE802.1q VLAN |
|
Transmission distance |
Multi-mode dual-fiber: 550meter (Wavelength: 850nm ) Category-5 twisted pair: 100m |
|
Port |
One RJ45 connector: connected to UTP category-5 twisted pair One fiber port: Multi-mode ST (fiber size: 50,62.5/125µm) |
|
Typical transmit power |
850nm: -18dBm |
|
Receiver sensitivity |
-28dBm ~ -40dBm |
|
MTBF |
100,000 hours |
|
Power Supply |
AC110-260V； DC-48V |
|
Power consumption |
5W |
|
Operating temperature |
-40 ~ +85ºC |
|
Operating humidity |
0%~90% |
|
Maintaining temperature |
-40 ~ +85ºC |
|
Maintaining humidity |
5% ~ 90% non-condensing |
|
Dimensions |
60* 50* 35 mm (L*W*H) |
LED indicators
|
Name |
Status |
Explanation |
|
PWR |
On |
Power on |
|
Off |
Power off |
|
|
LSYN |
On/Flash |
The local optical port is connected / receives and transmits data |
|
Off |
The local optical port not connected |
|
|
RSYN |
On |
The remote optical port is connected |
|
Off |
The remote optical port not connected (important: In case you pair this converter with other type of optical device, it will sync and work, but this LED will not come up, however, connection will be still up) |
|
|
LNK (RJ45) |
On/Flash |
Ethernet port connected / received and transmit data |
|
Off |
Ethernet port is not connected |
|
|
SPD (RJ45) |
On |
Ethernet port 1000M |
|
Off |
Ethernet port 100M |
Interface
RJ-45 interface:
The transmission media adopts CAT5 twisted-pair with typical length of 100 meter. It features the function of automatically identifying the through line and cross wire
Fiber interface:
ST fiber interface is of duplex mode type, including two interfaces, namely TX and RX. When the two sets of optical transceiver are interfaced or connected to switch with fiber interface, the fiber is in cross connection, namely “TX-RX”, “RX-TX” (direct butting for single optical fiber). If you connect fibers, and LSYN LED still does not come up, please try reverse RX vs TX fibers in places, but only at one side of the converters.
Connection
The network device (work station, hub or switch) with RJ-45 interface is connected to RJ-45 jack of optical transceiver through twisted-pair. And the multi/single mode fiber is connected to ST fiber interface of the optical transceiver. Then switch on. The corresponding LED is on for correct connection. (See the table below for the LED indicator lamp)

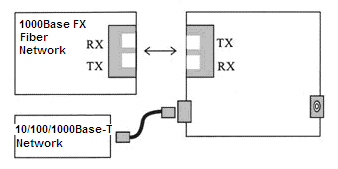

Figure 1： Basic Network Connection

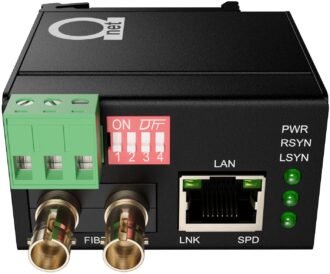

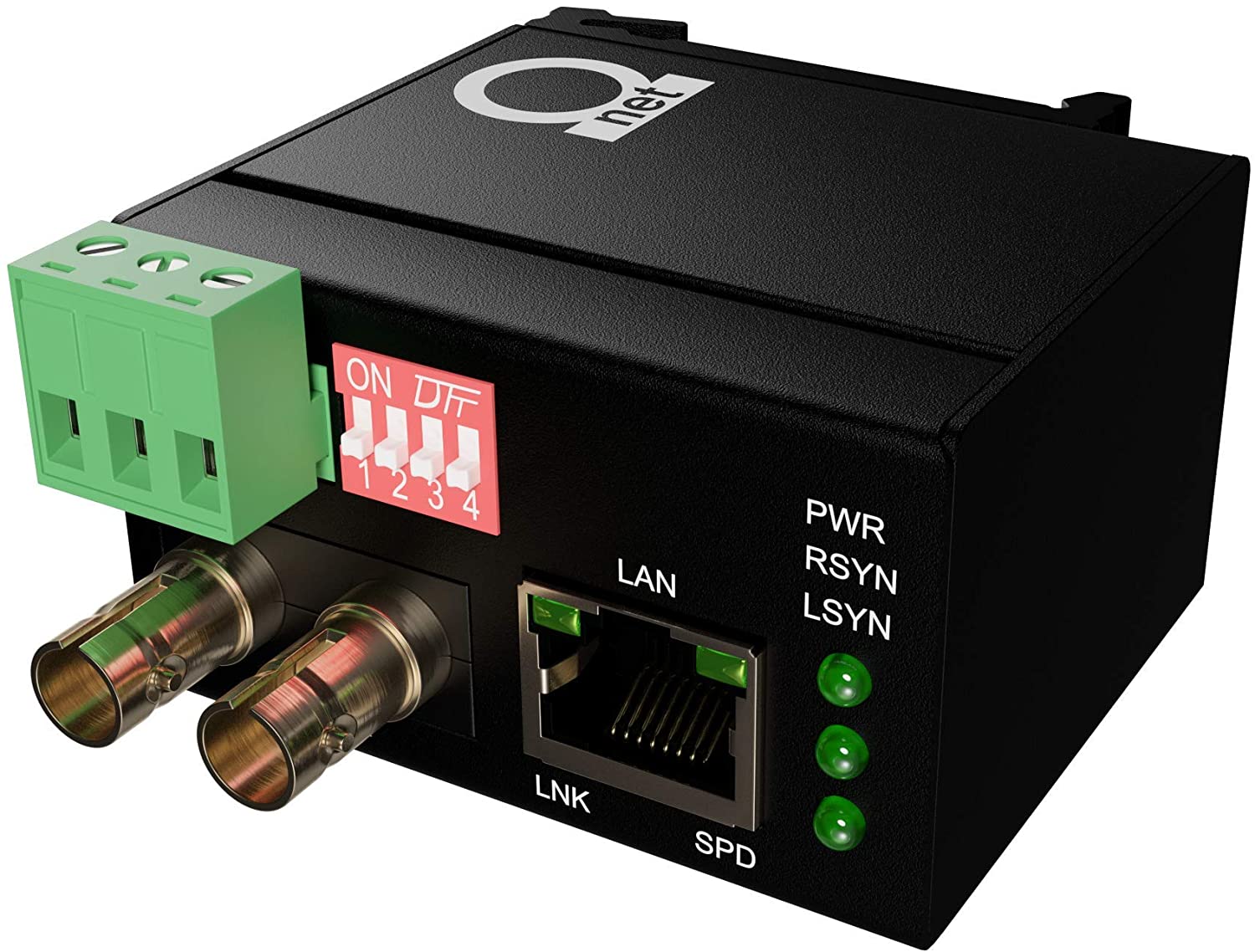

Figure 2： Front panel
Select DIP Switch :
There is a 4-position DIP switch on the front panel of the device, support LFP function, and the configuration of optical ports 1000BASE-X and 100BASE-FX.
Figure 3：DIP switch
|
1 |
ON |
LFP-ON |
|
OFF |
LFP-OFF |
|
|
2 |
ON |
Fiber port 100BASE-FX |
|
OFF |
1000BASE-FX |
|
|
3 |
ON |
Enable Fiber Port is 1000Base-FX full/half auto – negotiation |
|
OFF |
1000Base-FX full |
|
|
4 |
Reserved |
|
| AN-UMG-MM-AS-850-ST-mini-I | Mini Type Industrial 850nm IP40 rated multimode media converter with configurable 100FX/1000FX fiber port and autosensing 10/100/1000 UTP port, optional power supply in set, DC 9 - 55V power input |
Description
This AD-net product is industrial-grade 1 port 10/100/1000M Ethernet to 1000Base-X fiber conversion, mainly used for long-distance 550 meter transmission of optical fiber networks. This product provides 1 Gigabit optical port; 1 Gigabit Ethernet electrical port. With complete alarm function, the whole machine is stable and reliable, with low power consumption, high integration and small size.
