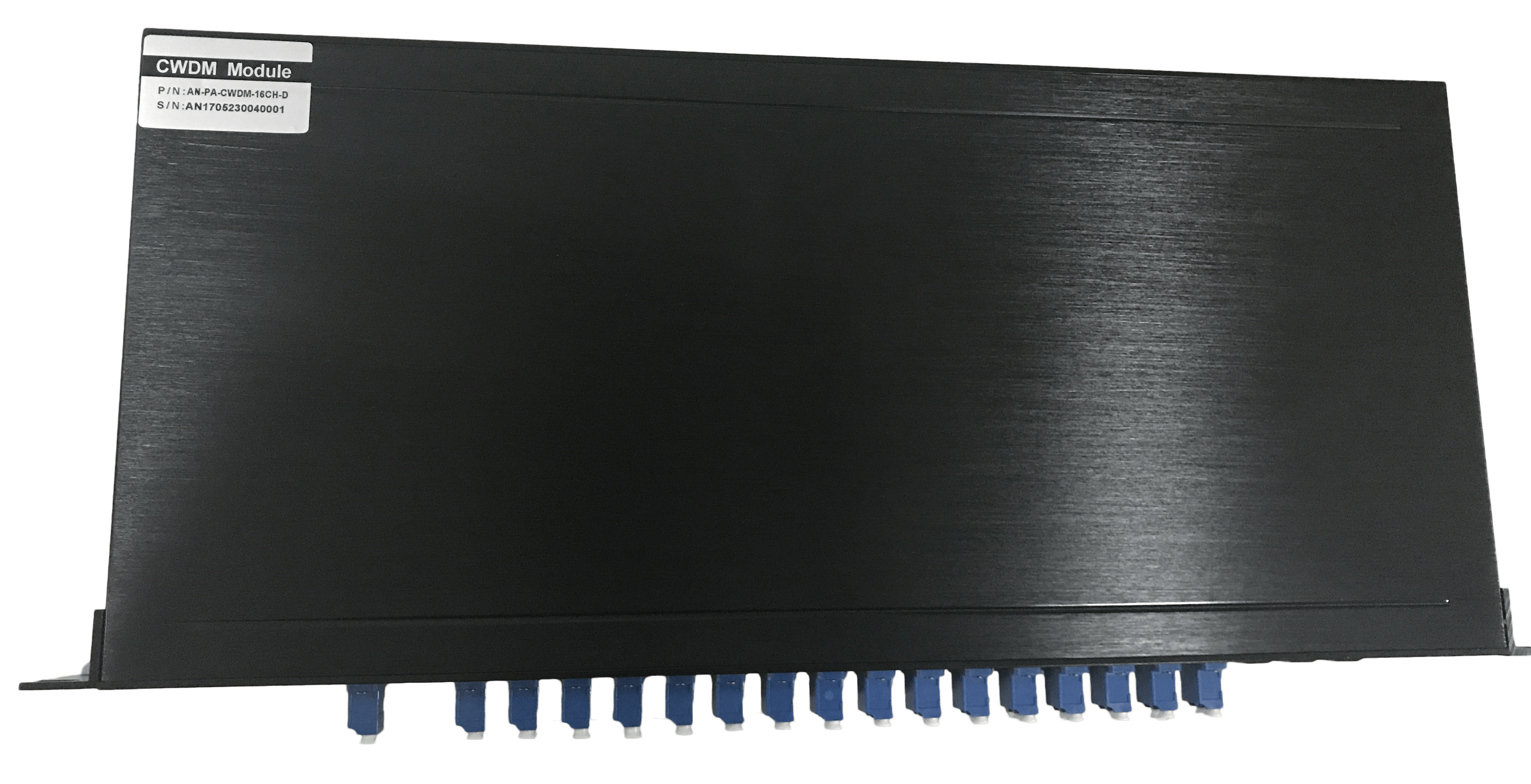

Passive 4 – 8 – 16 channel Passive CWDM multiplexer, 19′ rack mount

AN-PA-CWDM passive 4, 8 and 16 channel CWDM multiplexer series dramatically decreases fiber laying and renting costs by combining up to 16 CWDM wavelenghts and sending them over same fiber pair.

  • And independent of fiber parameters, structural stability
  • Relatively flat passband signal
  • Low insertion loss
  • High Isolation
  • High stability and high reliability
  • Good temperature characteristics
  • Low polarization dependent loss

Parameters（CWDM）

1ch

2ch

4ch

8ch

16ch

Center wavelength (nm)

1270~1610

Center wavelength Accuracy (nm)

±0.5

Channel Spacing (nm)

20

Channel Passband (@-0.5dB bandwidth nm)

±6.5

Insertion Loss dB)

≤0.8

≤1.0

≤1.6

≤2.5

≤4.5

Channel Uniformity (dB)

N/A

≤0.4

≤0.6

≤1.0

≤1.5

Channel  Ripple (dB)

≤0.3

Isolation (dB)

Adjacent

≥30

Non-adjacent

≥45

Inertion Loss Temperature Sensitivity (dB/℃)

<0.005

Wavelength Temperature Shifting (nm/℃)

<0.002

Polarization Dependent Loss (dB)

<0.1

Polarization Mode Dispersion

<0.1

Directivity (dB)

≥50

Return Loss (dB)

≥45

Maximum Power Handling (mW)

300

Opterating Temperature (℃)

-20~+85

Storage Temperature (℃)

-40~+85

Package dimension (mm)

440（W）× 44（H）×340（D）

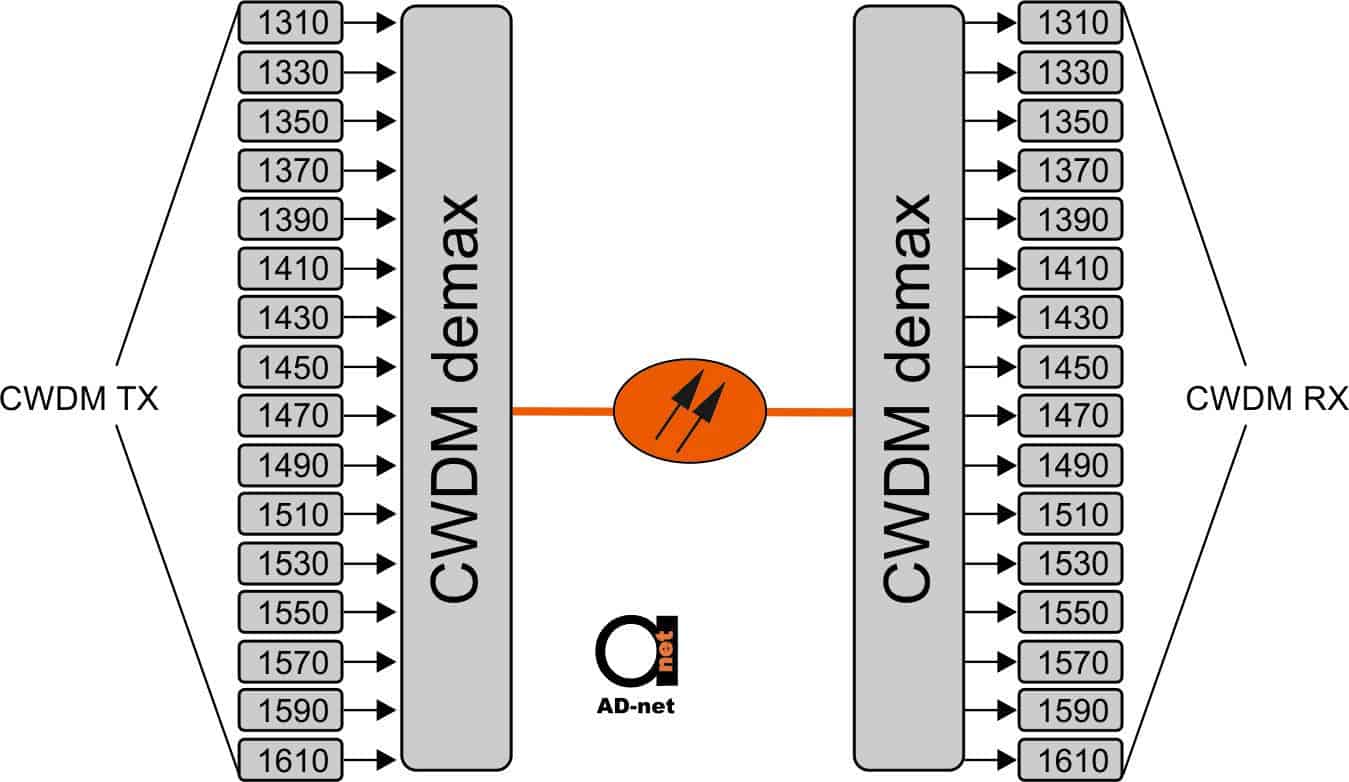

Now, here let us show you interesting scheme, how we can multiplex 4 or more 1310 nm based Gigabit Ethernet channels, over same fiber pair using these CWDM multiplexers. As you can see in video, first we use our Gigabit Media Converter, and then by means of SFP-SFP fiber converter, we convert 1310 nm to CWDM 1490 nm wavelength, which then goes injected further in CWDM multiplexer. In above example it’s 4 channel CWDM mux, but ordering options are 8 or 16 channels.

AN-PA-CWDM-4CH

19" rack, 4 channel passive CDWM mux/demux
AN-PA-CWDM-8CH

19" rack, 8 channel passive CDWM mux/demux
AN-PA-CWDM-16CH

19" rack, 16 channel passive CDWM mux/demux

Description

AN-PA-CWDM is the use of several layers of different dielectric thin films are combined to form an interference filter having a specific wavelength selection characteristics, and can achieve separation of different wavelengths or in combination



AN-PA-CWDM the product uses 1U rack design, can be installed in a standard 19-inch rack can support 20nm apart between 1270nm ~ 1610nm CWDM wavelength multiplexing and demultiplexing , and have upgraded features.
