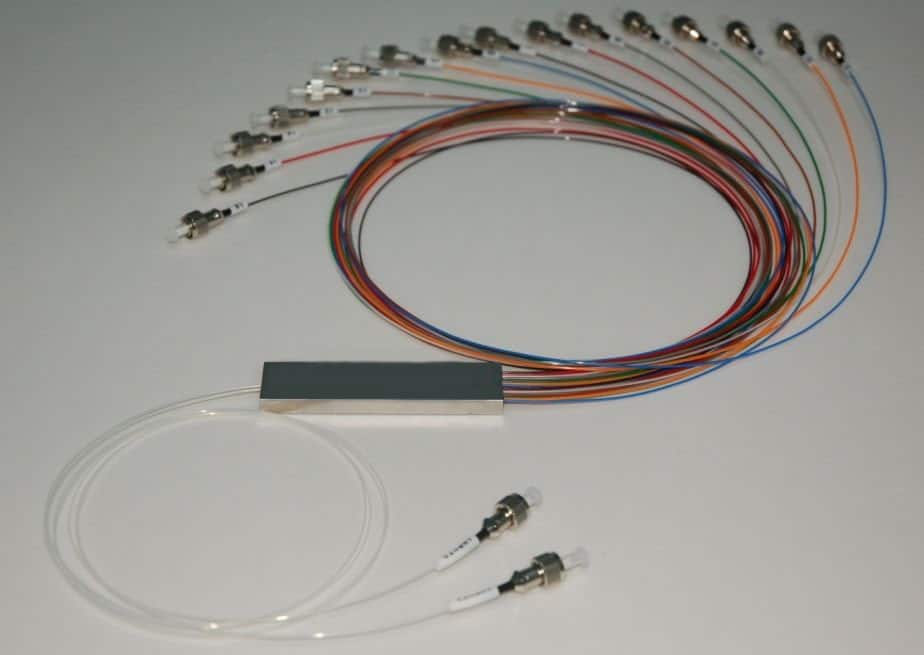

PLC Splitters – Planar Lightwave Circuit Splitter for FTTH & GEPON applications

AD-NET provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Low Insertion loss
Low PDL
Compact Design
Good channel-to-channel uniformity
Wide Operating Wavelength:
From 1260nm to 1650nm
Wide Operating Temperature:
From -40℃ to 85℃
High Reliability and Stability
Telcordia GR-1209-CORE-2001 compliant
Telcordia GR-1221-CORE-1999 compliant
RoHS compliant

Table 1 – 1×N PLC Splitter Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260～1650
Fiber Type	G657A or customer specified
Insertion Loss (dB)（P/S Grade）	3.8/4.0	7.1/7.3	10.2/10.5	13.5/13.7	16.5/16.9	20.5/21.0
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) （P/S Grade）	55/50	55/50	55/50	55/50	55/50	55/50
Polarization Dependent Loss(dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40～85 )(dB)℃	0.4	0.4	0.4	0.5	0.5	0.5
Operating Temperature ()℃	-40～85
Storage Temperature ()℃	-40～85

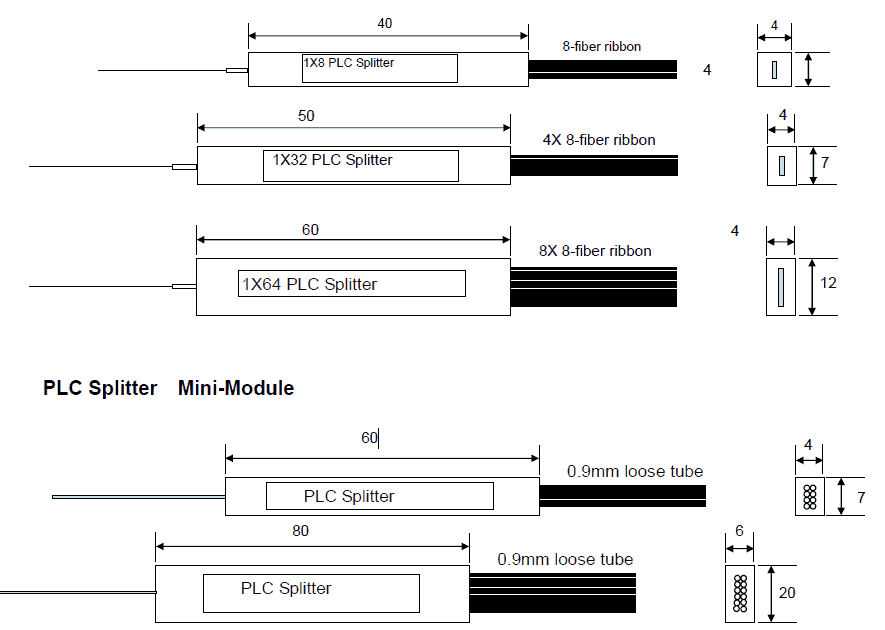

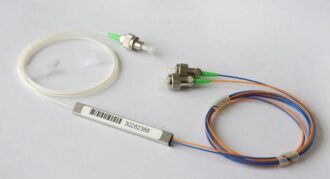

Device Dimension (mm) (L×W×H)	40×4×4	40×4×4	40×4×4	50×4×4	50×7×4	60×12×4

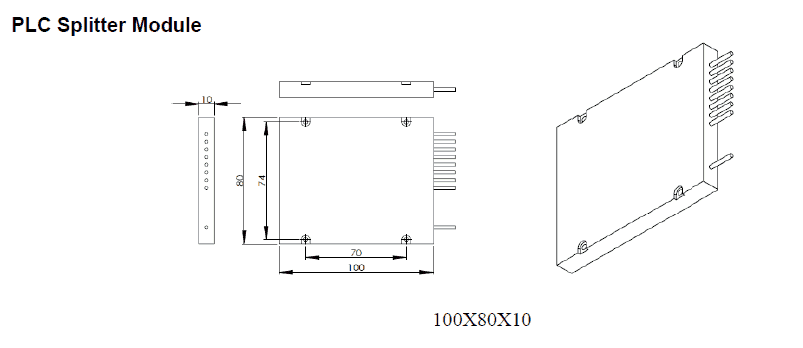

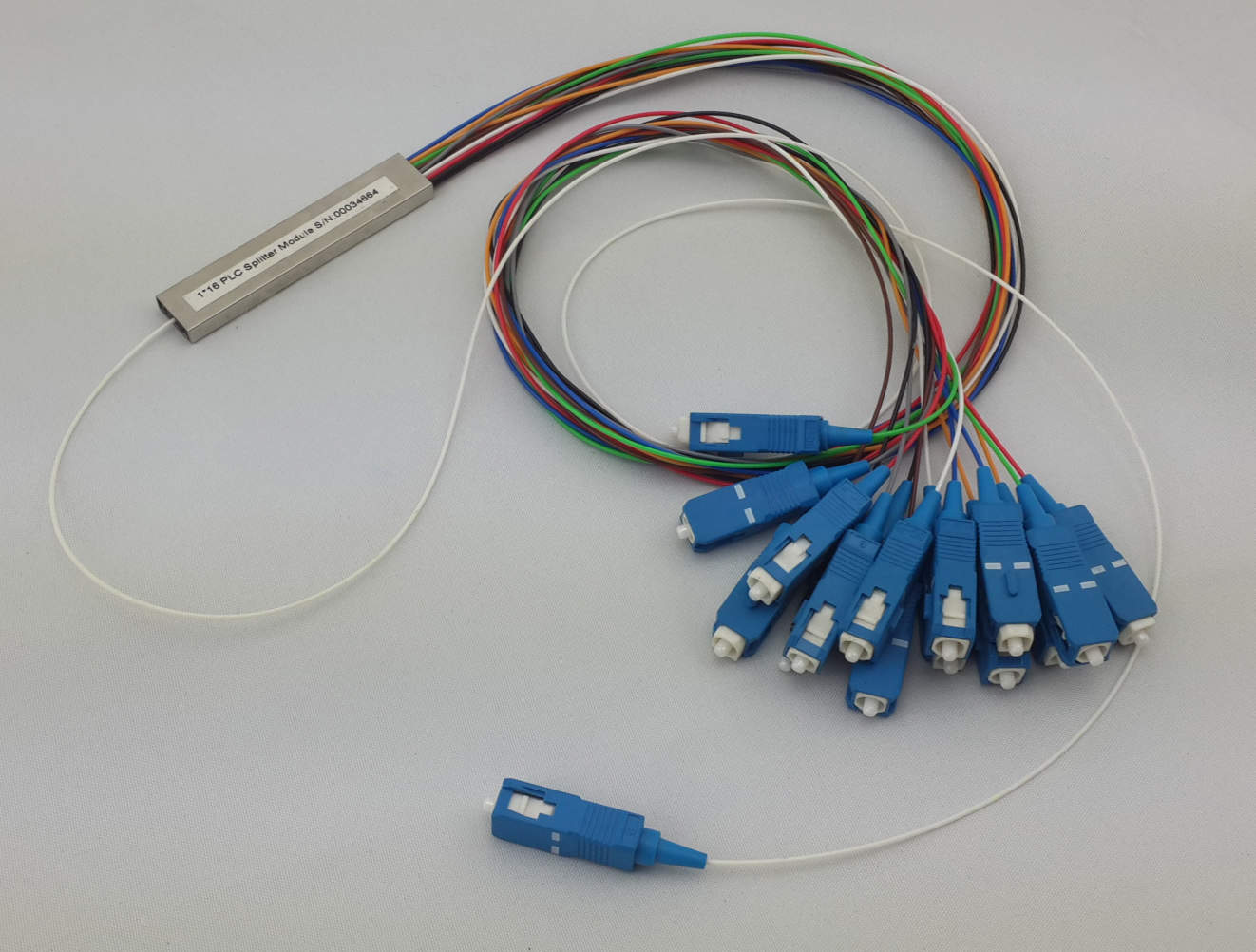

Module Dimension (mm) (L×W×H)	100×80×10	100×80×10	100×80×10	120×80×18	140×115×18	140×115×18
Mini-Module Dimension (mm) (L×W×H)	50×7×4	50×7×4	60×7×4	60×12×4	80×20×6	N/A

AN-PLC-1 (2):N- [C] - [L] - [P] - [K]	PLC splitter, 1:N = [Split ratio], [L] = 1.0 - 1.6 m, [P] = Packing type, [C] = Connector type (or no connector)
N = 1 or 2 : to up to 64	N stands for split ratio. You can order from 1:2 to 1:64, or also 2:2, means 1:N, or 2:N is possible where N < 64.
L = 1.0 - 1.6 m	Pigtail (Cables) lenght in meters
C = Cable type	Cable type, can be any choice of 0.9, 2.0, or 3.0 mm. Therefore choices for C = 09, 2, or 3
P - Packing type	Steel Tube or ABS box, P = S stands for Steel Tube and P = A for ABS box.
K - connector type	Possible choices: K = N (no connector), K = SU (SC UPC), K = SA (SC APC). Others on special request, please contact us for all choices.
Examples:
AN-PLC-1:8-9-1-S-N	PLC splitter, 1:8 type, 1m 0.9 mm fiber pigtails, no connectors, Steel Tube packing, 1260-1650nm
AN-PLC-1:32-3-1-A-SA	PLC splitter, 1:32 tupe, 1m 3.0 mm fiber cable with SC/APC connectors, ABS Box packing, 1260-1650nm

Description

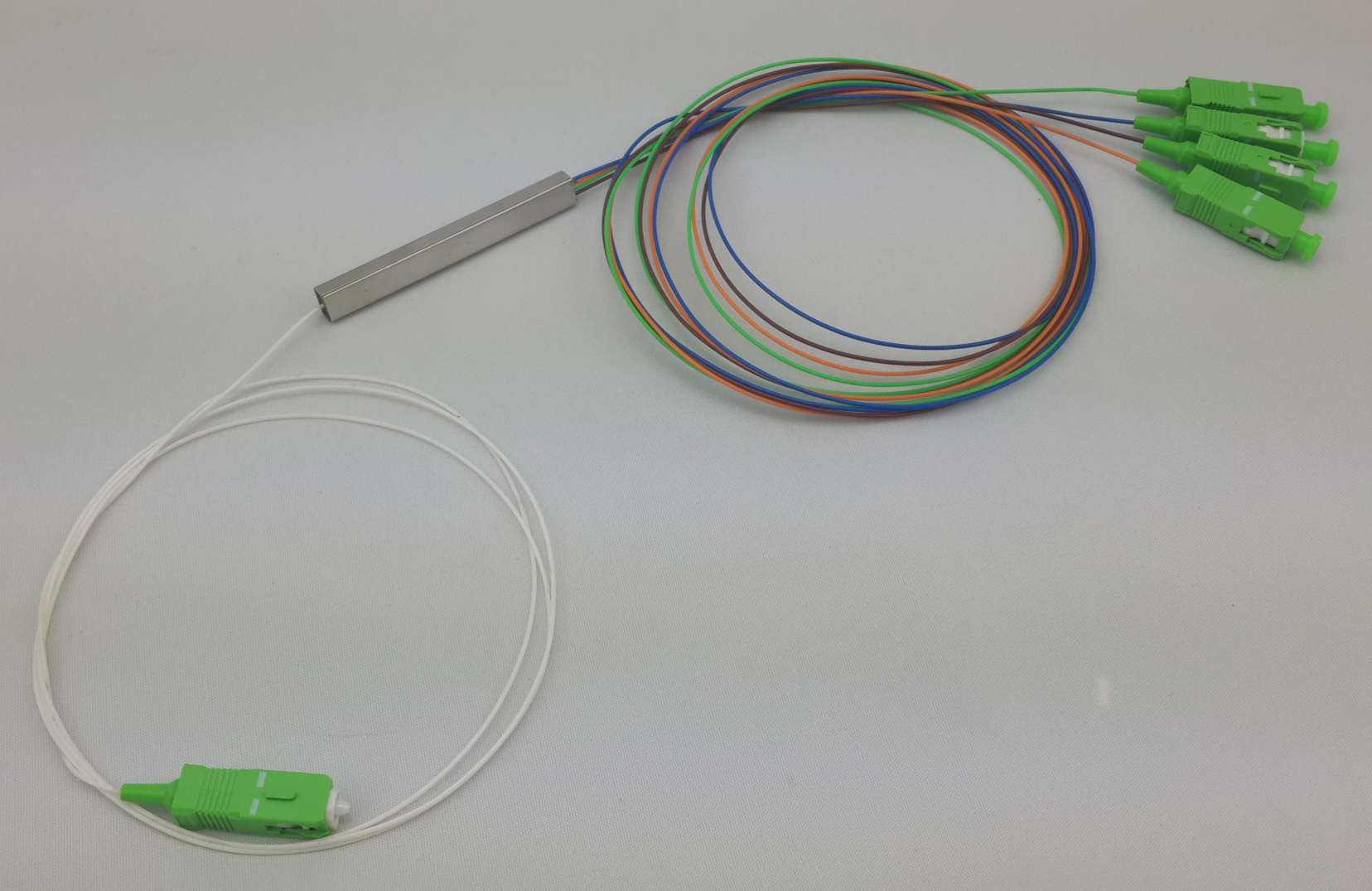

Planar lightwave circuit (PLC splitter) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. AD-NET provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements. PLC splitter is high quality passive device.It is especially for passive internet (EPON, BPON,GPON). And different package can follow cleint’s different inquiry.

You can order such versions as 1:2, 1:3, 1:4, 1:8, 1:16 or 1:32 or 1:24 or 1:64 – really, it’s 1:N, where N = can be from 1… 64!

Applications

FTTX Systems
PON Networks
CATV Links
Optical Signal Distribution

FTTx access+

Fiber Modules+

Media Converters+

Fiber Optical Multiplexers+

Video Audio Transmission Equipment+

Interface Converters+

Passive Optical Equipment+

SDH/MSPP Systems+

Switches+

Industrial Communication Products+
