PoE Injector

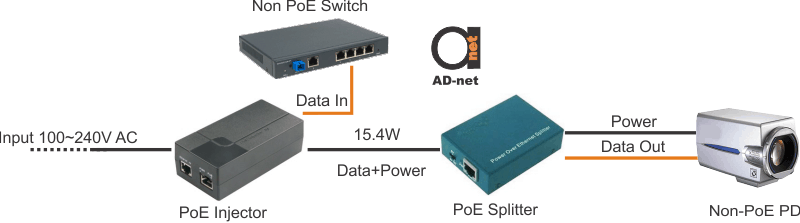

Low cost to realize power over Ethernet , no need to change existing network, POE injectors can easily realize power over Ethernet so that saving the purchasing of POE switch and power cable , which brings down the cost of network devices for the users .
- 100M Single Port PoE Injector – IEEE 802.3af
- 2x 10/100 Mbps RJ45 ports
- Supply power to millions HD webcam through Cat5 Ethernet cable
- Support power supply through spare line pairs4/5 (+), 7/8 (-) or data line pairs1/2(+), 3/6(-)
- Compatible with IEEE802.3af standard
- Single port power: 15.4W, total power: 16W
|
Connector Type |
10/100M copper cable RJ45 PoE port, 1x AC input port |
|
Network Medium |
100BASE-TX: 5Cat and more UTP (≤100 meters) |
|
LED Display |
PoE working status |
|
Power Input |
AC input voltage: 110~220V |
|
PoE Standard |
IEEE 802.3af |
|
Power Supply Type |
mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized) |
|
PoE Port |
Single port support PoE |
|
Product Size |
LxWxH: 118x60x38(mm) |
|
Working Environment |
Operating temperature: 0 to 55° C; Storage temperature: -20 to 75°C |
|
Warranty |
3 Year Warranty |
Description
Low cost to realize power over Ethernet , no need to change existing network, POE injectors can easily realize power over Ethernet so that saving the purchasing of POE switch and power cable , which brings down the cost of network devices for the users.
