Poe Splitter

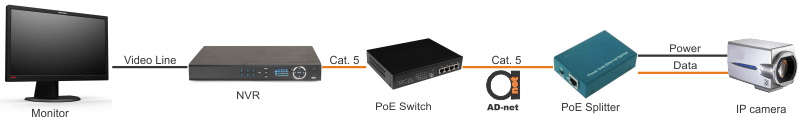

For the cost saving and power management purpose, this 10/100M PoE Splitter is the ideal IEEE 802.3at Power over Ethernet device that splits the 48V DC over the Ethernet cable into 5V/12V DC power output. When working with the IEEE 802.3at power source equipment (PSE), it can free the device deployment from restrictions of power outlet.

Complies with IEEE 802.3at Power over Ethernet, IEEE 802.3/802.3u 10/100Base-TX Ethernet standard
Splits the 48V DC power over RJ-45 Ethernet cable into different DC output
LED indicators for power input indication
Data and power transmission distance up to 100 meters
Adjustable two different output voltage options (5V/2A, 12V/2A) to fit various devices
Auto-Detect of IEEE 802.3af PoE equipment

Technical parameter list
Connector Type	Input: PoE port, Output: DC12/5V Power, Rj45
Network Medium	100Base-TX (≤100, Cat 5 cable)
Network Protocol	IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI
Performance	5V/12VDC Adjustable
PoE Port	Power over Ethernet (25.5W)
PoE Port Power	Output Power: 25.5Watts.
PoE Standard	IEEE802.3at (25.5Watts Output)
PoE Power Supply Type	Support Both Mid-span and End-Span
PoE Cable Core	4/5+,7/8- and 1/2+, 3/6-
LED Display	Power, Network, PoE working status
Product Size	80x76x25mm, 0.16Kg
Working Environment	Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C
Warranty	3 Year Warranty
