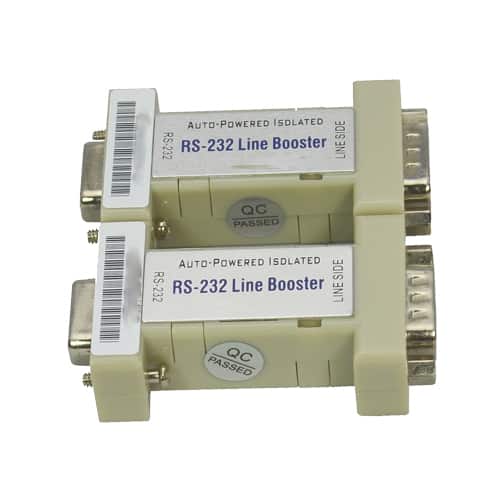

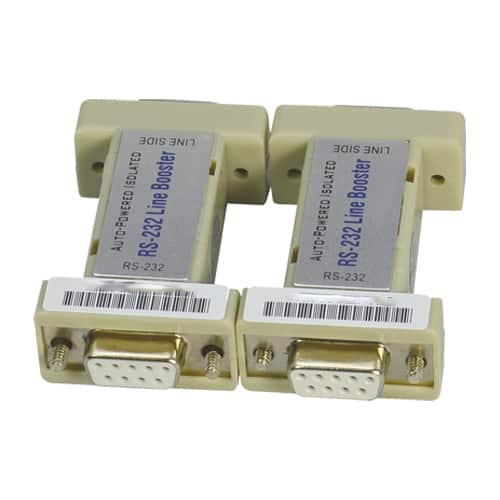

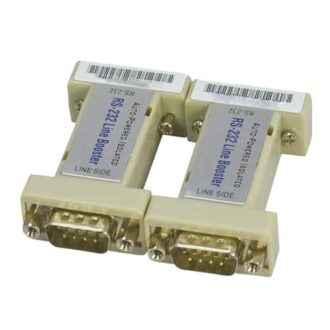

RS-232 extender: Extends the communication distance of serial port RS-232 to 12 kilometers

AN-EXT-RS-232 extends full-duplex transmission of asynchronous data over four wires (two twisted pairs). The data transmission between each line driver utilizes differential signaling that is immune to electrical interference and therefore makes it ideal for use in light manufacturing and industrial office areas. It can run up to speeds of 57.6 kbps

Product features:
◆ Prolong the communication distance of serial port RS-232 to 12 kilometers
◆ Balance current transmission, powerful anti-jamming capacity
◆ Adopt photoelectric isolation to prevent devices damaged by ground loop and surge
◆ Isolation voltage up to 3500V
◆ Support RS-232asynchronous communication standard
◆ Directly insert RS-232interface, convenient operation
◆ Need no external power supply
◆ Use special communication line and common lead.
◆ Transmission speed up to 57.6kbps
◆ Full duplex or simplex mode, compact size
Performance parameters:
◆ Interface: one port conforms to EIA RS-232 and CCITT V.24
    Asynchronous protocol, the other uses special 4-core cooper wire
◆ Connector: one side of RS-232 uses DB9 hole connector
     The circuit side uses DB9 pin connector
◆ Transmission mode: asynchronous, full duplex or simplex
◆ Distance: 24AWG lead for 12KM @600BPS
          24AWG lead for 1KM @38.4KBPS
          24AWG lead for 100M @57.6KBPS
◆ Isolation voltage :3500@1S or 7500V impulse
◆ Speed: maximum asynchronous 57.6KBPS
◆ Power supply: serial port self power supply
◆ Size: 6.8×3.4×1.6cm
◆ Weight: 40g
◆ Working environment: -20 to 65C0 (0%to95%RH)
Application fields:
◆ Point to point RS-232 communication
◆ Multi-user system
◆ Remote terminal
◆ Multi-user terminal connected with host
◆ RS-232 remote control system
◆ Program controlled exchanger charge terminal
◆ Satellite receiver
◆ Remote page system

Interface: one port conforms to EIA RS-232 and CCITT V.24

Asynchronous protocol, the other uses special 4-core cooper wire

Connector: one side of RS-232 uses DB9 hole connector
The circuit side uses DB9 pin connector
Transmission mode: asynchronous, full duplex or simplex

Distance: 24AWG lead for 12KM @600BPS
24AWG lead for 1KM @38.4KBPS
24AWG lead for 100M @57.6KBPS

Isolation voltage:3500@1S or 7500V impulse
Speed: maximum asynchronous 57.6KBPS
Power supply: serial port self power supply
Size: 6.8×3.4×1.6cm
Weight: 40g
Working environment: -20 to 65C0 (0%to95%RH)

Connectors and signals
DB-9 female connector on the RS-232 side and DB-9 male connector on the line side.

RS-232 Side:

Connector: DB-9 Female.

Signals: Use Pins 3 (RD) and Pin 2(TD also called SD) Pins 7 (RTS) and Pin 8 (CTS) are tied together Pins 4 (DTR), 6 (DSR), and 1 (CD) are tied together.

Line Side:Use Pin2(R+),Pin3(T+),Pin4(T-),Pin5(R-)

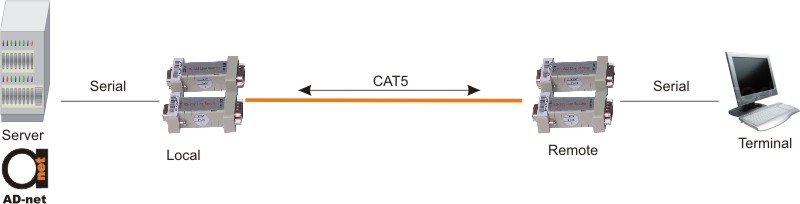

Application

AN-EXT-RS-232

RS-232 signal extender

Description

AN-EXT-RS-232 extends full-duplex transmission of asynchronous data over four wires (two twisted pairs). The data transmission between each line driver utilizes differential signaling that is immune to electrical interference and therefore makes it ideal for use in light manufacturing and industrial office areas. It can run up to speeds of 57.6 kbps
