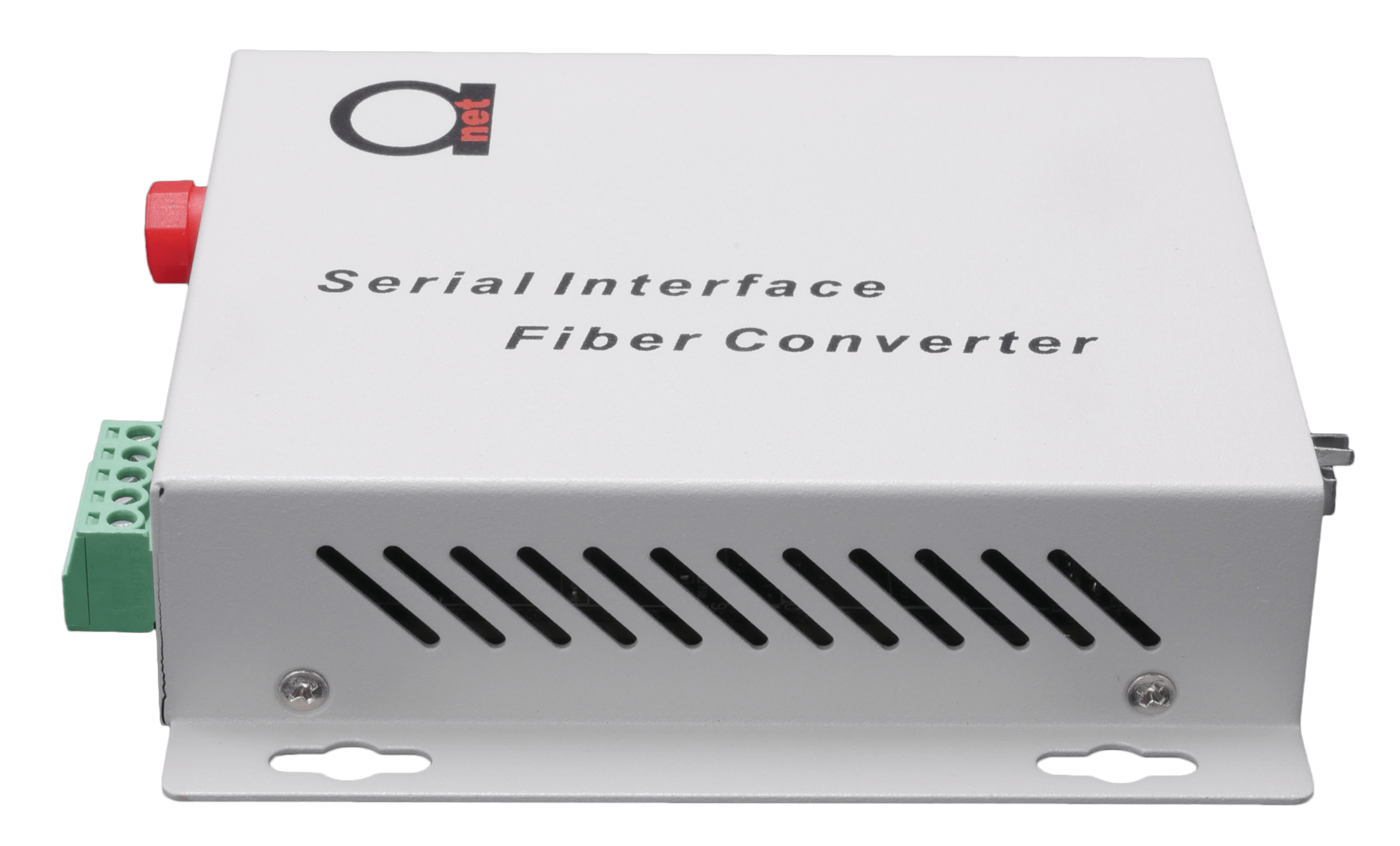

RS-232 / RS-485 / RS-422 Screw Pin Terminal Type Serial Over Fiber Converter / Extender

The AN-FM-RS232-M, AN-FM-RS422-M, AN-FM-RS485-M family serial fiber modems-converters are standalone and rack mountable fiber 1 x RS232 / RS-422 / 485 modems available in a number of different models, with AC or DC power supplies built-in. The AN-FM-RS (M) family of modems may be applied in point-to-point applications or they may be installed and linked to a centrally located AN-CH07 chassis.

Optical interface parameter:
optical wavelength: 850/1310nm for multi-mode fiber, 1310/1550nm for single-mode fiber.
optical interface: SC/FC/ST (Optional)
transceiver module: > -6dBm
optical receiver sensitivity: -30dB
transmission distance: multi-mode 2 Km, single-mode 20/ 40 / 60 / 120 Km.

RS 232 interface:
Interface character: RS-232
Interface Rate: 0 – 115.2Kbps
Connector: Lotus D type screw terminal for serial pins connection

RS 422 interface:
Interface character: RS-422
Interface Rate: 0 – 115.2Kbps
Connector: Lotus D type screw terminal for serial pins connection

RS 485 inerface:
Interface character: RS-485
Interface Rate: 0 – 115.2Kbps
Connector: Lotus D type screw terminal for serial pins connection

Power:
DC: -48V (-36 to -72V); +24 V (Optional)
AC: 90 to 260 VAC ; 47 ~ 63Hz

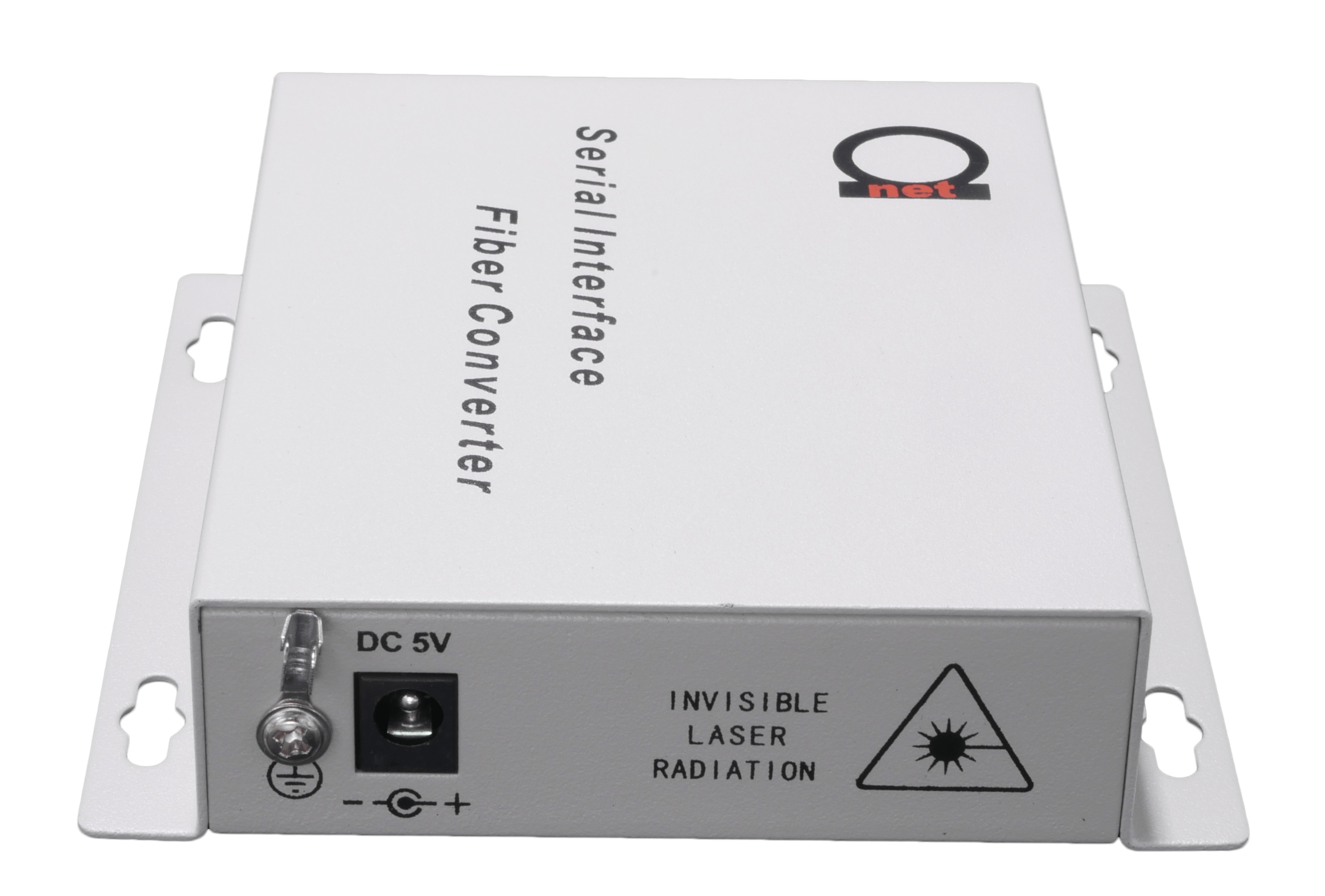

Power Interface: DC power terminal/AC socket
Power Consumption: 2 W maximum

Working environment:
Operating temperature: 0 to 70°C
Storage temperature: -40 to +80°C
Relative humidity: 5% to 90% (25°C no condense)

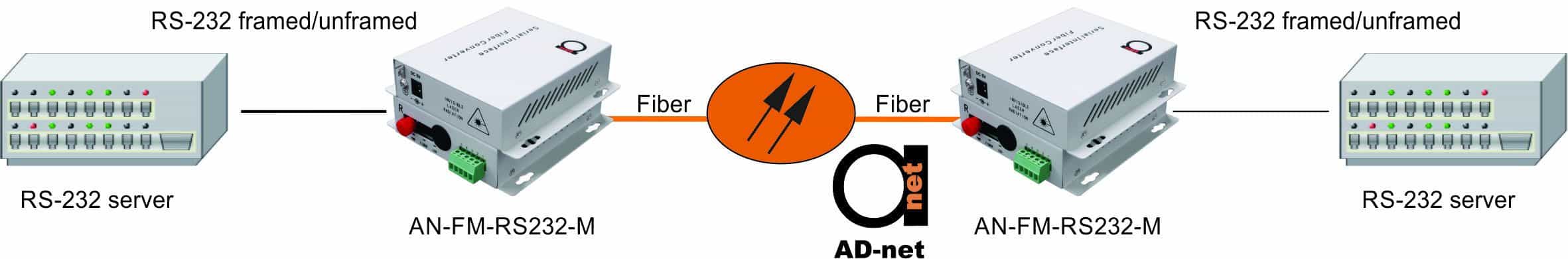

Application:

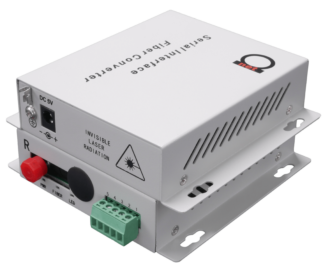

You’ll get green lotus terminal jacks in set when you get units, so just use screwdriver to connect pins and you are good to go, just as we show in video

AN-FM-RS-232-M	RS-232 over fiber modem, DC or AC power, any fiber type and distance available
AN-FM-RS-422-M	RS-422 over fiber modem, DC or AC power, any fiber type and distance available
AN-FM-RS-485-M	RS-485 over fiber modem, DC or AC power, any fiber type and distance available

Description

Fiber modem can be connected with RS232 ( or RS-485, RS-422) port of computer or other devices, small and flex. solve the problem of traditional RS232, RS-485 or RS-422 communication conflict between distance and rate. Electromagnetic interfere, lightning interfere ,improve the reliability ,safety,and security of data communication, suitable for industrial control, procedure control,and traffic control,especially for system in bank, electric, and environment which having special requirement for electromagnetic interfere.
Possible applications can be military control, industrial control,traffic control,video control, distribute data acquisition system,electric acquisition and control system, intelligent district , highway charging system.

Additional information

Port Quantity	1
RS-232	Any
RS-422	Any
RS-485	Any
