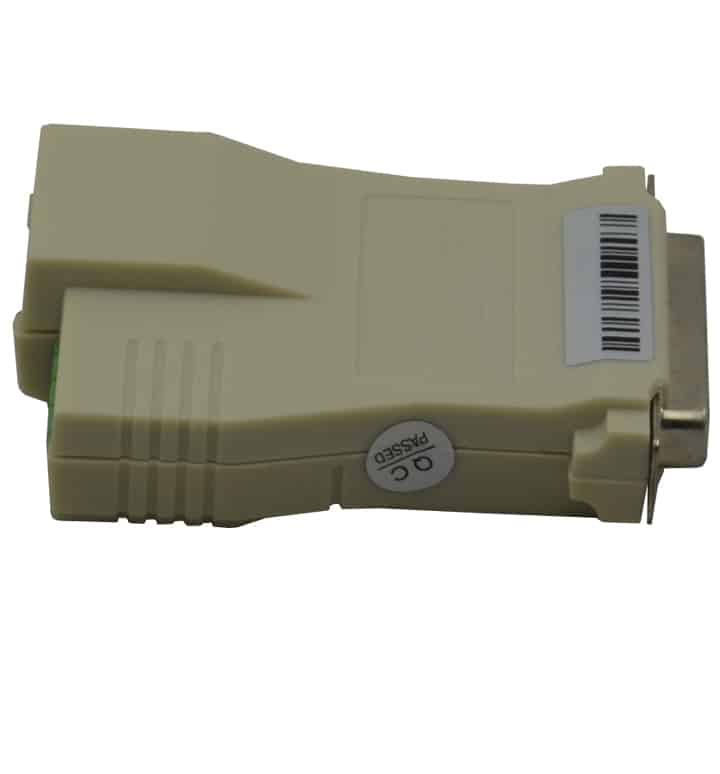

RS-232 to RS-422/485 Isolated bi-directional Interface Converter
The AN-OS-RS-232/422/485 is a series of a bi-directional interface converters. AN-OS-RS-232/422/485 optically isolate and convert unbalanced, full or half-duplex RS-232 signals to optically isolated, balanced, full or halfduplex RS-422 or RS-485 signals at baud rates up to 115.2 kbps. These units also surge suppress the RS-422/485 lines.
● Electric interface: RS-232C interface DB25 hole connector RS-422/485 interface 4-bit terminal or RJ-11 port
● Transmission media: twisted-pair cable or shielded cable
● Working mode: asynchronous half or full duplex
● Signal indication: a dual color signal indication light indicates TD, RD data
● Isolation: isolation voltage 3500VRMS 500VDC sequence
● Power supply: serial port electricity stealing at RS-232 end. External power supply connecting at RS-422/485 end
Application fields:
● Point to point, point to multi-point communication
● Industrial distribution system, industrial control automation
● Road traffic control automation
● Closed circuit monitoring
● Security protection system
● Intelligent card, check on work attendance gate safety system
Interface
Conforms to EIA /RS-232 and RS-422/485 standards.
Connectors and signals

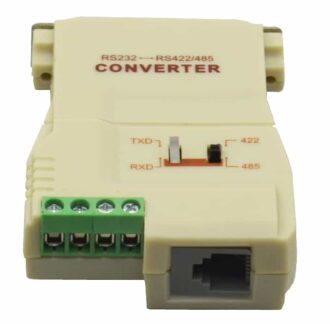

The ATC-107 has a DB-25 female connector on the RS-232 side and a terminal block connector on the RS-422/485 side
RS-232 Side:
Connector: DB-25 Female.
Signals：Unit will be connected into a DTE interface.
Use Pins 3 (TXD)、2 (RXD) and 7 (Near side ground) .
Use Pin 2、4、 20 to power from unit’s RS-232 side.
RS-422/485 Side:
RS-422 Connector: 4 position terminal block : (1)T+ (2)T-、(3)R-、(4)R+.
RS-485 Connector: 4 position terminal block: (1)485+, (2)485-.
Signals: Dual-duplex or Half-duplex two-wire/four-wire operation only.
Data Rate:
300 to 115.2 KBPS, up to 1.2km at 38.4 KBPS.
Sending Control
Unit can use handshake lines to power the converter, no handshaking is required to control the RS-422/RS-485 driver. the RS-485 driver is automatically enabled during each spacing state on the RS-232 side. During the marking or idle state, the RS-485 driver is disabled and the data lines are held in the marking state by the 4.7K Ohm pull-up and pull-down resistors.
Operating Distance
Data Rate (KBPS)： 38.4 19.2 9.6 4.8
Maximum Distance (km)： 1.2 2.0 2.5 3.5 (using 24 AWG wire)

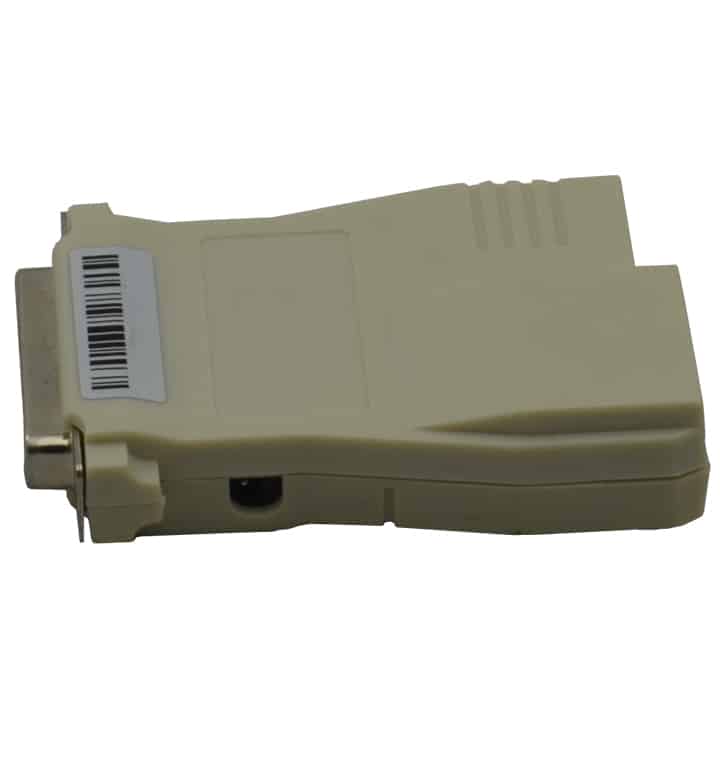

Power
At the RS-422/485 side, unit is powered by an external power supply (+9VDC to +12VDC@200mA) by a AC/DC adapter. At the RS-232 side It powered by RS-232 signals TXD,RTS or DTR. You only need one of these signals, the ground signals in two sides are different.
Switches:
RS-422/RS-485 switch selectable for RS-422/485 operation mode. If you set unit to RS-422 mode, then it can convert the TD and RD signals of RS-232 into balanced Dual –duplex RS-422 signals. If you set unit to RS-485 mode, then it can convert the TD and RD signals of RS-232 into balanced Halfl –duplex RS-485 signals.
LED light
One LED indicates sending data to (RED) or receiving data from (GREEN) RS-422/485 bus.
Isolation:
Optical Isolation is rated at 2500V.
Dimensions:
8mm x 75mm x 20mm
Environment:
0* to 50* C
5% to 95% relative humidity.
| AN-OS-RS-232/422/485 | RS-232 to RS-422/485 Isolated bi-directional Interface Converter |
Description
The AN-OS-RS-232/422/485 is a series of a bi-directional interface converters. AN-OS-RS-232/422/485 optically isolate and convert unbalanced, full or half-duplex RS-232 signals to 0ptically isolated, balanced, full or halfduplex RS-422 or RS-485 signals at baud rates up to 115.2 kbps.
These units also surge suppress the RS-422/485 lines. They feature Send Data Control circuitry so no software control of handshake lines is required in RS-485 mode. AN-OS-RS-232/422/485 has built-in isolators for high voltage (2500V) protection. it provides Point-to-Point, Multidrop and Simplex Operations. AN-OS-RS-232/422/485 can be powered from the DC 9V, 200mA power adapter. One slide switches are used to configure its operation mode.
