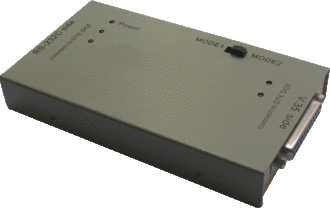

RS-232- V.35 / X. 21 / RS-449 / RS-530 interface converter / protocol converter

AN-RS series interface converter provides RS-232 protocol conversion to V.35, X.21 or RS-449/RS530 interface full-duplex bi-directional mode.

Small sized, easy to use
Transfer rate of up to 384KBPS
At the same time support for synchronous and asynchronous modes
There are LED light the divection of the instructions
Two-way conversion
Connect with cable
Work full-duplex

Interfaces:
standards in line with EIA RS-232 and CCITT V.24
standards in line with V.35(Model AN-RS-232/V35)
standards in line with X.21(Model AN-RS-232/X21)
standards in line with RS-449 and RS-530 (AN-RS-232/RS499)

Cables:
Model AN-RS-232/V35: one DB-25 to M/34 connect cable
Model AN-RS-232/X21: one DB-25 to DB-15 connect cable
Model AN-RS-232/RS499: one DB-25 to DB-37 connect cable

Transfer mode:a synchronous or synchronous,full duplex,full transparency

Rate: up to 384Kbps

Power: two types – active and passive mode. In the Passive mode ports draw power from RS-232(TXD,RTS,or DTR) while in the active mode 9VDC using an external power supply. AC 110/220 VAC adapter supplied in set.

Size:117mm ×76mm ×30mm
Temperature rage:0 to 50 C(0% to 95%)

AN-RS-232/V35	RS-232<->V.35 interface converter
AN-RS-232/X21	RS-232<->X.21 interface converter
AN-RS-232/RS-449	RS-232<->RS-449/RS-530 Interface converter

Description

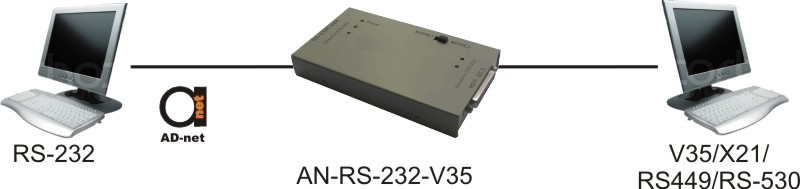

RS-232 signals are transparently converted to any choice of V.35.X.21orRS-449/RS-530) with a datarate of up to 384 kbps.

It is equipped with five LED’s to show status the of both sides of the interfaces. Unit that can work in two modes – passive and active. Thwre are 3 models available:

Model AN-RS-232/V35, which is RS-232<->V.35 Interface converter series unit.

Model AN-RS-232/X21, which is RS-232<->X.21 Interface converter series unit.

Model AN-RS-232/RS-449, which is RS-232<->RS-449/RS-530 Interface converter series unit.

Products have been widely used in such industries like electricity, insurance, telecommunications, banking, security, industrial and other sectors of the various types of communications systems to meet different communication interface of the interconnection equipment.
