SDI repeater is SD-SDI/HD-SDI/3G-SDI real-time; no-delay video signal repeater. Designed for plug-and-play use, it offers hassle free installation and supports wide area of different HD video signals and support automatic cable equalization for rates below 3.2Gbit/s/

  • Video of SD-SDI/HD-SDI/3G-SDI can be repeated real time , no-delay .
  • The Max rate of work is 3.2Gb/s
  • Support SMPTE 292M (2.9Gb/s) clock recovery
  • Support standard of 270Mbps(SD-SDI), 1.485Gbps/M(HD-SDI), SMPTE 425M 3Gb/s Mapping(3G-SDI), SMPTE424M 3Gb/s serial interface(3G-SDI)
  • Automatic cable equalization ,used for all rate below 3.2 Gb/s（Belden 1694A）
  • LED Status Indication to monitor the working conditions
  • The SDI video format support:
    • 625/25 PAL
    • 525/29.97 NTSC
    • 525/23.98 NTSC
    • 720p50, 720p59.94
    • 1080P 23.98/24/30/50/60
    • 1080i 23/24/30/50/59.94

Video

Input/output port channel : 4

Input/out put Connector : BNC-F 75Ω

Input/output voltage: 1.0 Volt p-p

Video Bits Rate: Max 3.2Gb/s



SDI Standards

270Mbps(SD-SDI) ;

1.485Gbps/M(HD-SDI) ;

SMPTE425M3Gb/s Mapping(3G-SDI) ;

SMPTE424M 3Gb/s serial interface(3G-SDI)



Electrical & Mechanical

Power input : DC 5V to DC 24V

Power consumption : <3W

Shipping weight: 0.3Kgs/pcs

(include external power adaptors & package box)

Dimension : 120x92x36mm (L.W.H)



Environmental

Operating Temperature : -10 C~+75 C

Storage Temperature : -45 C~+85 C

Relative Humidity : 0%~95% (non-condensing)

MTBF : >100,000 hours

SDI repeater

AN-SDI-4:4

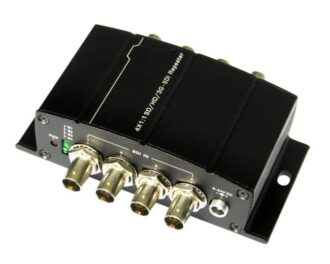

4-Channel SDI 1:1 Video Signal Repeater
AN-SDI-8:8

8-Channel SDI 1:1 Video Signal Repeater

Description

SDI repeater is SD-SDI/HD-SDI/3G-SDI real-time; no-delay video signal repeater. Designed for plug-and-play use, it offers hassle free installation and supports wide area of different HD video signals and support automatic cable equalization for rates below 3.2Gbit/s/

System Design

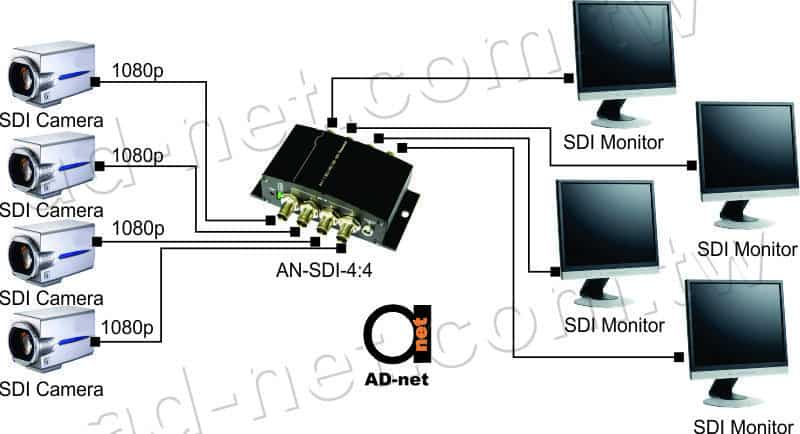

AN-SDI-4:4 series can repeat

4/8-Channel SD-SDI/HD-SDI/3G-SDI real-time; no-delay.
