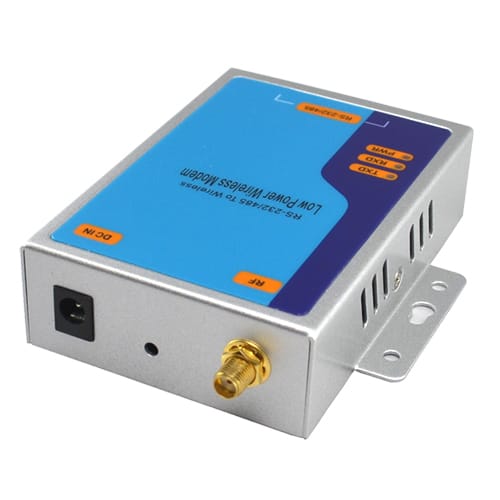

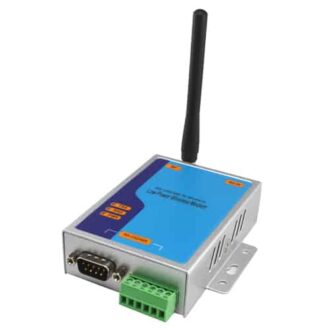

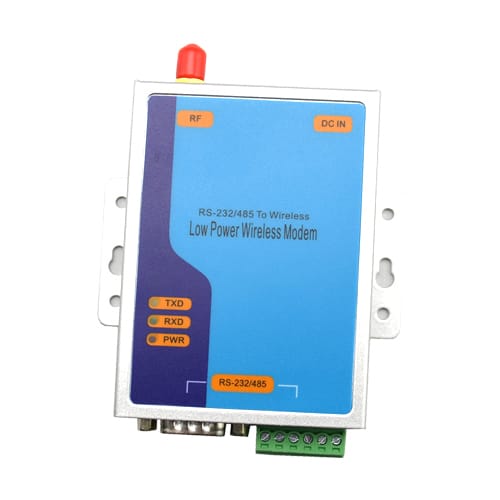

Serial to Wireless Digital Transmission Module

AN-WF-RS-300M/500M/1000M/2000M wireless digital transmission module offers standard RS-232, RS-485 and UART/TTL level interfaces for direct connection with computers, use's RS-485 equipments, SCM or other UART parts.

Ultra low power transmission
ISM frequency band, not requiring on application of frequency point
High ani-interference and low BER (Bit error Rate)
Long transmission distance
Transparent data transmission
Multi-channel and speed
Low power consumption
High speed wireless communication and large data buffer
Intelligent data control and the user doesn’t need to prepare excessive programs
High reliability, small and light
Watchdog monitor
Antenna choose

Technical Characteristics
Modulation mode		FSK/GFSK
Working frequency		433MHz/868MHz/915MHz
Transmission power		AN-WF-RS-300M/500M	100mW
		AN-WF-RS-1000M	500mW
Receiving sensitivity		AN-WF-RS-300M	-110dBm
		AN-WF-RS-500M	-121dBm
		AN-WF-RS-1000M	-123dBm
Transmitting current		AN-WF-RS-300M/500M	<360mA
		AN-WF-RS-1000M	<75mA
Receiving current		AN-WF-RS-300M	<11mA
		AN-WF-RS-500M	<30mA
		AN-WF-RS-1000M	<45mA
Sleeping current		AN-WF-RS-300M/500M	<10uA
		AN-WF-RS-1000M	<1mA
Channel speed rate		AN-WF-RS-300M	1200/2400/4800/9600/19200bps
		AN-WF-RS-500M/1000M	1200/2400/4800/9600/19200/38400bps
Interface speed rate		AN-WF-RS-300M	1200/2400/4800/9600/19200bps
		AN-WF-RS-500M/1000M	1200/2400/4800/9600/19200/38400bps
Change time for receiving and sending		<10ms
Interface data format		8E1/8N1/8O1
Power Supply		9-12V@200mA
Physical Characteristics
Installation		DIN-Rail Mounting
Housing		Iron (1mm)
Weight		0.6kg
Dimensions		100 × 86 × 26 mm(3.94 × 3.39 × 1.02 in)
Environmental Limits
Operating Temperature	-20 ~ 70°C (-4 ~ 158°F)
Storage Temperature	-40 ~ 85°C (-40 ~ 176°F)
Ambient Relative Humidity	5% to 95%(non-condensing)
Standards and Certifications
RoHS, CE, FCC

Pin Assignment

RS-232 DB-9(Male)

pins

PIN	RS-232
1/4/6/9	–
2	RXD(in)
3	TXD(out)
5	GND
7	CTS(out)
8	RTS(in)

RS-485/422 6-pin Terminal block

1	2	3	4	5	6
485+(T+)	485-(T-)	R+	R-	VCC(9~32VDC)	GND

antennasss

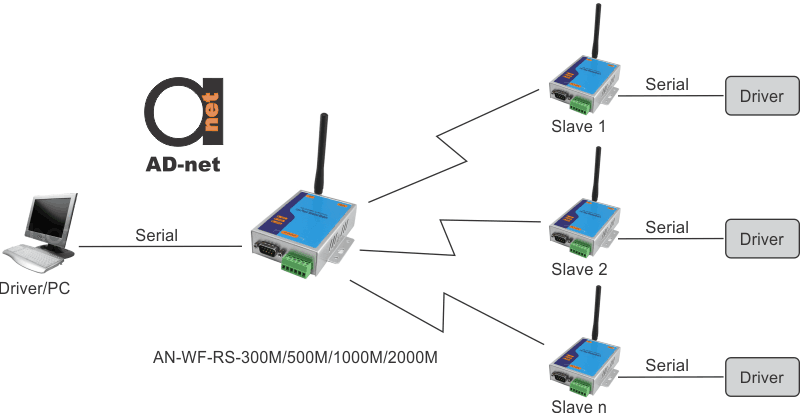

AN-WF-RS-300M_scheme

AN-WF-RS-300M	Mini Power Wireless Module 300 meter
AN-WF-RS-500M	Mini Power Wireless Module 500 meter
AN-WF-RS-1000M	Mini Power Wireless Module 1000 meter
AN-WF-RS-2000M	Mini Power Wireless Module 2000 meter

Description

AN-WF-RS-300M/500M/1000M/2000M has adopted half duplex communication channel most suitable for point to multi-point communication mode. The primary station takes full control of communication harmony, and adopts data frames with address codes for data or command transmitting. The secondary station shall fully receive them and select response by comparing address codes; all the work shall be fulfilled by upper layer protocols, which shall ensure that only one wireless module in the communication network is in the transmitting state in any instant to avoid mutual interference. Therefore, the transmission channel built by AN-WF-RS-300M/500M/1000M/2000M is transparent to the user. AN-WF-RS-300M/500M/1000M/2000M can also be applied to point to point communication, making it easier and smoothly upgrade wire (RS232/485/TTL) transmission mode in original system.
