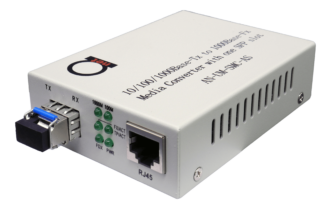

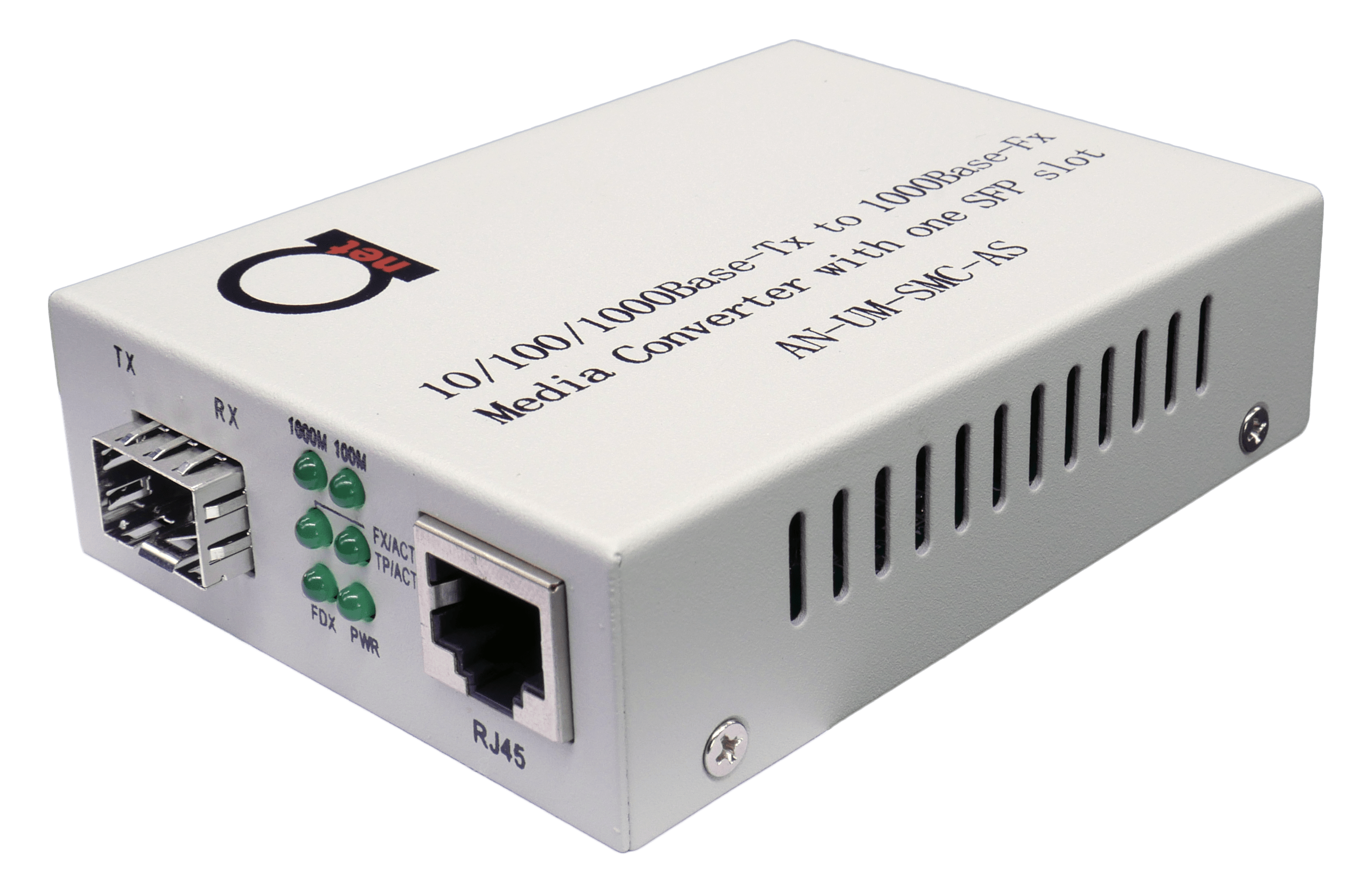

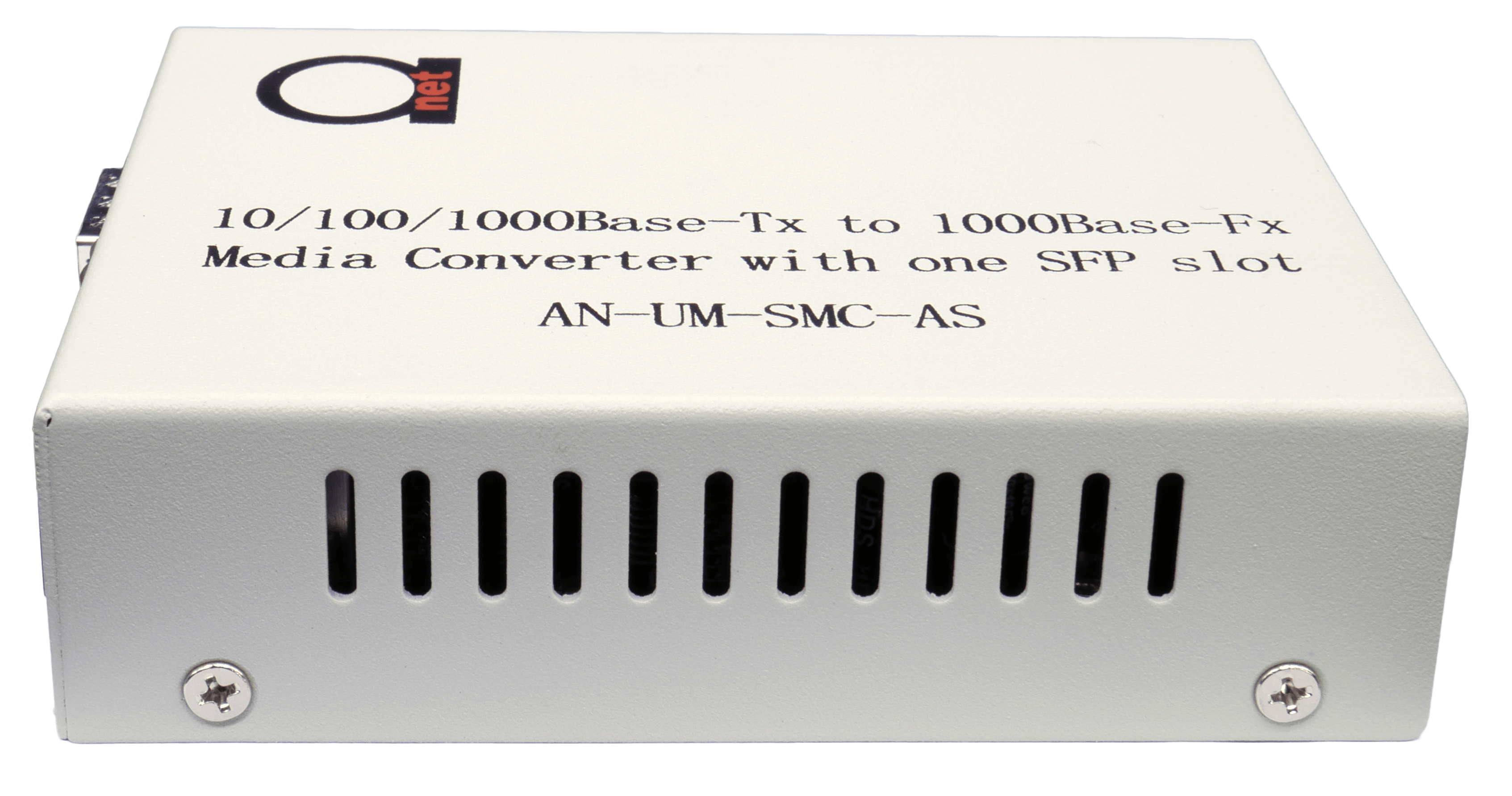

SFP module slot media converter
AN-UM-SMC series media converters are effective solution, when fiber uplink interface is needed to change frequently, or network re-design is necessary. AN-UM-SMC media converters offer 1 10/100/1000 twisted pair slot and 1 SFP module universal socket.
- Compliant with IEEE 802.3 10BASE-T, 802.3u 100BASE-TX, 100BASE-FX Ethernet Standards.
- Provide one 10/100BASE-T port or 1 10/100/1000 port (depending on model) with RJ-45 connector;
- Provides 1 slot for universal SFP modules, all major SFP brands are supported;

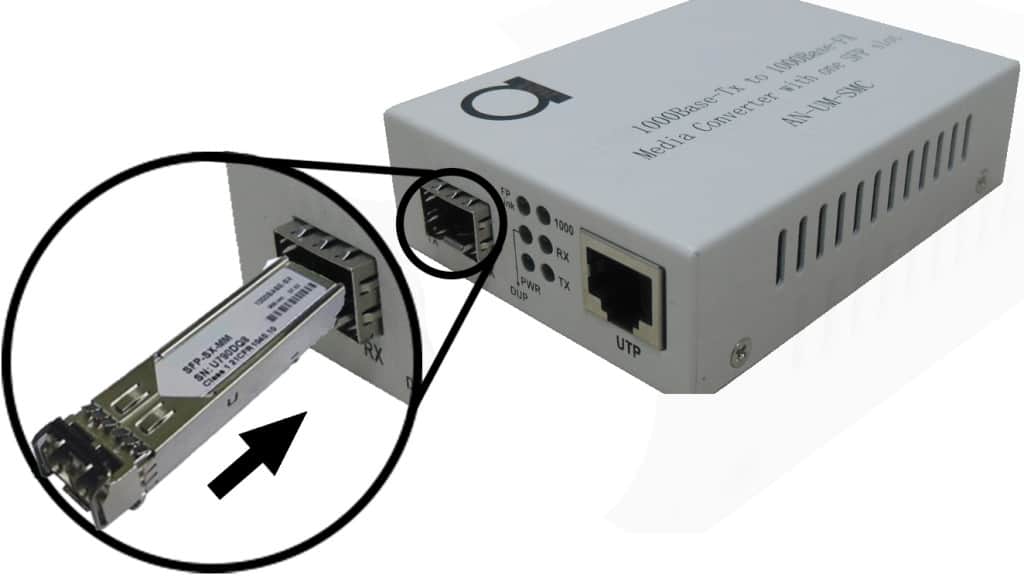

- Supporting hot-swap of SFP modules;
- Front panel Diagnostic LED Indications;
- Can be installed in AN-CH05 chassis – universal type casing
- Supports Auto MDI / MDI-X function
- Supports Jumbo Frames, MPLS packed size, brand new chipset is used
| Standard |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX, 100BASE-FX, 1000Base-Tx, 1000BaseTx |
| Network Media |
10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 m (328 ft) 100BASE-TX: 2-pair UTP Cat. 5, up to 100 m (328 ft) 1000BASE-TX: 2-pair UTP Cat. 5, up to 100 m (328 ft) 9/125μm or 10/125μm single-mode fiber optic cable, up to 120km |
| Protocol |
CSMA/CD |
| Topology |
Star, point to point |
| Number of Ports |
1 x 10/100BASE-TX auto-negotiation, auto-MDIX 1 x SFP slot |
| Network Data Transfer Rate |
10/100/1000Mbps (Full-duplex) |
| Diagnostic LEDs |
Per Unit : Power Per port: Link/Activity, Full-duplex/Collision, Speed (only for TX port) |
| Connectors | UTP RJ-45, SC/ST Fiber connector |
| Fiber port |
SFP standard slot |

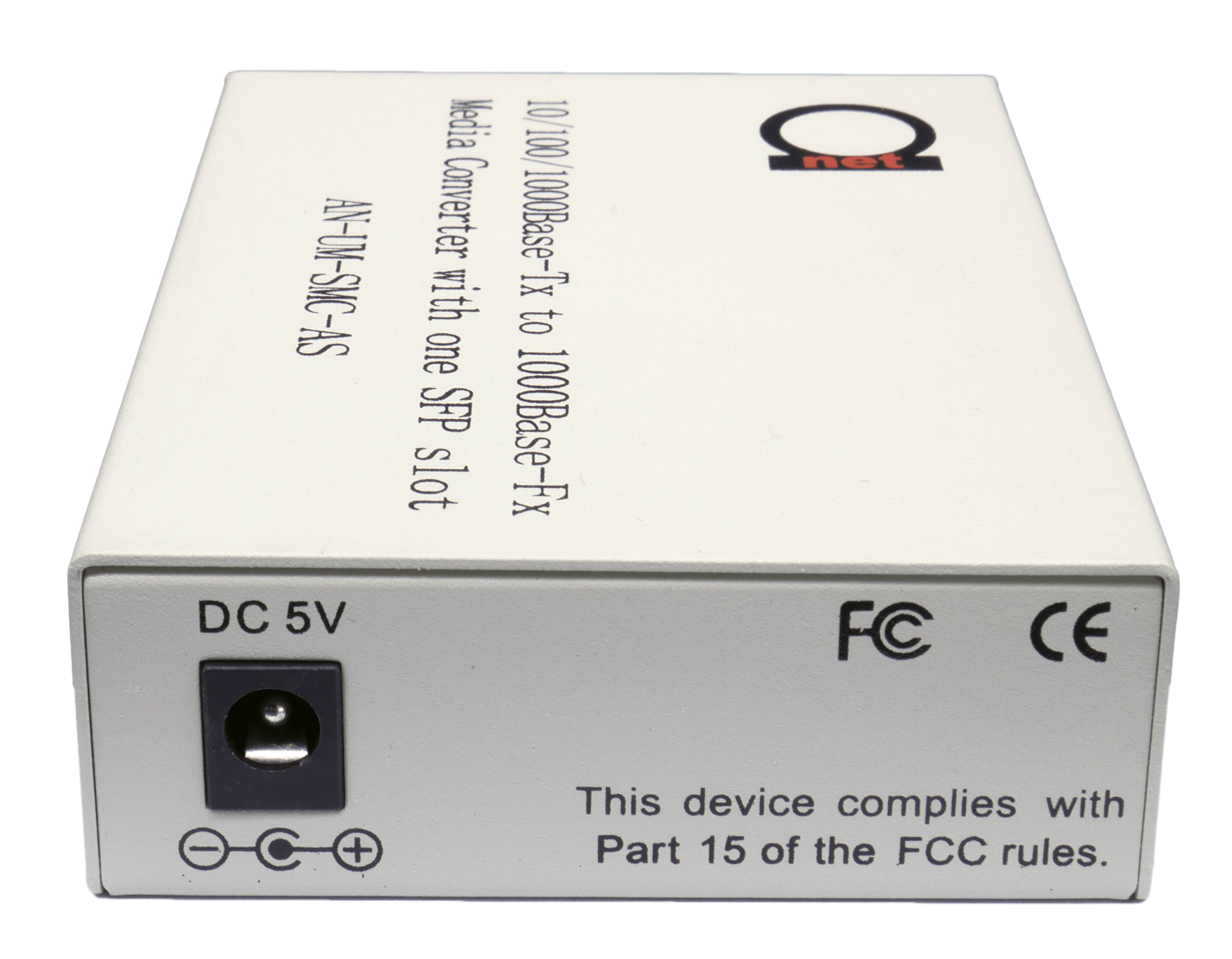

| Power |
External 5V DC 1A |
| Dimensions (WxDxH) |
70.6 x 94.2 x 26mm |
| Temperature |
Operating: 0 ~ 40 C Storage: -10 ~ 70 C |
| Humidity |
Operating: 10% ~ 90% RH Storage: 5% ~ 90% RH |
| Emission |
FCC Class B CE mark Class B VCCI-B |

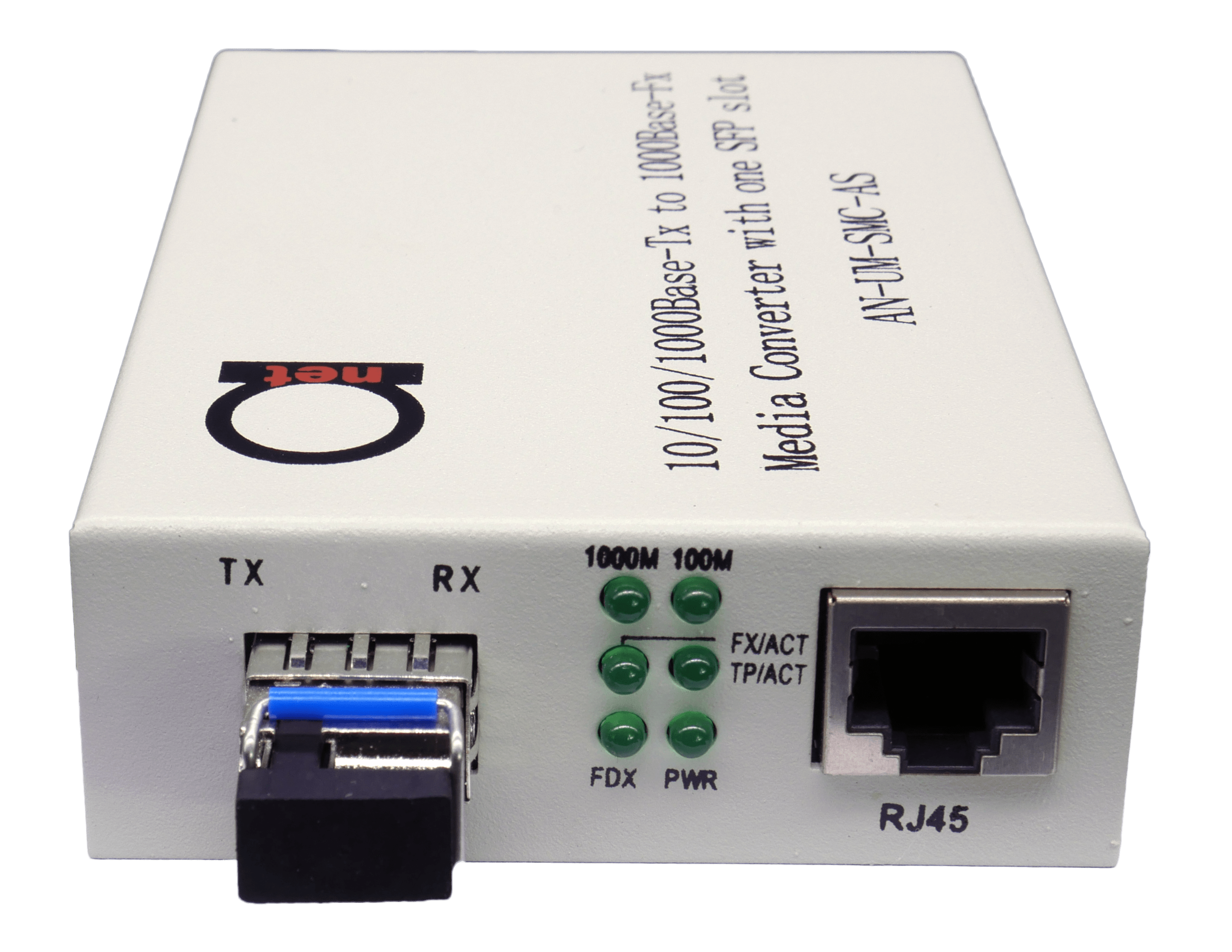

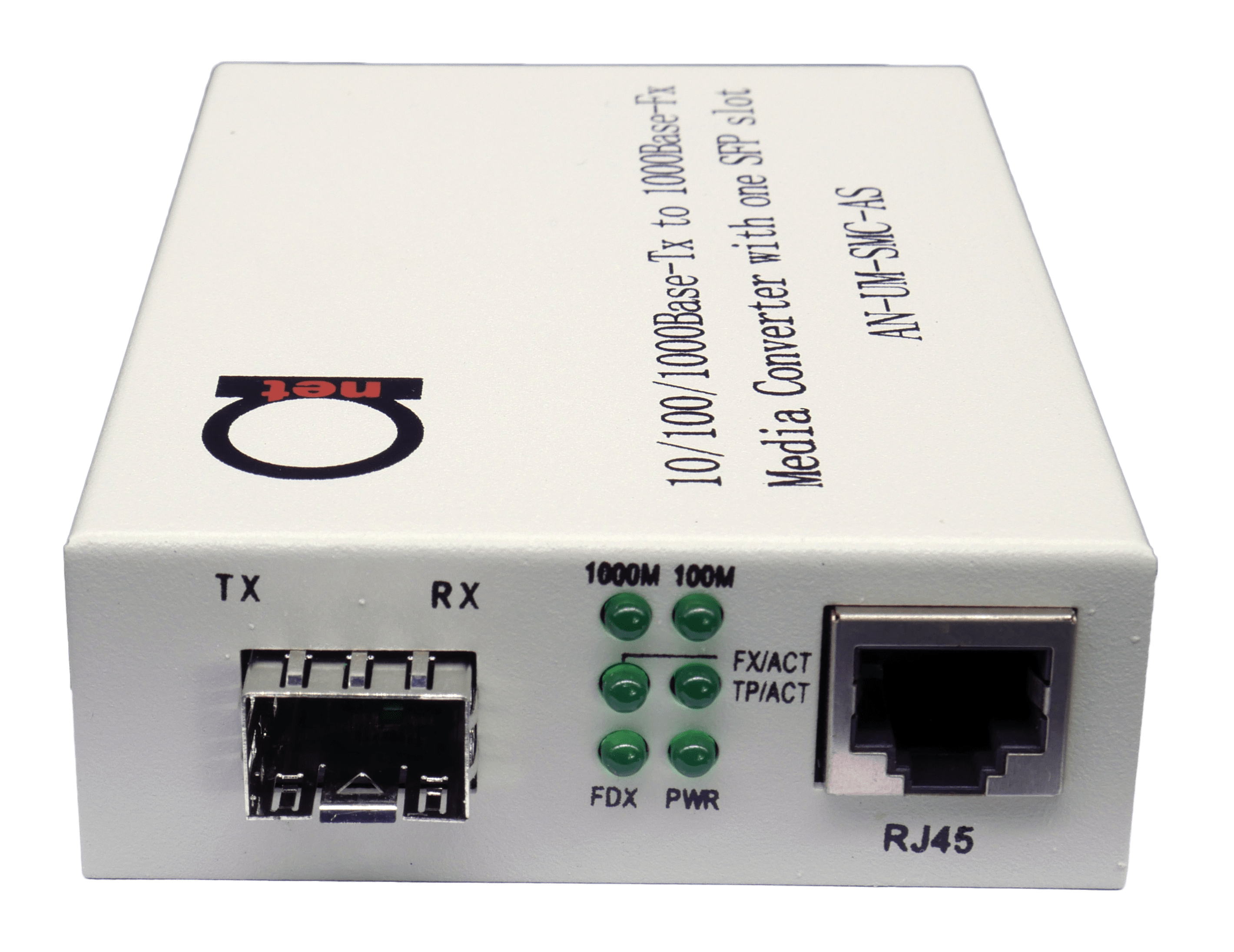

Supported LED indications:
|
LED indicator lamp |
Status |
Explanation | |
|
1 |
FX Link/Act |
On |
Connection status display for fiber link. “ON” indicates that Fiber link is in correct connection. |
|
Blink |
Active status display of fiber link “Blink” indicates packet goes through Fx end. |
||
|
2 |
TX Link/Act |
On |
Connection status display for electric link. “ON” indicates that electric link is in correct connection. |
|
Blink |
Active status display of fiber link “Blink” indicates packet goes through Tx end. |
||
|
3 |
FDX/COL |
On |
Transceiver works in the full duplex mode. |
|
Off |
Transceiver works in the half duplex mode. | ||
|
4 |
PWR |
On |
Power is on and normal. |
|
5 |
SD |
On |
Fiber signal is detected. |
|
6 |
100M |
On |
Transfer rate of electric interface is 100Mbps. |
We have several versions of these SFP slot converters, and depending on your model, you might or might not have a dip switch on back side to turn on or off LFP (LFF) feature. In case you have, then here’s a demo how converter will behave while having it’s default settings on – i.e LFP off.
Now, compare how media converter behaves when you switch LFP (LFF) feature ON
Testing & Installation tutorial video:
| AN-UM-AS-SMC | 10/100/1000m media converter with one SFP slot ,external power,without SFP module |
|
| AN-UM-SMC100 | 10/100M media converter with one SFP slot ,external power,without SFP module |
Description
AN-UM-SMC series media converters are effective solution, when fiber uplink interface is needed to change frequently, or network re-design is necessary. AN-UM-SMC media converters offer 1 10/100/1000 twisted pair slot and 1 SFP module universal socket.
Using an SFP-based media converter, a switch or router with copper interfaces can be attached to single-mode fiber optic cabling to reach extremely long distances (for example up to 80km for Gigabit Ethernet, as opposed to 100 m for copper or 500 m for multimode fiber).
Additional information
| Gigabit 10/100/1000 Autosensing | Any |
|---|---|
| Fast Ethernet 10/100 | Any |
| SFP slot | 1 |
