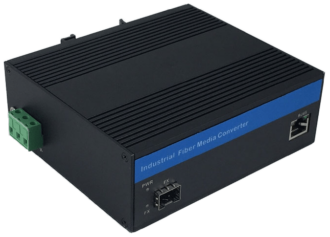

SFP slot based Fast Ethernet Industrial Grade Fiber Media Converter

AN-UM-I-SMC100 series is the 10/100 Mbps industrial fiber switch, operating temperature-40 ℃ to + 85 ℃, support wide voltage dual power input, meet IP30 protection degree and EMC industrial grade requirements, DIN rail installation, pass through dangerous environmental certification and comply with FCC and CE standards. The reliable industrial grade design could ensure continuous and stable operation of the automation system.

1 x 10/100Mbps Auto-sensing RJ45 ports
1 x 100Mbps SFP fiber ports
4 KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
A store-and-forward switching mechanism
Operating environment temperature:-40 ° ~85 ° c

Product Name	10/100Mbps Industrial Fiber Media Converter (1TP+1F)
Model No.	AN-UM-I-SMC100
Port	1 x 100Mpbs SFP port SM：1310nm/1550nm，20Km 1490nm/1550nm，40~120Km MM：1310nm，2Km 1×10/100M UTP RJ45（Support MDI/MDIX auto-sensing）
Switching features	Transmission mode：storage and forward System bandwidth：40Gbps (non-traffic jam)
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port，transmission distance: 20Km，40Km，60Km，80Km，100Km
LEDs	Power, network, fiber
Power supply	Input voltage：DC 12-36V No-load power：5W Reverse connection：support
Environment	Working temperature：-40°～ 85°C Storage temperature：-40°～ 85°C Working humidity：10%～90%，non-condensing Storage humidity：10%～95%，non-condensing
Industry Standards	EMI：FCC Part 15 Subpart B Class A，EN 55022 Class A EMS：EN 61000-4-2 (ESD) Level 3，EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3，EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3，EN 61000-4-8 Traffic Control：NEMA-TS2 Vibration：IEC 60068-2-6 Freefall：IEC 60068-2-32 Shock：IEC 60068-2-27 Rail Traffic：EN 50121-4
Safety	CE Mark ,commercial CE/LVD EN60950
Mechanical information	Shell：Corrugated metal shell Safety class：IP30 Dimension：118 x 138.5 x48mm Mounting method：Din-rail mounting
Warranty	Replacement within 1year; 5 years repairing

AN-UM-I-SMC100

Industrial Grade 10/100Base‐TX to 100Base‐FX Media Converter Fx: SFP
