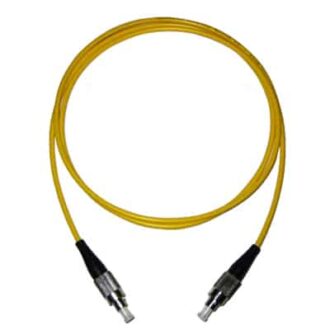

ST – ST patchcord / Single mode

ST - ST single mode patchcord, any lenght available, simplex or duplex, APC or UPC polish

  • ST-ST connectors
  • For pigtails, one side of ST only;
  • Simple or Duplex version on request;
  • UPC or APC polish available;
  • Any other connector type at another side upon request;
  • Fan-out on request
  • Superior quality standard PC/UPC/APC polishing
  • 100% Optic test (Insertion Loss & Return Loss)
  • 0 % returns, no DOA’s in 5 year period
  • 0.9mm, 2.0mm and 3.0mm cable optional

Mechanical
Simplex indoor cable 2.9 mm
Weight 7.8 kg/km
Tension resistance Short term 500 N
Long term 300 N
Min. curling radius Loaded 5.0 cm
Unloaded 3.0 cm
Crush rest 750 N/cm
Storage temperature -40℃ to +80℃
Operating temperature -20℃ to +80℃



Optical performance
Measurement parameters for Singlemode (1310 nm) Multimode (850/1300nm):
Optical Insertion loss UPC APC PC
≤0.2 dB ≤0.2 dB ≤0.5 dB
Return loss ≤-50 dB ≤-60 dB ≤-30 dB
Mechanical Changeability <0.2 dB
shake Δ < 0.1 dB (5~50 Hz, 1.5 mm Amplitude)
Interferometer Apex offset ≤50um
Radius of curvature 10mm-25mm (Zirconia Ferrule 2.5mm PC polishing)
7mm-25mm (Zirconia Ferrule 1.25mm PC polishing)
Undercut Comply to IEC and BELLCORE Standard
Operating temperature -20℃ to +80℃
Storage temperature – 40℃ to +85℃



Length Tolerance:
Less than 1 m +3 cm/-0 cm
1 m to less than 5 m +5 cm/-0 cm
5 m to less than 20 m +10 cm/-0 cm
Greater than 20 m +20 cm/-0 cm





For Patchcords:

  1-Patch(PA) 2-first conectors type, SC, ST, FC, LC, MTRJ and etc. 2-first conectors type, SC, ST, FC, LC, MTRJ and etc. 3-Polish type of first conectors PC(P), UPC(U), APC(A) 4-Polish type of second conectors PC, UPC, APC 5-Patchcord type SM(single mode), MM(multi mode) 6-meters 7-Simplex(S) or Duplex(D)

Letter: PA SC SC U U SM 2 D

For example: PASCSCUUSM2D- Patchcord SC-SC UPC SM 2m Duplex

For Pigtails:

  1-Pigtail(PI) 2-conectors type, SC, ST, FC, LC, MTRJ and etc. 3-Polish type of first conectors PC(P), UPC(U), APC(A) 4-Pigtail type SM(single mode), MM(multi mode) 5-meters

Example PI SC A SM 3

For Example: PISCASM3- Pigtail SC APC SM 3m

Description

A flexible piece of cable terminated at both ends with plugs. Used for interconnecting circuits on a patchboard, in a wiring closet, or at the work area. SC – ST multi mode, UPC/APC polish, any lenght available at highest quality.



Applications:



Fiber optical networks
Data transmission networks
Computer networks
Cabling systems
ODF’s of optical transmission systems
Video over fiber applications
Multimedia fiber accessories
